Tiller Mid Mount Guard ??

[Moparfanforever 844]

Is there a guard for this ?? Anyone have a picture of one ?? Anyone have one for sale if they made any  ??



The bracket with the spring on it doesn't have the piece on it like the other style i

have seen.

[lynnmor 7,302]

You can buy the parts here.



The newest models had the guard, older ones were made without.

[Moparfanforever 844]

I did talk to Lowell about a guard for this style tiller mule drive and he said WH did make one but he hasn't had one to reproduce it ??

[stevasaurus 22,712]

Maybe @gwest_ca knows which tiller has the guard and has a copy of the IPL with a picture and part number??

[gwest_ca-(File Mod) 11,036]

https://www.partstree.com/models/79370-toro-36-tiller-for-300-series-garden-tractors-sn-039000001-039999999-1993/pulley-assembly-2/

[Moparfanforever 844]

46 minutes ago, gwest_ca said:

https://www.partstree.com/models/79370-toro-36-tiller-for-300-series-garden-tractors-sn-039000001-039999999-1993/pulley-assembly-2/

The mule drive shown in the parts tree assembly is the newer style and different from mine. Lowell does offer this style.



My mule drive doesn't have the flat metal piece bent over for a guard.

[Moparfanforever 844]

I looked on parts tree and found the parts list for a 1975 tiller and it shows a mule drive like I have and lynnmor is right, it shows no guard in the picture.





[gwest_ca-(File Mod) 11,036]

1980-1982 model 07-36TL01

https://www.partstree.com/models/07-36tl01-toro-36-tiller-1980/tiller-36-in-92-cm-vehicle-identification-number-07-36tl01-1/

[Moparfanforever 844]

1 hour ago, gwest_ca said:

1980-1982 model 07-36TL01

https://www.partstree.com/models/07-36tl01-toro-36-tiller-1980/tiller-36-in-92-cm-vehicle-identification-number-07-36tl01-1/

Well , there it is !! Thanks  !!

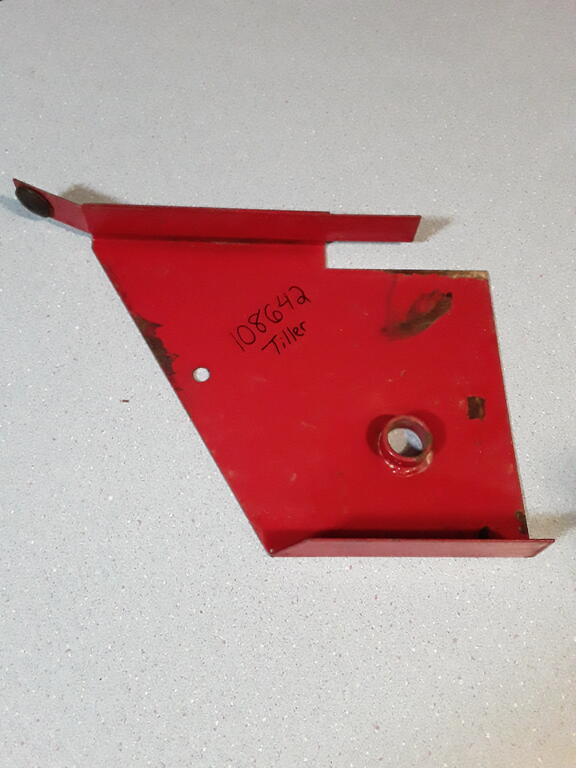

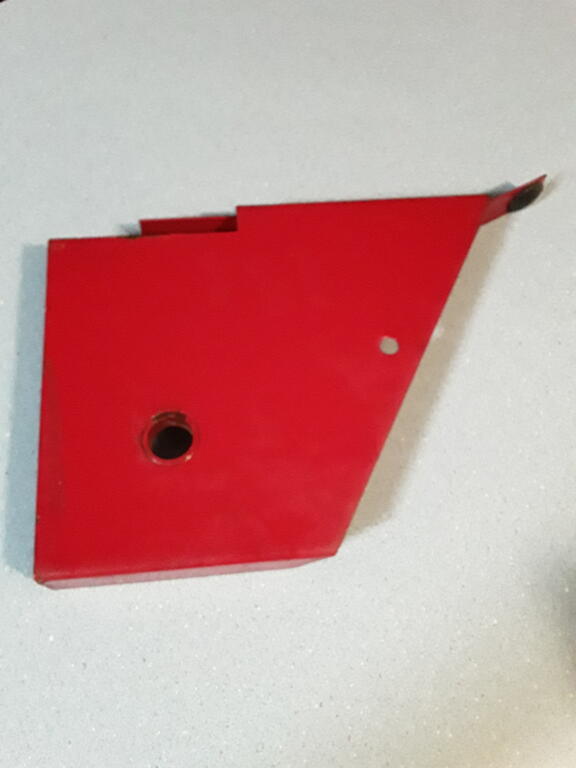

[76c12091520h 3,608]

[Moparfanforever 844]

Thanks K&B !!
