414-8 unidrive F plate replacement

[ri702bill 8,564]

13 hours ago, Mustang67ford said:

702bill on the side rails where you bolted the bracket for the angles, did you drill them out to a larger size?  Mine has smaller holes and the bolts for the tunnel seem to tap into the rails; no nuts on the other side.

I used the existing 5/16-18 tapped holes with longer hex bolts. the threads protrude inside the frame, slip the bracket on over them, then flat washers and nylock nuts



[Mustang67ford 234]

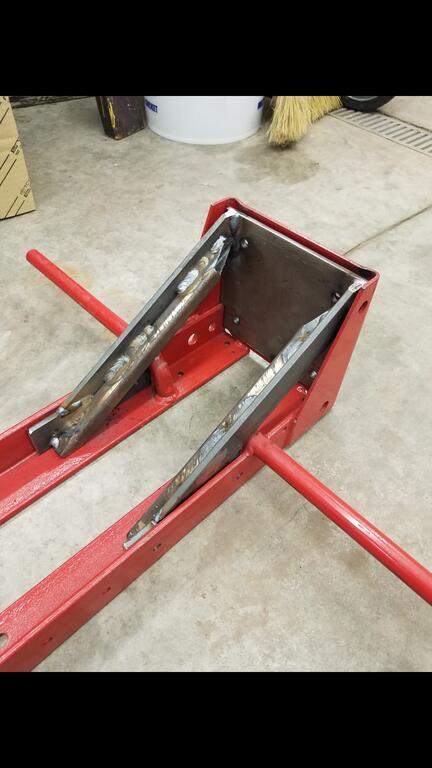

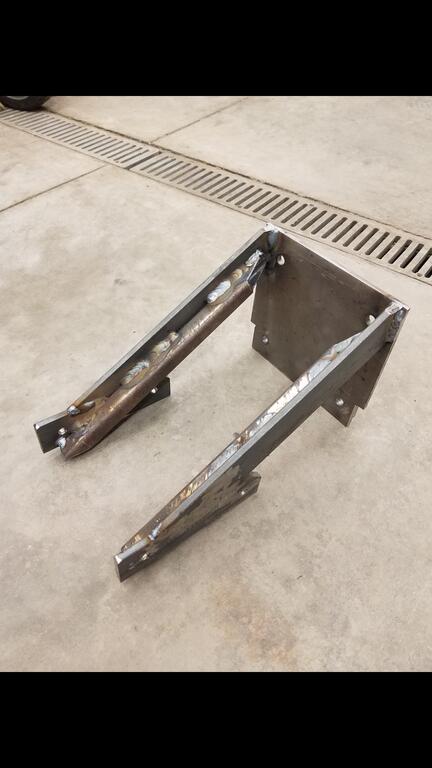

Here is my F plate reinforcement ready to be cleaned up and painted.  Was going to try to also bolt to the 2 bottom holes in the side of the f plate, but dont really see any benifit.

Edited March 20, 2022 by Mustang67ford
