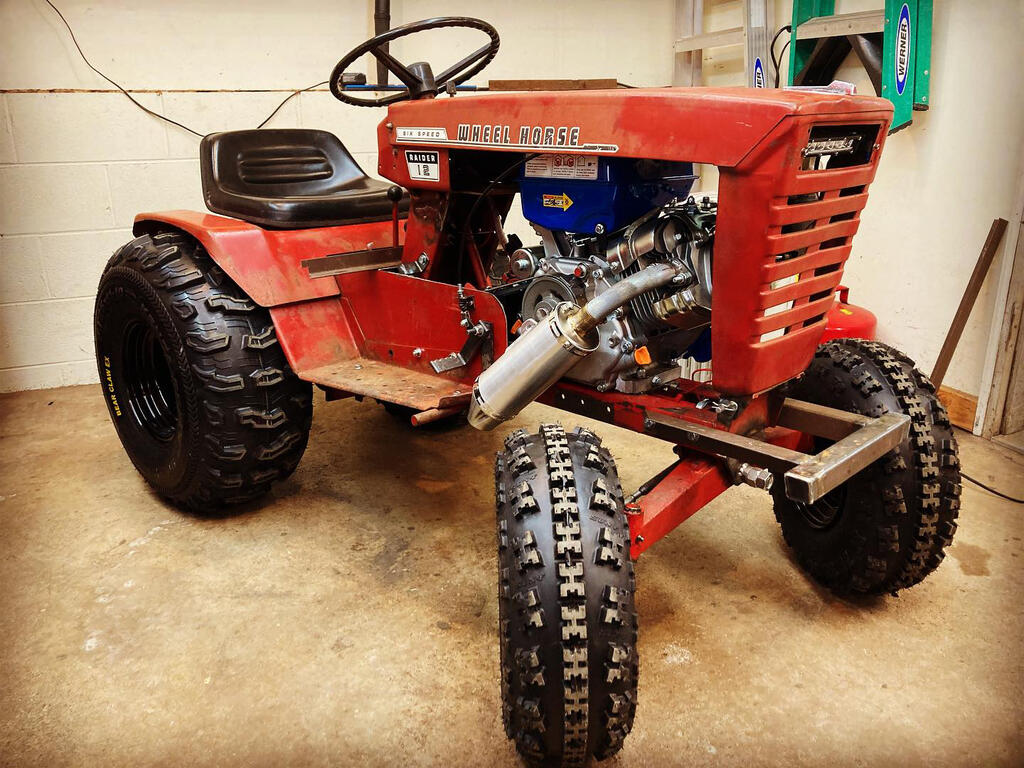

Modified Off Road Raider 12

[Crazy_Carl 254]

I've got a lot of questions and comments about the belt system on my 1969 Raider 12 so I made a video about it.  Enjoy!

https://youtu.be/eJ5Go5iT8Kw

[AMC RULES 37,130]

Dig it!

[kpinnc 12,087]

That's awesome. Reminds me of the original Honda ATC...





[Crazy_Carl 254]

58 minutes ago, kpinnc said:

That's awesome. Reminds me of the original Honda ATC...

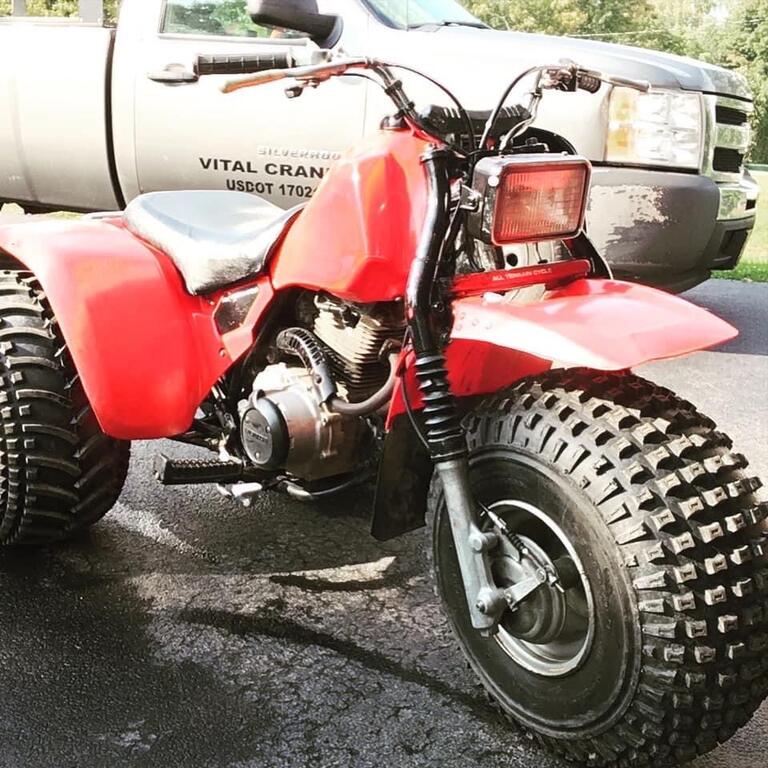

you’ll never guess what I have parked next to it in the garage…

[kpinnc 12,087]

A Big Red!



Such a cool toy!

[Pullstart 62,906]

The video was spot on.  Great explanation and well thought out!

[ebinmaine 67,596]

Absolutely agreed. Very impressive.

I realize you borrowed the idea from a couple other guys. Your execution of it is very very good.



I'm sure you've already heard it 100 times but just remember these transmissions are NOT made to be shifted on the fly.



Anytime you feel anything but perfect buttery smooth shifting that's a tiny bit more damage...

One great advantage you have with the throttle pedal being on your foot is being able to control RPM so you can teach yourself where the proper shift points are. We do that with commercial trucks.





I'll be looking forward to you getting this out for some seat time and keep us all posted as to how it goes.

I hit subscribe on YT.

[roadapples 6,983]

Headlight looks familiar...

[Crazy_Carl 254]

44 minutes ago, roadapples said:

Headlight looks familiar...

which headlight?

[slim67 2,735]

Nice build.

[AMC RULES 37,130]

  No video yet of this thing in action?

[ebinmaine 67,596]

34 minutes ago, AMC RULES said:

  No video yet of this thing in action?





Get this Beast out tooling around Carl. We want to see it driving.

😀

[Crazy_Carl 254]

5 hours ago, ebinmaine said:





Get this Beast out tooling around Carl. We want to see it driving.

😀

I want to do an overview video once I get the exhaust done and I will include some action shots.  also I plan on riding with some fellow tractor guys in mid February and I’m sure they will get me on video as well.

[ebinmaine 67,596]

2 minutes ago, Crazy_Carl said:

I plan on riding with some fellow tractor guys in mid February and I’m sure they will get me on video as well

When you do that it would be cool if you shared their own YT sites or videos too.



[roadapples 6,983]

23 hours ago, Crazy_Carl said:

which headlight?

The only one on the tractor

[Crazy_Carl 254]

33 minutes ago, roadapples said:

The only one on the tractor

I love it I have the same one on my C-100, it’s perfect for plowing snow at night

[Greentored 3,214]

Hey, get out of here with that thing!

Whats up wild man? Didn't know you were here on the square too!

-Scotty

[slim67 2,735]

7 hours ago, Greentored said:

Hey, get out of here with that thing!

Whats up wild man? Didn't know you were here on the square too!

-Scotty

They’re breeding !

[Crazy_Carl 254]

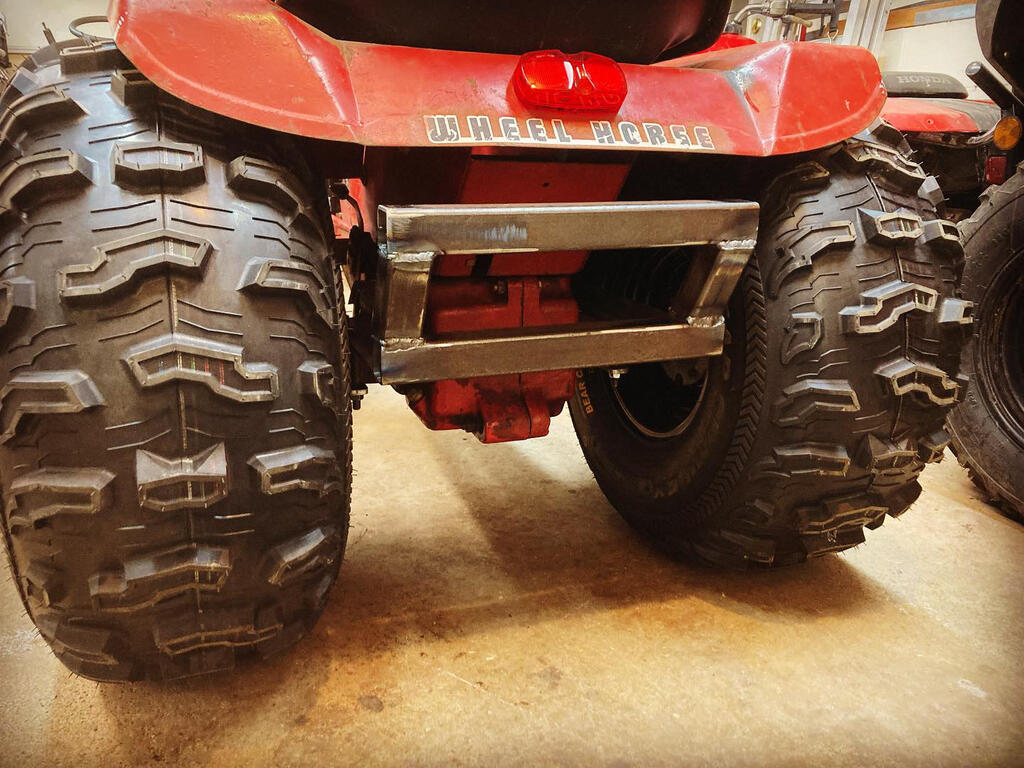

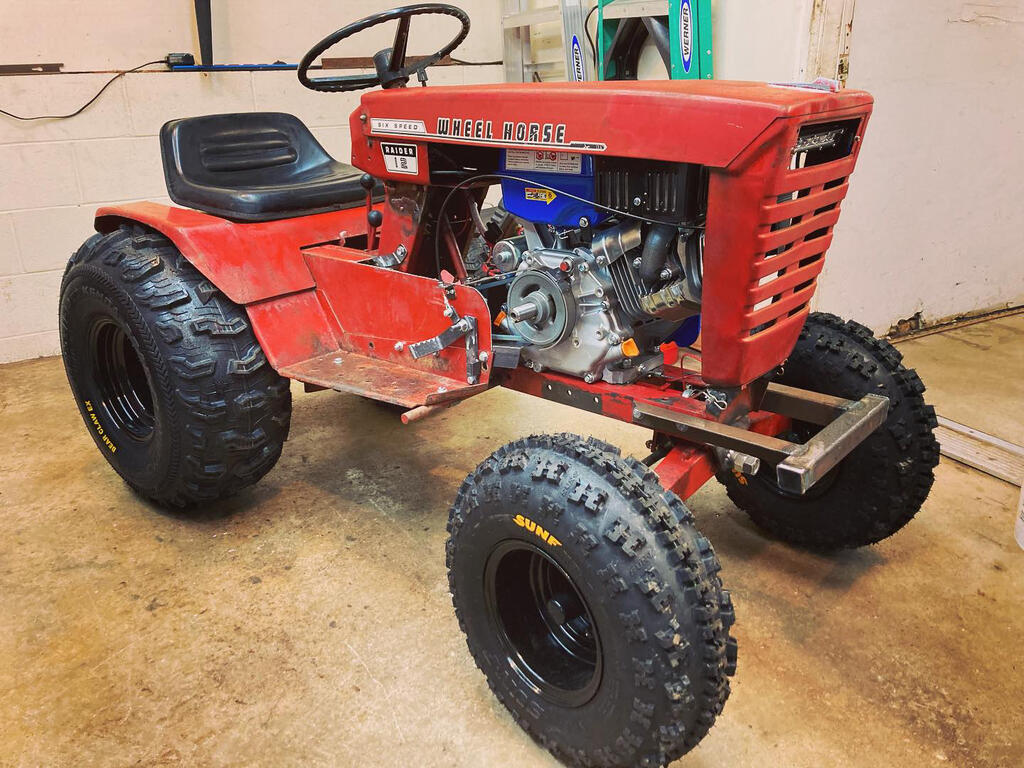

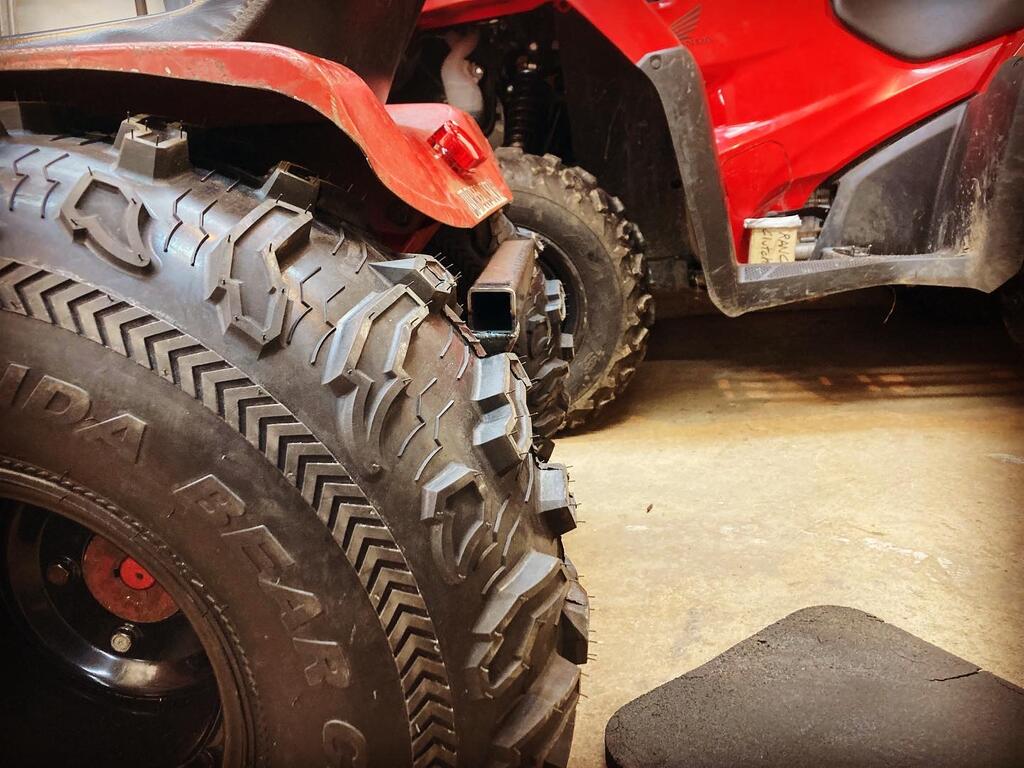

Took some inspiration from the clamp on receivers I see for wheel horses and with the design help of a friend I came up with a rear bumper/grab bar, I still have some details to finish like capping the tubes and welding on a receiver



Edited January 14, 2022 by Crazy_Carl

[Crazy_Carl 254]

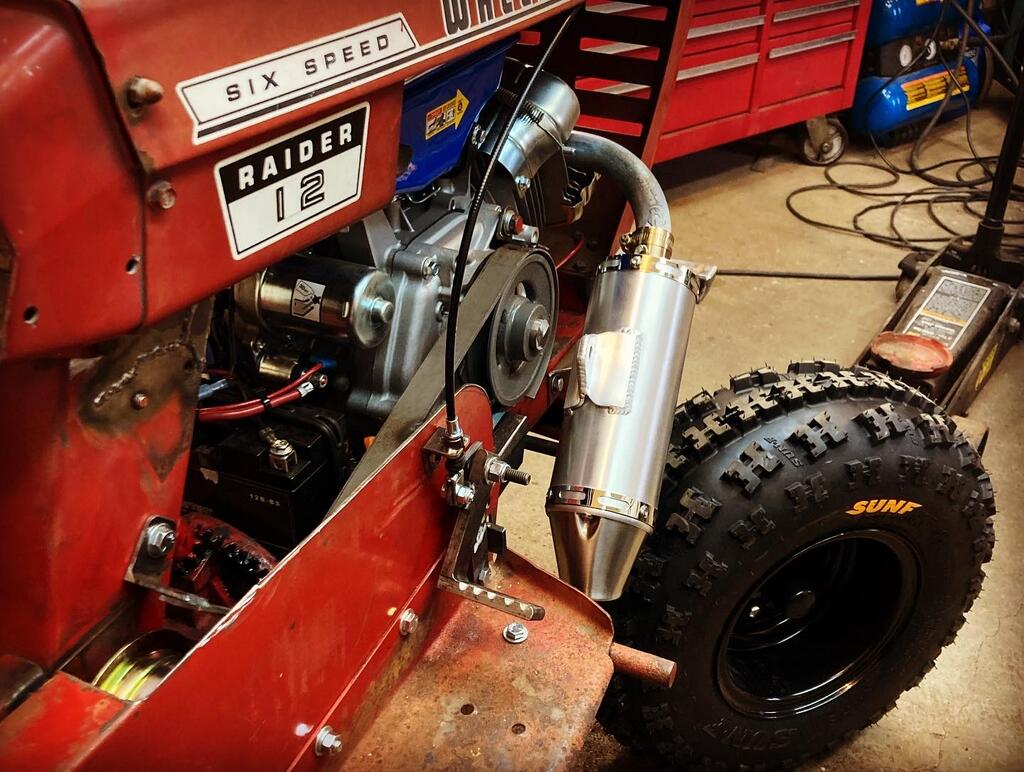

well I got my custom exhaust done and also upgraded to a better pit pike clutch cable for the throttle cable



[Crazy_Carl 254]

I took the Raider 12 out today for its first actual trail ride today.  Did pretty well other than I need to re-jet it ,fine tune the clutch, and the belt jumped off the lower idler once just like it did on Ol' Red.  Anyway I rode with my new tractor friend John who brought his B-80.

https://youtu.be/3lunJWkxMUQ

[slim67 2,735]

26 minutes ago, Crazy_Carl said:

I took the Raider 12 out today for its first actual trail ride today.  Did pretty well other than I need to re-jet it ,fine tune the clutch, and the belt jumped off the lower idler once just like it did on Ol' Red.  Anyway I rode with my new tractor friend John who brought his B-80.

https://youtu.be/3lunJWkxMUQ

It climbed that hill pretty good. The guy on the b-80 was moving along !

[Crazy_Carl 254]

6 minutes ago, slim67 said:

It climbed that hill pretty good. The guy on the b-80 was moving along !

thanks! the B-80 is geared to go about twice as fast as me LOL

[BeninCT 451]

@Crazy_Carl what size pulleys are you running for this high end speed? Looks like 19-20 mph?  Can you walk us through the drivetrain?



Looks like a ton of fun!

[Crazy_Carl 254]

34 minutes ago, BeninCT said:

@Crazy_Carl what size pulleys are you running for this high end speed? Looks like 19-20 mph?  Can you walk us through the drivetrain?



Looks like a ton of fun!

Thanks.  This video explains the belt system.  The B-80 has a similar one.  I'm running a 5" pulley on the engine and trans and topping out at about 10 mph.  The B-80 is ungoverned with a 7" engine pulley and a 5" trans pulley topping out around 20 mph.



https://youtu.be/3lunJWkxMUQ







Edited January 17, 2022 by Crazy_Carl
