C81 Starter Ground Wire

[ri702bill 8,512]

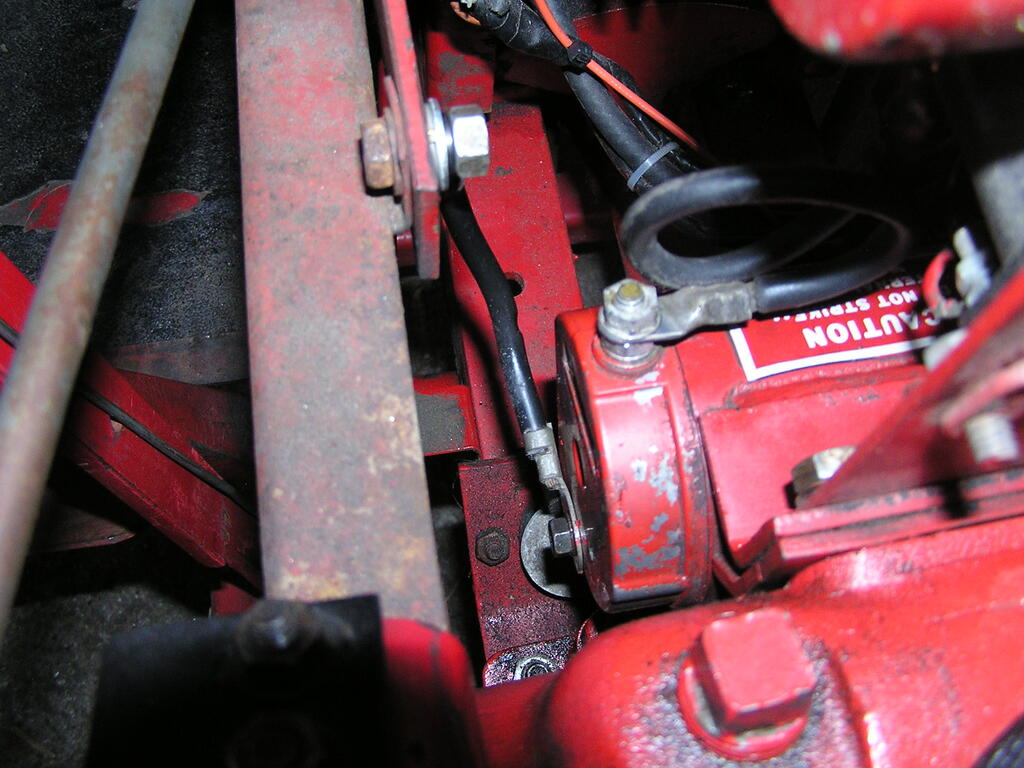

I had to change the starter recently and noticed the 1/4-20 screw in lower portion of the brush cap. @peter lena came to mind with his past posts about having decent grounds for all devices. I had a second Solenoid to Starter wire from a parts C81 - lo and behold -the right length with the correct 1/4" lug on one end and 5/16 on the other - to go from the cap bolt to the angle mount for the belt guard - with dielectric grease, of course.

[ebinmaine 68,444]

When I rebuild/make a harness I've gotten into the habit of running the battery ground cable directly to the starter at one of the attaching bolts... Then other smaller ground wires for other circuits.

On a DC system it's unlikely to have too many ground wires.....

until it starts to look like spaghetti. 😂😂

[peter lena 8,734]
