This year’s project.

[BHunter 1,700]

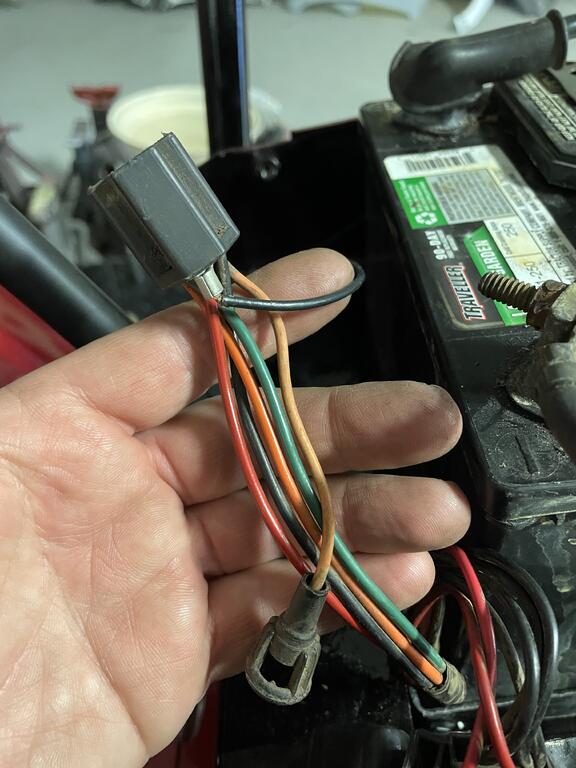

Does anyone know where this black wire from the ignition switch harness goes? It’s around 2 feet long. The label I had on it fell off.  It’s a 1978 c141



thanks

[peter lena 8,627]

@BHunter  think you will like that , have a lot of things that I  a have tried  on problem areas , you have to get fed up with something to make a change .  a number of them were a chronic  PIA . always acting up , once I started  the make this go away , view , just kept on with the same view on each horse. those problem areas aren't there anymore , like the solid reliability , regularly check over everything , that way a problem its easy to fix and change. my electrical nagging , was mainly increased grounding , upgrade wiring connections , change routing , cable wrap all my wiring , no chafing or shorting . replace all plug in connections , no tight bends or stressed wires.  battery ground bolt , run a cable from that to corner engine frame . next to clutch pedal , bolt on electrical lug to that bolt , smaller wire up to charging rectifier bolt mount on engine , and from there to headlight grounding , tell me how it starts and  runs, bright lights , you have to get   fed up , its worth it , pete

[rjg854 11,361]

56 minutes ago, BHunter said:

Does anyone know where this black wire from the ignition switch harness goes? It’s around 2 feet long. The label I had on it fell off.  It’s a 1978 c141



thanks



If that plug hooks to the ignition switch directly, what is the initial on the terminal that wire aligns with? That should tell you where the wire goes.

[BHunter 1,700]

17 minutes ago, rjg854 said:

If that plug hooks to the ignition switch directly, what is the initial on the terminal that wire aligns with? That should tell you where the wire goes.

Thanks. I will check that.

[BHunter 1,700]

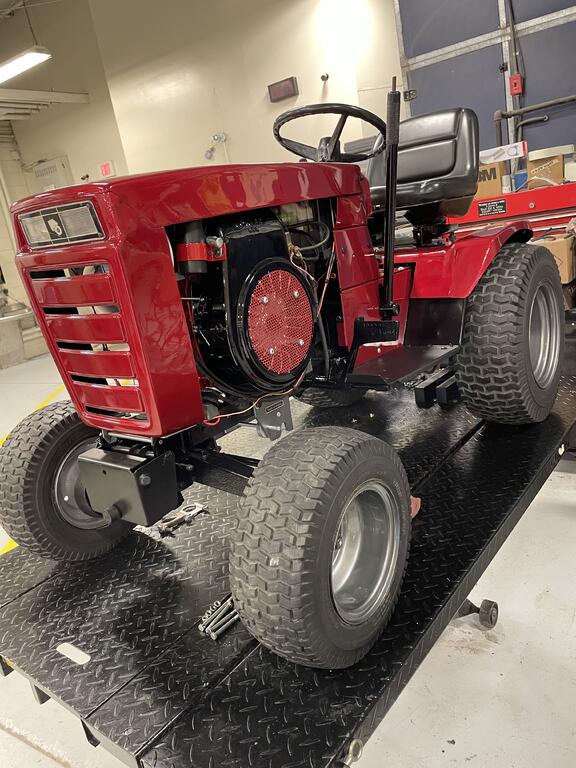

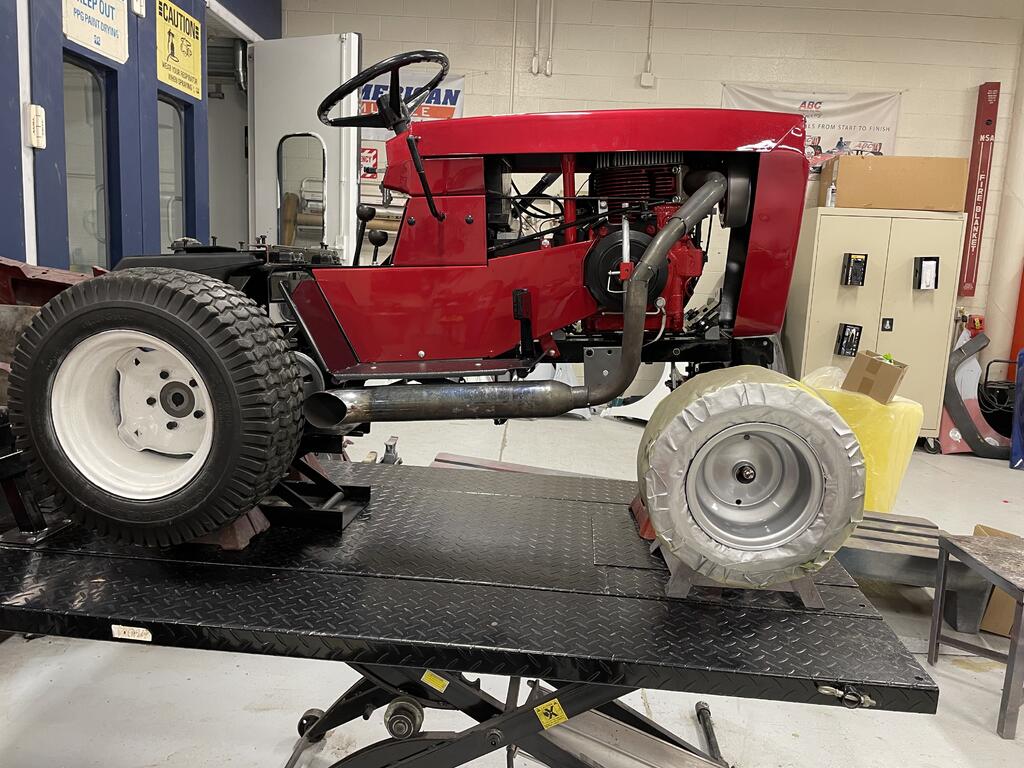

Made some good progress this week. Installed the dash and hood, got it running, painted front wheels and started making a side pipe exhaust from an old motorcycle exhaust system

[953 nut 55,229]

On 1/26/2022 at 5:39 PM, BHunter said:

Does anyone know where this black wire from the ignition switch harness goes? It’s around 2 feet long. The label I had on it fell off.  It’s a 1978 c141



thanks

Probably goes to the PTO switch. Is there a small female spade connector on the other end?

[8ntruck 7,004]

Coming along nicely.  I like the side pipe.

[Lee1977 6,659]

1 hour ago, 953 nut said:

Probably goes to the PTO switch. Is there a small female spade connector on the other end?

There is a wiring diagram in the manuals section. as 953  nut said,  It goes to PTO switch connects with the black going to the seat switch Then the b;ack wire come back connect with the other side of the same safety switch.

The diagram is just listed a 1978-1981 C  wiring diagram there  5 different ones there.

[BHunter 1,700]

19 minutes ago, Lee1977 said:

There is a wiring diagram in the manuals section. as 953  nut said,  It goes to PTO switch connects with the black going to the seat switch Then the b;ack wire come back connect with the other side of the same safety switch.

The diagram is just listed a 1978-1981 C  wiring diagram there  5 different ones there.

Thanks. I’ll look for the diagram.

[kpinnc 12,049]

I can't get over the quality of work in your classes. You and those students should be commended. I wish you had been teaching WAY back when I was in school.



And whoever does the paint? Talented folks.

[BHunter 1,700]

8 hours ago, kpinnc said:

I can't get over the quality of work in your classes. You and those students should be commended. I wish you had been teaching WAY back when I was in school.



And whoever does the paint? Talented folks.

Thank you. Many of the students are taking turns at painting the tractor parts. They range from 9th grade to 12th grade.
 Some of the parts have been painted a couple of times because of mistakes or getting scratched during assembly. They are getting a lot of painting practice on this project. I’m really pleased with how good they are doing.

[kpinnc 12,049]

6 minutes ago, BHunter said:

I’m really pleased with how good they are doing.



So are all of us who see it!

[Pullstart 62,878]

That side pipe… wow.  ❤️. Awesome stuff Mr. Hunter!  Tell your class they should all be proud of their achievements!

[BHunter 1,700]

1 hour ago, Pullstart said:

That side pipe… wow.  ❤️. Awesome stuff Mr. Hunter!  Tell your class they should all be proud of their achievements!

Thank you. I will tell them you said so.
The exhaust turned out pretty cool. We kept cutting up the old pipe and figuring out what bends would get us to our goal. It’s not pretty but it has character. That’s what I like about it.

[ebinmaine 67,498]

1 hour ago, BHunter said:

We kept cutting up the old pipe and figuring out what bends would get us to our goal. It’s not pretty but it has character. That’s what I like about it.

Excellent learning method.

Try it. Nope.

Try it. Nope.



Try it.... Hey there ya go!!!



The character is exponentially better too because it was earned.







[SylvanLakeWH 25,558]

1 hour ago, BHunter said:

Thank you. I will tell them you said so.
The exhaust turned out pretty cool. We kept cutting up the old pipe and figuring out what bends would get us to our goal. It’s not pretty but it has character. That’s what I like about it.

Very cool look!



And it will “heat treat” the rear tire when it’s cold out… keep that rubber sticky plowing snow!!!

[BHunter 1,700]

6 hours ago, ebinmaine said:

Excellent learning method.

Try it. Nope.

Try it. Nope.



Try it.... Hey there ya go!!!



The character is exponentially better too because it was earned.







I agree. It’s more rewarding when you earn it.
It went just like you said. Nope..Nope … Yes, that’s it.

[BHunter 1,700]

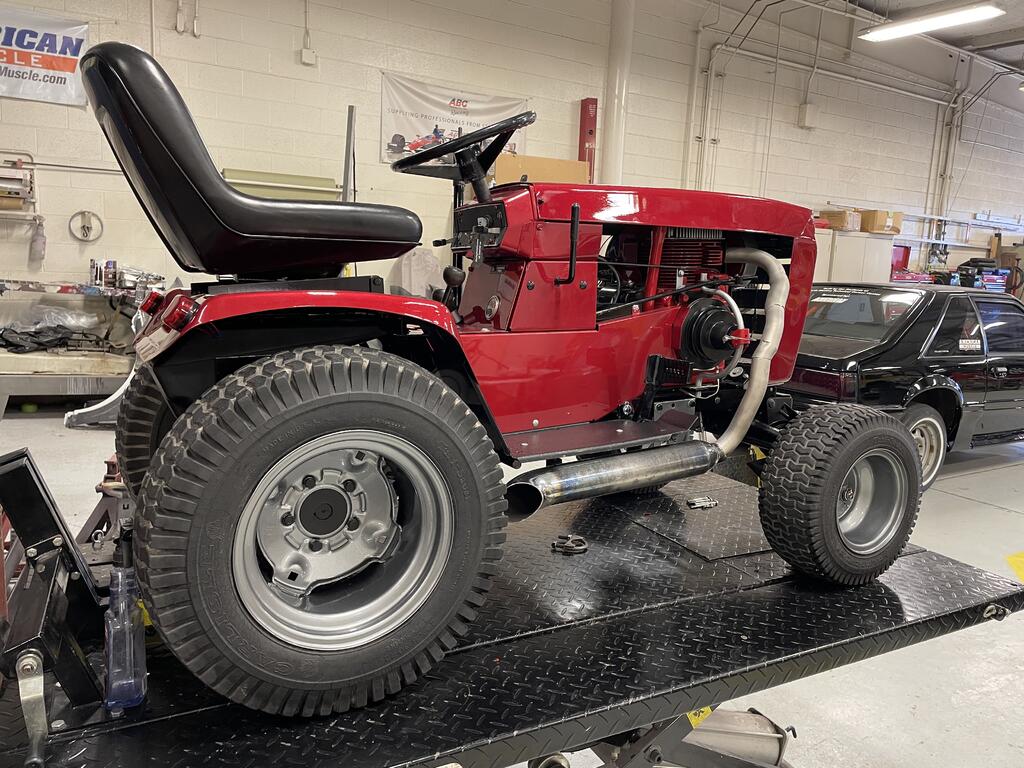

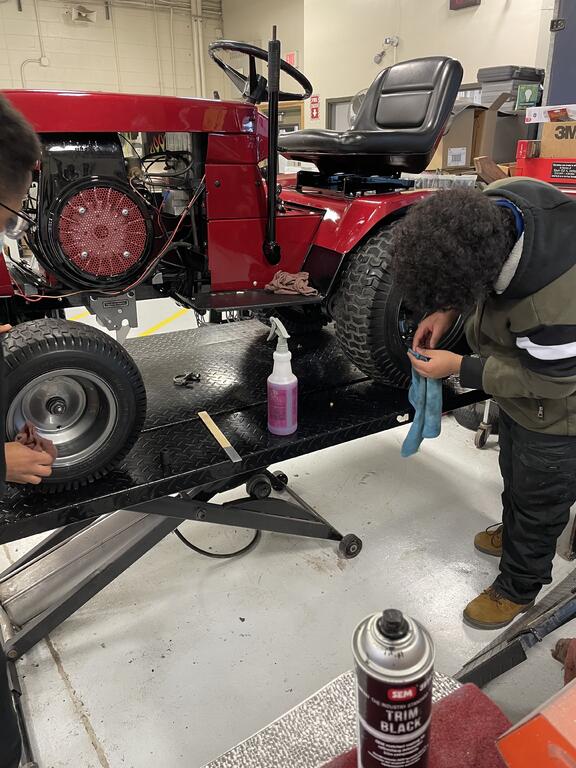

It’s almost finished. The boys are cleaning it up.

[SylvanLakeWH 25,558]

Wow!!!

Just…

Wow!!!



[ebinmaine 67,498]

That paint....

[OutdoorEnvy 1,522]

Yeah looks fantastic!  Exhaust looks really neat too!  First I’ve seen that come down like that.  Those kids will be fighting over driving it first!

[BHunter 1,700]

7 minutes ago, OutdoorEnvy said:

Yeah looks fantastic!  Exhaust looks really neat too!  First I’ve seen that come down like that.  Those kids will be fighting over driving it first!

Thanks. They are already arguing over getting to drive it first. . They actually want me to have the initial test drive and then they will drive it after that. They are getting excited to see it come to life.
We have to finish welding the exhaust and then we can drive it. I wanted to get it sitting on its tires and make sure it can fully turn before fully welding it. It should be driving next week

[kpinnc 12,049]

Holy cow that thing is beautiful.



Still hard to believe student did that. Amazing work!

[BHunter 1,700]

32 minutes ago, kpinnc said:

Holy cow that thing is beautiful.



Still hard to believe student did that. Amazing work!

Thanks.
I agree. The group of students that did the work were really good. They did it pretty quick too considering it wasn’t the only job they were working on. They started on it November 17th and it will be done by February 17th.

[BHunter 1,700]

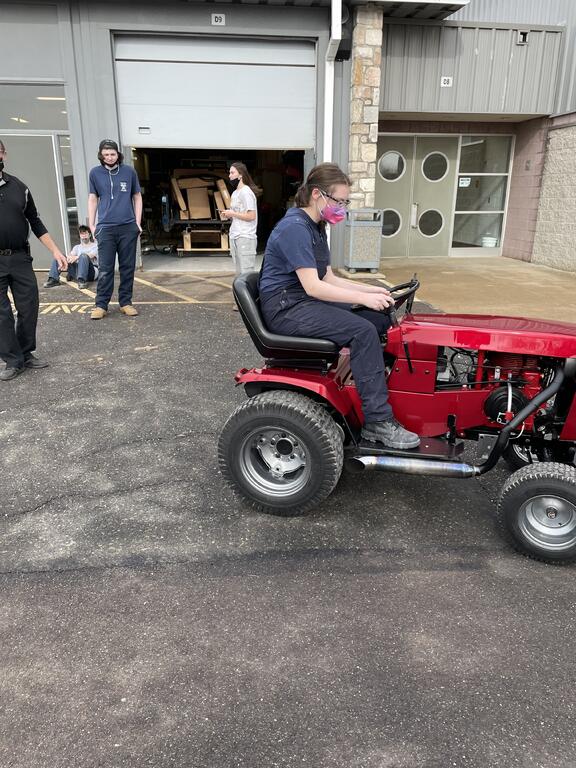

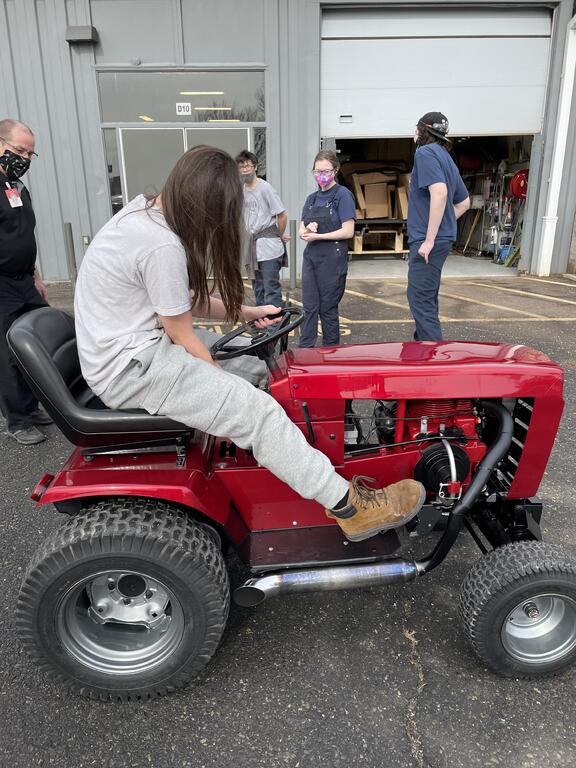

The test drive went great. No problems. The kids really enjoyed the ride. They were smiling under their masks. They took lots of pictures of their accomplishment. Lasting memories.
