1277 Brake pedal not returning

[Moonshine*Connoisseur 435]

Brake pedal not returning to disengage position. Pedal moves freely. Is there a spring inside the frame or internal to the transmission?

[Retired Wrencher 5,467]

There should be a large spring on the out side that hooks up to brake  lever and transmission.

[953 nut 55,325]

The 1277 is a hydro (automatic) transmission and has no brakes other than the transmission. On page 9, item 176 is called a brake return spring and in conjunction with cam plate 178 will return the transmission to neutral which functions as a brake to stop the tractor.



[squonk 41,162]

Spring is inside the tunnel on the hydro linkage. It is probably broken and a bear to get to with out removing all the linkage. You can rig up an external return spring on the outside of the tractor.

[peter lena 8,639]

@Moonshine*Connoisseur, when you replace that spring , lubricate all related movement points , pete

[Moonshine*Connoisseur 435]

Thanks everyone,  I will be digging into it here shortly today.

[Moonshine*Connoisseur 435]

I found the #6135 spring broken. Due to rust and years of use.

[Moonshine*Connoisseur 435]

I also need but dont see it in the breakdown diagrams....the PTO pressure pin I guess one could call it, it's the pin that goes in the center of the cone, has a slot in it for the control rod and the cotter pin locks it in. Newer style wont work as there is no slot in it.

[peter lena 8,639]

@Moonshine*Connoisseur do you have a hardware store near by ? in the small drawer pull out section , bring in your old broken pin and match it up , i also lubricate anything related that will have to move at some point , pete

[peter lena 8,639]

@Moonshine*Connoisseur does this help ? https://www.google.com/search?q=wheel+horse+pto+latch+pin&sxsrf=AOaemvJy7-aBp3e8q_ue6SpmweEjEVfh7A%3A1633435788694&source=hp&ei=jEBcYY-PJ5Dl5NoP75-XkAg&iflsig=ALs-wAMAAAAAYVxOnApo65XTvEw1YCS3oBf-ehPewkI7&ved=0ahUKEwiPhci_nrPzAhWQMlkFHe_PBYIQ4dUDCAk&uact=5&oq=wheel+horse+pto+latch+pin&gs_lcp=Cgdnd3Mtd2l6EAMyBQghEKABMgUIIRCgATIFCCEQoAE6BAgjECc6CwgAEIAEELEDEIMBOg4ILhCABBCxAxDHARCjAjoICAAQsQMQgwE6CAgAEIAEELEDOg4ILhCABBCxAxDHARDRAzoECAAQAzoFCAAQgAQ6BQguEIAEOgsILhCABBDHARDRAzoICC4QgAQQsQM6CAgAEIAEEMkDOgoIABCABBCxAxAKOgsILhCABBDHARCvAToHCAAQgAQQCjoGCAAQFhAeOggIIRAWEB0QHjoECAAQDToGCAAQDRAeOggIABANEAUQHjoICAAQCBANEB5QsxFYh1xgwmRoAHAAeACAAZUBiAHqEpIBBDE3LjiYAQCgAQE&sclient=gws-wiz , pete

[Moonshine*Connoisseur 435]

It is the pin that goes into the bearing on the pto cone. It is held in place by a snap ring. This is a part that wont be found at any hardware store, I can guarantee that.

[pfrederi 17,741]

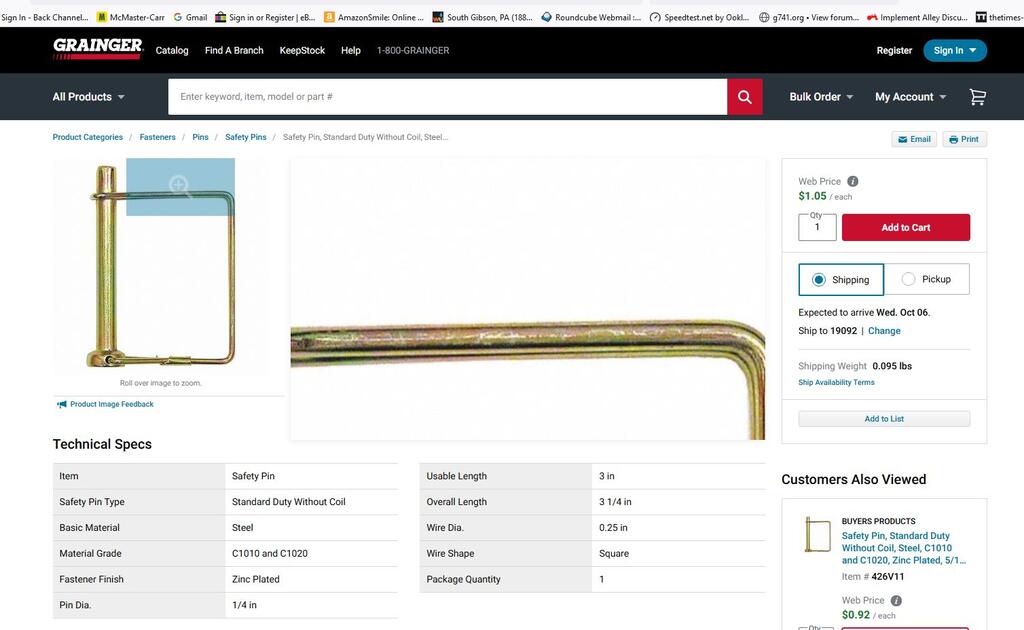

Try Tractor supply for pins like this



[Moonshine*Connoisseur 435]

That's not even close to what I'm describing sorry.

[pfrederi 17,741]

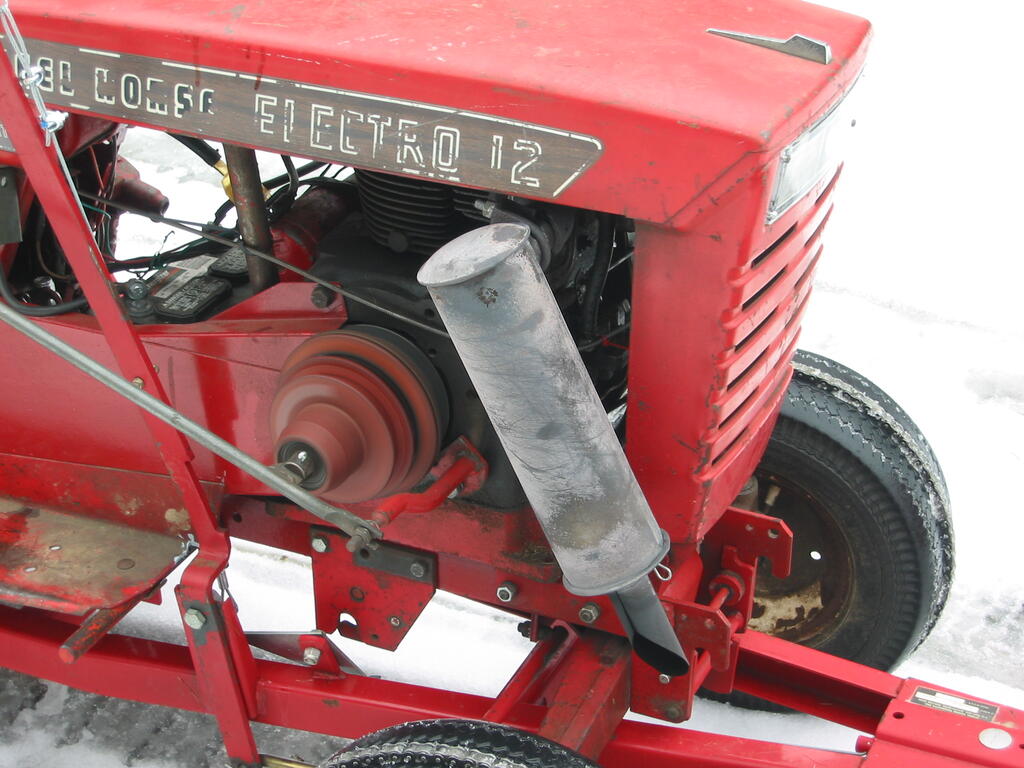

Or is you r PTO like this



[jtrosp1980 89]

I run mine in a hinge pin

[Moonshine*Connoisseur 435]

[Moonshine*Connoisseur 435]

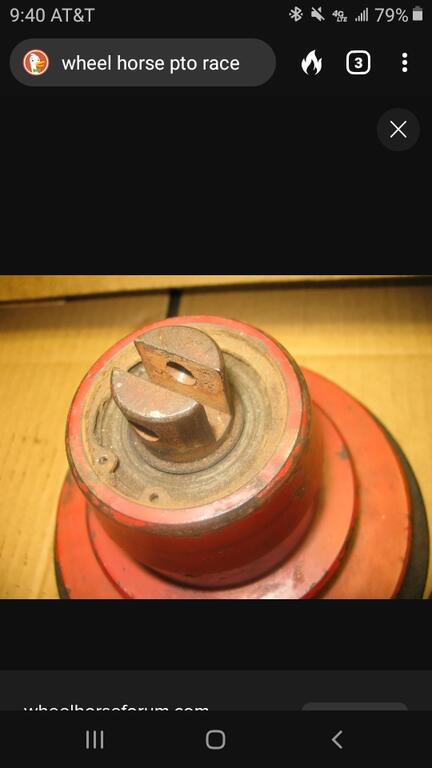

I need this piece that has the slot in it.

[squonk 41,162]

Try A-Z Tractor. https://a-ztractor.com/

[rjg854 11,387]

You'll get a faster response giving him a call 1-717-821-2642

[Moonshine*Connoisseur 435]

I have one coming,  thank you to everyone !  These fun projects I get myself into.  This 1277 is a junkyard save. It made it into the yard, a phone call was made and I came to the rescue.

[kpinnc 12,111]

6 hours ago, Moonshine*Connoisseur said:

I have one coming,  thank you to everyone !  These fun projects I get myself into.  This 1277 is a junkyard save. It made it into the yard, a phone call was made and I came to the rescue.



Nice save! I hope when you finish up getting it going, it runs another 40 years!
