1984 Work Horse GT-1600 REFRESH

Recommended Posts

Achto

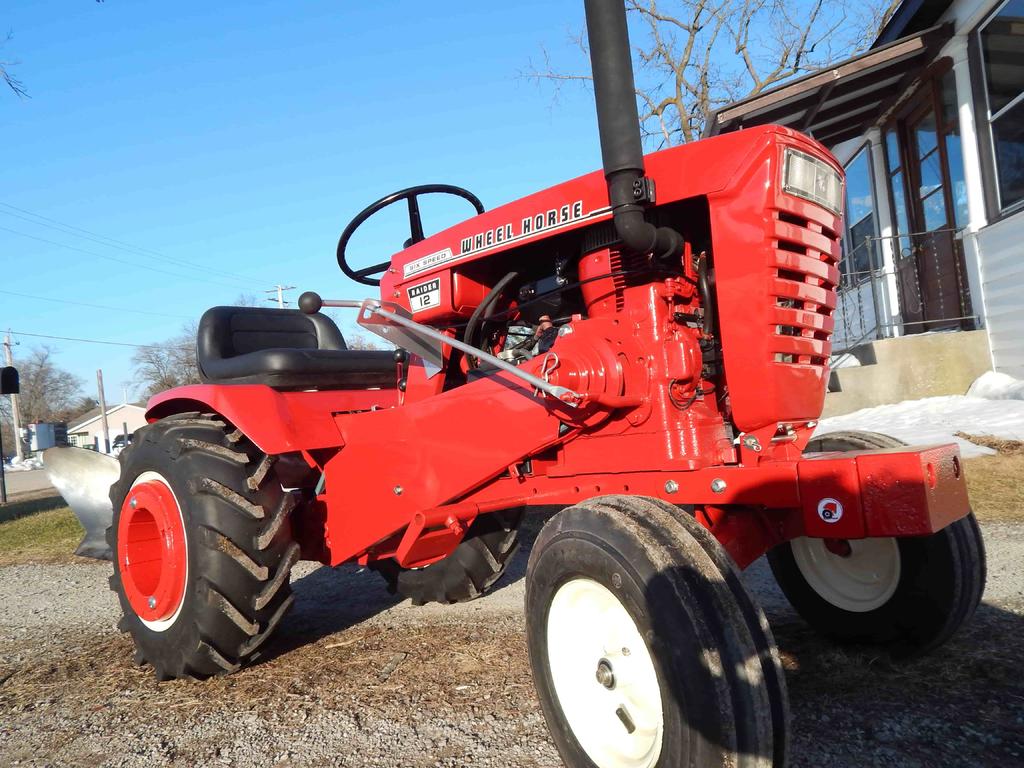

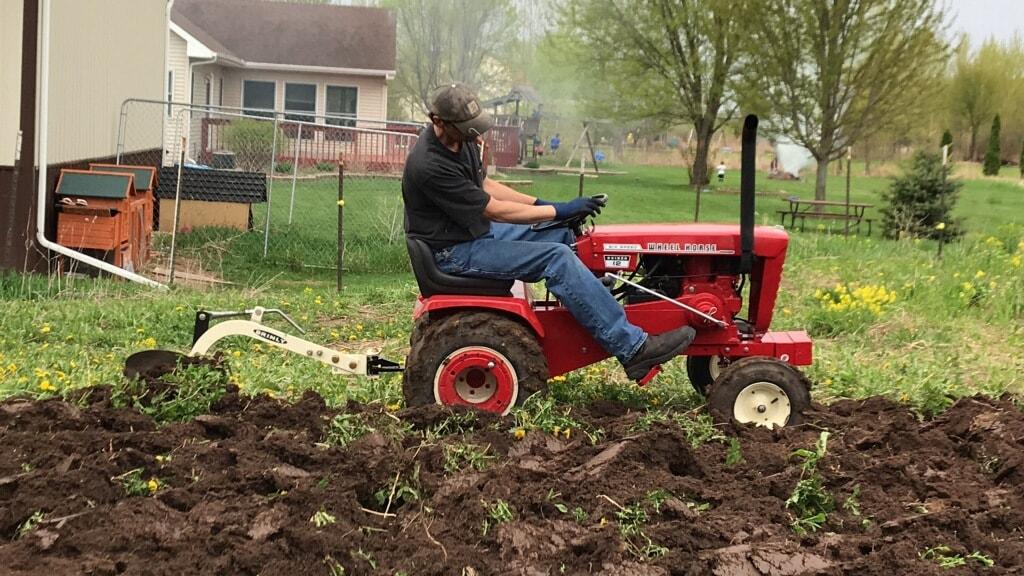

Below is a pic of one of my resto's right after completion. Below that is the same tractor 2 weeks later being put to work.



 Build her to your liking and enjoy it.:thumbs2:



DSCN1937-min.JPG.15f2276cf0a90f9015eb3daf53e8a7a6.JPGimagejpeg_0(2)-min.jpg.5b5a7b392fa9bab42681f5abcdedb0a0.jpg

Edited by Achto
  • Like 2
  • Excellent 5
  • Thanks 1

Share this post


Link to post
Share on other sites

WheelHorse520H
11 hours ago, Horse Newbie said:

this is merely a refresh

It’s still gonna look better, ain’t it?:ychain:

  • Like 2

Share this post


Link to post
Share on other sites

Horse Newbie

Called my metal man/ blacksmith/ welder/ machinist earlier this week and made an appointment for today to be at his shop. While I was there I had him weld two cracks on my 1984 Work Horse GT-1600 frame. It's where the cross rail at the back of the frame bolts on. I think this is where the seat pan/ rear fender bolts up.

Full penetration welds so hopefully it will last another 37 years.



  • Like 4

Share this post


Link to post
Share on other sites

Horse Newbie

My carb kit for the 16hp twin Briggs that goes on my 1984 Work Horse GT-1600 has not come in yet, but the PO told me there was a carb kit with the goodies he gave me with the tractor.

So when I got home from the welding shop I decided to check it out.

Sure enough there was a complete unopened kit.

So I put my the carb back together...I will have the kit I ordered for a spare.

Got my fingers crossed as this is my first carb job...when I refreshed my 1994 520H I bought a China carb, and so far so good.

Tomorrow I will paint the intake manifold and try to get the carb put back on the engine so I can see how she runs.




Edited by Horse Newbie
  • Like 1

Share this post


Link to post
Share on other sites

Horse Newbie

Painted the intake manifold, and the valve covers for the 16 hp twin Briggs today...

Got the carb mounted to the intake.

Getting closer to ... " Fire it up, Fire it up, Fire it up"...







  • Like 6

Share this post


Link to post
Share on other sites

Moparfanforever

Looks good !!  :happy-partydance:

  • Thanks 1

Share this post


Link to post
Share on other sites

Horse Newbie

Sanded on my engine tins for the twin Briggs...tedious work... one almost done, one untouched.

I can tell a little difference...



  • Like 5

Share this post


Link to post
Share on other sites

Horse Newbie

Primed the engine tins tonight and painted my flywheel...don't know if it matters or not, but before I painted the flywheel I sanded the light rust off of the edge of the circumference.

Also sanded the light rust off of the magnet...then tape over the edge and magnet before painting...

Was that the right thing to do ?





  • Like 5
  • Excellent 1

Share this post


Link to post
Share on other sites

ebinmaine
1 hour ago, Horse Newbie said:

tape over the edge and magnet before painting...

Was that the right thing to do ?

Seems I'd have done similar. I wouldn't want paint over the magnet.

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

Achto
1 hour ago, Horse Newbie said:

Also sanded the light rust off of the magnet...then tape over the edge and magnet before painting...

Was that the right thing to do ?



That was the correct choice. :thumbs2:



When you rebuilt the carb, did you also rebuild the fuel pump? I have found that the fuel pumps on these apposed Briggs will get dry and have issues. Fortunately you have the 3 screw pump so the kit is cheap for yours. B&S OEM # 393397 rebuild kit, should cost under $8.

  • Like 1

Share this post


Link to post
Share on other sites

kpinnc

WoooHoo purdy! Love tractor chimes! :D



Looks real nice!

  • Like 1

Share this post


Link to post
Share on other sites

Horse Newbie
31 minutes ago, Achto said:



That was the correct choice. :thumbs2:



When you rebuilt the carb, did you also rebuild the fuel pump? I have found that the fuel pumps on these apposed Briggs will get dry and have issues. Fortunately you have the 3 screw pump so the kit is cheap for yours. B&S OEM # 393397 rebuild kit, should cost under $8.

Yes sir, rebuilt the pump.

Parts for it were in the carb kit that I got free from PO when I got the free tractor.

I believe I ordered the carb kit # 393397 at a local outdoor equipment dealer. I used the free kit , and will keep the carb kit from Briggs as a spare if all goes well will the carb.

  • Excellent 1

Share this post


Link to post
Share on other sites

Bill D
On 10/16/2021 at 9:04 PM, Horse Newbie said:

Called my metal man/ blacksmith/ welder/ machinist earlier this week and made an appointment for today to be at his shop. While I was there I had him weld two cracks on my 1984 Work Horse GT-1600 frame. It's where the cross rail at the back of the frame bolts on. I think this is where the seat pan/ rear fender bolts up.

Full penetration welds so hopefully it will last another 37 years.



I use old bed frames to strengthen that area. 1/8" thick, 2"x 1 1/2" angle steel.




  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

Horse Newbie

I painted some of the Briggs twin engine tins tonight...the heat shield coat hanger hanger slipped out of my hand so it will have to be repainted...





  • Like 1

Share this post


Link to post
Share on other sites

kpinnc

Hate it when that happens. I can't remember how many times I've done it myself.



Is that an old Yota in the background? Nice!

  • Like 1

Share this post


Link to post
Share on other sites

Handy Don
2 hours ago, Horse Newbie said:

coat hanger hanger slipped out of my hand

Yep, the old "grass and dirt textured paint job". Tried it myself a couple of times. Was not happy with the result either!

  • Haha 2

Share this post


Link to post
Share on other sites

Horse Newbie
1 hour ago, kpinnc said:

Is that an old Yota in the background? Nice!

Yep...1981 I'm 2nd owner...bought it in 1984.

Hope to start working on it after I get the Work Horse done...

Share this post


Link to post
Share on other sites

Horse Newbie
1 hour ago, kpinnc said:

that an old Yota in the background? Nice!

What it looked like around 1986:(


  • Like 1

Share this post


Link to post
Share on other sites

kpinnc

Don't wanna hijack the thread- so I'll just say that's nice! Those little trucks are bulletproof.

  • Like 1

Share this post


Link to post
Share on other sites

Horse Newbie

Well it is my thread, but still...I agree.

Don't want to veer off too much.

Thanks for being considerate.

  • Like 1

Share this post


Link to post
Share on other sites

Horse Newbie

I had dropped the Briggs twin heat shield in the grass while I was painting it. I tried to sand the areas where dirt had gotten on it and grass had "textured" it, but the fresh paint was not cooperating.

So I stripped it with chemical stripper and washed it off. Will repaint the heat shield Saturday...




Edited by Horse Newbie
  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

rjg854

I know how you feel, I had that happen just recently.  The paint wasn't dry yet so I wiped it down with Mineral Spirits and repainted it, came out fine.

  • Like 2

Share this post


Link to post
Share on other sites

Horse Newbie

I took the masking tape that was covering the Briggs twin brand decals off...

I believe the tins turned out good enough...




  • Like 5

Share this post


Link to post
Share on other sites

Horse Newbie

I re-primed the Briggs twin heat shield today...will repaint Sunday.

Also primed blower housing/ flywheel cover, and the chaff screen.

Painted the engine tin bolts...

And the engine base plate got primed as well.






Edited by Horse Newbie
  • Like 3

Share this post


Link to post
Share on other sites

ebinmaine
11 hours ago, Horse Newbie said:

dropped the *************

in the grass while I was painting it.



These are good occasions for creating new "sentence enhancers".





  • Haha 2

Share this post


Link to post
Share on other sites
