K301 fuel pump leaking oil???

[Searcher60 209]

Hello. My 69 Electro K301 original metal fuel pump pumps fuel just fine.  However, it also leaks a TON of oil out where what looks like a steel pin goes thru the pump body? Any cure for this to keep this pump? Thanks guys.

[ebinmaine 67,492]

Contact Then And Now Automotive in Massachusetts. They sell rebuild kits for those.

[WHX?? 48,815]

Don't think that is gonna help him EB. Sounds like the pivot pin is worn in the pump body? That pin should be somewhat pressed in. The lever should hinge on the pin and not the pin in the body which sounds like is happening.

[Searcher60 209]

1 hour ago, WHX?? said:

Don't think that is gonna help him EB. Sounds like the pivot pin is worn in the pump body? That pin should be somewhat pressed in. The lever should hinge on the pin and not the pin in the body which sounds like is happening.





You are exactly right. The pin had moved out. I drove it back in and peened it. However, I will be looking for a metal pump in better condition than mine, preferably with the priming lever. Thanks so much.



[dmoore 796]

Got a pic of a pump with a prime lever? Sounds like a great idea with todays gas evaporating out of the carb. Eliminate the long cranking time.

[953 nut 55,228]

On 9/21/2021 at 12:34 PM, Searcher60 said:

I will be looking for a metal pump in better condition than mine, preferably with the priming lever.

1965 was the last year that Kohler put that type pump on Wheel Horses.

On other thing that could be contributing to the oil leak could be the crank case breather. If it is plugged the pressure in the crank case will look for an alternative escape point, in this case your fuel pump. The breather is one of the most overlooked maintenance items on an engine.

[squonk 41,109]

Toss a plate over the fuel pump hole and install a Facet low pressure electric pump. Kill 2 birds with one pump.

[peter lena 8,626]

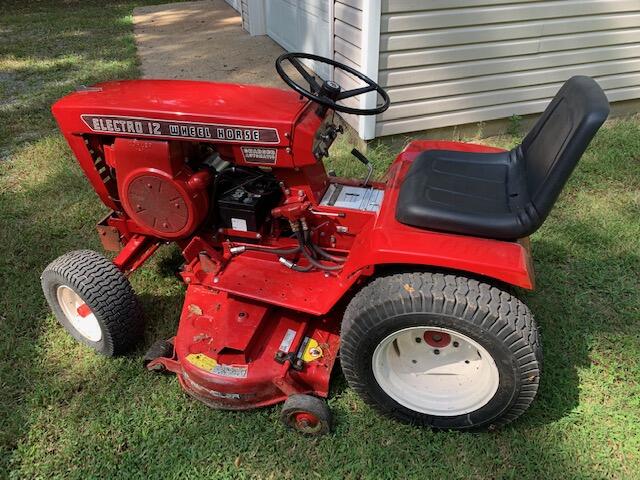

@Searcher60 nice looking unit there, at this stage why not upgrade and correct that issue ?  personally have a low pressure facet type electric pump on one of my horses , solid running , but if you can only have original type . my choice would make that problem go away , pete

[ebinmaine 67,492]

13 hours ago, dmoore said:

Got a pic of a pump with a prime lever? Sounds like a great idea with todays gas evaporating out of the carb. Eliminate the long cranking time.



30 minutes ago, squonk said:

Toss a plate over the fuel pump hole and install a Facet low pressure electric pump. Kill 2 birds with one pump.



Seems more and more the electric pump is the way to go.

If you not into that, install a marine priming bulb. Couple, three squeezes and off you go.



[peter lena 8,626]

@dmoore   put a fuel check valve  VERTICALLY  between that fuel pump and carb , no drain back or evaporation , you are talking about a  6'  vertical  fuel run , very simple . have that set up on 3 kohler magnum engines , instant starts , minimal choke . works every time . EVIL ENERGY  FUEL CHECK VALVES , 5/16 SIZE . FITS SNUGLY  into a 1/4" clear vinyl fuel line , use dark green spring clamps . make up the swap line piece before , installation . just my own experience , to a regular problem , pete

[dmoore 796]

Peter I will try that advice! Let you know how it does.👍 Thanks bud!

[squonk 41,109]

How is a check valve going to solve an oil leak?

Edited February 26, 2022 by squonk

[peter lena 8,626]

@squonk  thank you for your incredible  insight , you are a true gem , rusty pete

[squonk 41,109]

Guys got an oil leak. You tell him to install a check valve.Brilliant!

[Jakeshorsetuff 36]

Try calling Then and Now Automotive in MA they sell rebuild kits for these fuel pumps.

Edited February 27, 2022 by Jakeshorsetuff

[Jakeshorsetuff 36]

On 2/25/2022 at 7:36 PM, dmoore said:

Got a pic of a pump with a prime lever? Sounds like a great idea with todays gas evaporating out of the carb. Eliminate the long cranking time.



[Jakeshorsetuff 36]

10 minutes ago, Jakeshorsetuff said:





[Searcher60 209]

15 hours ago, squonk said:

Toss a plate over the fuel pump hole and install a Facet low pressure electric pump. Kill 2 birds with one pump.



I have the original ignition switch. I see no way to install an electric pump using this type switch. It’s actually breaks the battery cable between the battery and starter, there being no starter solenoid. Once started, you have to turn the key one notch counterclockwise in order to use the pto and lights. Remember, I also still have the magneto ignition, which does not require 12 volts on a coil. I know, I could install a newer ignition switch and starter solenoid, and then use an electric pump. But, I like keeping it original.

[squonk 41,109]

Here is how I would do it. I would tap off the wire that feeds the PTO switch. I would connect a relay to that wire so when you put the key switch to on. It will power the relay coil and close it's circuit. Then install a 5 amp fuse connector to the battery positive and one relay contact and then the fuel pump positive to the other relay contact. So with the switch On the relay coil powers up, the contacts close and the pump runs and then shuts off when you turn the key to off. I have a drawer full of relays I could send you with a wire diagram. Simple.



Another way would be install a separate toggle switch fed by the fuse connector. And install a red indicator light on the dash to tell  you the pump is on. You would have to remember to turn off the toggle  switch so the light would help remind you.

[ebinmaine 67,492]

@squonk

Well done Mike.

I'd like to see that schematic diagram and I do need to pick up a relay. Any particular thing to buy?

I assume a starter solenoid would actually work too?

[squonk 41,109]

34 minutes ago, ebinmaine said:

@squonk

Well done Mike.

I'd like to see that schematic diagram and I do need to pick up a relay. Any particular thing to buy?

I assume a starter solenoid would actually work too?

I could send you a relay. Common automotive one. A regular starter solenoid would draw more amps but would work. It would have to be continuous duty though.

Edited February 27, 2022 by squonk

[ebinmaine 67,492]

13 minutes ago, squonk said:

I could send you a relay. Common automotive one. A regular starter solenoid would draw more amps but would work. It would have to be continuous duty though.

Is there such a thing as a relay that's metal on the outside?

Goes better with "old tractor"...



[squonk 41,109]

7 minutes ago, ebinmaine said:

Is there such a thing as a relay that's metal on the outside?

Goes better with "old tractor"...



I could dig up a Napa # that would work.

[ebinmaine 67,492]

24 minutes ago, squonk said:

I could dig up a Napa # that would work.

No rush. I'd appreciate that.

[squonk 41,109]

1 hour ago, ebinmaine said:

No rush. I'd appreciate that.

# AR102.

12 V + to terminal #4.  Case is grounded. Pump wires to terminals 1&3
