Kohler wiring code

[Maxwell-8 4,307]

I have this Kohler M16 On my C-175 (not original engine). Since it burned up the battery due to bad wiring. I yanked everything out.



But now I am doing a rewiring before I can properly start it. I have searced trough the files on here but couldn't find it.



Can anyone give me a clue were these wires coming off the motor should go? Wiring is difrent then on my Kohler M12 in my Raider 10.

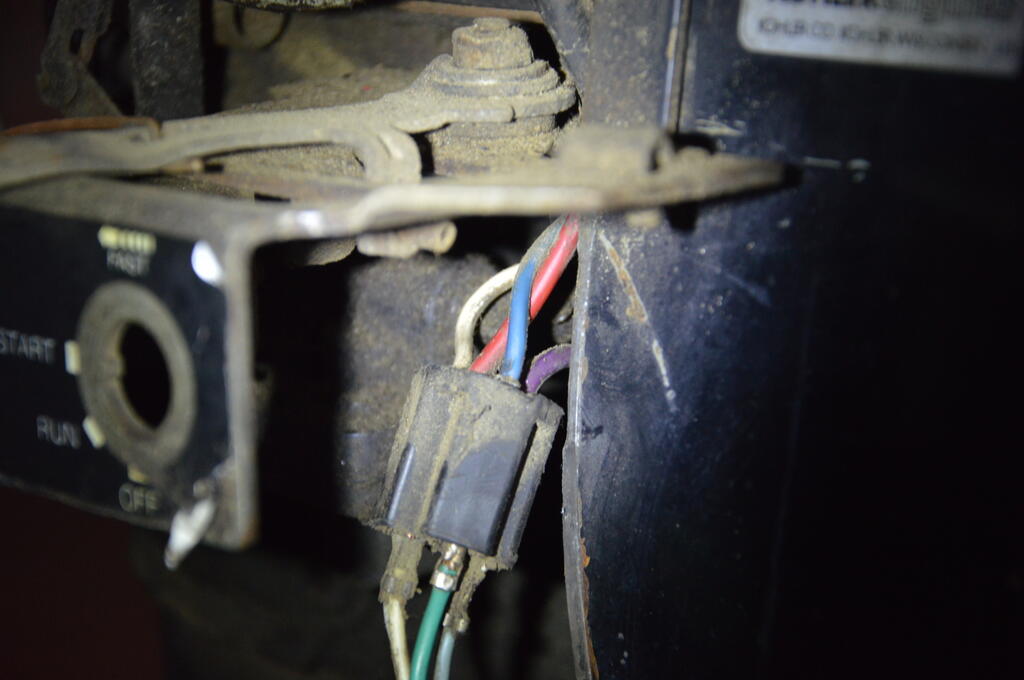

Purple  Red  white and Blue  Engine code is M16S 711502 from 1995



Edited June 17, 2021 by Maxwell-8

[pfrederi 17,886]

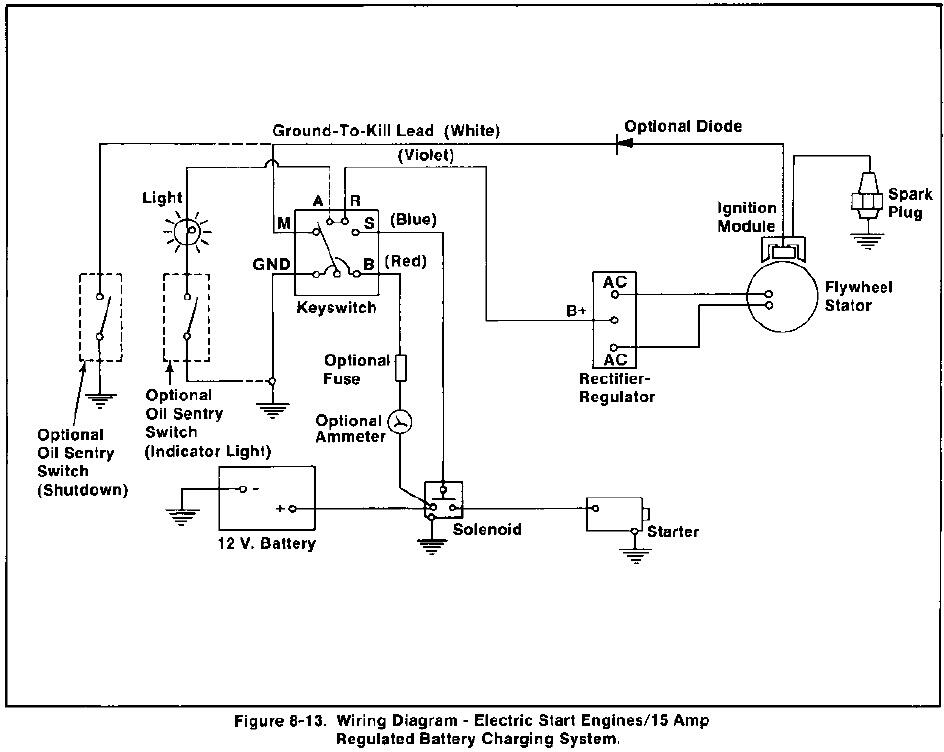

White is magneto kill, Check the center lead on the voltage regulator it is probably the purple wire goes to R on the switch..One other may be low oil switch

[gwest_ca-(File Mod) 11,101]
