Wheel horse factory hydro pedal.

[Jxd2311 5]

Good afternoon all,

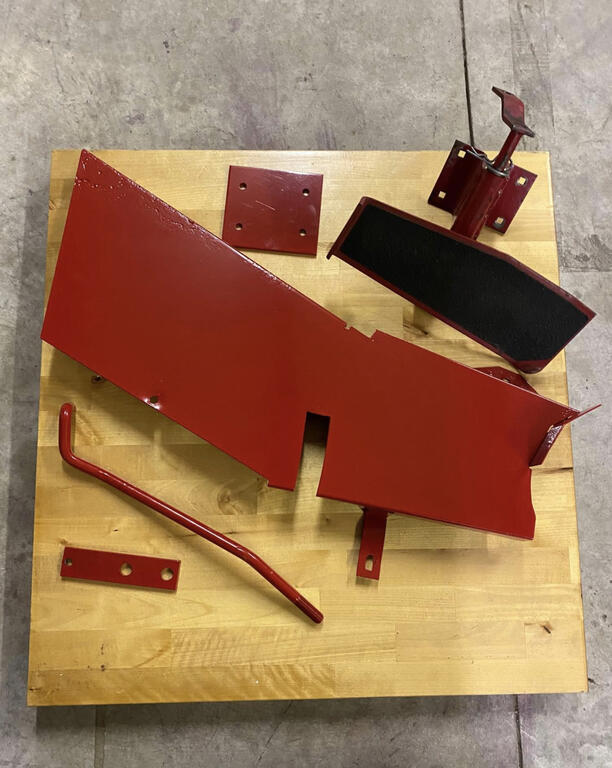

      I’ve purchased a used foot pedal kit for my 520H. I was wondering if anyone had the factory manual with install instructions. I also appear to be missing a trunnion for the shaft. And will need a part number for that.

[WHX?? 49,368]

I don't think that is going to work on a 520. Might be only for black hoods. Only one for a 520H to my knowledge is after market in Matt's pedal kit.  Here is a manual but not the best copy.Hydro foot control 1983-87 model 8-3900 OM IPL.pdf

Note where it listed the models it fits.

Edited April 19, 2021 by WHX24

[Adams94 1,068]

This manual is mine. I can try to get you some better pictures of it. I love mine but it’s on a c195

2 hours ago, WHX24 said:

I don't think that is going to work on a 520. Might be only for black hoods. Only one for a 520H to my knowledge is after market in Matt's pedal kit.  Here is a manual but not the best copy.Hydro foot control 1983-87 model 8-3900 OM IPL.pdf

Note where it listed the models it fits.



[c-series don 8,974]

I have what appears to be the same exact kit on a 520-H

[Jxd2311 5]

I found your manual threw a google search I could barely read it. Was hoping to find a manual in greater clarity someone has to have it.  I have a part number for the trunnion now! We’re moving in the right direction

[Adams94 1,068]

7 hours ago, Jxd2311 said:

I found your manual threw a google search I could barely read it. Was hoping to find a manual in greater clarity someone has to have it.  I have a part number for the trunnion now! We’re moving in the right direction

I’ll see if I can get some better pictures of it



[953 nut 56,057]

Perhaps one of these will help.



[WHX?? 49,368]

10 hours ago, c-series don said:

I have what appears to be the same exact kit on a 520-H

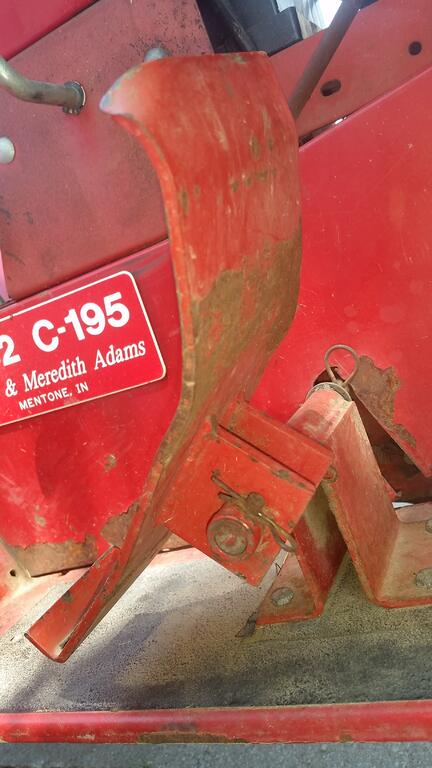

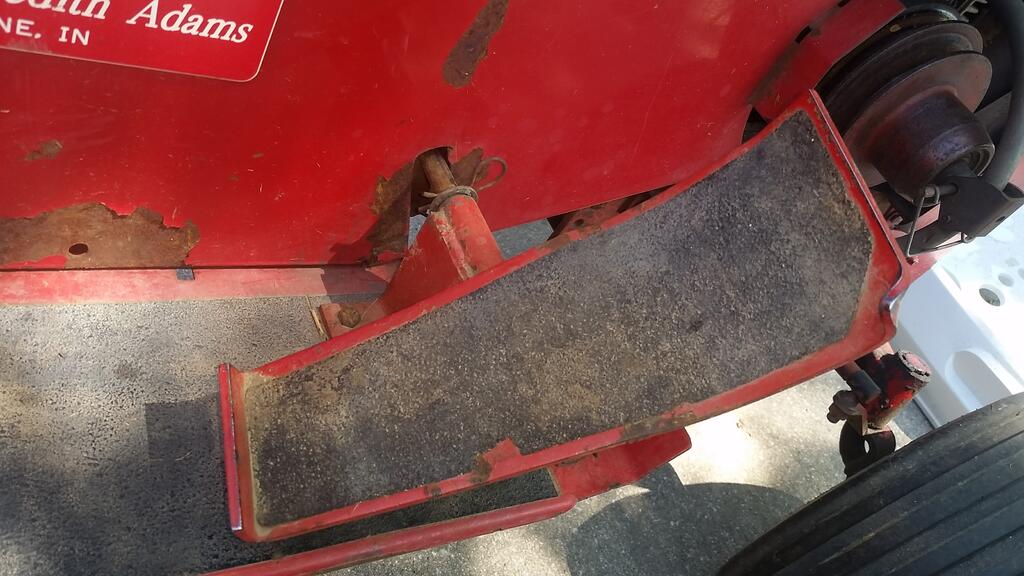

Do you really Don? Pics? When I was looking at the interchange list I did not see it as fitting a 520. Here are some pics of how it looks on @Adams94 Super C I got when I picked up my 195

[Adams94 1,068]

9 hours ago, WHX24 said:







Edited April 20, 2021 by Adams94

[Adams94 1,068]

9 hours ago, WHX24 said:

Do you really Don? Pics? When I was looking at the interchange list I did not see it as fitting a 520. Here are some pics of how it looks on @Adams94 Super C I got when I picked up my 195


hows that tractor treating you?!

[c-series don 8,974]

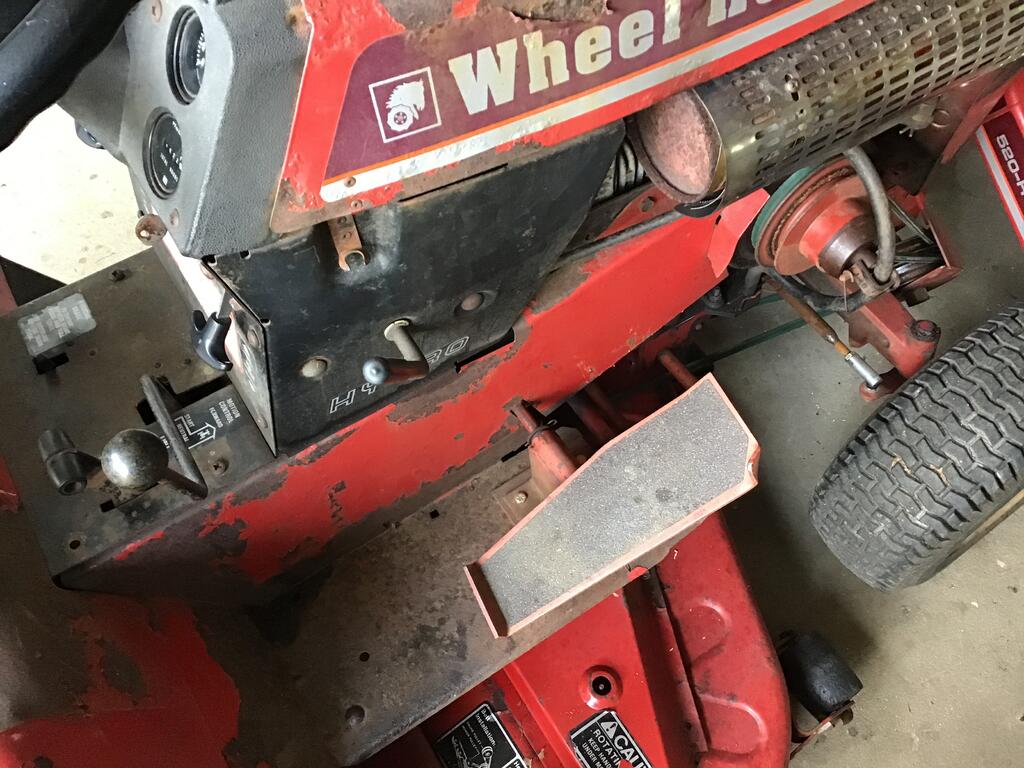

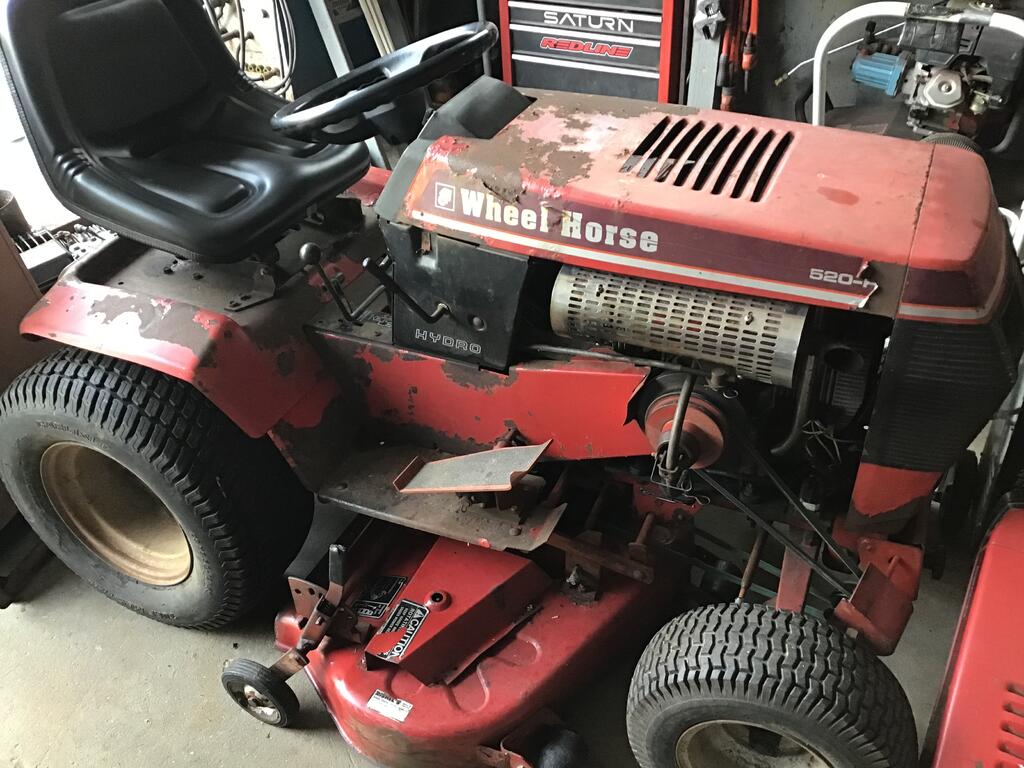

Here you go!

[seuadr 488]

wonder how that one "feels" compared to the matt kit. I rather like the matt kit because it isn't easy to accidentally hit reverse, but by the same token, it takes a little extra effort to hit reverse...
