Found a C-160!

[haydendavid380 759]

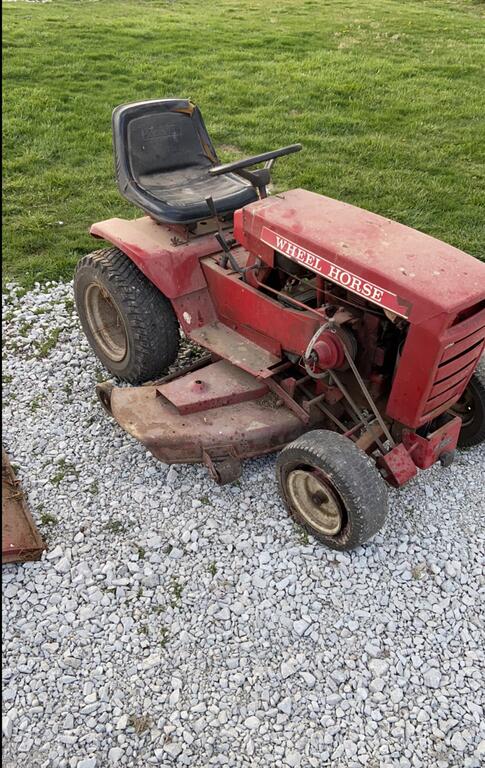

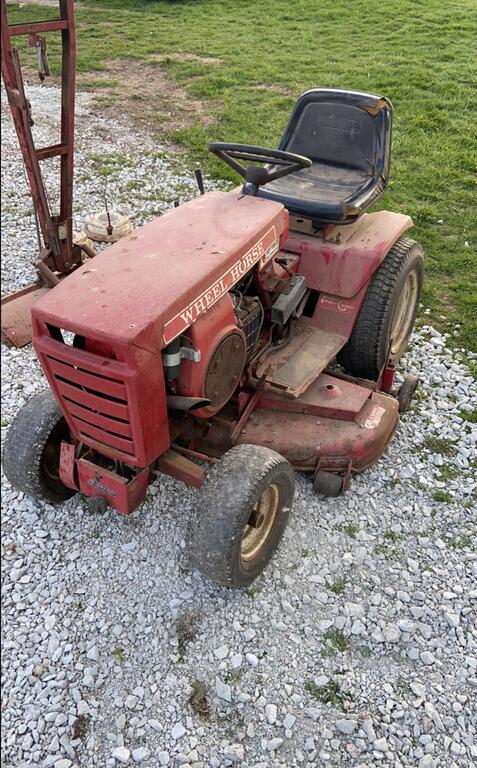

I've been scouring every classified, Craigslist, and marketplace post looking for a C-160 hydro with a lift.

Found a fresh ad this morning for a screaming deal on one. Sent the guy a message...it was already pending 😫

Well that guy never showed up, and I sent the guy the money immediately!  Seems like it's well worth $400 😁



Looks like I'm going to need a pedal, headlights, a seat, and tires. You guys see anything else?



I've got a fancy new seat, a brake pedal, and a pair of Firestone tri-ribs on the way.

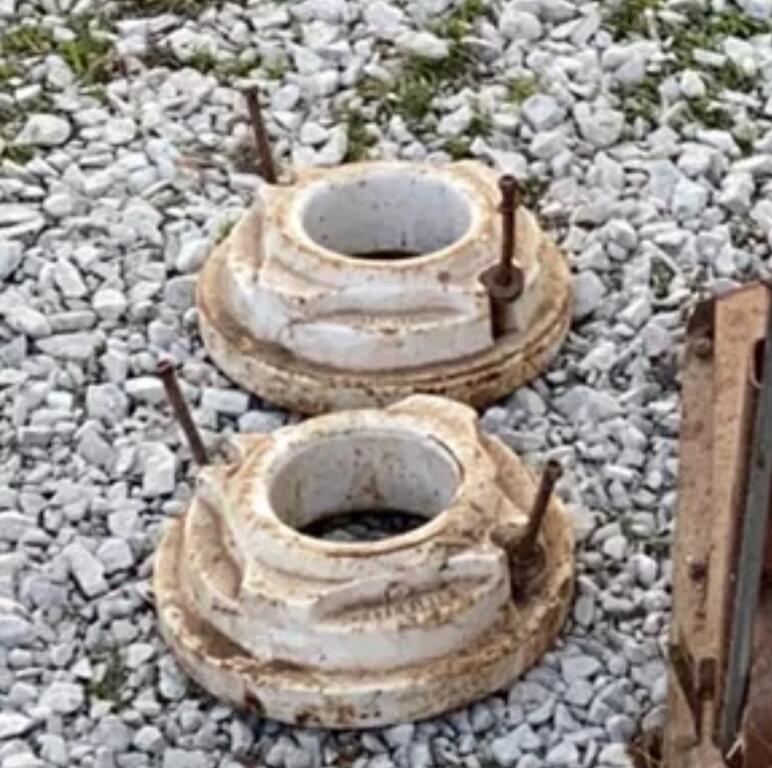

Side question,  anyone recognize those wheel weights?



Edited April 16, 2021 by haydendavid380

[ebinmaine 67,502]

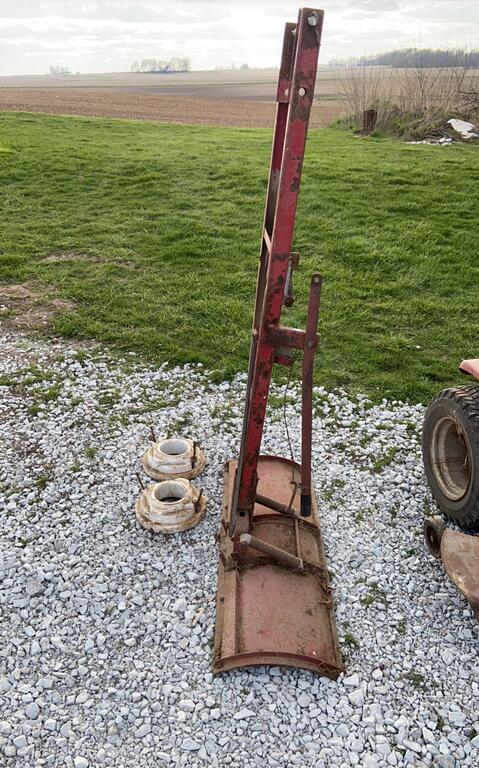

So what you did there is buy wheelweights  and a plow. You got a 76 or 77 C160 for nearly free.



Well done.

[roadapples 6,983]

41 minutes ago, ebinmaine said:

You got a 76 or 77 C160 for nearly free.



Battery is in lower location. 74, 75?

[ebinmaine 67,502]

1 minute ago, roadapples said:

Battery is in lower location. 74, 75?

Battery was there up to 77.

No hood ornament - if original - is 76 or 77.



78 + is Cxx1 series. Battery is up top from then on.

[haydendavid380 759]

59 minutes ago, ebinmaine said:

So what you did there is buy wheelweights  and a plow. You got a 76 or 77 C160 for nearly free.



Well done.



Are there any signs that point to the size of the plow? I already have a couple 42"s. Hoping to luck out and get a bigger one

[evanloock 221]

Definitely 76 or 77 with the remains of the plastic cover over the hydraulic lift valve.

[haydendavid380 759]

For the life of me I can't find any manufacturer that used that cross pattern on the back on their weights.



I've also never seen white plastic weights.



Here's hoping they're iron



[Pullstart 62,883]

2 hours ago, haydendavid380 said:

anyone recognize those wheel weights?

Yes, thank you!  I’ve been wondering where I left them!

[WheelhorseBob 1,549]

Love it! I have a 1978 c161 and it is possibly my favorite horse. I’m probably in the minority but I think the 78-79 shakers are possibly the best horses ever built but I’d never look down my nose at any C series. Good purchase!

[Tractorhead 9,064]

Sounds you make a good Deal.

Fire right up at first spark, looks it‘s be in good condition.

👍

[ebinmaine 67,502]

6 hours ago, haydendavid380 said:

Here's hoping they're iron

Odds are they're cast iron.

Might be an aftermarket set?

Look like they're in the 45 to 55 lbs range.



7 hours ago, haydendavid380 said:



Are there any signs that point to the size of the plow? I already have a couple 42"s. Hoping to luck out and get a bigger one



Most 70s plows I've seen were 42".



You could do a @wallfish style mega plow like I've got from him.

A 42. With added sections on both sides. Measures 61" wide.

You'll need all the weights and chains you can get. That 16 will have the push.

my Cinnamon Horse C160 does well.

[Pollack Pete 2,273]

Looks like the C-160 automatic that I have in one of my sea containers.I haven't looked at  mine in a couple years.Yours gives me the incentive to maybe check mine out.Yours looks like just a good cleaning and general maintanance and it will be good to go.Have fun with your new toy.

[haydendavid380 759]

25 minutes ago, Pollack Pete said:

.Yours looks like just a good cleaning and general maintanance and it will be good to go.

That's the first thing I thought. It was in a barn and it pretty dirty, but the paint looks pretty good.  I too think it'll clean up well.



As far as the maintenance, I have a wix 51410 that's supposed to be here tomorrow to change the hydro fluid. Everything else I'll wait and see how it looks Saturday.

[rjg854 11,362]

Seems as though someone bypassed the clutch safety switch, if you can start it without depressing the clutch.  Make sure to go over the wiring pretty well if it looks like it's original.  Maybe something else has been messed with. After all it is 45 years old.

[haydendavid380 759]

3 minutes ago, rjg854 said:

Seems as though someone bypassed the clutch safety switch, if you can start it without depressing the clutch.  Make sure to go over the wiring pretty well if it looks like it's original.  Maybe something else has been messed with. After all it is 45 years old.

Do they still have a clutch safety switch if they don't have a clutch?

[rjg854 11,362]

It's on that left petal, it supposed to put the transmission in neutral.

[ebinmaine 67,502]

36 minutes ago, haydendavid380 said:

Everything else I'll wait and see how it looks Saturday.

Do some searching on this site for the words baseline or base line.



You'll see if you threads about what we do to tractors that are new to us, at a minimum.



One of the first things you're going to want to do without any doubt is replace ALL of the fuel line and clean out the carburetor.

[haydendavid380 759]

2 hours ago, rjg854 said:

It's on that left petal, it supposed to put the transmission in neutral.

It's missing that pedal. I have one ordered off the auction site.

[haydendavid380 759]

2 hours ago, ebinmaine said:

Do some searching on this site for the words baseline or base line.



You'll see if you threads about what we do to tractors that are new to us, at a minimum.



One of the first things you're going to want to do without any doubt is replace ALL of the fuel line and clean out the carburetor.

I'll change all fluids, add a fuel filter, change the hydro filter, and rebuild the carb if it needs it.



I was just talking about stuff I have to order that I can't just go to a local BM and pick up.



Did all the K341s in the 160s use the same part number for the carb kit? What about the air filter?

[gwest_ca-(File Mod) 11,045]

The ID plate is just above the lift valve. Post what's on it and will link you to manuals.



Garry

[squonk 41,118]

13 hours ago, ebinmaine said:

Battery was there up to 77.

No hood ornament - if original - is 76 or 77.



78 + is Cxx1 series. Battery is up top from then on.

My all original 76 C-160 has the hood ornament and flip up fender. 2 things it's not supposed to have . you can't go by the ornament.

[squonk 41,118]

3 hours ago, haydendavid380 said:

Do they still have a clutch safety switch if they don't have a clutch?

Most clutch switches that old are stuck in from rust so the tractor thinks the pedal is depressed and starts. Since your's was missing the pedal I'd say the switch is gone. I don't see it in your video

[oliver2-44 9,752]

12 minutes ago, haydendavid380 said:

Did all the K341s in the 160s use the same part number for the carb kit? What about the air filter?



Check if you have a Kohler or Warlboro WHG carb.  If you need help identifying the carb, post some pictures of the numbers located on the top or side of the carb.  The Walbro carb will have WHG or similar raised letters cast on it.

[haydendavid380 759]

16 minutes ago, gwest_ca said:

The ID plate is just above the lift valve. Post what's on it and will link you to manuals.



Garry

Will do tomorrow after I pick it up.

[oliver2-44 9,752]

Here a list of things I use on a new to me tractor.  I don't automatically do everything, but use the list as more of a progressive thing as needed. 1056 Minor Overhaul Checklist.ods
