Hydraulic hoses C145

Recommended Posts

JaysHorse

So I extended my frame 18” on my C145 chassis. Now I need to get longerhoses to go from pump to spool valve. Anyone know what my options are or a place to order them from? Is a steel line an option?





  • Like 1

Share this post


Link to post
Share on other sites

ebinmaine

Steel piping can be an option but ONLY if it's made right and out of the proper stuff.



I've dealt with the company below and I would highly recommend them. I think he does mail order anyway but if not, I'll help you out.



https://crsmaine.com/







  • Like 2
  • Thanks 1

Share this post


Link to post
Share on other sites

pfrederi

I get the fittings I need and bulk 1/4 SAE 100R3 hose from this place .  Cut the pieces I need take them to the local hydraulic place (many good autoparts sores make hoses and would be good) with a box of donuts and he crimps them for me..



https://www.discounthydraulichose.com/

  • Like 2
  • Thanks 1

Share this post


Link to post
Share on other sites


oliver2-44

One of our vendors Wheel Horse Parts and More, makes custom hoses.

So @JaysHorse now that you've teased us  :naughty: enquiring minds want to know what's your plans with the frame extension.

  • Like 1

Share this post


Link to post
Share on other sites

JaysHorse
30 minutes ago, oliver2-44 said:

One of our vendors Wheel Horse Parts and More, makes custom hoses.

So @JaysHorse now that you've teased us  :naughty: enquiring minds want to know what's your plans with the frame extension.

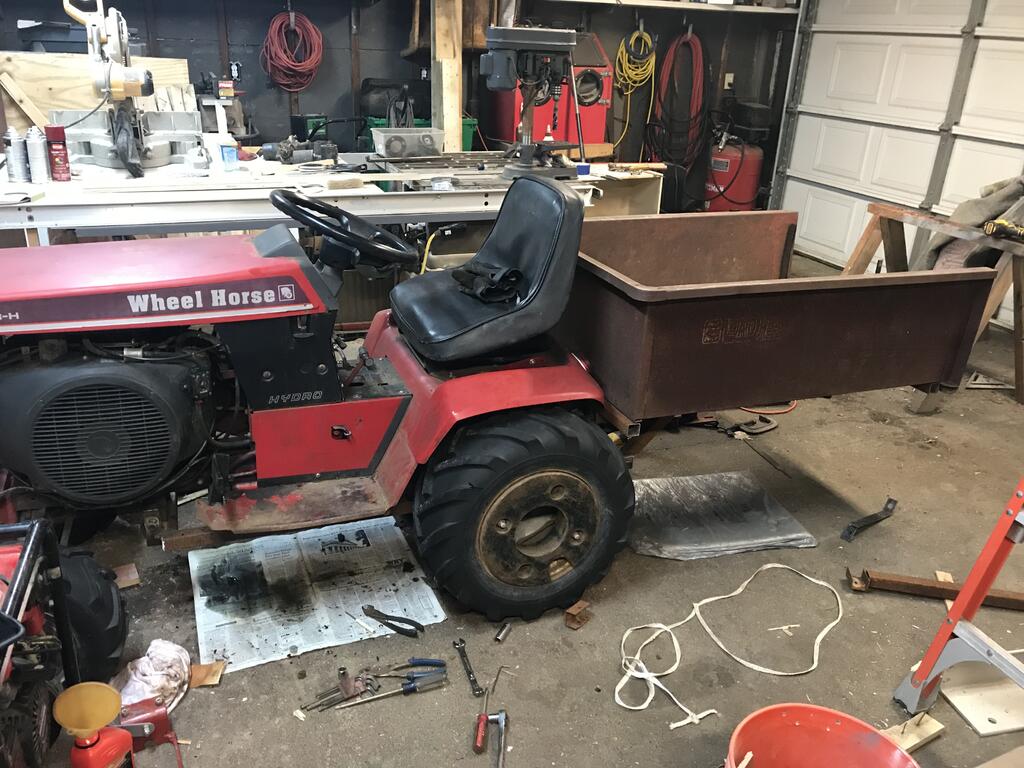

Well I was trying to save some embarrassment but you had to call me out. I made this but when I loaded it I was spot lighting the stars. 😂 so I decided to extend the rear axle 18” to put it under the middle.


  • Excellent 1
  • Haha 2

Share this post


Link to post
Share on other sites

Jeff-C175
3 hours ago, JaysHorse said:

I was spot lighting the stars



Front suitcase weights!



  • Like 2

Share this post


Link to post
Share on other sites

oliver2-44
3 hours ago, JaysHorse said:

Well I was trying to save some embarrassment but you had to call me out. I made this but when I loaded it I was spot lighting the stars. 😂 so I decided to extend the rear axle 18” to put it under the middle.


Looks like Just a small design change @JaysHorse We,ve all had those days.

  • Like 2

Share this post


Link to post
Share on other sites

JaysHorse
8 hours ago, Jeff-C175 said:



Front suitcase weights!



That would be a good idea. But who wouldn’t want it to be 18” longer? 😂

  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

ebinmaine
1 hour ago, JaysHorse said:

That would be a good idea. But who wouldn’t want it to be 18” longer? 😂

Might as well do both. You've already got the length added and tractors just look cool and have better steering with front weight.

  • Like 1

Share this post


Link to post
Share on other sites

JaysHorse

So anyone know the best way to measure for a new belt? If I made this 18” longer would I be safe to say 18” longer belt?

Share this post


Link to post
Share on other sites

Jeff-C175
6 minutes ago, JaysHorse said:

So anyone know the best way to measure for a new belt? If I made this 18” longer would I be safe to say 18” longer belt?



Well... don't forget that it's TWO TIMES 18", but I'm not sure it's that simple.  It might just be.



A long azz belt like that is surely going to need some flat idlers to keep it from floppin' around like a big rubber band.  Might wanna plan on that?

  • Like 2

Share this post


Link to post
Share on other sites

JaysHorse
8 minutes ago, Jeff-C175 said:



Well... don't forget that it's TWO TIMES 18", but I'm not sure it's that simple.  It might just be.



A long azz belt like that is surely going to need some flat idlers to keep it from floppin' around like a big rubber band.  Might wanna plan on that?

Yeah I already planned on that. I thought about using a piece of 1/2” rope to get an idea.

Share this post


Link to post
Share on other sites

ebinmaine

I find the best way to go about that type of business is to get 3 or 5 belts of close size and return what you don't need.



Start with the one 36" longer than stock.





  • Excellent 1

Share this post


Link to post
Share on other sites

JaysHorse

The one I was using was 84”. So I am starting with 120” see what that does for me.

  • Like 1

Share this post


Link to post
Share on other sites

JaysHorse

So that was a 119” x1/2 and it was a bit short. Off to a 5/8x126”

Share this post


Link to post
Share on other sites

JaysHorse

Kind of at a standstill until I get this belt. Also my longer hydraulic lines should be able to be picked up tomorrow.

  • Like 1

Share this post


Link to post
Share on other sites

JaysHorse


  • Excellent 1

Share this post


Link to post
Share on other sites

JaysHorse

Got 2 new longer hydraulic lines made up today. Longer belt should be in today. With a little bit of luck I can make some progress on this again.

  • Like 2

Share this post


Link to post
Share on other sites

JaysHorse

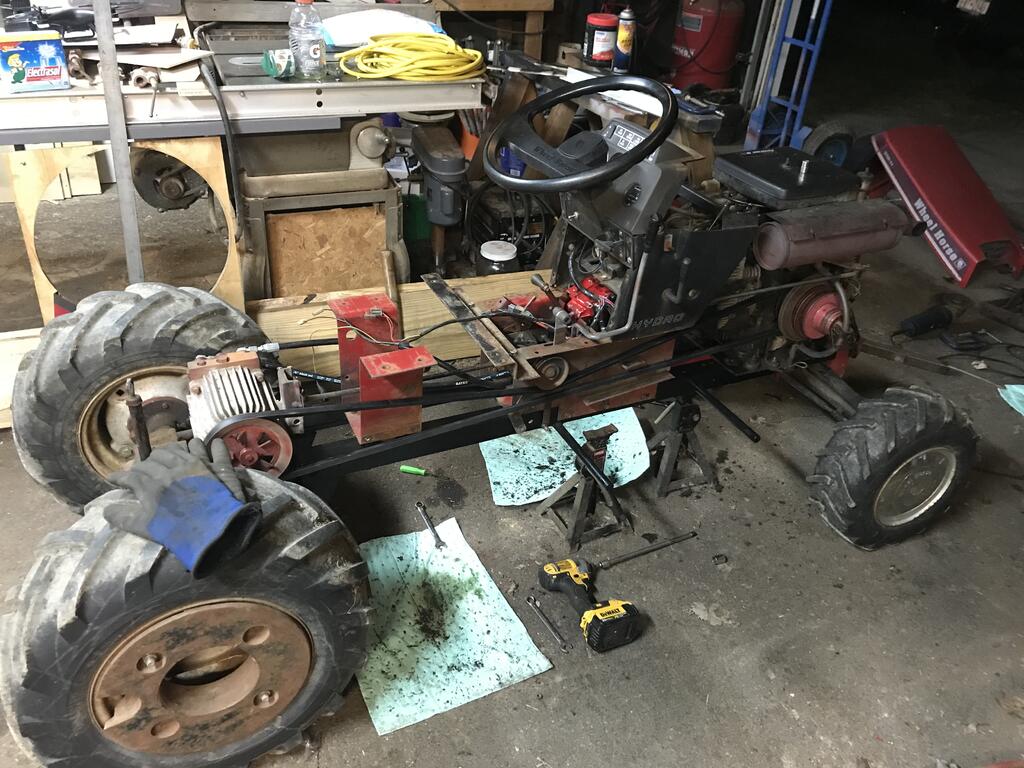

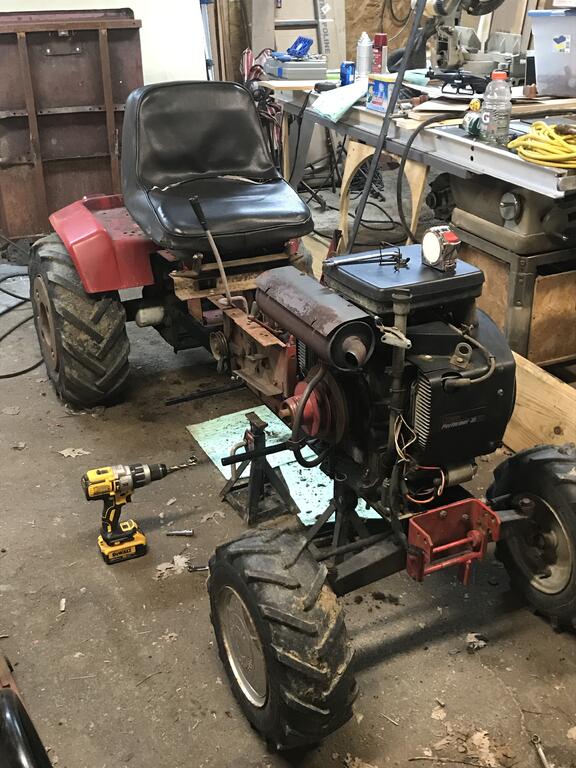

Starting to come together. Hoses fit perfect. Belt is on.


  • Excellent 1

Share this post


Link to post
Share on other sites

Jeff-C175
1 hour ago, JaysHorse said:

Starting to come together



Jay, I wonder if you added any cross bracing between the longer frame rails?  That extra distance will add to torsional stress on the frame.  Just something to think about...

  • Like 2

Share this post


Link to post
Share on other sites

JaysHorse
54 minutes ago, Jeff-C175 said:



Jay, I wonder if you added any cross bracing between the longer frame rails?  That extra distance will add to torsional stress on the frame.  Just something to think about...

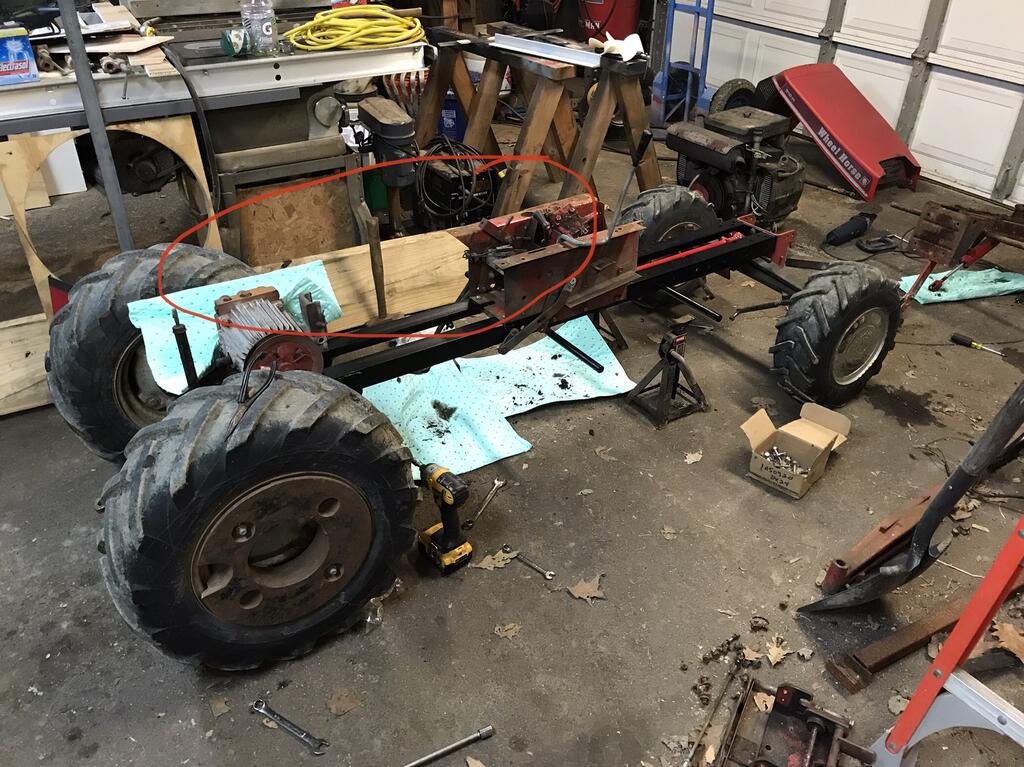

Funny you mention this topic....I was thinking about that as well. I noticed when I rock the engine there is a lot of twist.

  • Like 1

Share this post


Link to post
Share on other sites

ebinmaine
12 minutes ago, JaysHorse said:

Funny you mention this topic....I was thinking about that as well. I noticed when I rock the engine there is a lot of twist.



Take a look at this thread. Scroll up and down and you will see a few different ways to add some beef to the back of the frame where It bolts to the transmission. Perhaps include and or modify something that's in here...







  • Like 1

Share this post


Link to post
Share on other sites

Jeff-C175
19 minutes ago, JaysHorse said:

thinking about that as well



I was thinking about perhaps an X brace arrangement of sorts, using 3/4 round rod... say from the bottom right frame rail to the top left, than from the bottom left to the top right, and maybe welded in the middle where they cross?



Then maybe even more?  from top right to bottom left, etc...  maybe that's overkill though?  Two might be enough?



Or, if you have some left over C channel that you used for the frame, do an X brace with that.  Should be super strong then.

Edited by Jeff-C175

Share this post


Link to post
Share on other sites

Jeff-C175
6 minutes ago, ebinmaine said:

back of the frame where It bolts to the transmission



Maybe take my X brace idea all the way to the trans mount plate?

Share this post


Link to post
Share on other sites
