Mower deck mod, need help

[gt14rider 749]

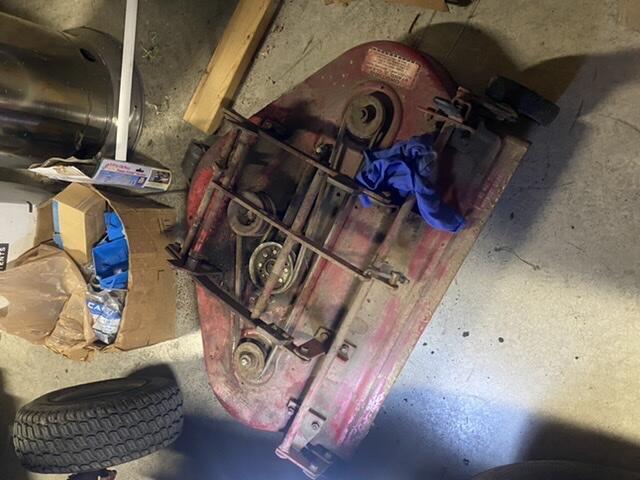

Good afternoon,  got a mower deck for cheap, need to make some atach-o- matic deck parts. The deck is a 05 36YR01, parts schematic is for  05-36mr03,

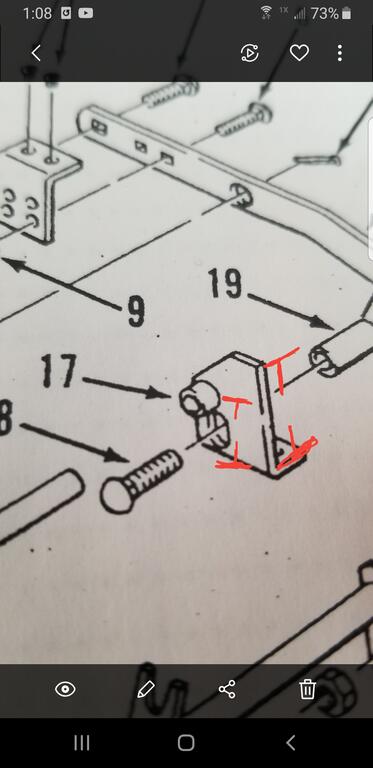

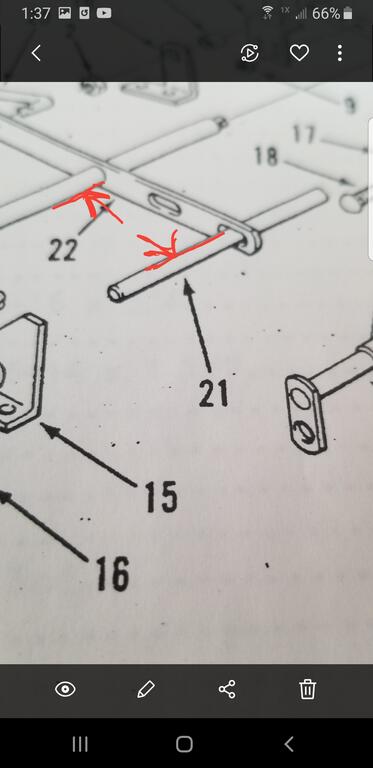

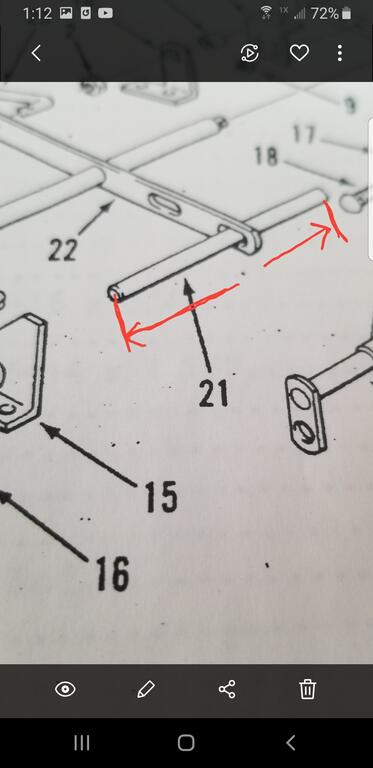

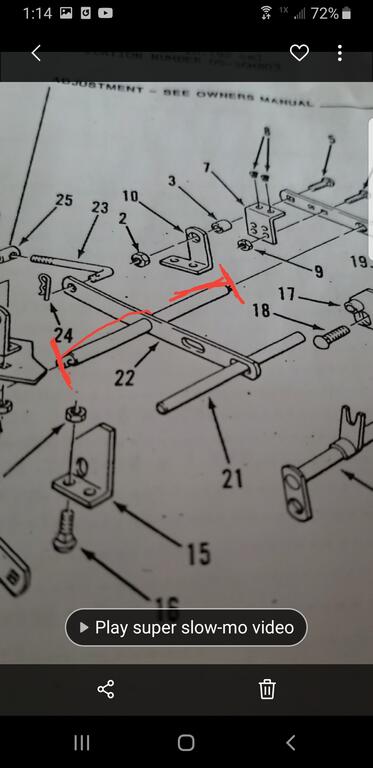

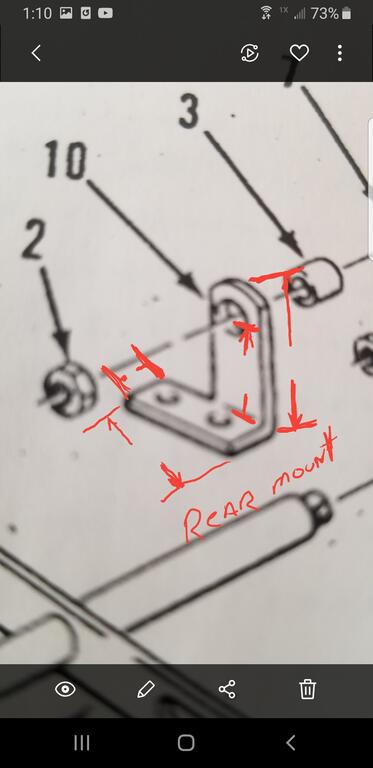

I need measurements of parts in pics. Any and all help would be appreciated, thanks in advance.

[peter lena 8,584]

GT14RIDER, THOSE 36 " REAR DISCHARGE ARE A GOOD BASIC DECK, what does the bottom side look like? a thorough oil soak and leaving it upside down , would help it soak into the metal and kill off the grunge. some one will send you a parts diagram , with a numbers you should be able to find your parts on this site with vendors or internet with # search , good luck pete

[gt14rider 749]

Thanks pete,I'll give it a good soaking and check over the rest. Right now I'm looking for measurements I'm going to make the parts

Plan on putting it under 73 no name

Edited March 9, 2021 by gt14rider

[cafoose 3,354]

That may be wrong try this one:





Edited March 9, 2021 by cafoose

[Lee1977 6,648]

Some one may have most of those parts off a rusted out deck, The deck hardware on B's C's 300, 400, and 500 tractors are all the same. Be a lot easier to buy it then to make it.

[daveoman1966 3,745]

I'm sure I have all of the parts you need for that 36" deck... I've torn down a dozen or mor of the same deck.

Send me an email so I can quote you a price..  You have the lift cable too...what else might you want?

I am:  daveoman@windstream.net





[gt14rider 749]

Thanks for your response, and offer.

I have a lead on some mower decks / parts , will let you know if I need anything else , wouldn't be able to get to the parts until next week or so,

Thanks again
