Lets see them restored short frame dash boards!

[Gordyhogg 150]

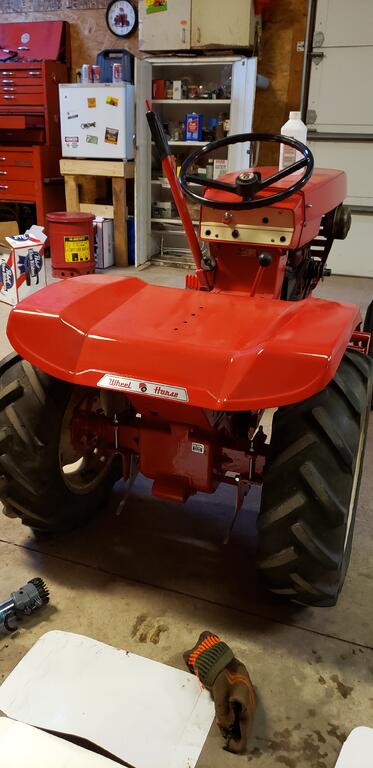

Id like see hpw you guys are repainting/powder coating your dash boards and what colors you use. I already got my sticker kit from redoyourhorse just looking for pics and opinions. Thanks! By the way the 856 is running now!

Edited February 22, 2021 by Gordyhogg

[WHX?? 48,828]

[WHX?? 48,828]

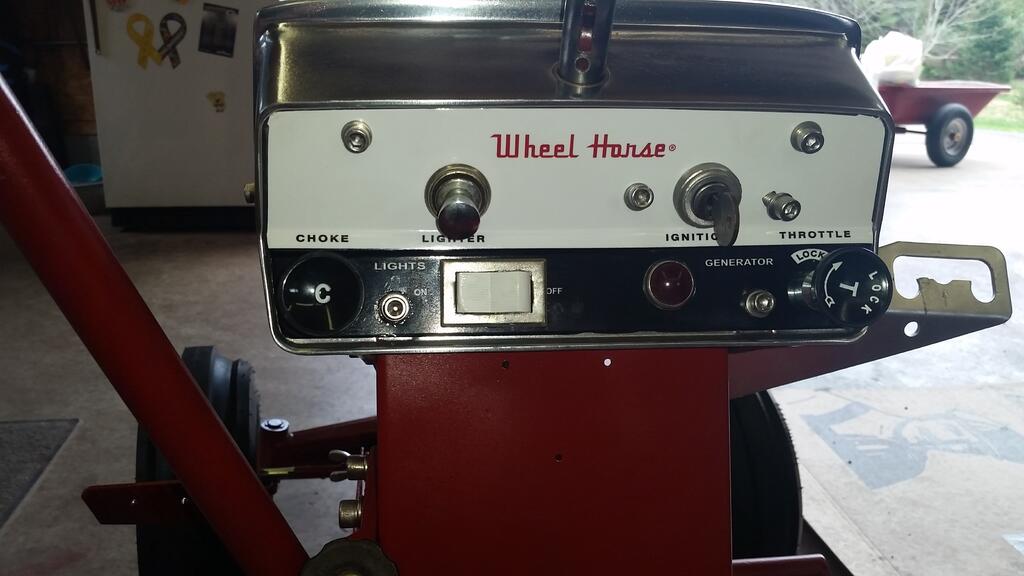

My bad ....it's a long frame

Word of caution when tightening the the choke and throttles the "D" hole does not keep them from turning and you can end up with a wrinkled decal.  Same with mounting screws.

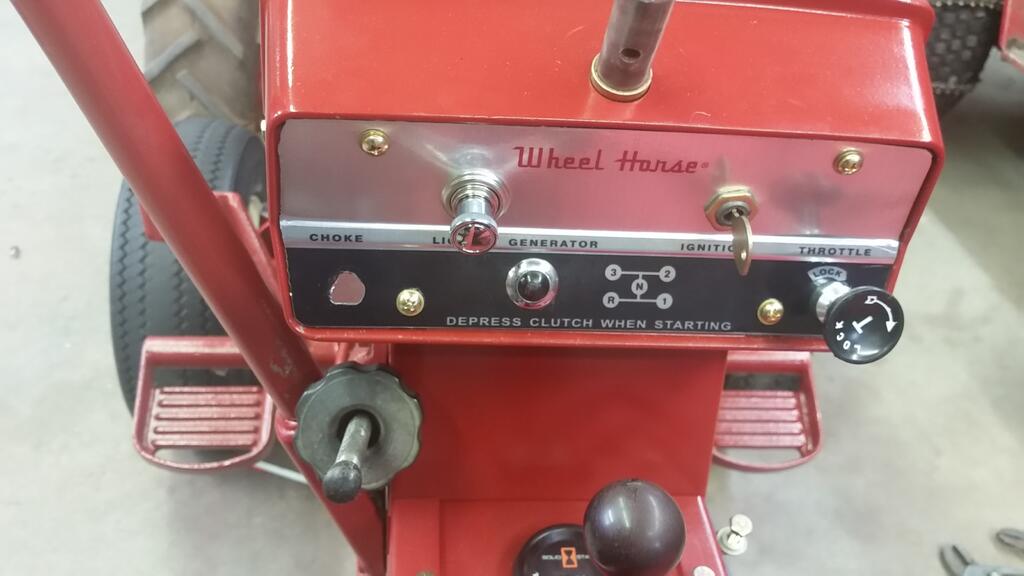

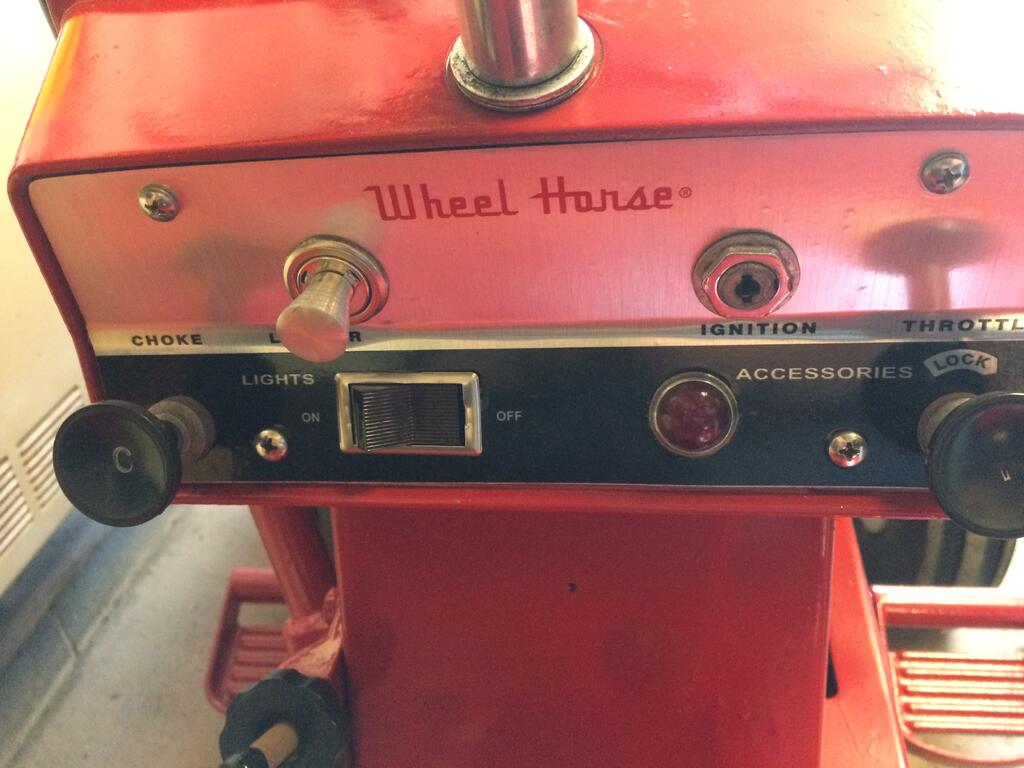

Ok here's  a short frame



Edited February 22, 2021 by WHX24

[squonk 41,155]

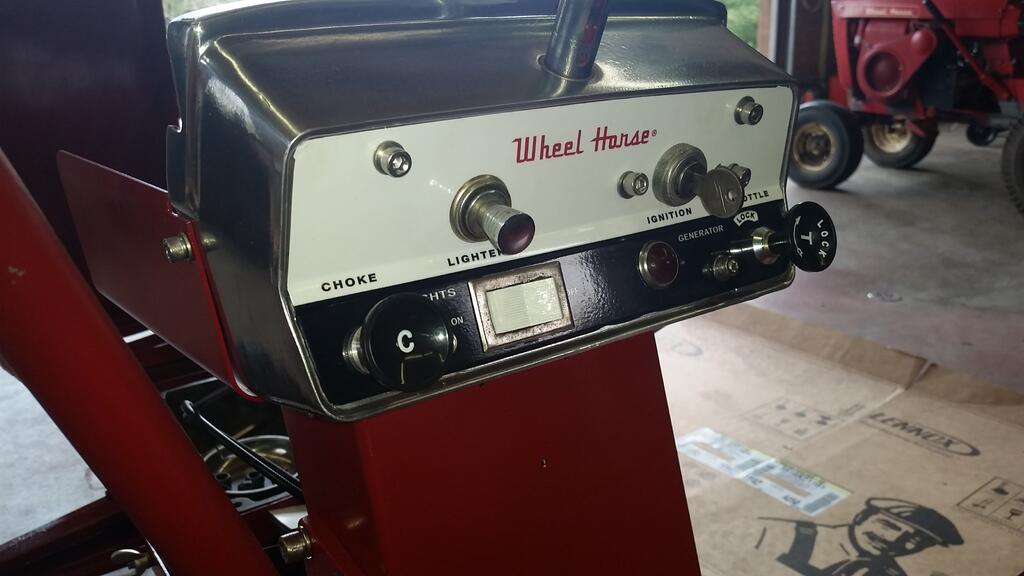

Long frame also:





(Looks like Jim bought a gross of Allen head screws! )

[WHX?? 48,828]

8 minutes ago, squonk said:

Looks like Jim bought a gross of Allen head screws

It's a stainless/allen fetish!



BTW Gordy just a shot coat of self etching and some light sanding and on goes the decal. If the dash is pitted maybe some filler primer?

Might want to ask the master decaler @Achto what his method is.

Edited February 22, 2021 by WHX24

[Racinbob 11,094]

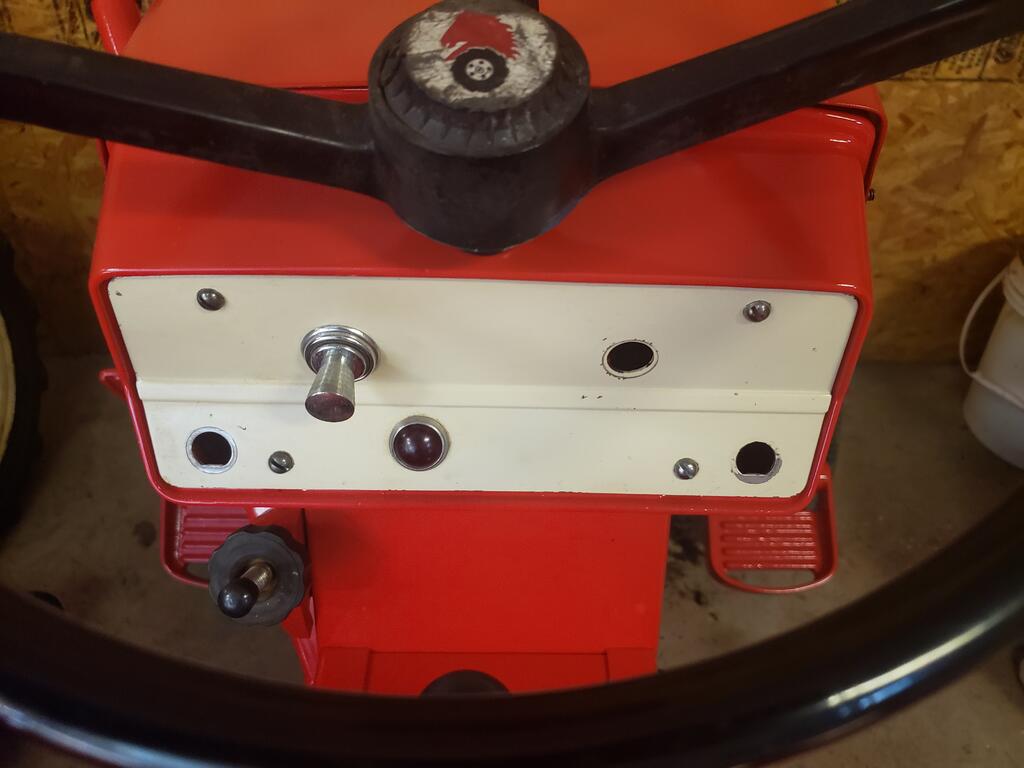

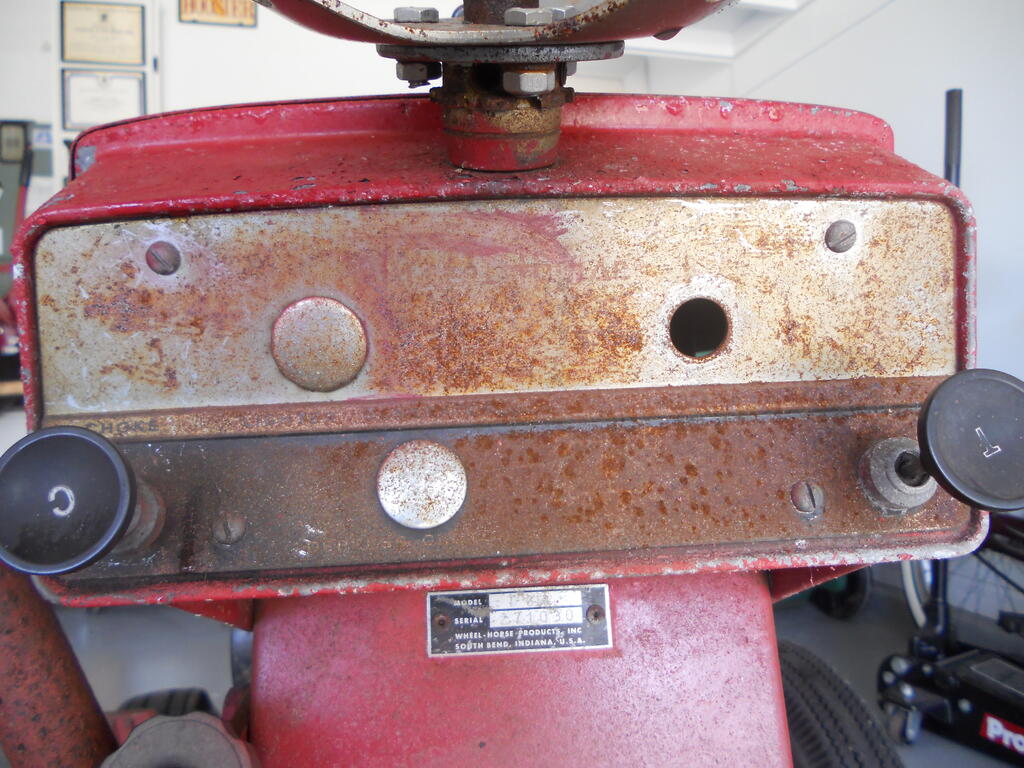

Before:

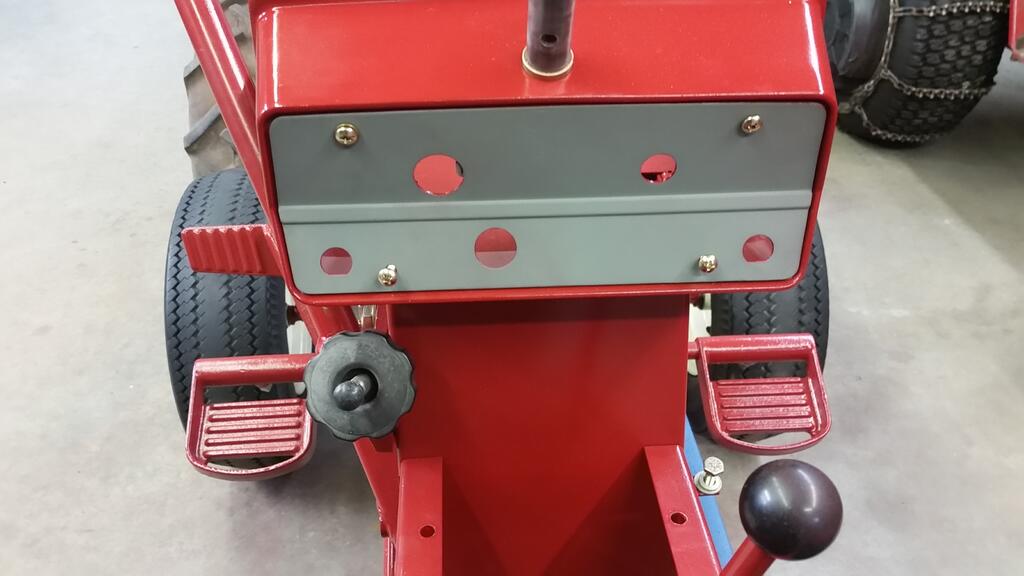

After:



[Achto 27,609]

9 minutes ago, WHX24 said:

Might want to ask the master decaler @Achto what his method is.



If you get the one piece decal from Terry @Vinylguy you will only need to get a smooth paint job on the dash before installing one of his decals. It will come out looking like the one posted above by @Racinbob.



if you order one of Terry's 3 piece decals then you will need to do more prep work on your dash. Either have it chromed or paint it silver.

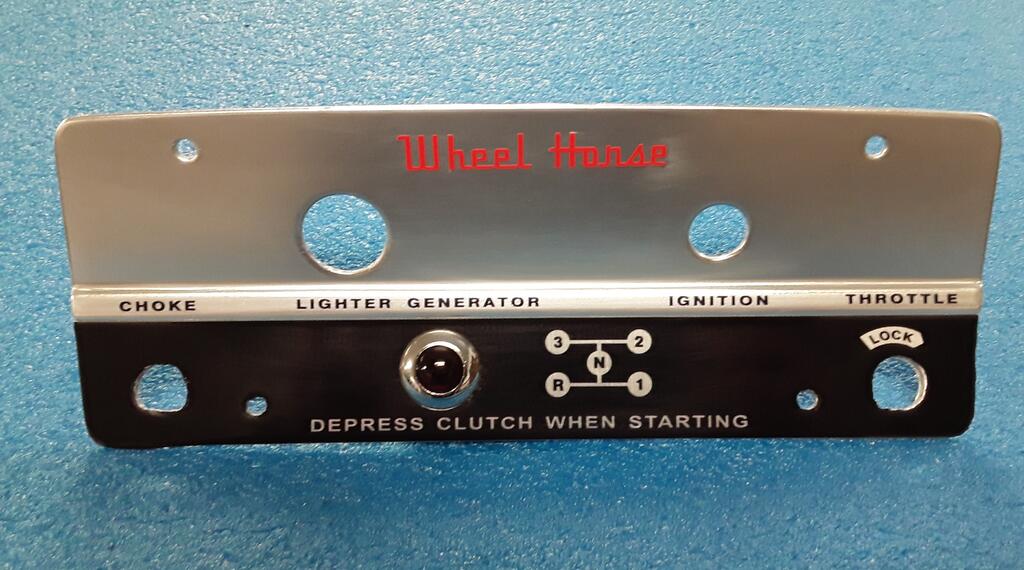

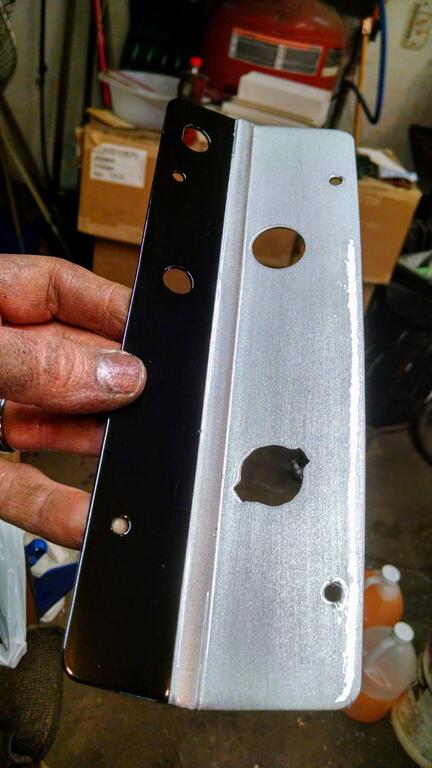

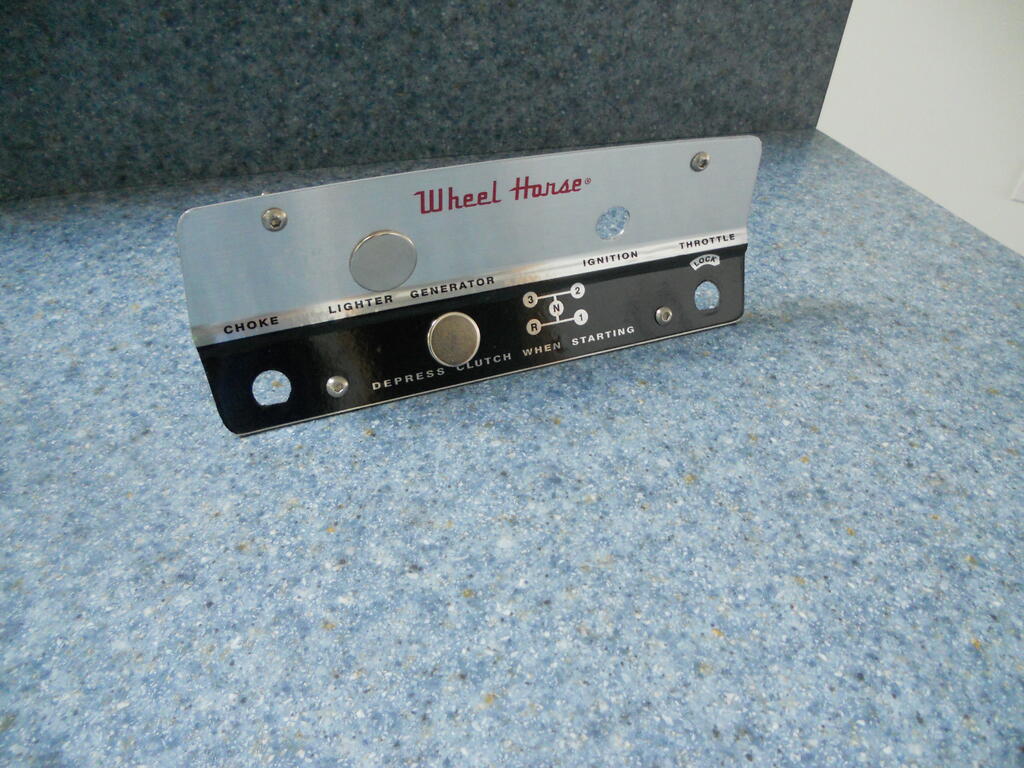

This dash has the 3 piece decal on it. To get the silver finish and make it look brushed, I painted it silver then waited for it to dry. After it dried I scuffed it with Scotch Brite making sure to only scratch in one direction, then I clear coated it. Applied decals after the clear had dried. Turned out great, looks even better in the sun.

[Gordyhogg 150]

Really great input you guys thanks! I do have the 3 piece decal but im not sure if i wanna do the white or silver...what are your paint choices? Also if i do silver i like that idea if brushing it with a scotch brite pad thats genious!

[Achto 27,609]

I used Duplicolor silver wheel paint, it's one of the few silvers from a spray can that can be cleared over and still look decent.



https://shop.advanceautoparts.com/p/duplicolor-wheel-coating-silver-11-oz-aerosol-hwp101/7141149-p?store_code=5143&product_channel=local&adtype=pla&gclid=CjwKCAiAyc2BBhAaEiwA44-wW-Pb2CHdvWkTnMjwTq4iQqrj75wQ3W1t6AB91QvmhpzwNINIVKuw9RoCMj8QAvD_BwE&store=5143&gclsrc=aw.ds



I clear coated it with Duplicolor wheel clear.

https://shop.advanceautoparts.com/p/duplicolor-wheel-coating-clear-11-oz-aerosol-hwp103/7141208-p?store_code=5143&product_channel=local&adtype=pla&gclid=CjwKCAiAyc2BBhAaEiwA44-wW4B0GoYBXxeEeyOEDxlozu2Oog-R_P-HZQKDftjy2_XiKTSxcOogLxoCkSMQAvD_BwE&store=5143&gclsrc=aw.ds

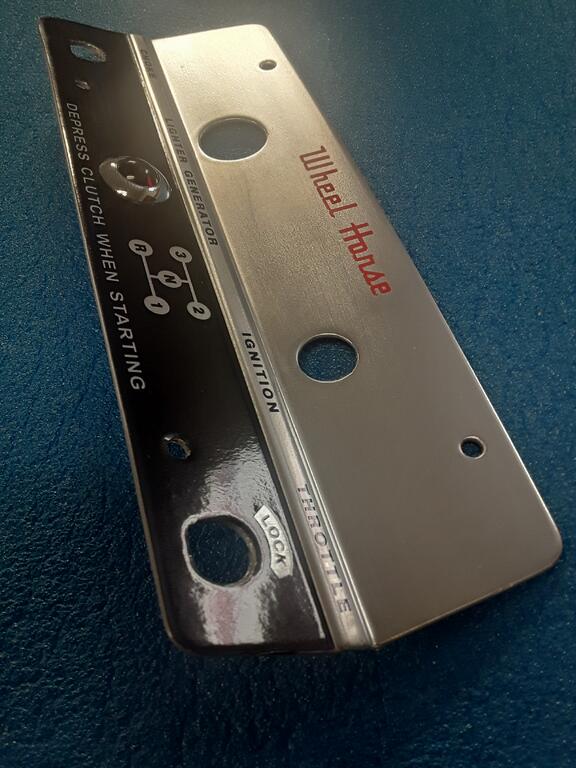

This pic shows the brushed effect a little better.
