Wheelhorse C160 Auto wiring

[Clarence T. Nolley Jr 14]

Hello

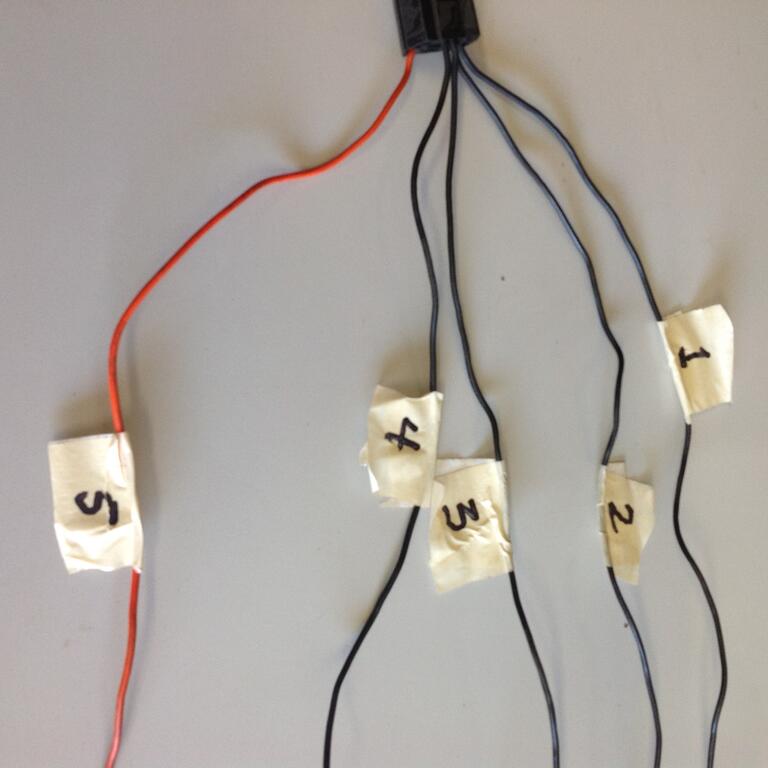

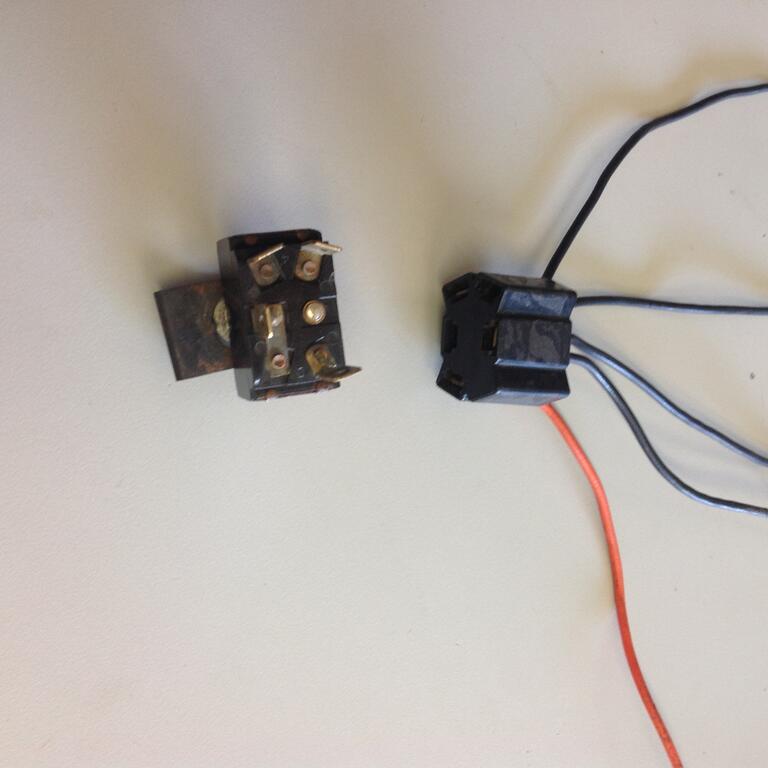

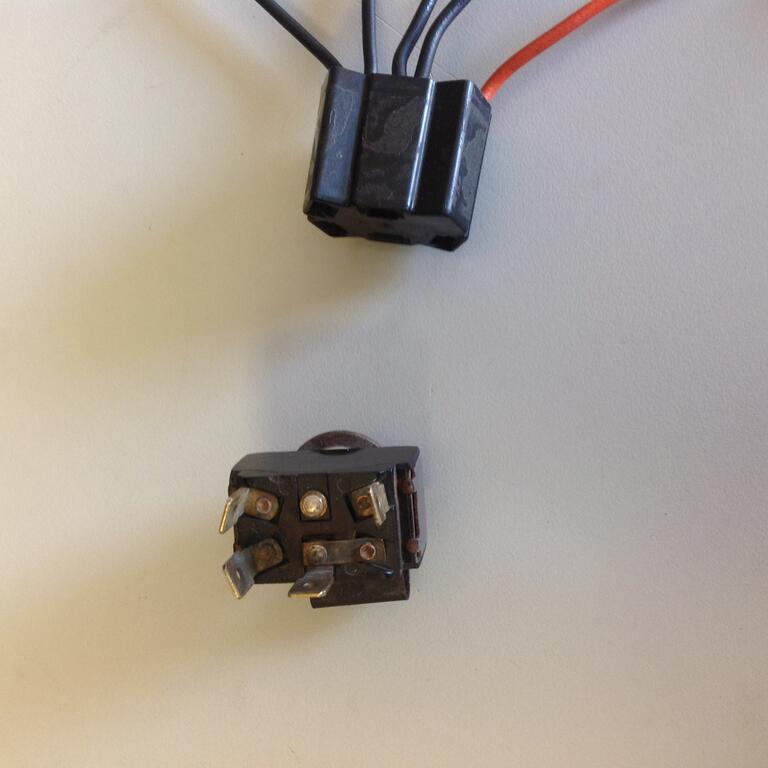

iam trying to rewire my C160 wh Tractor and i have started, but now iam trying to find out about this PTO switch and where to route my wiring, I have some pic's,

can anyone tell me where these wires route to on this switch. thanks in advance help.

[Ed Kennell 39,410]

You can go to the manuals section and download the wiring diagram for your tractor.    If you post the numbers on the ID plate, we can locate the drawing  in case you have difficulty finding the correct wiring diagram.

[gwest_ca-(File Mod) 11,148]

There is more than one switch with that unique terminal pattern. Here is a link to one of them. A member was kind enough to take a photo of the back of the connector. Click on the picture in the link to see it.

A tractor model number will verify it is correct.



Garry

[Clarence T. Nolley Jr 14]

Hello

 fellas thanks for the info,the tractor model is I 0381 or K16K801-06490 that what i have, i did not take pic's before disassembly because the harness was very corroded and brittle.

[Clarence T. Nolley Jr 14]

hello

again my tractor is a 1975 model.

[gwest_ca-(File Mod) 11,148]

1-0381 is a 1975 model.

61-16K801 is a 1976 model.

They both use the 104680 switch in the above link.

Click on the pictures in each link to see the wiring



[gwest_ca-(File Mod) 11,148]

How about giving us the info off your ID plate.

There is a picture in this link where the ID plate is located.

The topic calls the tractor a 160 Auto.

You gave us 1975 and 1976 8-speed model numbers and a serial number that suggests it may be a 1976 model something.

Garry
