Old Skool 2 #1 Posted January 17, 2021 Does any one know if the 3 point hitch from a GT 14 will work on a D200?? It looks similar Im looking for a 3 point hitch for my D200 just bought it not sure why anyone would take the hitch off. Share this post Link to post Share on other sites
ebinmaine 67,946 #2 Posted January 17, 2021 @19richie66 @pfrederi @953 nut Share this post Link to post Share on other sites
Pollack Pete 2,273 #3 Posted January 17, 2021 7 hours ago, Old Skool said: not sure why anyone would take the hitch off. Not all D-200's came with a 3 point hitch.It was an option.Same as a rear power take-off.That was an option also. Share this post Link to post Share on other sites

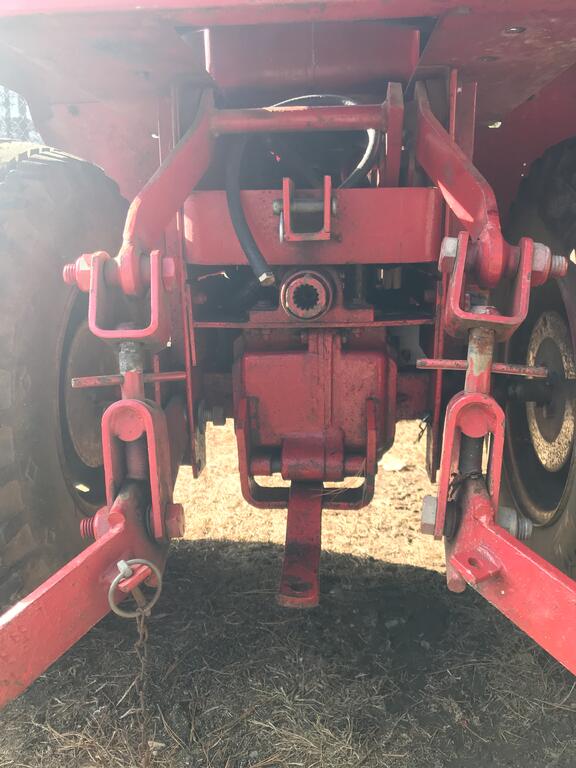

19richie66 17,512 #4 Posted January 17, 2021 (edited) As far as I know, only the lower arms and hydraulic cylinder are the same. Everything else is different. Top - D series , bottom - Gt14 Edited January 17, 2021 by 19richie66 1 Share this post Link to post Share on other sites
Old Skool 2 #5 Posted January 17, 2021 But Im assuming if it has the hydraulic lever for the the 3 point hitch it probably came with one?? Share this post Link to post Share on other sites
Old Skool 2 #6 Posted January 17, 2021 Thank you!!!! Richie. That picture helps me I couldn't find one of the D200 A close up like that anyway Share this post Link to post Share on other sites
953 nut 55,540 #7 Posted January 17, 2021 Everything on the "D" is heavier than the GT-14. You might call Lincoln https://a-ztractor.com/, he probably can hook you up with what you need. Share this post Link to post Share on other sites
ebinmaine 67,946 #8 Posted January 17, 2021 Well where are my manners..... Hey @Oldskool we have an @Old Skool now too!! 1 Share this post Link to post Share on other sites
Old Skool 2 #9 Posted January 17, 2021 1 hour ago, ebinmaine said: @19richie66 @pfrederi @953 nut Thanks Eric 1 Share this post Link to post Share on other sites
19richie66 17,512 #10 Posted January 17, 2021 Not sure about the levers. My D160 had both levers on the dash just as this picture. It had 3 point and pto when I got it. Share this post Link to post Share on other sites
Old Skool 2 #11 Posted January 17, 2021 Yes Richie mine looks just like that but no hitch. Does your hitch work off the same hydraulic cylinder as the deck? or is there another separate cylinder for the hitch?? Share this post Link to post Share on other sites
19richie66 17,512 #12 Posted January 17, 2021 I believe on the D there were two cylinders. One underneath the tunnel and one right under the seat. I do not have mine anymore. Wish I did but the transaxle was toasted and I couldn’t get into that at the time. Share this post Link to post Share on other sites
Oldskool 6,652 #13 Posted January 17, 2021 Welcome @Old Skool from another Oldskool. You couldnt have come to a better spot for info from a great bunch of guys. 1 1 Share this post Link to post Share on other sites

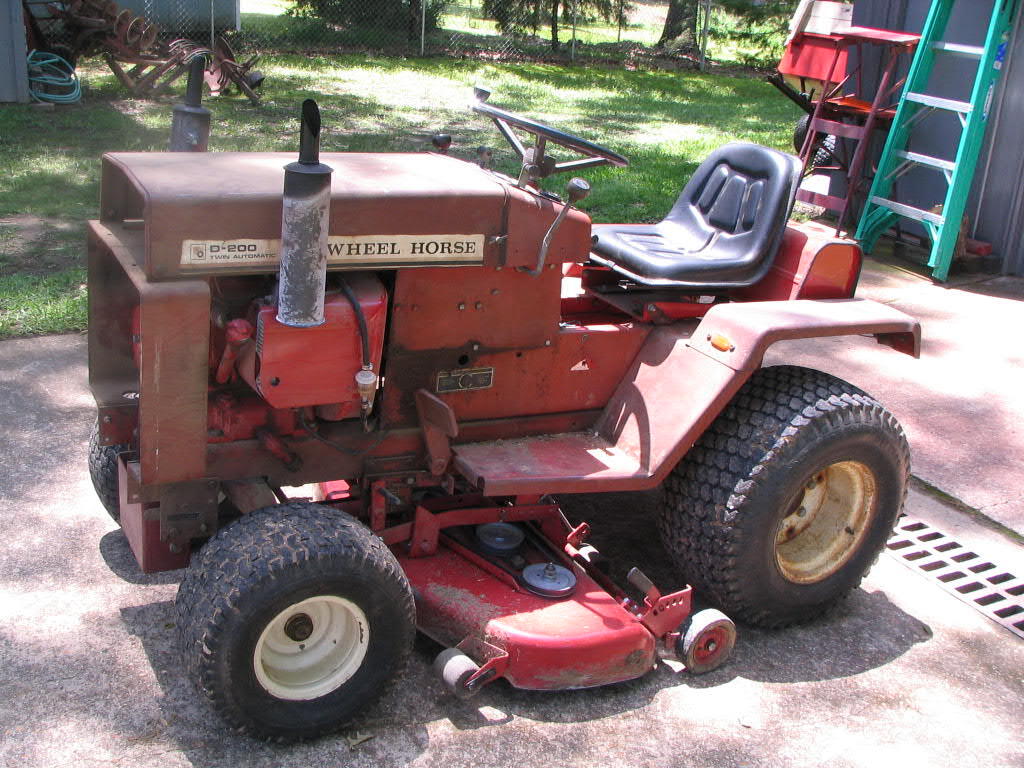

pacer 3,174 #15 Posted January 17, 2021 (edited) Nothing much to add, just may be welcome to the madness!! I too have a D200 that has neither the 3 point or PTO, and the PO said thats the way he bought it -- just a 48" mower deck. It does have the lever in the dash and also a hyd line to where the mounting point of the cyl would go. Kinda funny, here on the forum theres a ..... sorta 'love/hate' with the "Big D's"? Guess thats sorta strongly put, but there are some that just dont like them - seems the look maybe?? Any way the ones of us that DO love em, we do do it with PASSION!! theyre a beast!! heres mine shortly after I got it........... Edited January 17, 2021 by pacer 1 Share this post Link to post Share on other sites
pfrederi 17,788 #16 Posted January 17, 2021 D series used a second hydro cylinder for the 3 pt hitch Share this post Link to post Share on other sites
