Awesome sounding Mick good job!  Nice to see solid shaker plate mounts.

[Mickwhitt 4,645]

Took these just now.  The ones from my first strip down are on a computer but I can't be sure the layout was right back then.

This all works just fine as it is.

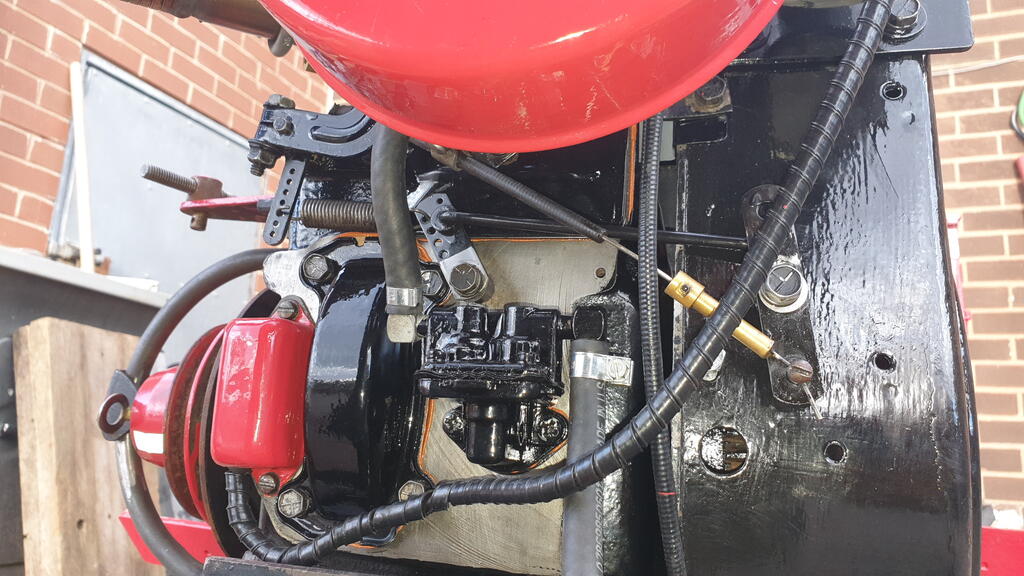

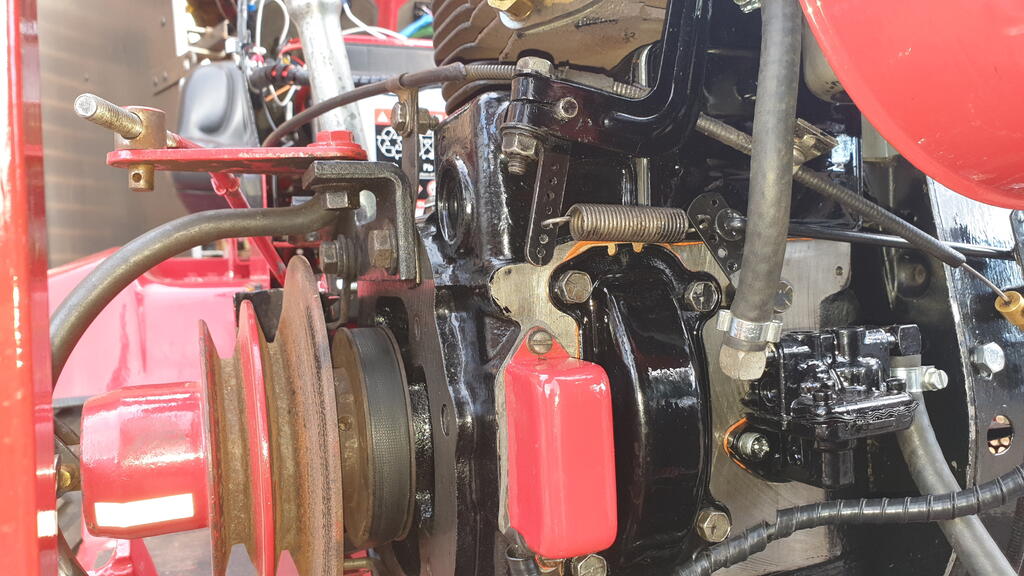

Hope this shows the layout clearly.



Mick

[WHX?? 48,839]

Looks to be as should.

Missing a hairpin on the PTO trunion tho and what is that brass lookin dodad on the end of the throttle cable?

[Gregor 4,846]

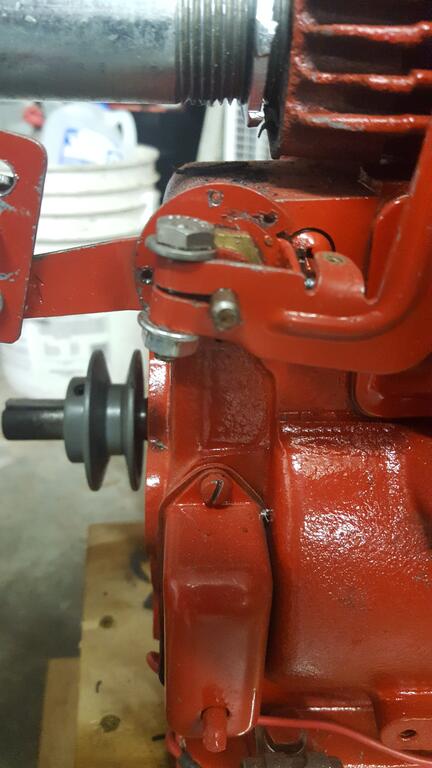

Thank You. That's not at all like mine. I have a wheel with several holes, and a torsion spring. I never have gotten it to work like I think it should, but then, I'm not sure all the bits and pieces are there either. I was told this motor came from a roto tiller. I don't think it had a throttle cable originally.

Maybe I could get the parts and switch it to a system like yours.

Edited February 25, 2021 by Gregor

[squonk 41,169]

I think you're comparing a small block Kohler linkage to a big block which is a different set up.

[Mickwhitt 4,645]

If you look closely its missing the PTO clutch plate too.

The brass do dad is an extension piece for the throttle cable. It was too short and so I made a little clamp on brass sleeve with a piece of wire soldered in.



[Gregor 4,846]

I don't know. Mine is a K161 also. I really don't know what you mean by small and big block, to tell you the truth.

[squonk 41,169]

2 minutes ago, Gregor said:

I don't know. Mine is a K161 also. I really don't know what you mean by small and big block, to tell you the truth.

Mick's is a K301 12 HP. 10HP and up are big blocks.  4,7 and 8's are small blocks.

[Gregor 4,846]

Oh duh. I knew that. I was thinking it was a 7hp. for some reason.
