62/63? Wheel Horse, no spark

By DHack, in Wheel Horse Electrical

Recommended Posts

DHack    6

DHack
Posted

Hello,

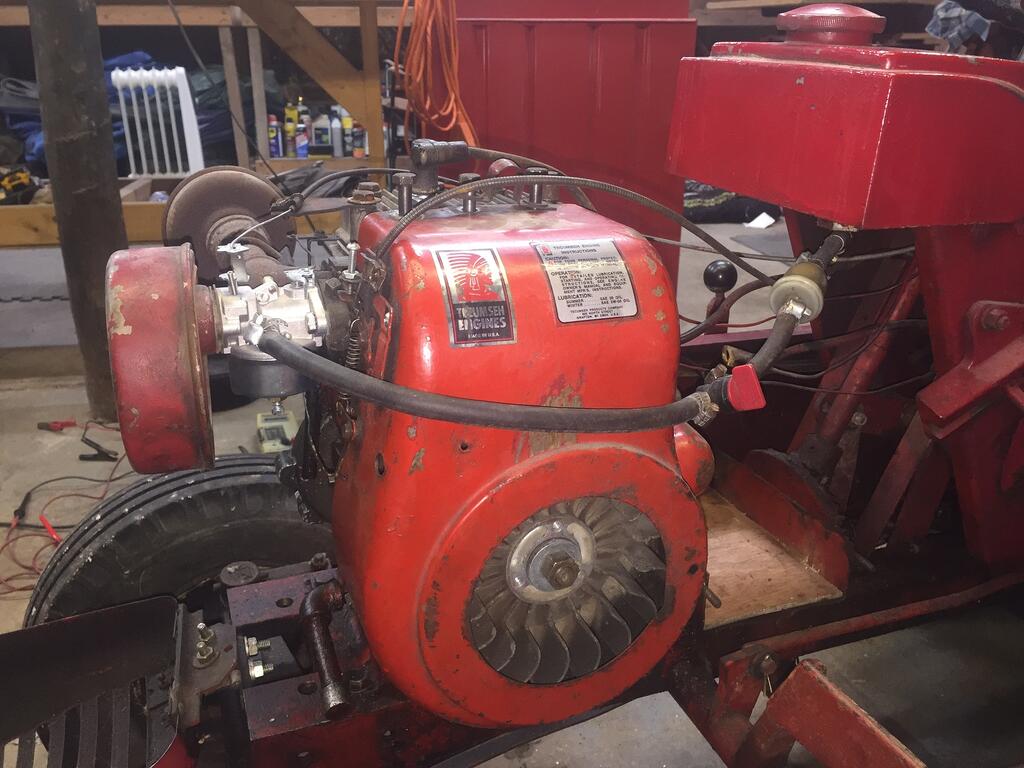

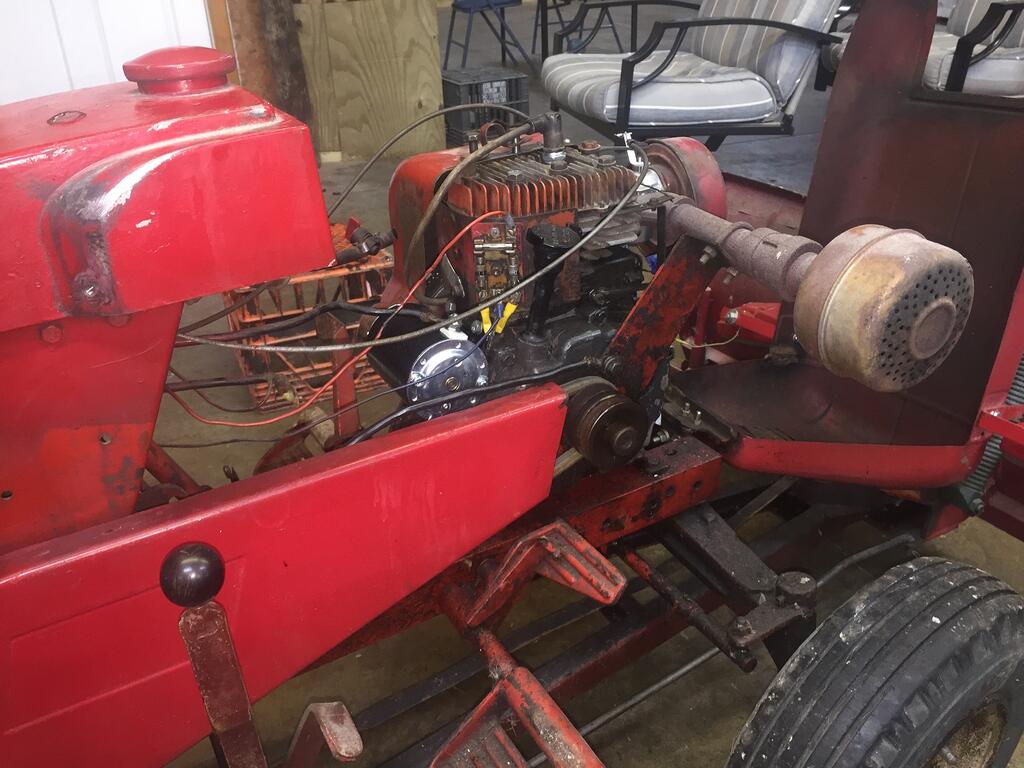

My first Wheel Horse project and new to this form. Any help would be greatly appreciated. I purchased older farm house and this gem was negotiated as part of the deal.

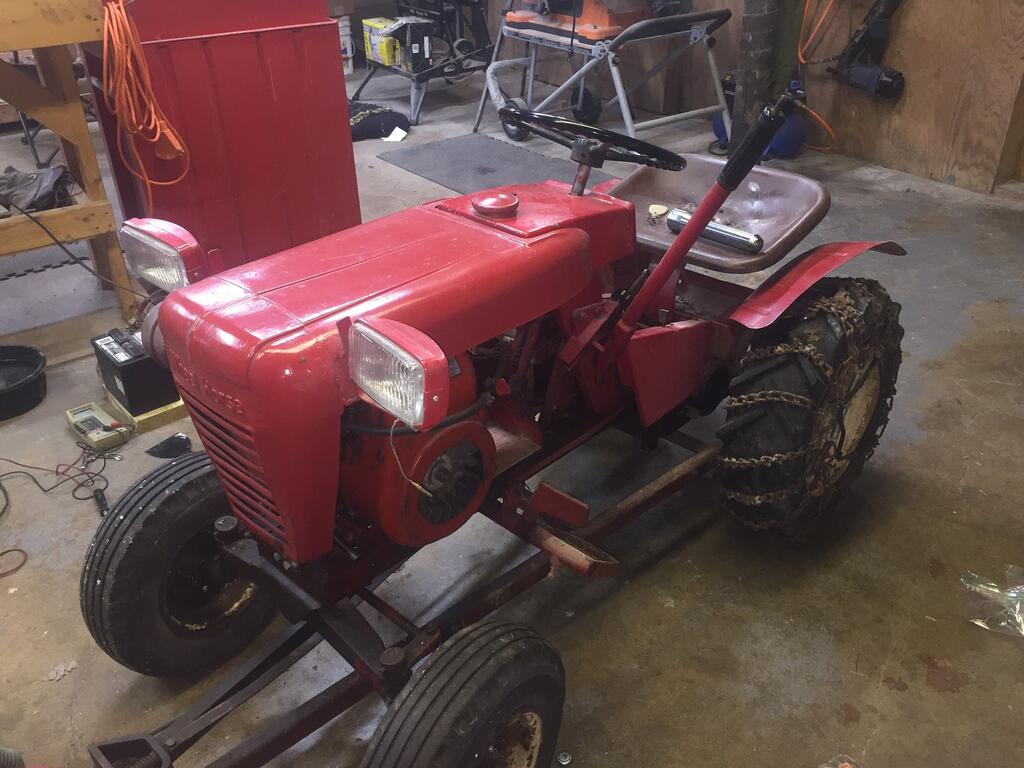

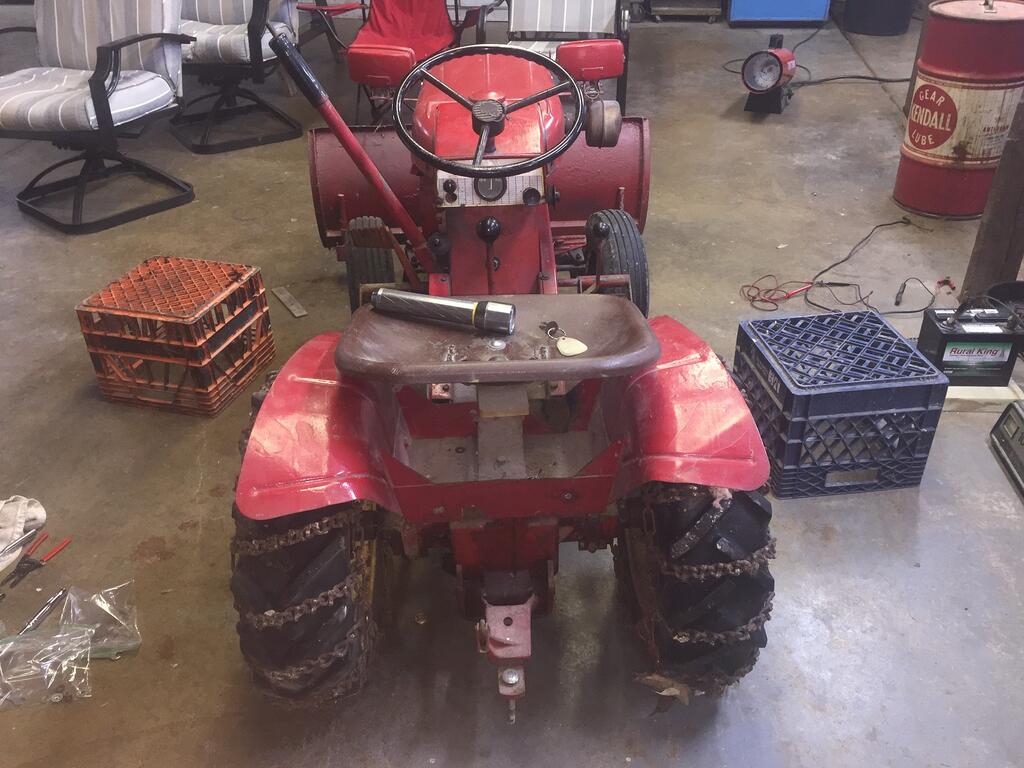

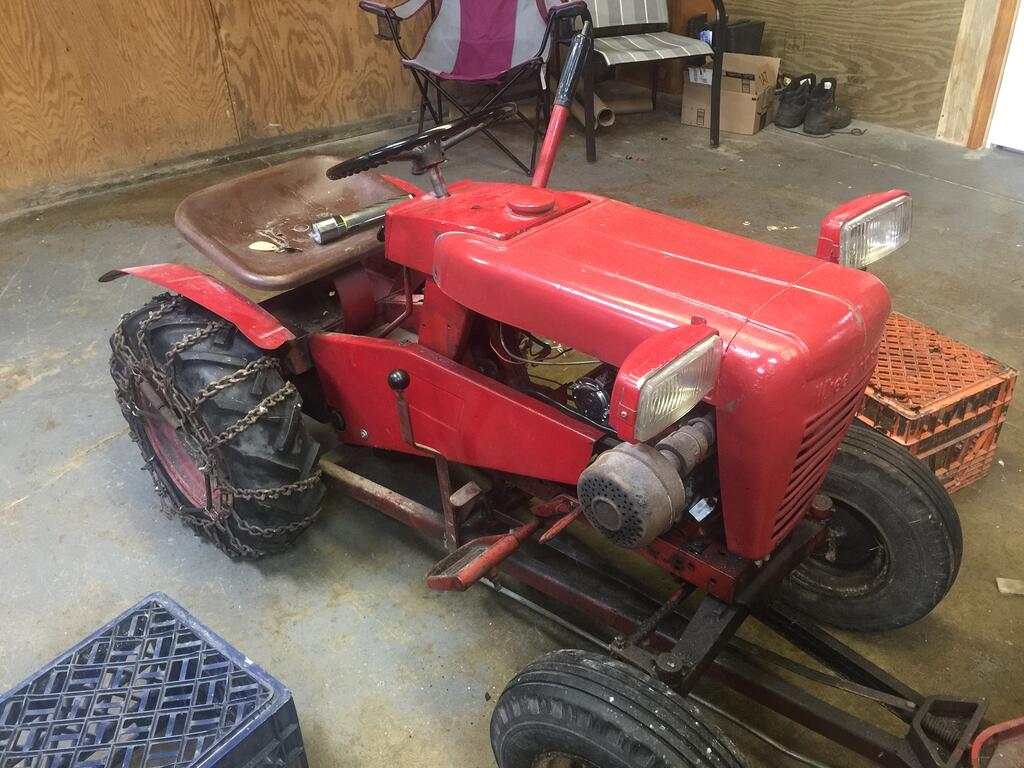

I believe I have a ~1962/1963 Rounded hood Wheel Horse with Tecumseh engine.

Can anyone determine the model / Year?

Got this running with new carbonator and basic tune-up, but now not getting any spark.

I am not sure how the points/elec ignition is supposed to work but not getting any voltage reading (.02V) when cranking. Fuse is good, but not sure about resister/capacitors.

Seems like maybe coil within flywheel could bad, but not sure how to get the fly wheel off to check this further.

Anyone have seen similar issue that would help me troubleshoot further?

I'm thinking of putting in a replacement engine if anyone could send me info related to what would work for a replacement?

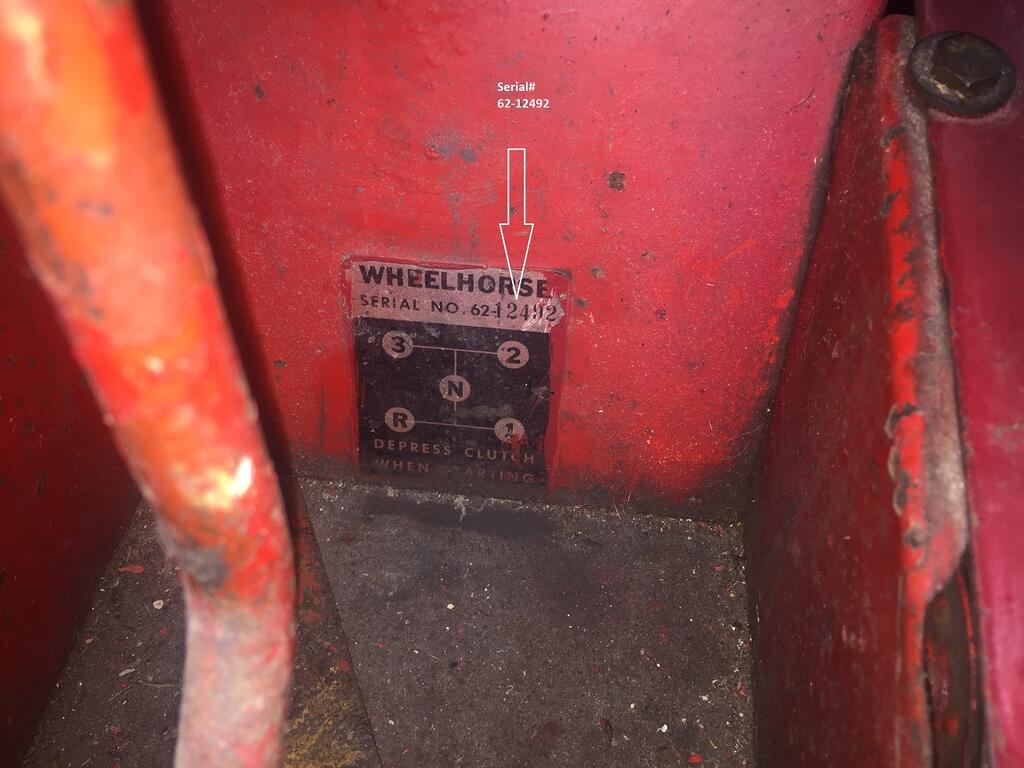

Serial Number below dash is 62-12492

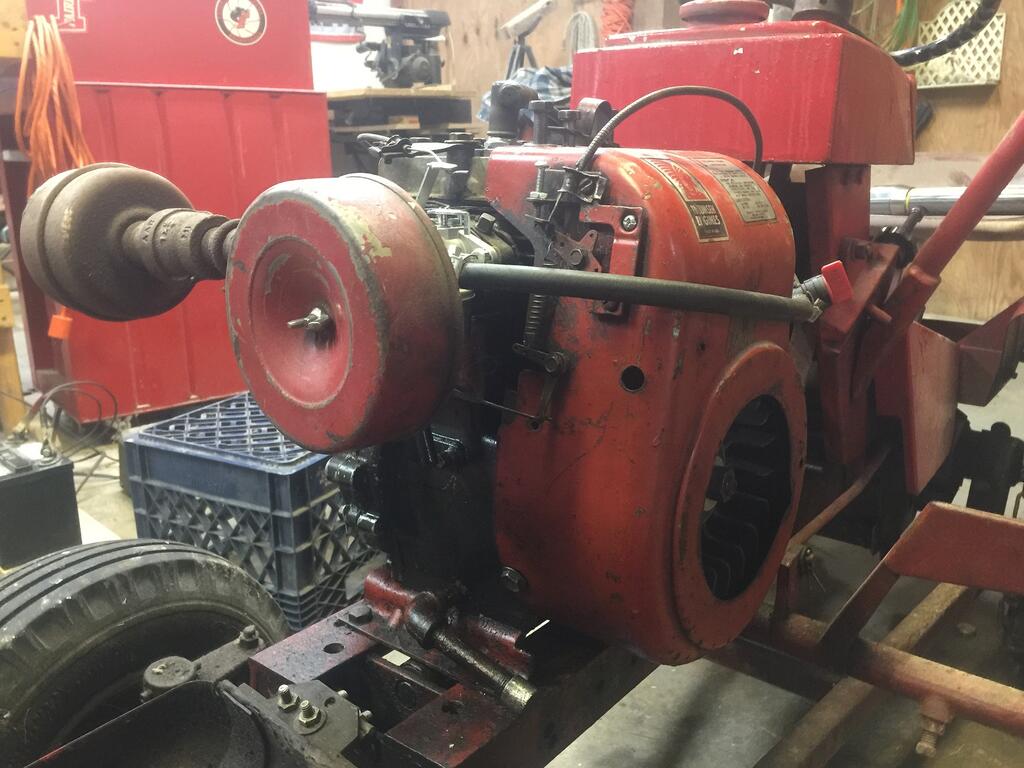

There are two tags on the engine

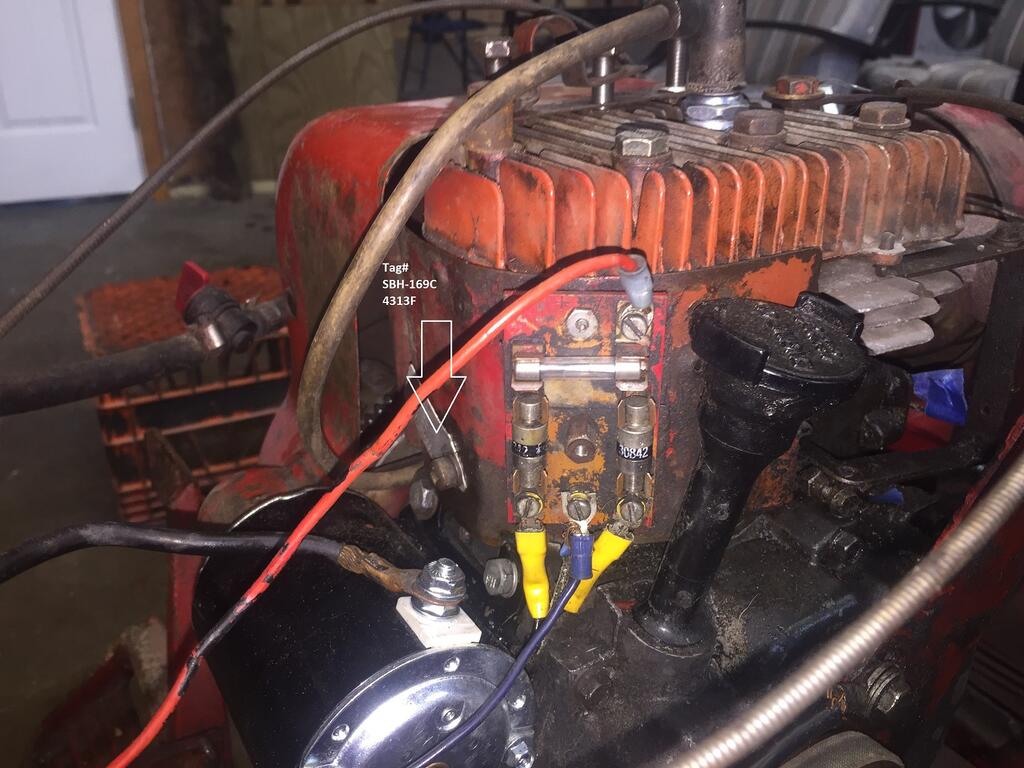

Tag above starter (SBH-169C     4313F)

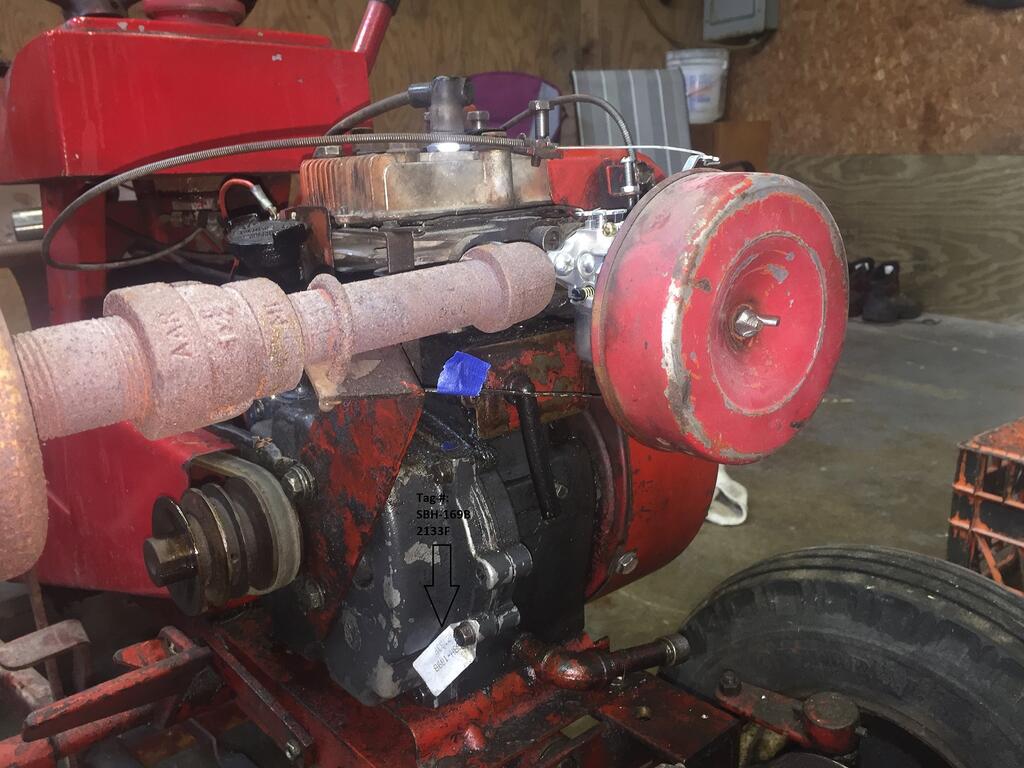

Tag on front of engine (SBH-169B    2133F)



Thanks

Dan












  • Like 2
  • Excellent 4

Share this post

Link to post
Share on other sites


Pullstart    62,831

Pullstart
Posted

:text-welcomeconfetti:  looks like a 552 to me, I love my ‘62’s too!



A Kohler K-141 / K-161 or K-181 would be an awesome transplant engine if you can locate one.  They are much easier to work on, generally speaking... but I’d try to get that one running for a rundown assessment first..


  • Like 4

Share this post

Link to post
Share on other sites


pfrederi    17,700

pfrederi
Posted

Tecumseh can be a bit picky about spark.  But once you get them running they are good engines.



Welcome





  • Like 2

Share this post

Link to post
Share on other sites


SylvanLakeWH    25,525

SylvanLakeWH
Posted

:text-welcomeconfetti:



Nice score!





Share this post

Link to post
Share on other sites


gwest_ca-(File Mod)    11,040

gwest_ca
Posted

Welcome to the forum



1962 model 552 serial 62-11273

1962 model 702 serial 62-12359 - Located in Norway

1962 model 552 serial 62-12492 - May be a 552

1962 model 552 serial 62-12502



https://www.partstree.com/models/sbh-sbh-169c-tecumseh-short-block

https://www.partstree.com/models/sbh-sbh-169b-tecumseh-short-block

  • Like 2

Share this post

Link to post
Share on other sites


rjg854    11,356

rjg854
Posted

:WRS: nice tractor :handgestures-thumbupright:

I hope you have luck getting it running, that's a fun tractor you have there @DHack

Share this post

Link to post
Share on other sites


953 nut    55,163

953 nut
Posted
2 hours ago, DHack said:

not sure about resister/capacitors

:WRS:

Those are diodes that convert the AC produced by your engine's charging system to DC to keep the battery charged. The service manual that @pfrederi furnished should help get you going. The numbers on your engine indicate that it was a replacement short-block, probably in good shape judging by the fact you got it running. Probably a corroded/dirty set of ignition points or bad condenser is causing the lack of spark.

Please let us know what you find.

Share this post

Link to post
Share on other sites


Achto    27,562

Achto
Posted

:WRS:

Share this post

Link to post
Share on other sites
