the drive belt pulley set up to drive the mower deck

[jerry dodge boy 3]

hi I just bought a wheel horse 12 hp, 312 hydro tractor ,it cane with a 2 blade side discharge mower deck but I need to find the pulley set up that bolts to the front of the frame to drive the blades , I am new here and looking for the above used is fine! any body have one to fit my tractor? owners manual would be nice too if I could find one  thanks



Edited December 25, 2020 by jerry dodge boy

[gwest_ca-(File Mod) 11,033]

Welcome to the forum.

Look under the left side of the seat or front of the seat for a decal with the tractor model number and serial number. If it is gone post all the numbers off the engine decal including the serial number. With those we should be able to link you to tractor manuals.



The mower deck you have is a 37" width of cut side discharge. There are two versions of that deck. One uses a regular 4-sided belt so that deck has flat idlers. The other uses a 6-sided belt (Like two 4-sided belts back to back) with all V-pulleys. So the front idler assemblies are different in the pullies only. Two v-idlers or one flat idler and one V-idler.



Let us know what you find.



Garry

[jerry dodge boy 3]

its a toro wheel horse classic, serial# 3112KEO1-10377, engine is a KOHOLR MAGNUM 12 hp the deck has 2 blades not shure if the deck belongs to the tractor it is a wheelhorse deck  I have found a serial # on the mower deck which is 3537SL02 --2500, then blow that I have a partial # 057 that I can make out and i and it has 2 v belt pulleys and a flat tensioner pully  so what do I need?



Edited December 26, 2020 by jerry dodge boy

[953 nut 55,103]

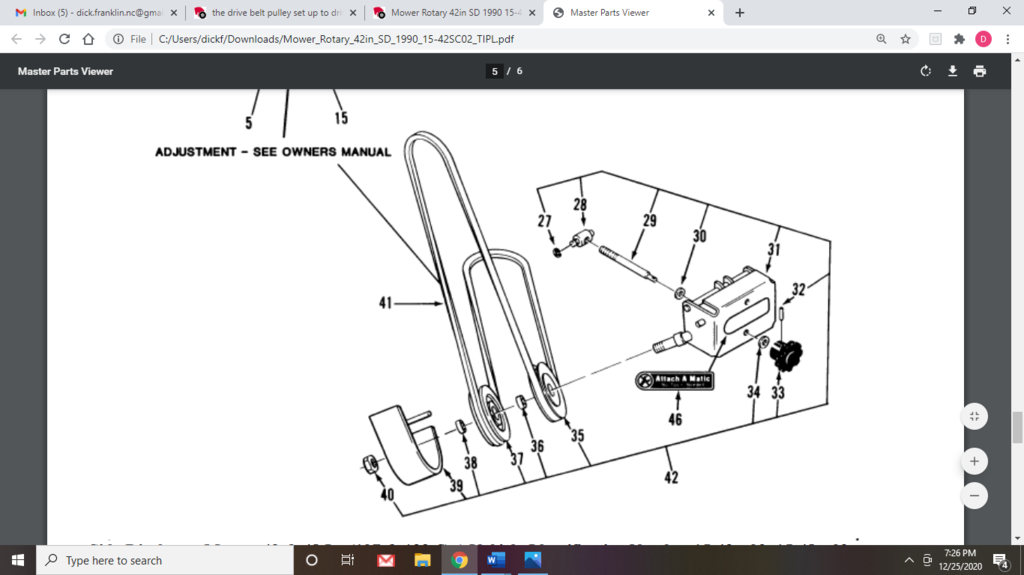

The component that ties the engine PTO to the deck via a V Belt is called a Mule Drive. If you don't have one some of our members like @daveoman1966, @A-Z Tractor or @Ed Kennell can probably fix you up. Here is an exploded view of what it looks like.

[SylvanLakeWH 25,495]

[gwest_ca-(File Mod) 11,033]

Click on the picture in the link for more info

Everything that comes up with a 31-12KE01 search

https://www.wheelhorseforum.com/search/?q=31-12ke01&quick=1&type=downloads_file

[gwest_ca-(File Mod) 11,033]

First deck using a 6-sided belt

Instruction for 6-sided belt

4-sided belt

The front idler assemblies are part of the mower deck package. You will see the pulley differences in the mower parts lists
