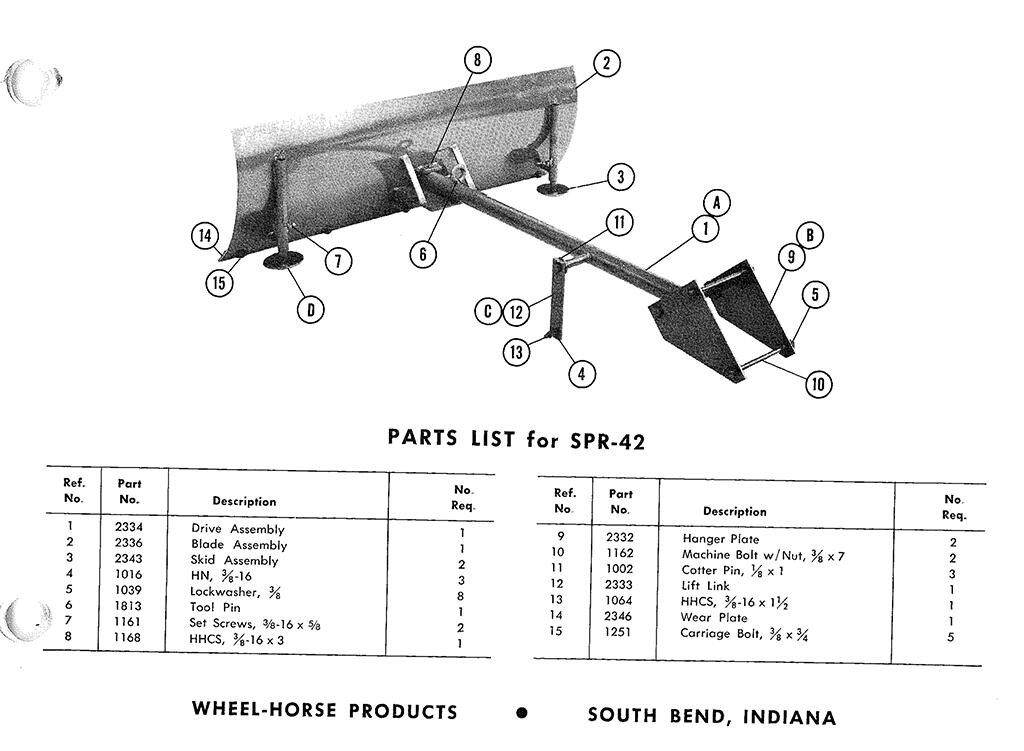

jsp_333 273 #1 Posted December 3, 2020 Has anyone tried fabricating all the lift mechanisms for the blade. Recently purchased blade only. Lift mechanisms don't look that complicated. But all I have to go on at the moment is the photo from front of OM. So I'm wondering if anyone has dimensions for the drive assemble, the hanger plates and lift link? Share this post Link to post Share on other sites
953 nut 56,181 #2 Posted December 4, 2020 I have some pictures of the frame, I will put together some numbers tomorrow. 3 1 Share this post Link to post Share on other sites
jsp_333 273 #3 Posted December 4, 2020 Wow that's fantastic. Thanks! I may actually be able to do this. Share this post Link to post Share on other sites

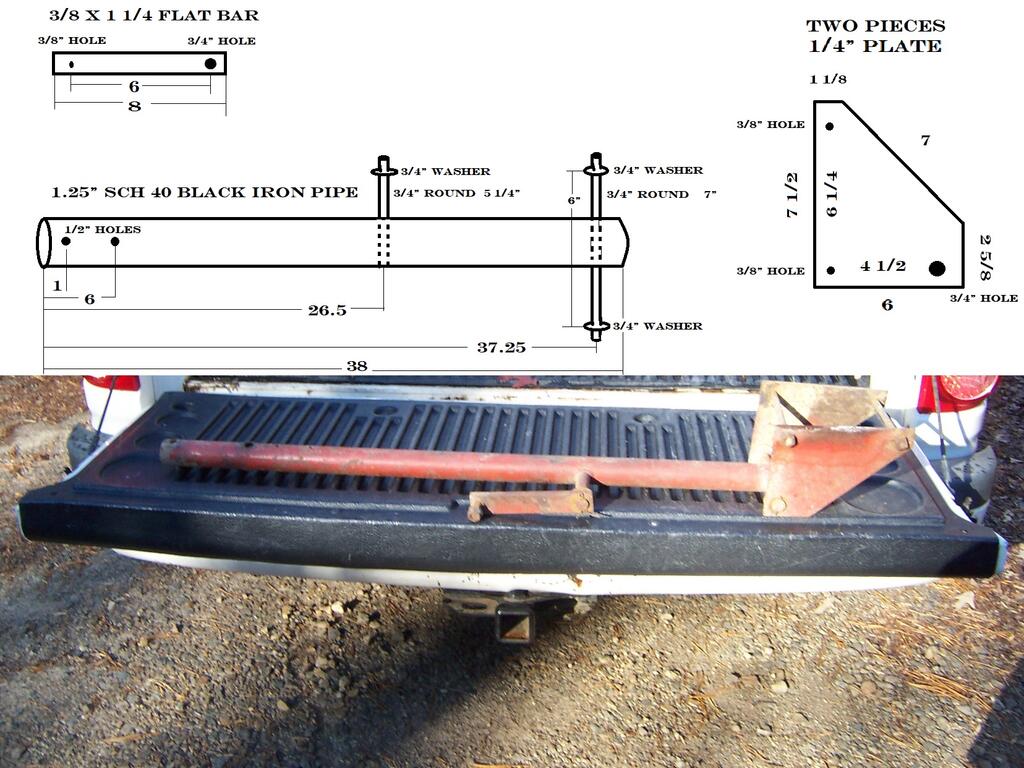

953 nut 56,181 #4 Posted December 5, 2020 Sorry I didn't get back with this yesterday, just one of those days. The 3/4" round stock is welded to the 1 1/4" pipe and the 3/4" washers are welded to them. You will need two 3/8 X 7" bolts to hold the plates to the tractor frame. Do not use galvanized pipe, the fumes when you weld are deadly. 1 1 1 Share this post Link to post Share on other sites
DennisThornton 4,769 #5 Posted December 5, 2020 24 minutes ago, 953 nut said: Sorry I didn't get back with this yesterday, just one of those days. The 3/4" round stock is welded to the 1 1/4" pipe and the 3/4" washers are welded to them. You will need two 3/8 X 7" bolts to hold the plates to the tractor frame. Do not use galvanized pipe, the fumes when you weld are deadly. Nicely done by a really nice guy! What prog did you use? 1 Share this post Link to post Share on other sites
jsp_333 273 #6 Posted December 5, 2020 953 Nut I have to tell you I'm absolutely blown away that you would do this. "Thank You" just doesn't seem like enough. I'll make sure I pay it forward when I get the chance. I guess I'm all in now and I'll post pics of progress. I might even be pushing snow come February. Rj was completed this week. Exhaust, belt drive, & heat shield. It now just needs paint and decals but that's going to have to wait until the spring. Best of the Season John 1 1 Share this post Link to post Share on other sites
953 nut 56,181 #7 Posted December 5, 2020 1 hour ago, DennisThornton said: What prog did you use? I did the drawing in "Paint". I haven't graduated to the CAD or any other fancy stuff. Share this post Link to post Share on other sites
DennisThornton 4,769 #8 Posted December 5, 2020 1 hour ago, 953 nut said: I did the drawing in "Paint". I haven't graduated to the CAD or any other fancy stuff. Chuckle! Well you did a nice job with a simple program! It's that kind of extra effort that makes the forum what it is! 1 Share this post Link to post Share on other sites
953 nut 56,181 #9 Posted December 5, 2020 2 hours ago, jsp_333 said: I'll make sure I pay it forward when I get the chance. 8 minutes ago, DennisThornton said: It's that kind of extra effort that makes the forum what it is That is just a small token of my appreciation for the favors others have done for me on RedSquare over the years. 1 Share this post Link to post Share on other sites
DennisThornton 4,769 #10 Posted December 5, 2020 1 minute ago, 953 nut said: That is just a small token of my appreciation for the favors others have done for me on RedSquare over the years. I understand! I hope to give back enough as well! 1 Share this post Link to post Share on other sites
