Handy Don 12,328 #1 Posted November 17, 2020 This method uses the frequency of the AC electricity generated by the stator coils in the alternator to determine the engine's RPMs. In these twin cylinder Onan's, there are eighteen (18) stator coils, nine (9) of them connected to each of the two inputs to the voltage regulator. That means that one revolution of the flywheel's embedded magnet passing the stator coils generates nine (9) current pulses at each voltage regulator terminal. The frequency setting on a digital Volt Ohm Meter (VOM) counts the number of current pulses in one second. If we measure the frequency of current pulses at one of the voltage regulator terminals we can apply a simple formula to convert the measured frequency into RPM. The formula for an Onan is: RPMs = pulses per second ÷ 9 pulses per revolution x 60 seconds per minute Frequency RPM 9 60 One revolution per second = sixty per minute 150 1000 A good minimum idle speed* per the Onan Service Manual 165 1100 A good governed idle speed* per the Onan Service Manual that: a) overcomes hydro drag, and b) keeps a good amount of cooling air flowing c) doesn't charge the battery! 300 2000 375 2500 450 3000 525 3500 Approaching max speed for the Onan 540 3600 Normal max operating speed* for the Onan To make the measurement: 1. Set your VOM to measure frequency in the 0-1000 hz range for 0-50 VAC (see VOM manual, if you need help with this**) 2. Connect the black or COM probe to a solid engine ground 3. Set the engine throttle to the speed you want to measure 4. Carefully touch the red or "V Ω" probe to one of the outer terminals on the engine's voltage regulator (see photo) Be extremely careful to touch ONLY ONE terminal on the regulator-- a short circuit caused by touching two terminals at once or grounding the terminal can cause serious electrical system damage. 5. Read the frequency on your meter's display and convert it to RPM using the table above Frequency will likely fluctuate somewhat but on a smooth-running engine it won't be by more than 5-10 hz. If your VOM has a "HOLD" button, you can use it to "freeze" the reading at a point in time. This technique will likely work on many engines used in WHs having an alternator and three-terminal voltage regulator. You must know the number of coils in the alternator stator (Google an image and count them!) and can use this more general formula: RPM = VOM frequency ÷ (number of alternator coils ÷ 2) x 60 A K321 stator, for example, also has 18 coils and a three-terminal voltage regulator so it uses the Onan table above. *Refer to the Onan Service Manual for information on adjusting the carburetor mixture and idle limit screw as well as the linkages for the governor and throttle control to manage idle and maximum engine speeds. **The frequency mode is normally labeled with "Hz" or "Hz Duty" or "Hz %" or "Freq". Typically, a frequency-capable meter works where the voltage in the circuit is within the maximum AC voltage specification of the meter. Small engine alternators like the Onan typically can generate un-regulated voltages up to 50 volts. Again, check your meter's manual to confirm its suitability and how to use the frequency function. (Thank you @lynnmor for checking my work and adding suggestions before I posted it!) 2 4 Share this post Link to post Share on other sites
WHX?? 48,894 #2 Posted November 17, 2020 Thank you Don! I just happen to have one that measures frequency. Share this post Link to post Share on other sites
squonk 41,217 #3 Posted November 17, 2020 2 hours ago, WHX24 said: Thank you Don! I just happen to have one that measures frequency. Does it measure the frequency of how many times it is dropped? 2 Share this post Link to post Share on other sites
Handy Don 12,328 #4 Posted November 17, 2020 11 minutes ago, squonk said: Does it measure the frequency of how many times it is dropped? I believe a VOM can measure drops. In my experience, the display will become blank, internal parts will rattle, and that equals 1 drop. 2 Share this post Link to post Share on other sites
Tuneup 1,433 #5 Posted November 17, 2020 Great tip, Don. Thanks! When I get that 16 re-ringed, I'll apply your method. I'm kicking myself that I haven't thought of it. Off the tech bench for 28 years - could be a contributor. Share this post Link to post Share on other sites
Charbs152 254 #6 Posted November 18, 2020 i use a $20 tach from ebay 1 Share this post Link to post Share on other sites
Horse Newbie 7,102 #7 Posted November 24, 2020 On 11/18/2020 at 11:42 AM, Charbs152 said: i use a $20 tach from ebay Do you have a link or source for the one you have ? Share this post Link to post Share on other sites
R Scheer 502 #8 Posted November 24, 2020 I've got the "Tiny Tach" mounted, seems to work well. It has a lithium battery so the only connection is 1 wire wrapped around the spark plug wire. 1 Share this post Link to post Share on other sites
Charbs152 254 #9 Posted November 24, 2020 (edited) 19 hours ago, Horse Newbie said: Do you have a link or source for the one you have ? I put these on all my engines... mowers, motorcycles etc.. they track hours as well... I have the middle and best cheapest - https://www.ebay.com/itm/Tiny-Tach-LCD-Digital-Hour-Meter-Tachometer-for-Marine-Spark-Mower-Engine-Motor/184009103702?hash=item2ad7cc1956:g:28sAAOSwj4RfIm51 Middle https://ebay.us/1c1dKm BEST - https://www.ebay.com/itm/Tiny-Tach-TT2B-Standard-Gasoline-Hour-Meter/401588201990?hash=item5d8085aa06:g:hwcAAOSwri5bgGS5 Edited November 24, 2020 by Charbs152 1 Share this post Link to post Share on other sites
oliver2-44 9,799 #10 Posted November 24, 2020 I bought a Tiny Tach 2 years ago but it died since it had a non replaceable battery @Charbs152 Do you know if the Middle and Best ones have replaceable batteries? Share this post Link to post Share on other sites
Charbs152 254 #11 Posted November 25, 2020 5 hours ago, oliver2-44 said: I bought a Tiny Tach 2 years ago but it died since it had a non replaceable battery @Charbs152 Do you know if the Middle and Best ones have replaceable batteries? Not sure. I know they make them though if you look Share this post Link to post Share on other sites
R Scheer 502 #12 Posted November 26, 2020 I believe they are potted, sealed, so the battery is not replacable. Supposed to have a 5 year lifespan. Share this post Link to post Share on other sites

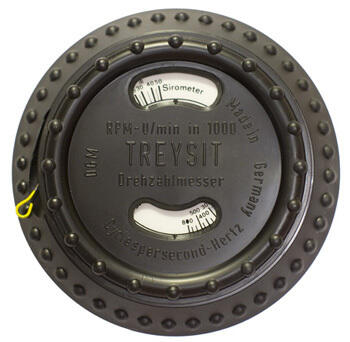

onanparts.com 181 #13 Posted November 28, 2020 I have been using a vibratory tach for many years. Measures RPM's and Frequency. Accurate, no batteries, no wires. Treysit Sirometer. http://www.treysit.com/english/ Sold under rebranded names, B&S etc. 1 Share this post Link to post Share on other sites
Handy Don 12,328 #14 Posted November 28, 2020 8 minutes ago, onanparts.com said: I have been using a vibratory tach for many years. Measures RPM's and Frequency. Accurate, no batteries, no wires. Treysit Sirometer. http://www.treysit.com/english/ Sold under rebranded names, B&S etc. If I'd had to guess where such a device came from, it would have been Germany! Thanks for the link. Share this post Link to post Share on other sites
Gunny52 0 #15 Posted June 2 I'm going to try this on my Onan T260G. Share this post Link to post Share on other sites
Fordiesel69 263 #16 Posted June 3 i have the vibratory tach and have no idea how to use it. Share this post Link to post Share on other sites
