Can anyone identify this Deck

Recommended Posts

The Tuul Crib

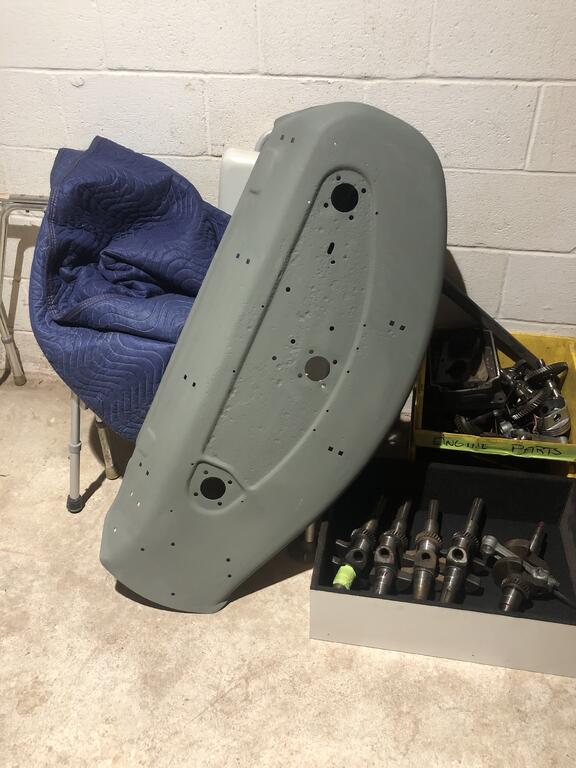

I'm going through the mower decks that I have and I have these two pics. First one I am not sure of model or serial number.

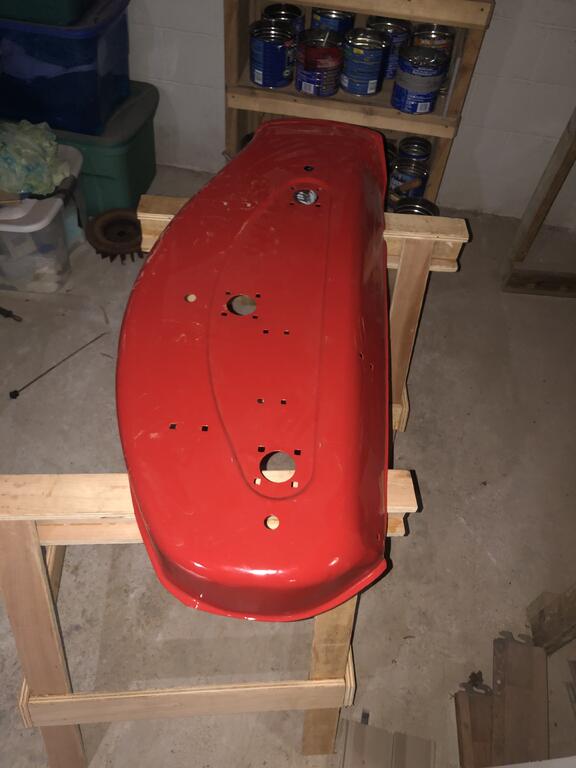

The other is off my charger that I'm about to go through. I really need a side discharge right now and don't have one!

all I have is the rear discharge on my

414-8.



Share this post


Link to post
Share on other sites

gwest_ca

I do not know what you have but here is a list of the 42" SD decks in the order they were produced



Mower DNA

1966-1967 model RL-426 replaced by

1968 model 5-1421

1969 model 5-1422

1970 model 5-1423

1971 model 5-1000

1971-1972 model 5-1001

1973-1974 model 5-1010

1975 model 5-1011

1975 model 5-1012

1976 model 65-42MS01

1976 model 65-42MS02

1977 model 75-42MS01 - These 42" side discharge decks all use blades with 5/8" x 3/4" double-D center hole unless the spindles have been upgraded (Do not have operator manual)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

These decks all use blades with a 3/4" center hole.

1977 model 75-42MS02 replaced by (Do not have operator manual)

1978 model 85-42MS01 (Do not have operator manual)

1979 model 95-42MS00 (Do not have operator manual)

1979 model 95-42MS01 (Do not have operator manual)

1980 model 05-42MS01 (Have operator manual)

1981-1983 model 05-42MS02

1984 model 05-42MS03 - Last year for bearings with 3/4" ID

1985 model 05-42MS04 - First year for bearings with 17mm ID unless older spindles were updated.

1986-1988 model 05-42MS05

1989 model 15-42SC01

1990 model 15-42SC02

1990-1992 model 15-42SC03

1993-2007 and 2009-2012 model 78345 - These decks all use blades with a 3/4" center hole.



Note - 17mm is .669"



The spindle ID charts may help as long as they are original to the deck



Share this post


Link to post
Share on other sites

The Tuul Crib
1 hour ago, gwest_ca said:

I do not know what you have but here is a list of the 42" SD decks in the order they were produced



Mower DNA

1966-1967 model RL-426 replaced by

1968 model 5-1421

1969 model 5-1422

1970 model 5-1423

1971 model 5-1000

1971-1972 model 5-1001

1973-1974 model 5-1010

1975 model 5-1011

1975 model 5-1012

1976 model 65-42MS01

1976 model 65-42MS02

1977 model 75-42MS01 - These 42" side discharge decks all use blades with 5/8" x 3/4" double-D center hole unless the spindles have been upgraded (Do not have operator manual)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

These decks all use blades with a 3/4" center hole.

1977 model 75-42MS02 replaced by (Do not have operator manual)

1978 model 85-42MS01 (Do not have operator manual)

1979 model 95-42MS00 (Do not have operator manual)

1979 model 95-42MS01 (Do not have operator manual)

1980 model 05-42MS01 (Have operator manual)

1981-1983 model 05-42MS02

1984 model 05-42MS03 - Last year for bearings with 3/4" ID

1985 model 05-42MS04 - First year for bearings with 17mm ID unless older spindles were updated.

1986-1988 model 05-42MS05

1989 model 15-42SC01

1990 model 15-42SC02

1990-1992 model 15-42SC03

1993-2007 and 2009-2012 model 78345 - These decks all use blades with a 3/4" center hole.



Note - 17mm is .669"



The spindle ID charts may help as long as they are original to the deck



This is a good start Gary !

Thanx!

Share this post


Link to post
Share on other sites

Goldnboy

I can't  give you a definite  answer but I am sure they are both pre-1973 since neither have front gauge wheels. Normally  the pre 73 decks have 1 front gauge wheel in the center. However  there is the possibility  someone decided  to remove  them.....
