sparkie333 265 #26 Posted December 10, 2020 10 hours ago, johnnymag3 said: Picture ??? sparkie333..... My post number 35 for pictures of C160 of sparkie's tractor Share this post Link to post Share on other sites
Clarence T. Nolley Jr 14 #27 Posted February 5, 2021 Hello Sparkie333, my name is Clarence and i have a C160 that i just reassembled and aim looking for good rewiring diagram for it, if you can send me some pic's and tell me what it cost i would greatly appreciate that thank. 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,148 #28 Posted February 5, 2021 3 hours ago, Clarence T. Nolley Jr said: Hello Sparkie333, my name is Clarence and i have a C160 that i just reassembled and aim looking for good rewiring diagram for it, if you can send me some pic's and tell me what it cost i would greatly appreciate that thank. What is the model number off the ID plate for your tractor? We may have the correct diagrams. Garry 2 Share this post Link to post Share on other sites
Clarence T. Nolley Jr 14 #29 Posted February 5, 2021 On 12/9/2020 at 9:31 PM, sparkie333 said: My post number 35 for pictures of C160 of sparkie's tractor Hello Garry i will send that to you, i have closed my shop for today but i will find it and send that info, thanks again Clarence. 1 Share this post Link to post Share on other sites
Clarence T. Nolley Jr 14 #30 Posted February 5, 2021 Hello Garry again Clarence i looked at my manual and found it in the back cover of the manual.i will still send you that info. 1 Share this post Link to post Share on other sites
sparkie333 265 #31 Posted February 5, 2021 7 hours ago, Clarence T. Nolley Jr said: Clarence and i have a C160 that i just reassembled and aim looking for good rewiring diagram for it, Sorry I been away from my computer---I just got many things going on. I think I have a extra wiring set for the C160--- I would have to look but there is one used that is in my shop. I bought it for a spare and have not needed it. I don't think there is a splice in it. --- I will see about the diagram---I got one just having some problems as of late. Share this post Link to post Share on other sites
sparkie333 265 #32 Posted February 5, 2021 (edited) 8 hours ago, Clarence T. Nolley Jr said: Sparkie333, my name is Clarence and i have a C160 that i just reassembled and aim looking for good rewiring diagram for it, if you can send me some pic's and tell me what it cost i would greatly appreciate that thank. HI; Clarence I'm trying to send you a diagram---and a picture of my C160 Automatic. Just having problem with my computer. I hope this will help I don't know why it keeps cutting the top of page but it is just about all there. Ok it just cut it off on what I was seeing it is all there. Good luck. Edited February 5, 2021 by sparkie333 new info. Share this post Link to post Share on other sites

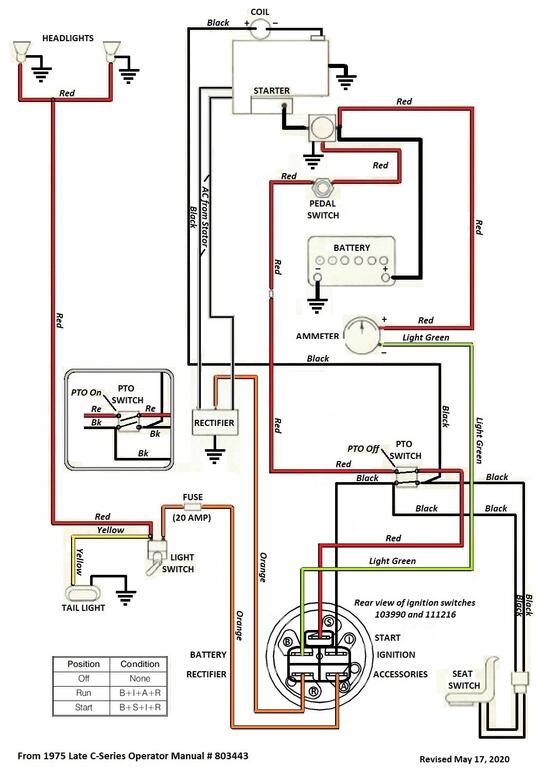

gwest_ca-(File Mod) 11,148 #33 Posted February 6, 2021 What manual did you get this from? Never seen anything like it from Wheel Horse. 2 Share this post Link to post Share on other sites
Clarence T. Nolley Jr 14 #34 Posted February 6, 2021 Hello Garry thanks so much for the wiring images, i got both of them fine and i hope your computer problem will be resolved soon. Thanks again a have a blessed Day. 1 Share this post Link to post Share on other sites

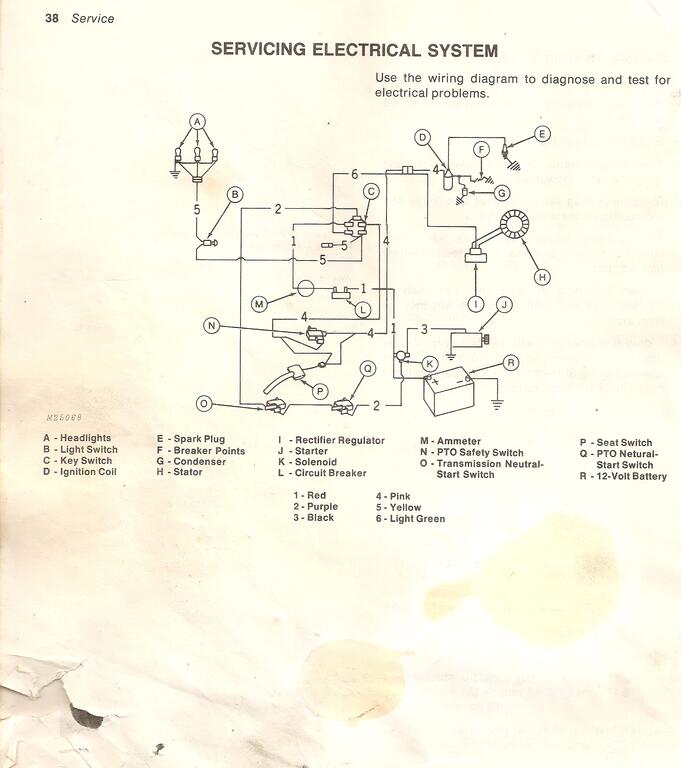

sparkie333 265 #35 Posted February 6, 2021 (edited) 12 hours ago, gwest_ca said: What manual did you get this from? Never seen anything like it from Wheel Horse. I just came to my computer because it just come to me 15min. ago that I sent the diagram that goes to the 200 series John Deere Garden Tractors. The pictures I was trying to send was of my WH C160 so I thought that was what I had for the diagram. I just had a brain fart. Sorry Guys Edited February 6, 2021 by sparkie333 Share this post Link to post Share on other sites

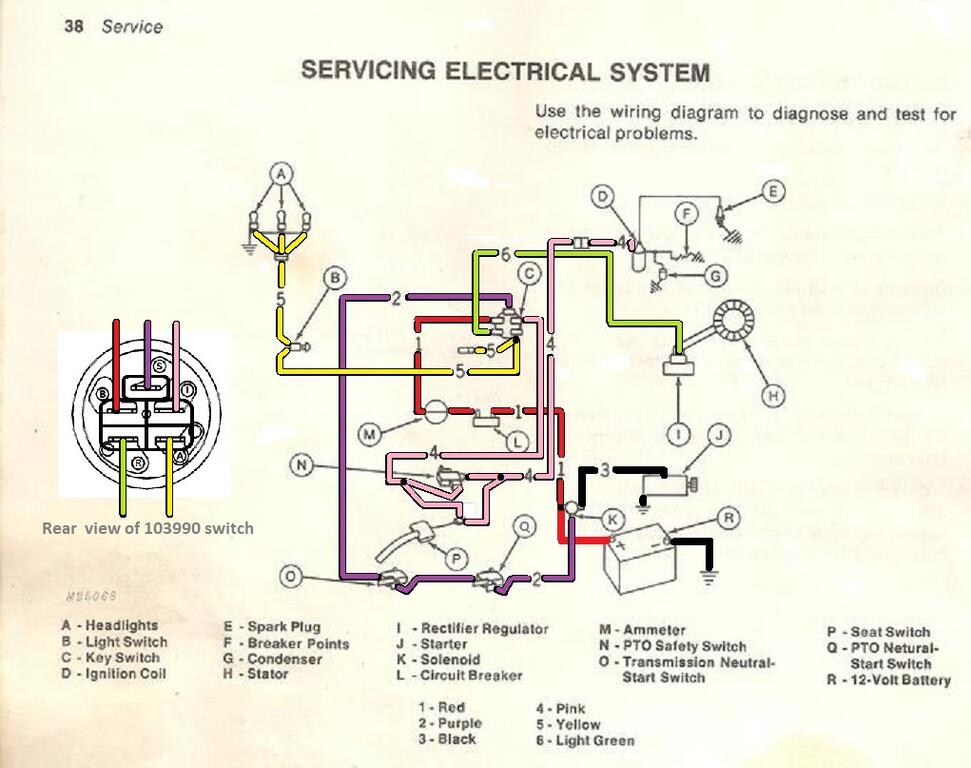

sparkie333 265 #36 Posted February 6, 2021 1 hour ago, Clarence T. Nolley Jr said: Hello Garry thanks so much for the wiring images, i got both of them fine and i hope your computer problem will be resolved soon. Thanks again a have a blessed Day. Clarence I'm glad you got what you needed for your C 160. So I messed up on what I had so no diagram and and the wiring harness was for my John Deere's ---my bad. I knew someone on here would help. --Well give me a B for trying. There is not a whole bunch to the WH harness. Good Luck. 13 hours ago, gwest_ca said: What manual did you get this from? Never seen anything like it from Wheel Horse. Man you have some idea diagrams--I like the color code view of the wires. You knew what I did and thanks for letting me off ease.-- I did put up a reply that I was thanking of my C160 But sent a 200 series diagram. Share this post Link to post Share on other sites

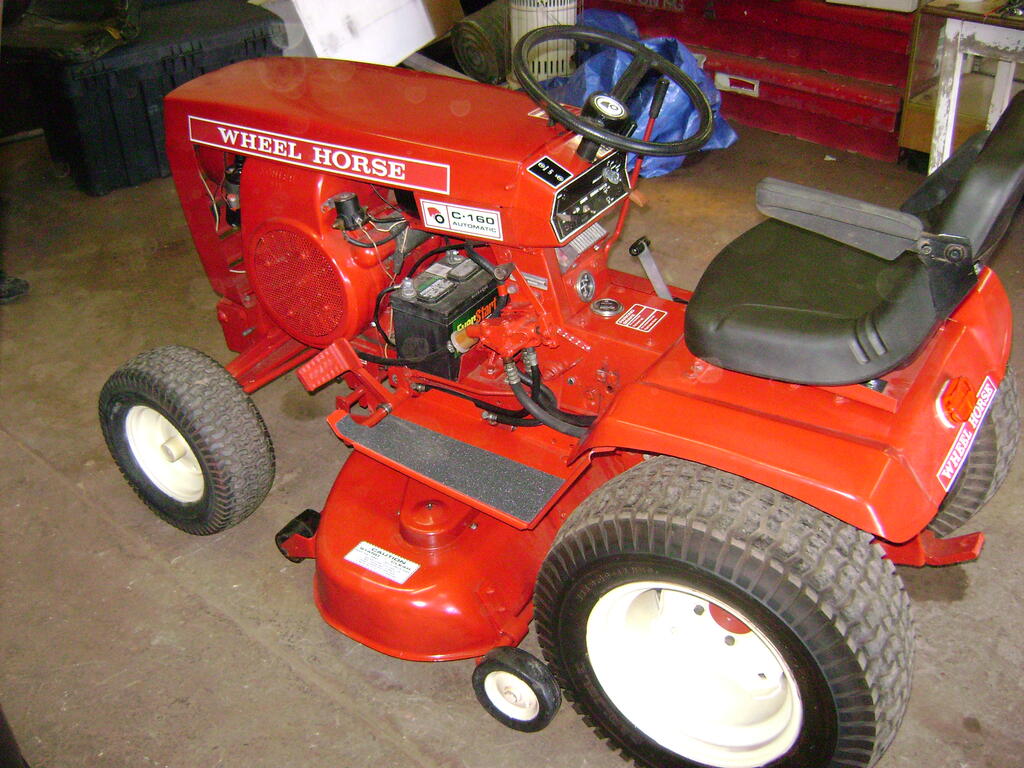

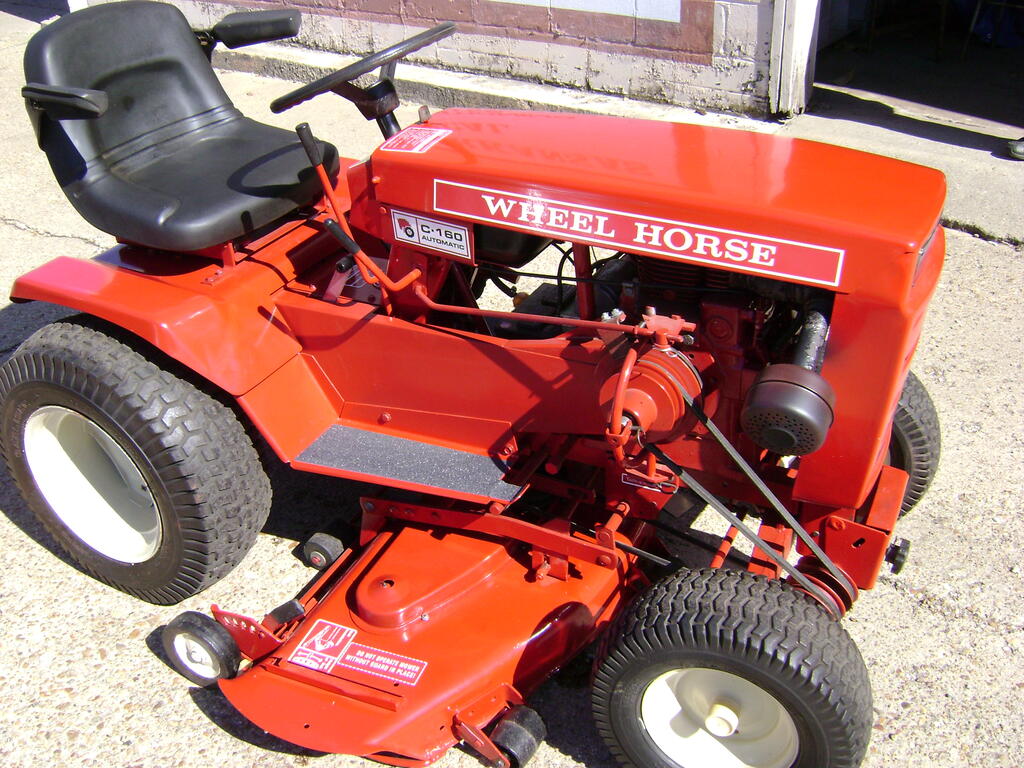

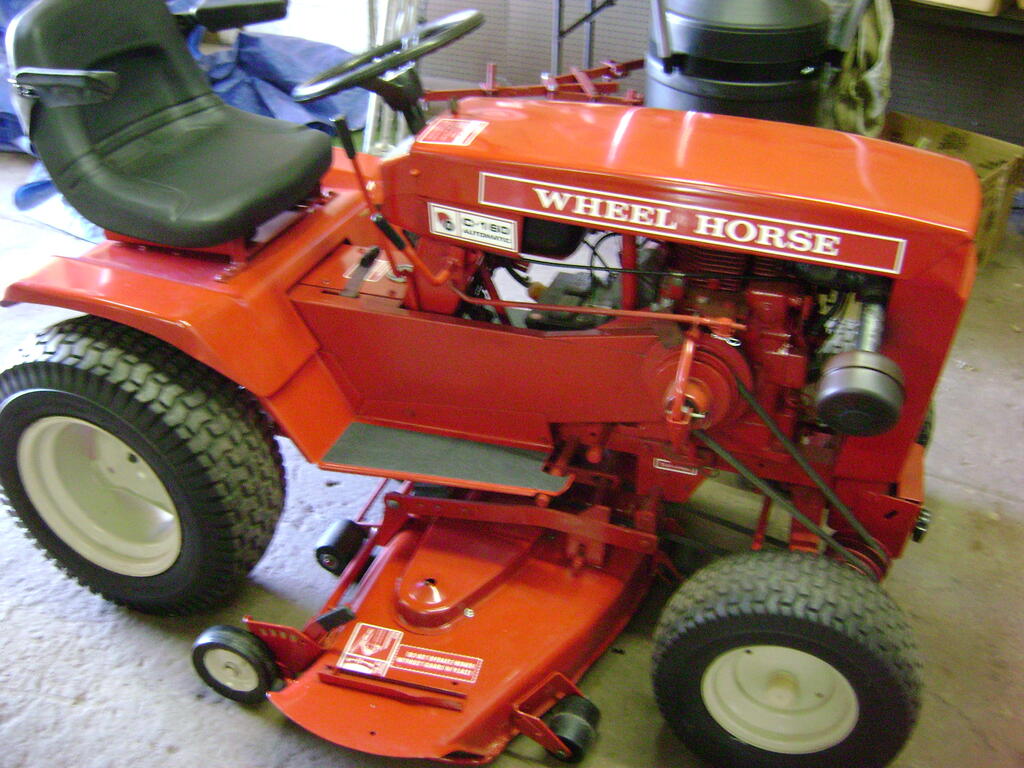

sparkie333 265 #37 Posted February 6, 2021 I will try to put up a picture or two. Note: I may have to reload some of them seems like I wiped out some but should have them on save stick. These are not my best pictures of this tractor. Like I said I lost them till I can get my computer guru over here he has some other things to fix on my comp. Thanks. 2 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,148 #38 Posted February 6, 2021 If that is a John Deere diagram the only difference is some of the wire colors. All components including the ignition switch are identical. Garry 1 Share this post Link to post Share on other sites
sparkie333 265 #39 Posted February 7, 2021 (edited) 8 hours ago, gwest_ca said: If that is a John Deere diagram the only difference is some of the wire colors. All components including the ignition switch are identical. Garry Yes I thought the same thing. One other thing I see is the number of head lights. Edited February 7, 2021 by sparkie333 Share this post Link to post Share on other sites
Clarence T. Nolley Jr 14 #40 Posted February 8, 2021 Hello Garry great looking C160 i hope i can get mine looking that good.and thanks so much for the Diagrams. 1 Share this post Link to post Share on other sites
