C-175 push valve

[JohnD 145]

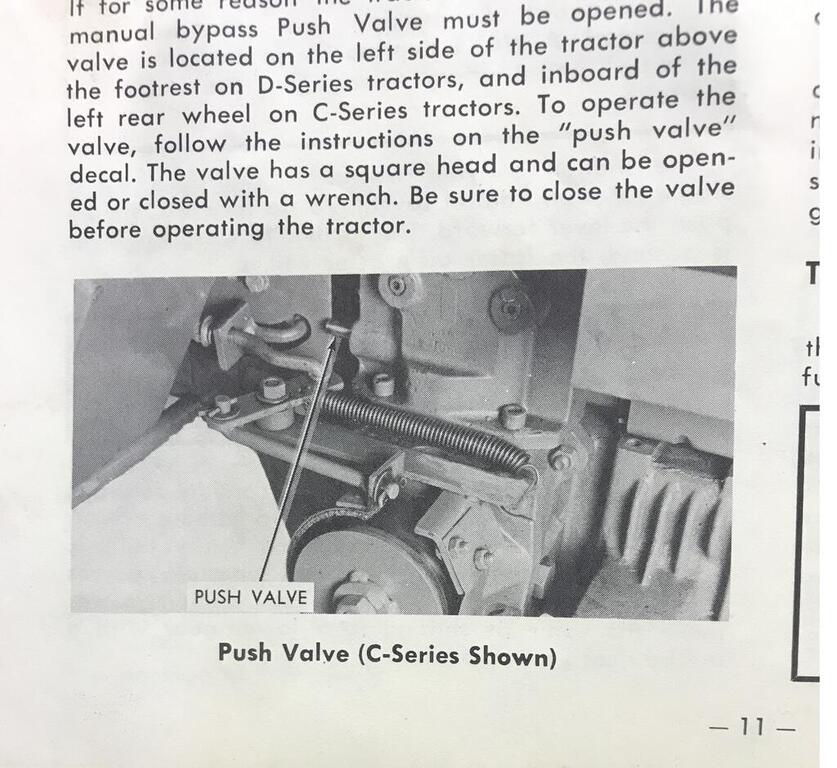

I just picked up my first C-175 and I'm having a hard time locating the push valve on the transmission. The manual shows this:

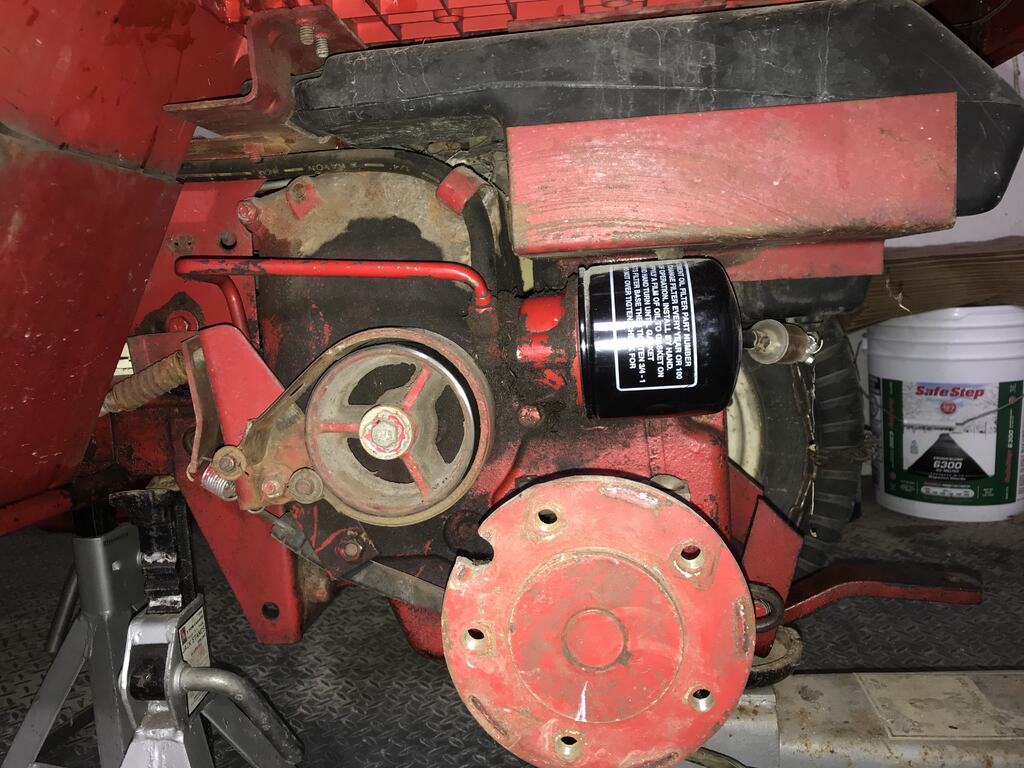

and when I pull the left wheel I see this:

I notice the brake is upside down from the photo...  but this is the proper orientation according to the Toro parts manual.

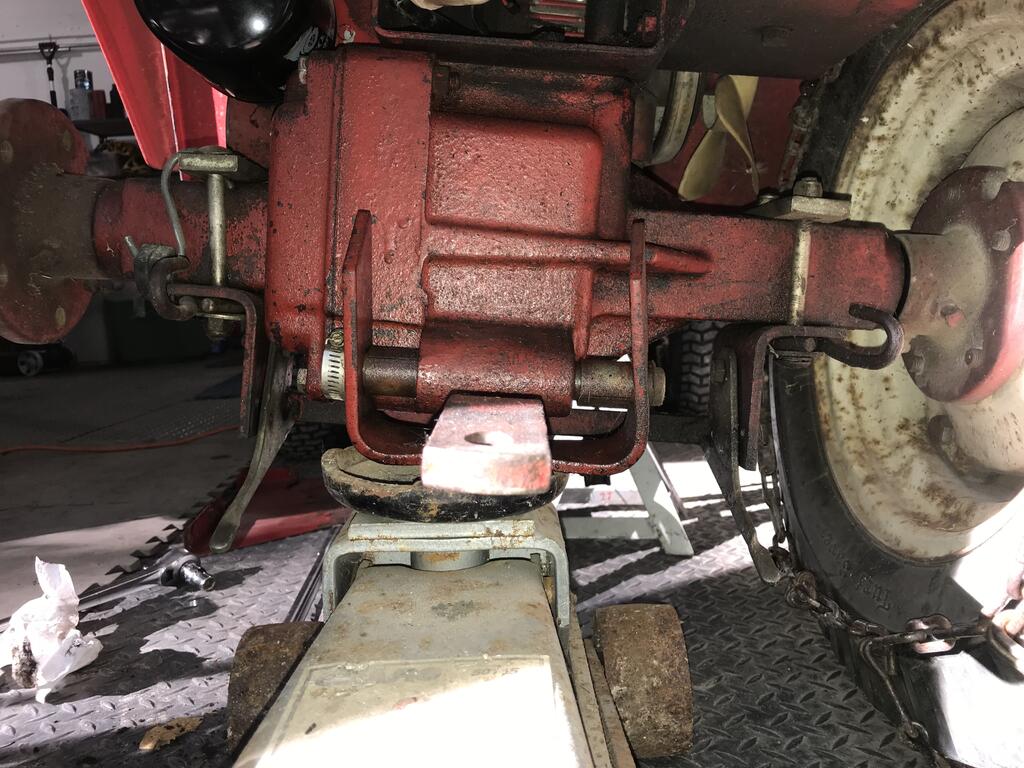

and from the rear I see this:



I guess I can pull one more wheel but I'd rather not...  Is this a different series transmission? Ot appears to match the parts manual, just not the user manual.





[AMC RULES 37,134]

The Eaton 1100 doesn't have a tow valve, but you can push it, just make sure you do it in slow motion.

[daveoman1966 3,762]

Those look like manual pics for a SUNDSTRAND auto.  Are sure your C-175 has Sundstrand.  There was only one year for the Sundsrand model 01-17KS02 and other years have Eaton Automatics model 01-17E01 (02,03)  ....BIG difference.   The letters S or E make it Sundstrand or Eaton.



01-17KE03	None - None	C-175 Twin Automatic Tractor	Assembly Drawings Product Details Attachments and Accessories
01-17KS02	None - None	C-175 Twin Automatic Tractor	Assembly Drawings Product Details Attachments and Accessories
11-17K801	None - None	C-175 Twin 8-Speed Tractor	Assembly Drawings Product Details Attachments and Accessories
11-17KE01	None - None	C-175 Twin Automatic Tractor	Assembly Drawings



Edited September 20, 2020 by daveoman1966

[oliver2-44 9,853]

The manual picture is of a sundstrand transmission and you have the Eaton transmission.

[JohnD 145]

Thanks all!  That makes a lot more sense.
