The Bavarian Wheelhorse grows

[Wheel Horse 3D 3,795]

12 minutes ago, Gregor said:

WHY didn't somebody tell me Tractorhead was workin on a hoe build?!

[Handy Don 12,231]

5 minutes ago, Wheel Horse 3D said:

WHY didn't somebody tell me Tractorhead was workin on a hoe build?!

Hey @Wheel Horse 3D, @Tractorhead is building a backhoe!

[Wheel Horse 3D 3,795]

Thanks @Handy Don good to know somebody cares! lol

[elcamino/wheelhorse 9,297]

@Tractorhead Remember we will need photos of your new drill press . Like your plans on the back hoe.

[ebinmaine 67,498]

@Wheel Horse 3D

Hey. Grey.

Did ya hear about the BAVARIAN guy fabbing up his own small backhoe?



Edited May 12, 2021 by ebinmaine
I blame autocorrect but it's really me...

[Wheel Horse 3D 3,795]

Sounds like the start of a "two guys walk into a bar" joke!

[Gregor 4,846]

24 minutes ago, ebinmaine said:

Belgian

?

[Handy Don 12,231]

Bavarian

[Tractorhead 9,064]

Thanks @ebinmaine Eric you sent me to Belgium for holiday‘s

but actual it is not possible for me to do that .... 😎😂



i like to built my own Backhoe...

btw @Wheel Horse 3D  did anybody inform you, i do that ?

😂😂😂





Edited May 12, 2021 by Tractorhead

[Gregor 4,846]

@TractorheadI think you should take a poll, on what color this thing should be painted. The final decision is yours of course. I think yellow would look nice with that blue tractor.

[Tractorhead 9,064]

22 minutes ago, Gregor said:

@TractorheadI think you should take a poll, on what color this thing should be painted. The final decision is yours of course. I think yellow would look nice with that blue tractor.



Suggestions welcome

[Achto 27,575]

Ok, the back hoe build is very cool, no doubt. @elcamino/wheelhorse wants to see the new drill press, again I'm in on that.



Now for some really important stuff. I want to see a picture of the still that you will be using to turn this...

On 5/8/2021 at 3:43 PM, Tractorhead said:





into Tequila!!!

Edited May 12, 2021 by Achto

[Tractorhead 9,064]

8 hours ago, Achto said:

Ok, the back hoe build is very cool, no doubt. @elcamino/wheelhorse wants to see the new drill press, again I'm in on that.



Now for some really important stuff. I want to see a picture of the still that you will be using to turn this...





into Tequila!!!



Dan, that Agave including it’s moisture pot Weights gros 475Kilos.

If i turn that into Tequila (did you know how to turn it)

i couldn‘t finish the Backhoe.



- so let‘s do the important things first.. 😎

and educate me, how to make my own Tequila 😁👍

[Tractorhead 9,064]

Few mini steps forward.



Firstly i welded the Swing plates together.











Check the swing Angle



neutral





30 deg to right side... - that‘s ok i believe.



Inbetween the Swingplates cooling down ( dang they where hot, move without gloves is a real goofy idea..)

i tried to play a little blacksmith with the induction heater.





Therefore i use a 20x5 mm Flat steel and heat it up with the inductor

and after 30 sec it begins to glow dark and after 72 sec the steel was bright red glow and can be bend it with just hands and less force.





That‘s really nice, i love it.

than i try to ben both at the same spot to get a feeling how exact i can work with the inductor.







It works exact and quicker than i believed, same accuracy like a flame.

- pretty Cool -







At least i fabricated few Distance bolts.

Edited May 12, 2021 by Tractorhead

[Tractorhead 9,064]

23 hours ago, elcamino/wheelhorse said:

@Tractorhead Remember we will need photos of your new drill press . Like your plans on the back hoe.



The Carrier inform me today it should arrive on Friday.

If it arrives, picts will follow

[Tractorhead 9,064]

20 hours ago, Wheel Horse 3D said:

Sounds like the start of a "two guys walk into a bar" joke!



This is more a hold my beer idea.. 😂😂

[Achto 27,575]

4 hours ago, Tractorhead said:

and educate me, how to make my own Tequila 😁👍



Never done it myself but here are some links. First the process, then a do it your self walk through.



https://www.thespruceeats.com/how-tequila-is-produced-4064741



https://tastetequila.com/2020/the-coolest-quarantine-project-ever-making-tequila-at-home/

[Tractorhead 9,064]

Tadaaaaaa....



the new Toy arrived the Shed.





it was a big heavy Box that arrives on Palette.



- The unboxing...







Ok, that seems to be more a Tool instead a Toy.





it is completely built 90cm in height over all.

The Weight is 40Kilos - so not a to cheap crap.



to compare The Cheapo ...



and the „Newbie“





The Vice is used to compare.



The Pro‘s -

Vario Drive from 290 up to 2900 RPM simply with a Lever

RPM Gauge

LED Light

Laser to align

MK2 Quickmount

Heavy Cast Iron Stand

Absolute 0 play in the Drill - round better than 0,02 mm accuracy

silent and wobblefree spinning



The Contra

the LEDLight and the Laser only Pulses and the RPM gauge keeps dark.

i wrote the manufacturer for a spare Mainboard - powersupply is shot.



but it works like a charme.



for the Price i be satisfied, even with the cons.

this are nice to have gadgets but i don‘t need them really.

[ebinmaine 67,498]

EXCELLENT shop arsenal addition Steve.





But...

12 hours ago, Tractorhead said:

seems to be more a Tool instead a Toy



To the right person all tools are toys.



[Tractorhead 9,064]

You be Right Buddy Bear.



so i played today a little With my new Toy‘s...





firstly i made 2 Mounts for the Cylindres.

Drilled in 3 steps 6mm than 12mm than 17mm at least 20mm.

Works like a charme, i love my new Toy.





after that i make a Cylindre mount out of a 32mm pipe with 6mm thickness

so the Bolt thickness will be 20mm that should be enough.

Than i welded it onto bottom of the Cylindres.





I plan the Hydraulic connections sideway’s of the Beam than i can move the Cylindre as close as possible

between the Beam and mount without the danger to touch the hydraulic lines in any way.





Than i grinded down the first welded Cylindre mount and rewelded one of the new Mounts i made

for one of the new Cylindre.   ( they arrived Today)





I also get today the Gearbox for the rear Hydraulicpump, but i ordered for a group 2 pump.

 huh, i have ordered wrong, because i have a group 1 pump - but hey - no problem this can be solved with an  Adapter plate.

















[Gregor 4,846]



[elcamino/wheelhorse 9,297]

@Tractorhead You are moving along on the project . It will be finished soon , then you will have to find something else to build. Great work.

[Tractorhead 9,064]

Or i start to play for a longer time with it Jim.... 😂



finished the today‘s step.

firstly we have to mow completely arround the house and front + backyard.

The grass raises up to 15-18 cm, so the Horse had a hard work today..



after the Mowing Session the Horse and i we took a ride firstly to dump the Grass down to the Forrest and after

we be back we had another ride for the dump of the whole Spring- Cut, Kati does in between.

Now the Garden looks nice again, but the extreme high Grass by full speed mowing wears the belt relatively heavy.

So the 7-9 Horses start to eat belts but didn’t show much impact on RPM at Full throttle @ 3990 RPM.

it cuts nice and the side exchange works great.



Than lunch and back in the Shed.

finalize the Daywork.

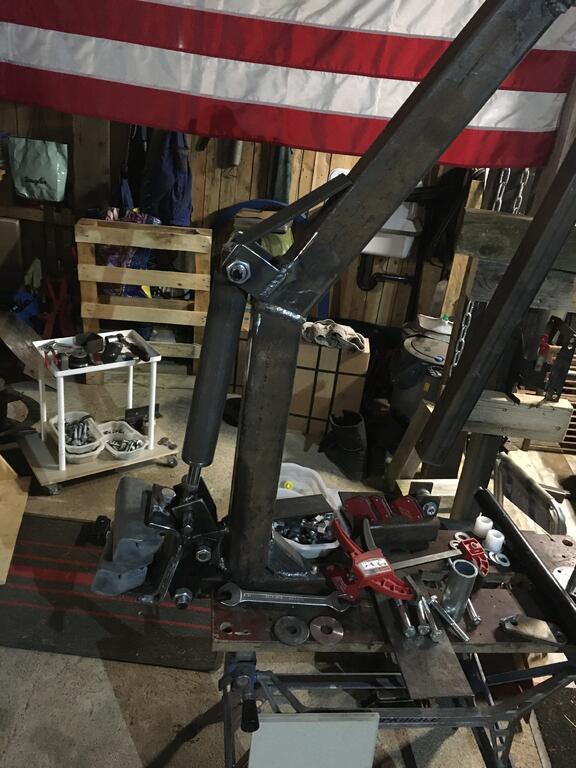

I welded the 2. Pipe into the pistonrod.

 First Cylindre is completely ready for mount, so let‘s put it in.





i planed to install a arrester mount, to fix the Backhoe when not in use even without hydraulic.





arrested by a bolt i.eg. for travelling or for storage







released for work.





than i begin to plan a bit ahead for the Bucket mount. Here the rest parts of the Cable window will be reused.





A double link like on excavators must be done for that.







The Rearswingmount is ready for being mounted

next steps are build the swing baseplate, weld them onto Angleirons, drilling holes in them to screw it onto the Base platform,

Drill the baseplatform up to 22mm left and right to be able to attach it onto the 3 Point on the Tracta.



build 2 mounts for the Ellbow cylindre and weld them to the Arm





lot‘s of thing to do.



[elcamino/wheelhorse 9,297]

You have more energy that I. It would take me 3 days to do what you have done in one day.  Of course I am only 20 years old that you.

[Tractorhead 9,064]

8 hours ago, elcamino/wheelhorse said:

You have more energy that I. It would take me 3 days to do what you have done in one day.  Of course I am only 20 years old that you.

That may be a reason.



I do what i like to do, that spends a lot‘s of Energy.
