Picked up this mower deck this morning Not sure what year it might be

[The Tuul Crib 7,336]

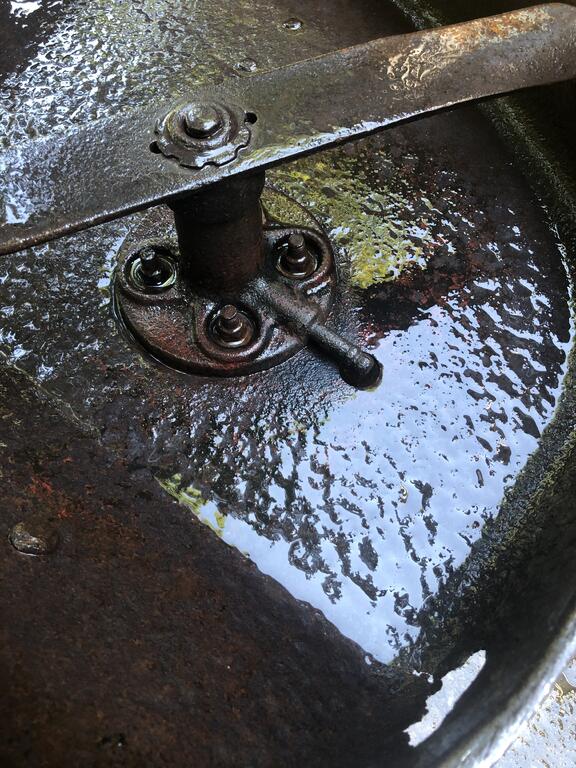

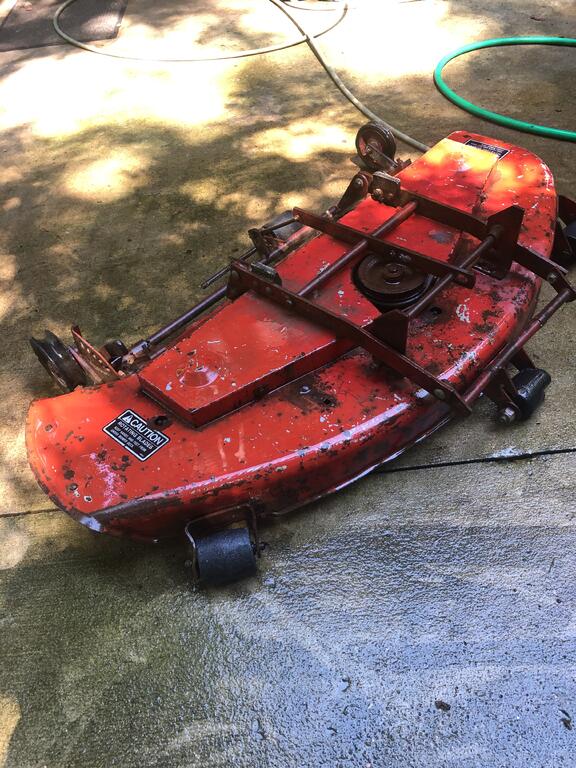

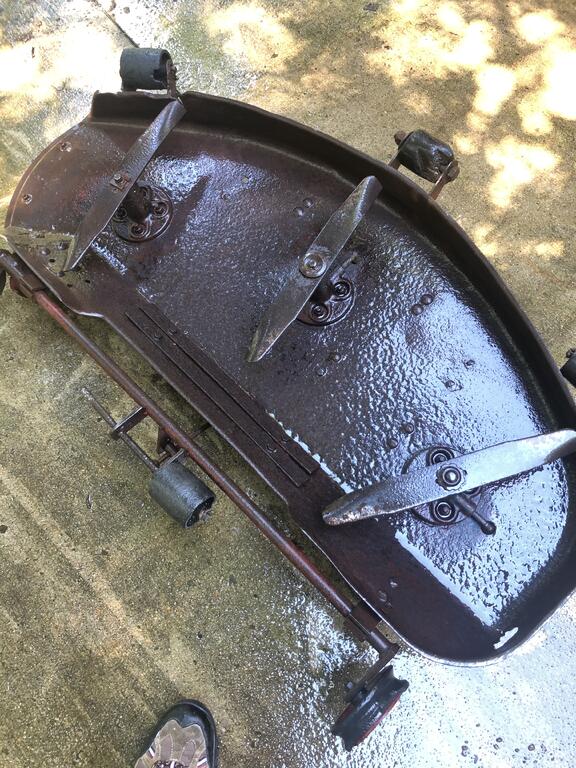

Drove about an hour west of here to pick this up this morning. It has two rust holes in the normal spots. Somebody  has done some repairs along the way but all in all the deck is pretty solid. Seems to be the older style 48 inch but there are no serial numbers to be found. Looks possible to be maybe early 70s or late 60s?

Edited August 8, 2020 by The Tuul Crib

[gwest_ca-(File Mod) 11,033]

Should be one of these

1966-1967 model RL-486 replaced by

1968 model 5-1481

1969 model 5-1482

1970 model 5-1483

1971 model 5-1200

1972 model 5-1201

1973 model 5-1202

1973-1974 model 5-1210

1975 model 5-1211

1976 model 65-48MS01

1976 model 65-48MS02

1977 model 75-48MS01 - These all used blades with 5/8" x 3/4" double-D center hole unless the spindles have been upgraded.



Garry

[peter lena 8,583]

the tuul crib, in addition to the patch work needed , take advantage of that clean solid bottom , and after a thorough drying , spray oil penetrating oil on it and a hot sun drying / feeding the metal . do that a number of times to prevent rot and stop corrosion . after oil soaking, leave in sun upside down so the deck gets hot and draws in the oil lubricant. been doing that for years , no rot, pete

[daveoman1966 3,745]

From the Toro MPV..   Deck # 5-1200  https://lookup3.toro.com/partdex/index.cfm?xCaller=Toro



[Lee1977 6,648]

It's an early Double D the attachiment hardware looks wide might be for a D series.
