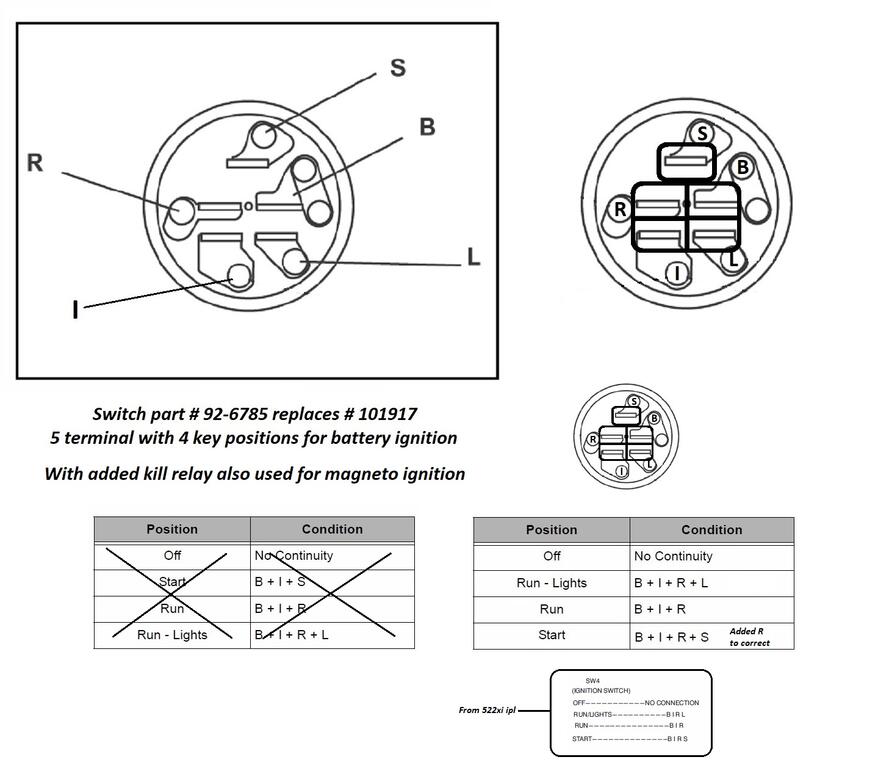

Switch Ignition Battery 101917 replaced by 92-6785

[gwest_ca-(File Mod) 11,153]

Found a mistake that was continued through 100's of manuals.

Posting this because there is not enough time in my lifetime to make the corrections.

Have been going through wiring diagrams making corrections as I come across mistakes. Was doing one that uses a B&S engine and the carburetor fuel solenoid was introduced. This one is powered by the R terminal of the ignition switch. But the key function table does not show the R terminal powered in the START position. This engine is not going to start.

Looking at many diagrams discover the wiring is correct and the table is wrong. The R terminal is powered in the START position on two of them I checked.



Garry
