Al Ozols 0 #1 Posted May 28, 2020 Looking for a roto tilling attachment for my 520H, found one on line but i don't know if it will fit, anyone know a part or model number? Thanks Share this post Link to post Share on other sites
kasey54 305 #2 Posted May 28, 2020 Welcome! Lots of 520 h fans on here, someone will be along soon. Your model number, and year will likely be requested to help with I.D. of proper tiller. A picture would go far, we all love them! 1 Share this post Link to post Share on other sites
kasey54 305 #3 Posted May 28, 2020 I do know a few peripherals are required, some brackets that attach to the axles, a pulley and belt tensioner that mounts to the mid mount attachmatic. Your tractor may have some of them already. 1 Share this post Link to post Share on other sites
WHX?? 48,263 #4 Posted May 28, 2020 (edited) Hello Al Yes you will need an axle bracket but more importantly you will need the rear rock shaft which is a lift cable, tube and rockshaft with bushings. Also mid mount pullies. Below aremanuals for a tiller for a 520. This is for a 92 but most years are similar. Study it and make sure one you get has all the right pieces. Many times PO's forget to include things, they get lost, or left on the sellers tractor. like the mentioned lift kit and the mid mount belt guides. These can be a real pain down the road to find. Well not a pain as a vendor here has them but the tiller better be dang cheap without them. I have one to sell but shipping might be a bear! 3314-767_1992_Tiller_36in.pdf 3315-210 1992 Tiller 36in IPL.pdf Edited May 28, 2020 by WHX24 1 Share this post Link to post Share on other sites

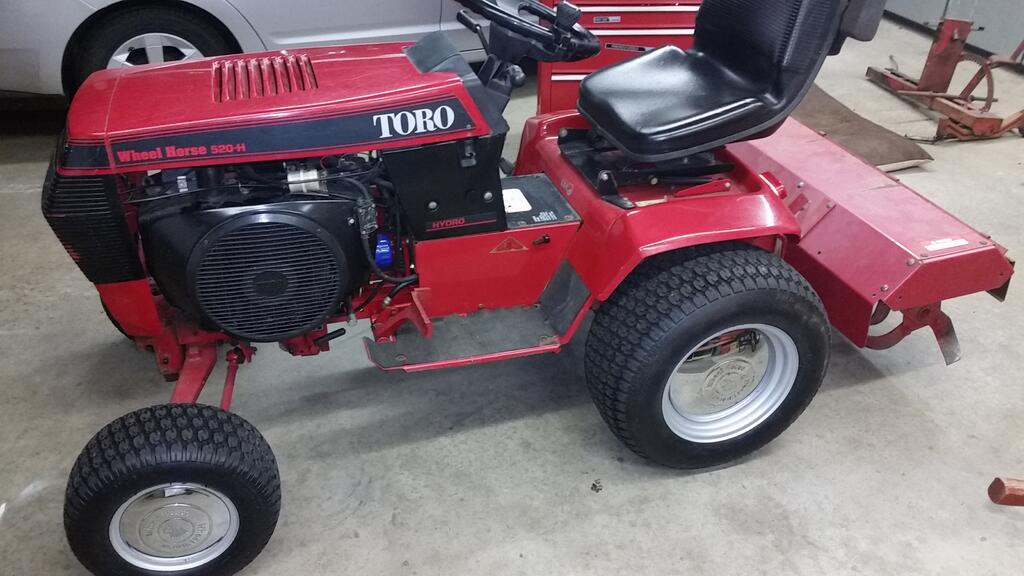

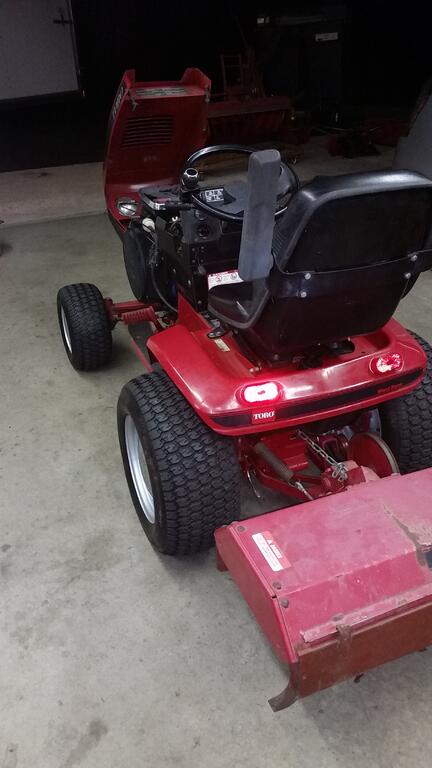

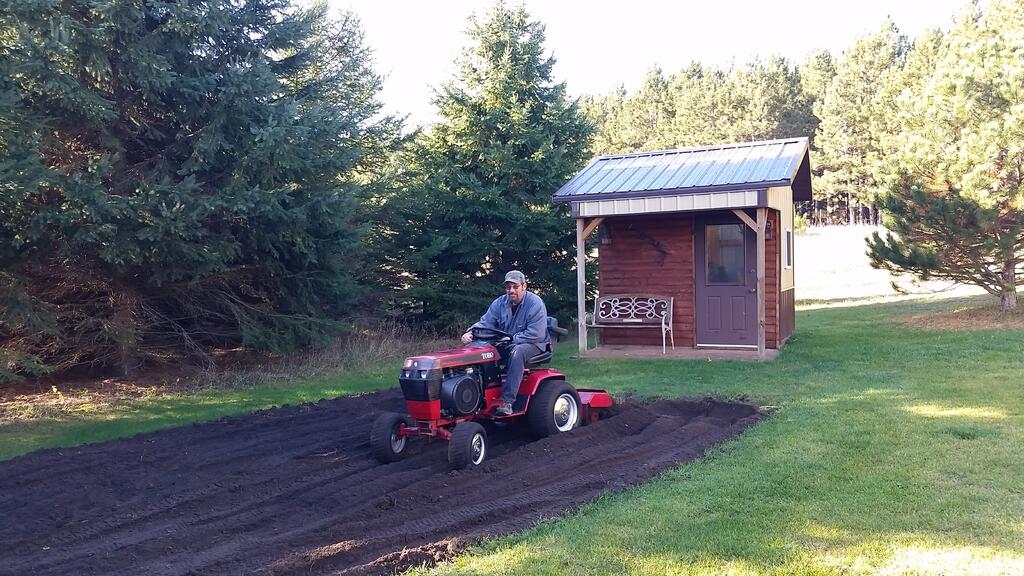

WHX?? 48,263 #5 Posted May 28, 2020 (edited) This might help your search too - an interchange chart showing what implement is used with what tractor. File is between 2nd and 3rd pics. Looks like a 07-36TL04 was common to the 3,4 & 500 series but there may be others. Here's some pics Just to keep Kasey happy! WH Interchange 1955-2000 (1).pdf Edited May 28, 2020 by WHX24 2 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,938 #6 Posted May 28, 2020 Here is a list of the tillers produced 1978-on that fit the long frame tractors in the order they were produced. 1978 tiller model 87-36TL01 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1979 tiller model 97-36TL01 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1980-1982 tiller model 07-36TL01 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1983-1985 tiller model 07-36TL02 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1986-1989 tiller model 07-36TL03 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1990-1991 tiller model 07-36TL04 [Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1992 tiller model 07-36TL05 [Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1993-2001 2003-2007 tiller model 79370 [Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] Garry 2 Share this post Link to post Share on other sites
Al Ozols 0 #7 Posted May 29, 2020 17 hours ago, gwest_ca said: Here is a list of the tillers produced 1978-on that fit the long frame tractors in the order they were produced. 1978 tiller model 87-36TL01 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1979 tiller model 97-36TL01 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1980-1982 tiller model 07-36TL01 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1983-1985 tiller model 07-36TL02 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1986-1989 tiller model 07-36TL03 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1990-1991 tiller model 07-36TL04 [Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1992 tiller model 07-36TL05 [Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1993-2001 2003-2007 tiller model 79370 [Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] Garry Great info, thank you, I found a 07-36TL04, will it work on my 1993 520H? Or do i have to find a 79370? Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,938 #8 Posted May 29, 2020 Yes it will fit. Attached is a link to the ipl that you can study to make sure you get all the loose pieces. Once off the tractor they often get separated. Garry Share this post Link to post Share on other sites
Al Ozols 0 #9 Posted May 30, 2020 7 hours ago, gwest_ca said: Yes it will fit. Attached is a link to the ipl that you can study to make sure you get all the loose pieces. Once off the tractor they often get separated. Garry You the man, thank you so much. Share this post Link to post Share on other sites
