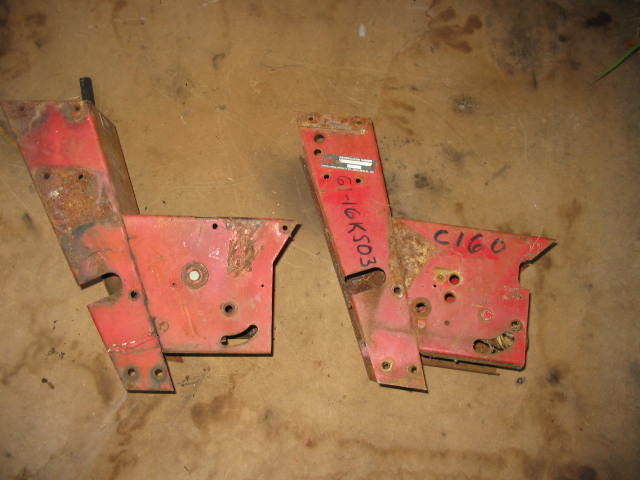

buffaloman 295 #1 Posted May 1, 2020 So it seems theres no way to feed this through the tube. I took the tube off and seems the clamp will hold it in place. I cant figure out where it hooks to on the levering side of things . I have a 1974 c120 manual transmission Share this post Link to post Share on other sites

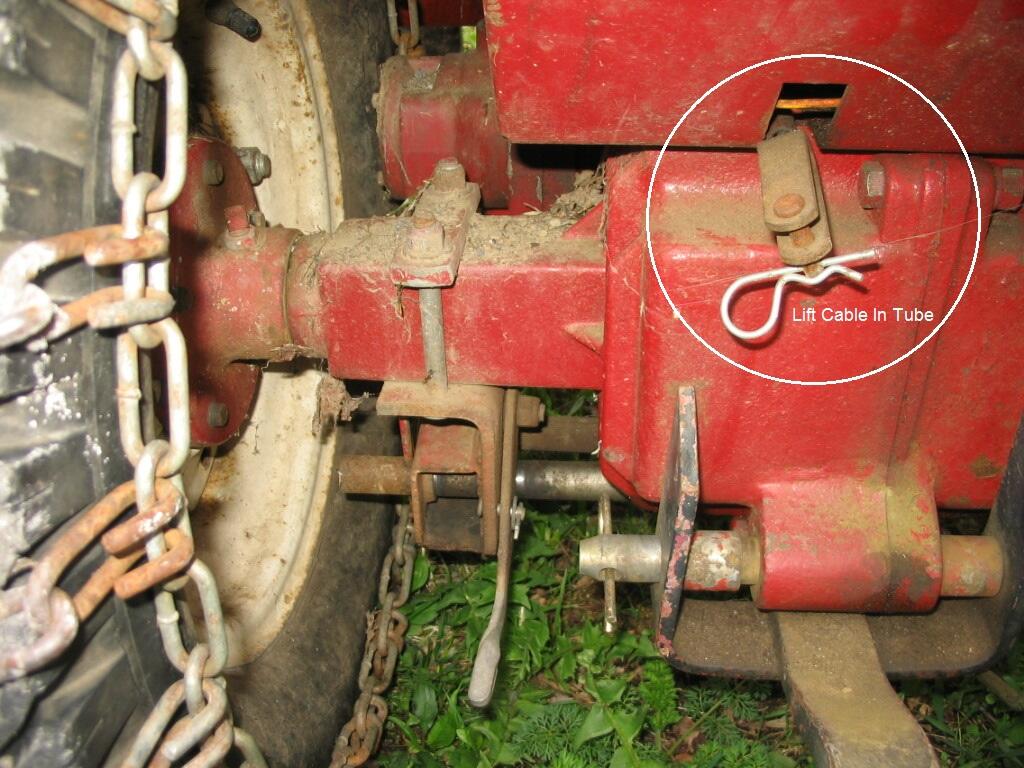

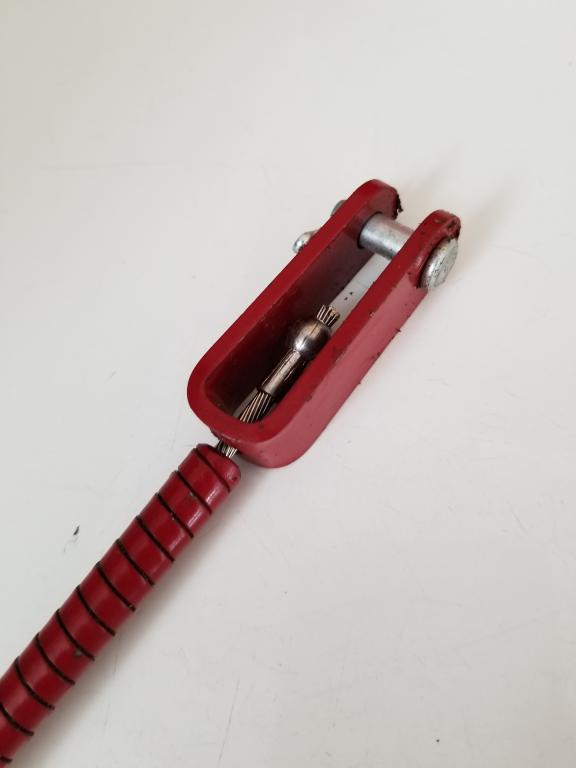

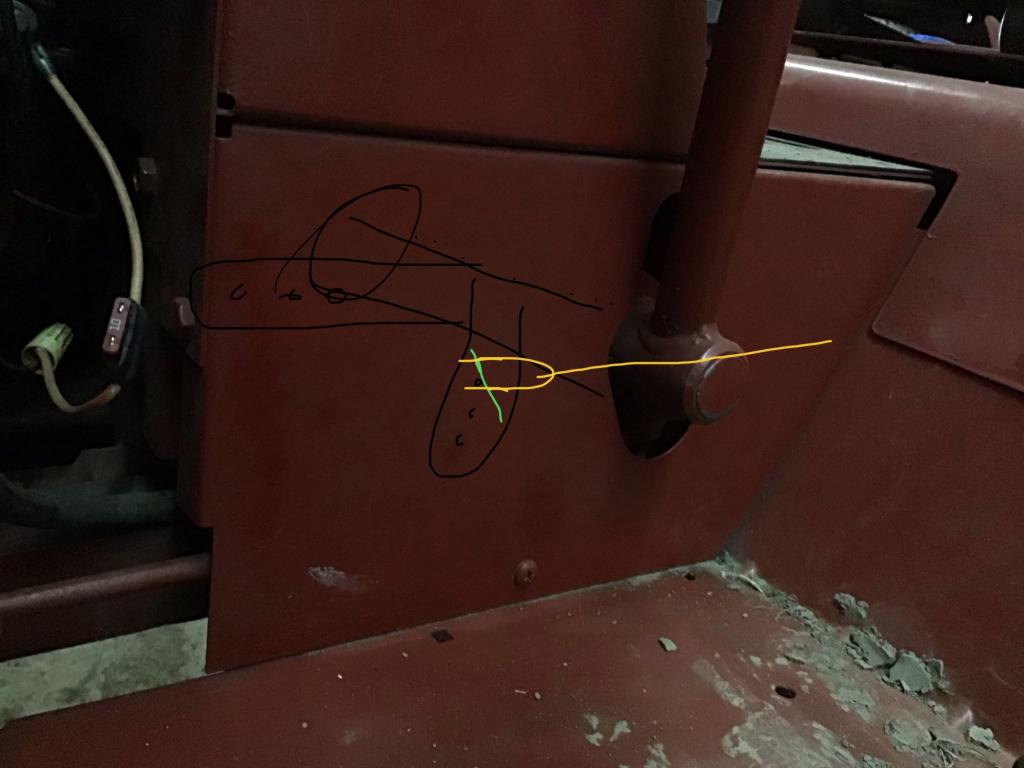

Pullstart 62,801 #2 Posted May 1, 2020 I believe the cable sheathing (spiral red part) replaces the tube. You can use a tube clamp to hold it in place. your lift arm moves two rock shaft levers inside the dash. The clue is hooks to the vertical arm, so it moves forward when you pull the lever back. No need to complement my art work masterpiece... hopefully it helps you see what’s inside Share this post Link to post Share on other sites

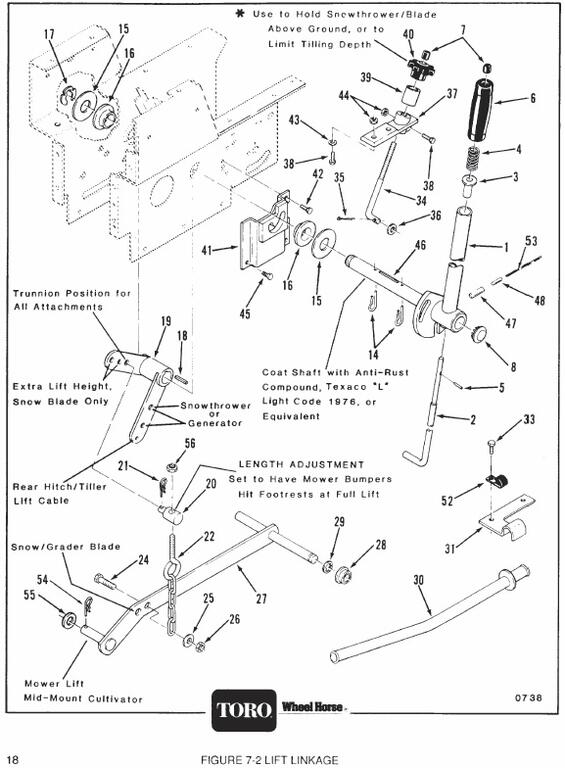

gwest_ca-(File Mod) 11,033 #3 Posted May 1, 2020 This page is from some of the illustrated parts manuals. Garry Share this post Link to post Share on other sites

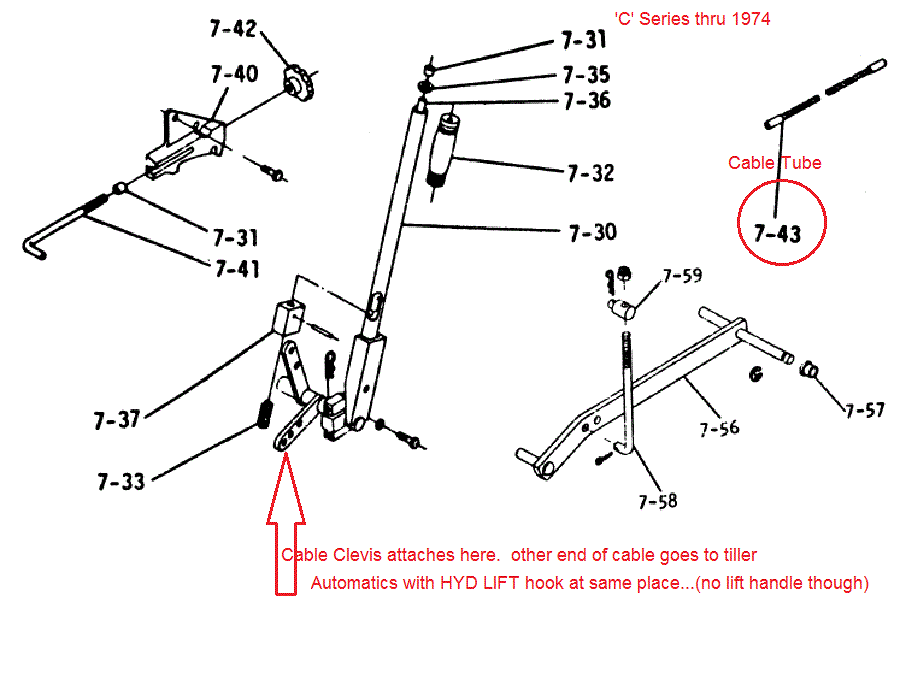

daveoman1966 3,745 #4 Posted May 1, 2020 (edited) Your 1974 C-120 lift apparatus is different than the above schematic.... The hoodstand of the C-120 is also different than the hoodstand show in the first pic. The C-120 LIFT SCHEMATIC is here: Edited May 1, 2020 by daveoman1966 Share this post Link to post Share on other sites
buffaloman 295 #5 Posted May 1, 2020 thanks for all the replies , After looking at your pictures and prints I got that part hooked up .Now it seems my belt is too short. I looked on here and thought it was saying for my horse I needed a 139" belt . ???????? Share this post Link to post Share on other sites
buffaloman 295 #6 Posted May 1, 2020 is there another picture or print that shows the belt path ? Share this post Link to post Share on other sites

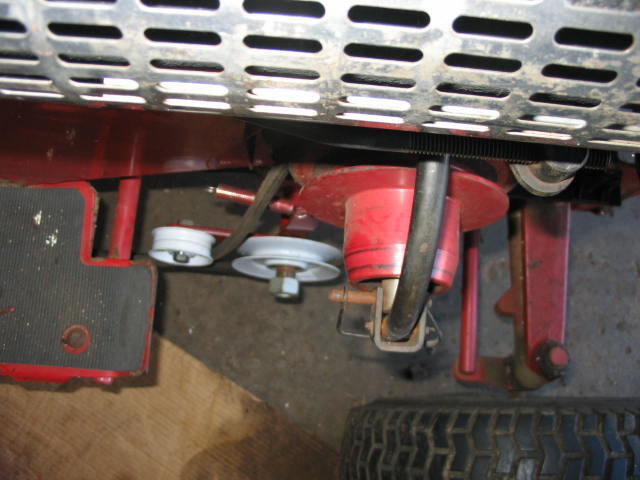

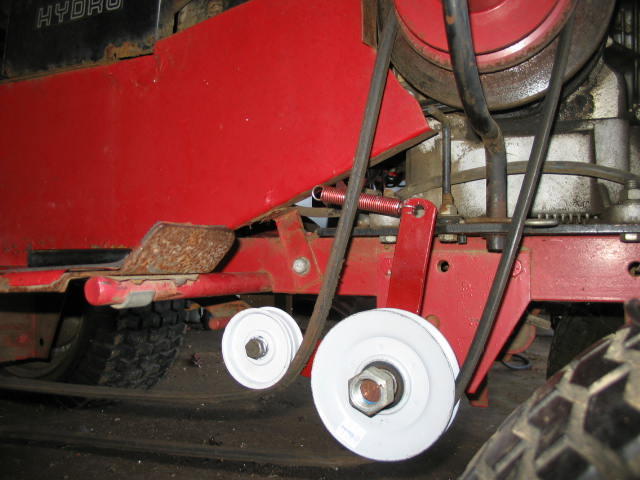

daveoman1966 3,745 #7 Posted May 2, 2020 Here is the belt from the engine PTO, down aro0und the Idler Pulley Bracket....then it goes back to the tiller and it's idler pulley and drive pulley. Share this post Link to post Share on other sites

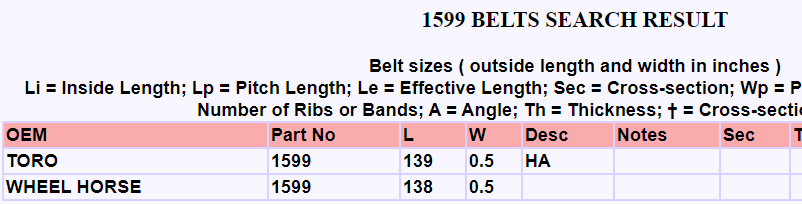

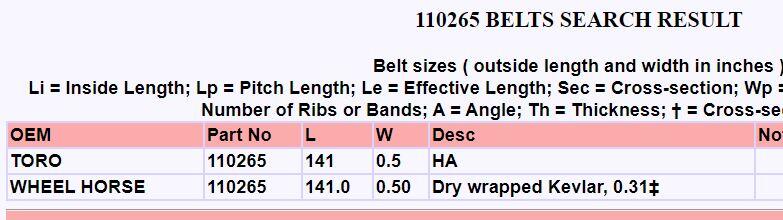

daveoman1966 3,745 #8 Posted May 2, 2020 (edited) tiller wants belt # 110265 at 141 inch the one you have at 139" is belt # 1599...wrong belt for that tiller/tractor combination. Get the 110265 belt here: https://www.psep1.biz/arinet.asp?aribrand=TO# Edited May 2, 2020 by daveoman1966 Share this post Link to post Share on other sites
buffaloman 295 #9 Posted May 2, 2020 Dave, is there any other size belt it could possibly be, it doesn't look like 2" would make enough difference? Share this post Link to post Share on other sites
daveoman1966 3,745 #10 Posted May 2, 2020 Two inches makes all the difference in tht world. Get the right belt 110265. 1 Share this post Link to post Share on other sites
buffaloman 295 #11 Posted May 2, 2020 1 hour ago, daveoman1966 said: Two inches makes all the difference in tht world. Get the right belt 110265. haha ok thanks ! Share this post Link to post Share on other sites
