briankd 817 #1 Posted April 20, 2020 guy at workhad some women he knows contacted him about some wheel horse stuff says has alot of WH attachments will sell for 100 bucks each also says there is quite a few tractors also 400 bucks each her dad passed away my question is WH tiller never used one always used a troy bilt pony from the eighties witch don't have access to anymore. do theses WH tillers do a good job ? to put this on my c-120 i know you need rock shaft witch i have is there a second mule drive under tractor ? attaching it to tractor is there a special hitch ? i haven't seen this yet just wanted to get some info before i go look she probably has no idea about this stuff the tractors he has are early eighties herd this tiller may been on a workhorse tractor most implements should be interchangeable from 70's c series to eighties tractors i thought if i get to look at this stuff i will get some pic's i probably not interested in the tractors and will let peep's on here know about them the more i think about it may be a guy i herd about used to be WH dealer and had quite a collection at one time i herd of 100 plus tractors but has down sized over the years Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,033 #2 Posted April 20, 2020 Here are the tillers used on the C-120 1973-1974 tiller model 7-1251 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1975 tiller model 7-1252 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1976 tiller model 67-36TL01 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1977 tiller model 77-36TL01 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] 1977 tiller model 77-36TL02 [Drive belt # 1599 (HA x 139.00in 1/2" x 139") If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")] Look for an illustrated parts list to see all the parts required. Garry Share this post Link to post Share on other sites

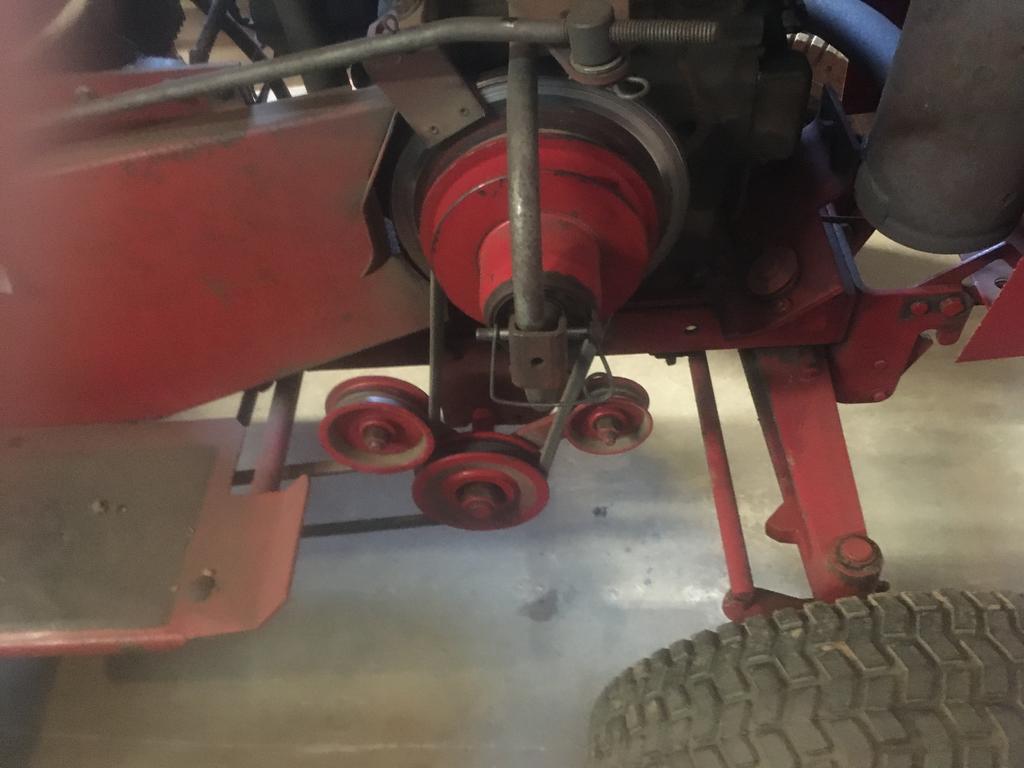

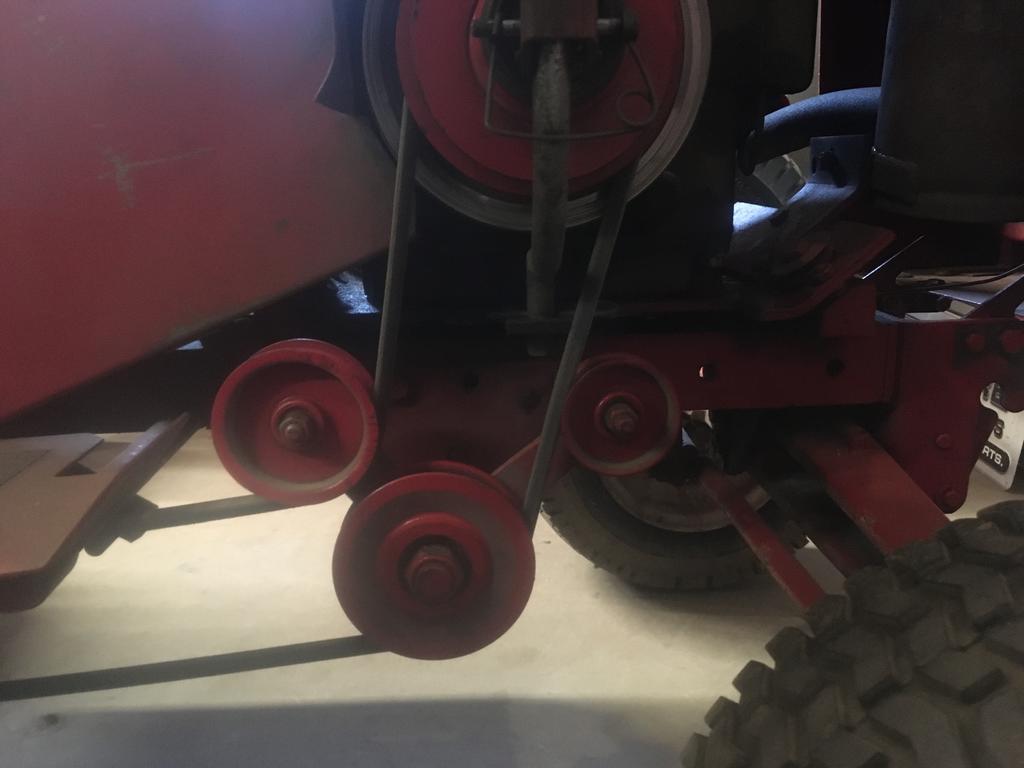

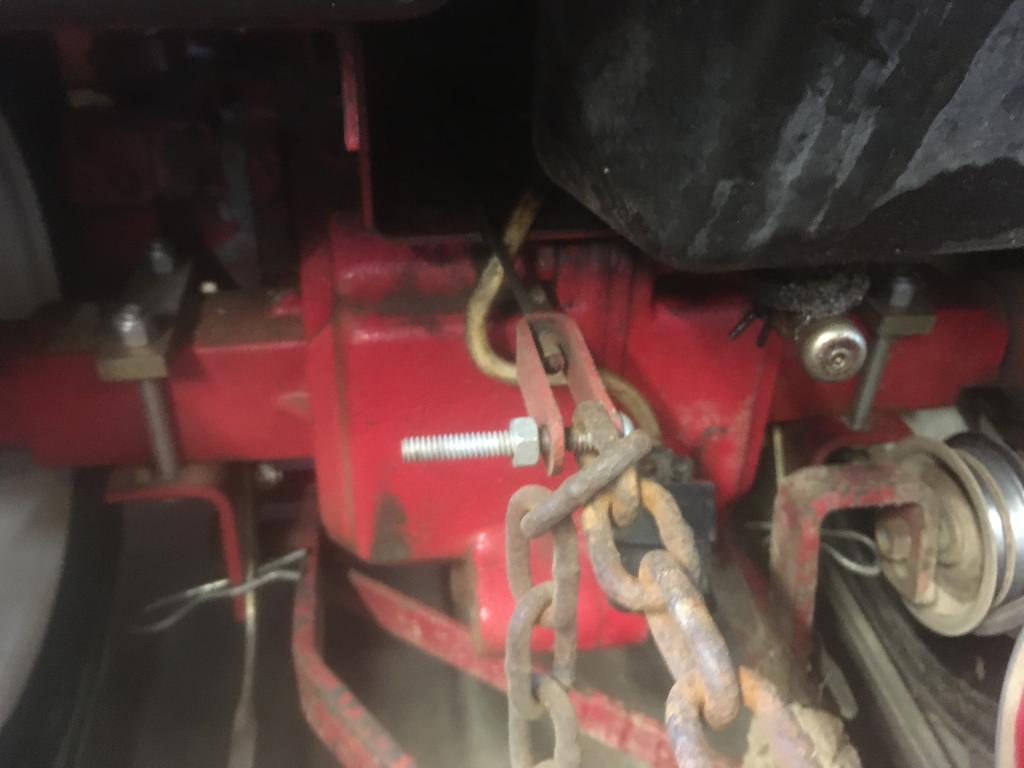

c-series don 8,668 #3 Posted April 21, 2020 You are correct, you will need a center mule drive which clips into the center tach-a-matic and rear axel bracket. Here’s a couple of pictures. 1 Share this post Link to post Share on other sites
briankd 817 #4 Posted April 21, 2020 well the tiller was a bust but still looking around for one reasonable priced but there are 3 tractors c-81 - c-120 auto - c-121 auto snow blade - blower - decks - homemade vac - homemade boom sprayer guess im going to pass on this tractors look decent in pics anyone interested pm me thanks for the pics Don at least i know what i need when i find one Brian 1 Share this post Link to post Share on other sites
