I’m back! (A Staycation Thread)
By
LengerichKA88, in non tractor related discussion
-
Similar Content
-
By Burnerman
I Cannot find anywhere online besides partstree and Jacks Small engine that Snapper sold this tractor. Also that they offered a plow blade.
anyone have any ideas??
-
By LengerichKA88

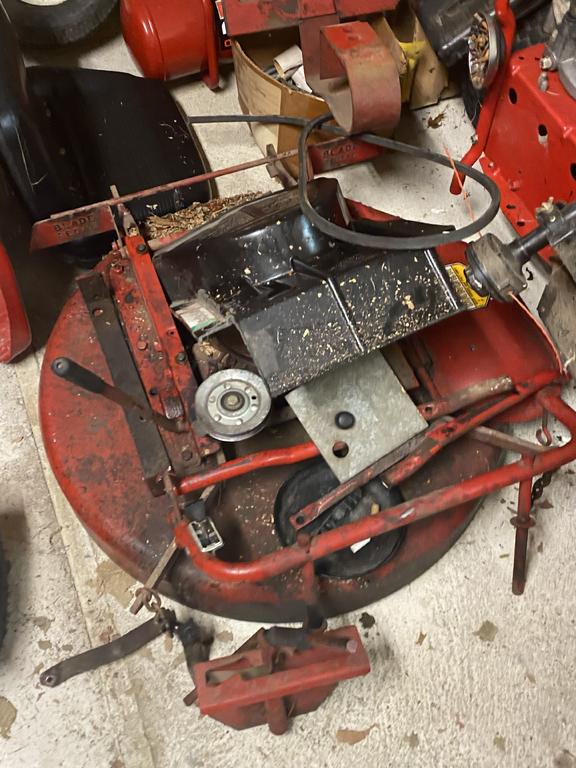

Hello all! Long time no see, I’ve started a new job that’s has me pretty much wiped out, so I haven’t been on or tinkered much lately. Today I wasn’t too sore to get motivated to have some “Dad time” so I figured I’d learn how to put the deck on my Charger 9
I don’t know what I’m missing if I’m missing something. The belt is the one that was on the deck when we got it last year, but the deck was off of the tractor, so I’ve never seen how it goes on. At this point I’m just trying to make sure I’ve got everything to connect this deck, and make sure I’ve done what I can on my own properly.
I’d seen that some use a chain linkage instead of the bar or j Rod. I cut a piece of chain to make my own, just to see how it’ll work. So far I have it to where it does, ever so slightly raise the deck, so I need to play around with that some more. Since I seem to be headed in the right direction with that, I figured I’d try the belt routing to see how it goes and I’m now scratching my head.
I’d looked through the files and some posts, but didn’t see what I needed to see to get a good visual. If anyone could help me out with decent pictures, and if possible as close to nine as possible that would be great, but any clear visual one happens to know of would be great too!
Thanks in advance
-
By LengerichKA88
Model:281123BV
Serial: 41076273
So, my FIL picked up a pretty good looking snapper for 30 bucks.... guy said it needed carb work. Turned out it needed a new recoil start too, no big deal. Well the carbs on, got the pull start on. Got a few (3, maybe 4) starts out of it.
Starting with the second start, the shroud (which the recoil housing screws to) started pulling loose. This would mean that I had to loosen, replace, then tighten it each time. This is because the bolts that keep the shroud in place do so by having a washer type head on the bolt hold down little plastic tabs. Apparently these tabs wear down over time, who’d have thunk that metal running plastic would wear it down? 🤯
Go to start it today’s making sure everything’s nice and tight. Shroud pulls loose with a metallic clang.One of the hole for the mount (that’s what I’m calling it) broke. This is part of the block, and the only way to secure the shroud. There are two on each side of the engine. As o go to pull the shroud off, I see the pawls for the recoil start fall. My recoil start that got here Tuesday, has broken. 🤬
I take usable pieces off the old one (only problem was the spring) and replace. As I’m securing the shroud, again, the other mount on the same side breaks. They were part of the aluminum block.
Why you would have the recoil starts only point of contact with the machine be a piece of plastic, is beyond me. Why you would design the shroud to attach in such a poor way, is beyond me.
How to fix this and make it usable, without buying a new engine, is also beyond me.
Has anyone had this happen, and how did you fix it if you did?
-
By LengerichKA88
We have a Charger 10 that I’ve had on here and gotten help with, but I’d never really looked at the ID Tag.
Today while looking around it I took note of the model number, so as to help with narrowing down parts in the future. The model number listed on the tag is 1-7931.
After a google search, “1-7931” returns as a Charger 9. Would this be a case of using left over tags, or possibly an error? The tractor has an HH100, and is badged as a Charger 10, but from the Charger 9 manual I found, I couldn’t find an engine model number listed, just “9hp”.
Picture of the tag is included.
-
By WHX??
My dad bought this tractor about five years ago, maybe more. I think he paid 850 for it and it came with a deck, the blower and some kind of lawn vac for the back. He scrapped the lawn vac and the deck which now I wished he hadn't done. He wanted it just for a snow mover for our cabin up north. I paid no never mind to it over the years and never really had much seat time on it until lately. I was always afraid to run it as something was sure to break then I would have to fix it as he was always working it. Now that he not being of sound mind anymore the task has fallen on me to run it and of course wrench on it. Had it out blowing snow a couple of weeks ago and of course it broke! The Onan was surging bad, throttle cable broke, blower mounting bolts stripped out and worst the blower was shooting sparks out like mad. Dad did you know this I ask? Yah he say always threw sparks like that! Must be a 4th of July tractor then. So I replaced the “up north” tractor with a 520H and a single stage to bring this one back to sell.
Not the best pics, will get some more when weathers turns. So after tinkering it even just a little its staring to grow on me so off to search for some manuals and more info. Turns out these were made by McDonough for Massey from 1977 to about 1982 or so and were badged as MF. After MF gave McDonough the finger and said we don't want them anymore they were rebranded as Snapper and sold for a few more years.
They were also made as a 1650 and 1450. all had Onans but the early ones had Kohlers.
This 1855 was advertised as 18 hp but actually had the Onan P220 engine
-
