Stator output test woes....

Recommended Posts

pfrederi

It is a bit early in the day and liquor stores on Pennsylvania are closed but I may start drinking right now!!!  I have been working for the last few weeks on my GT-14.  Fixed the hydro units acceleration springs resurface the slippers, the piston block and the pump base.  Had the engine to machine shop for a 10 over and under.  Would start sporadically and not run really well.  as I posted before the cheap harbor freight spark plug tester showed spark but after much messing around i dug out the Briggs & Stratton tester and it didn't show spark I swapped  out the  breakerless coil, trigger and stator no fix.  Converted her to a battery points system it started and ran!!!!  I had not wired in the voltage regulator as it was some cobbled up job but I tested the stator output got  5 to 7 volts AC  Wrong answer.  Swapped out 3 different stators couldn't get to 10 volts.  Tested with two different digital VOMs that have worked reliably.  Swapped out the flywheel with a spare that was missing 2 fins thinking weak magnets...(Techumseh has a test for magnets couldn't find one for Kohler)..  Still 6-8 volts AC  I have gotten really proficient at pulling the shroud popping off the flywheel etc  but now I was at wits end. Multiple swaps of all parts involved and no good answer.  Out of desperation (no other Ideas) I dug out an old Sears analog meter.  It showed 30 volts AC.  Bad testing gear has caused me a lot of work and frustration.  Guess digital doesn't like the AC pulses produced by a 10 amp stator



Any recommendations for a source and model of a Fluke analog meter??






Share this post


Link to post
Share on other sites

Achto
41 minutes ago, pfrederi said:

Guess digital doesn't like the AC pulses produced by a 10 amp stator



That is really strange. I have never had this issue. I use either my Blue Point or a Fluke model 83V, both digital.

Share this post


Link to post
Share on other sites

pfrederi
15 minutes ago, Achto said:



That is really strange. I have never had this issue. I use either my Blue Point or a Fluke model 83V, both digital.

I don't recall this issue before either but they may have been 15 amp systems.  I wonder if the difference in the number  of poles for 10 and 15 amp make a difference

Share this post


Link to post
Share on other sites

Achto
8 minutes ago, pfrederi said:

I wonder if the difference in the number  of poles for 10 and 15 amp make a difference



This possible, it might put the frequency out of range for the meter. I wouldn't think that that would matter though. You don't happen to know how many poles on the two different stators?

Share this post


Link to post
Share on other sites

pfrederi

15 amp stator has 18 poles.  the 10 amp has 12 however on the breakerless ones 1 of the poles is used for the ignition not the charging...(I think)

Share this post


Link to post
Share on other sites

lynnmor
1 hour ago, pfrederi said:

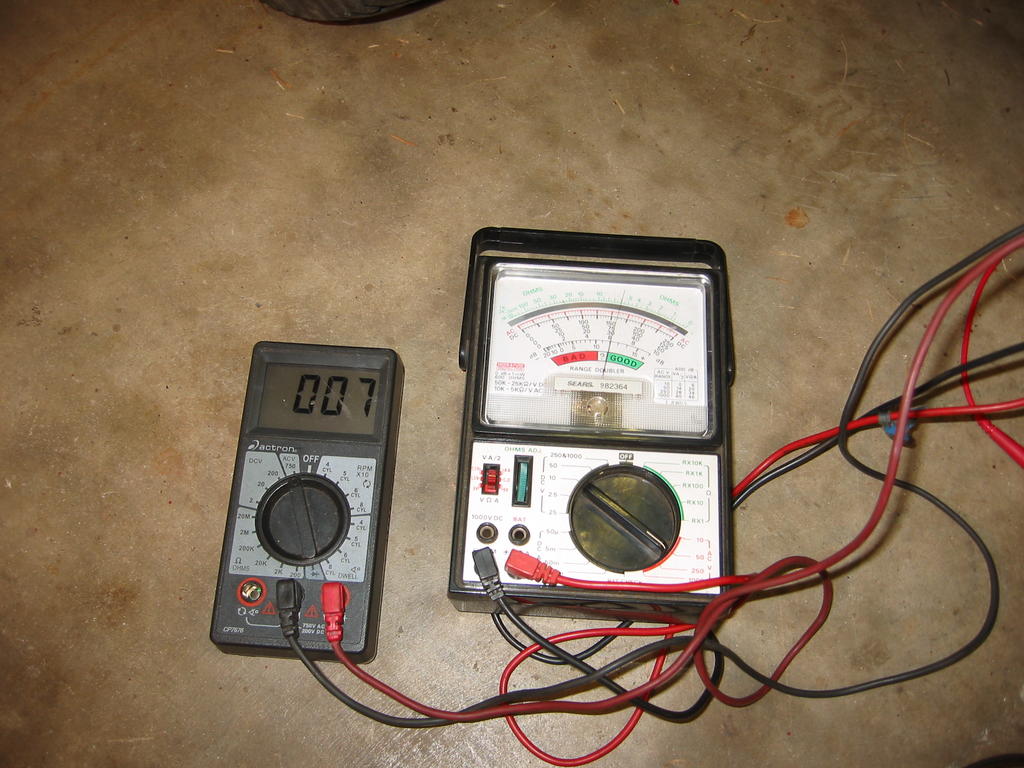

Out of desperation (no other Ideas) I dug out an old Sears analog meter.  It showed 30 volts AC.  Bad testing gear has caused me a lot of work and frustration.  Guess digital doesn't like the AC pulses produced by a 10 amp stator



Any recommendations for a source and model of a Fluke analog meter??



This has been mentioned several times on the forum.  You have a Sears meter that works and there is no need for a Fluke.  The AC voltage will vary by engine speed and all you need to know is that the AC voltage is much higher than 12.

Share this post


Link to post
Share on other sites

Achto
15 minutes ago, pfrederi said:

15 amp stator has 18 poles.  the 10 amp has 12



Given these numbers the frequency of a 15amp should be much higher than a 10amp.:confusion-confused:Still confused.

Share this post


Link to post
Share on other sites

pfrederi

Not a good day.  I may have miss read the analog meter.  it had a range doubler switch I may have had on.  Back to about 10 volts ac on the meter.  So if it isn't a meter  (or operator issue) what am I missing.  Have used different stators all of which pass the resistance and open tests in the manual.  even swapped eh flyweel can't get the voltage up....

Share this post


Link to post
Share on other sites

squonk

I have had multiple tractors and using multiple digital meters from HF to Fluke, bring bad results. Inaccurate readings  or readings jumping so fast you can't read them. I bought a Simpson analog off of E bay just for working on tractors. I have even had issues with Fluke and Fieldpiece meters picking up harmonics from motor speed drives. Electromotive waves can raise havoc. Even eat motor bearings.

Share this post


Link to post
Share on other sites

kasey54

Much has been typed in these posts. T00 much for me to unravel. Here's what happened to me. I read 14 volts at the two ac leads from the stator , prior to the rectifier/reg. Based on looking for a min. of 30 ac volts . I didn't check for  + DC  from the 3rd wire on the reg. Someone else on here posted they only had a similar ac out, and it worked fine. So I checked and had no dc from bat. to reg. I had a bad fuse holder and no dc to the reg. from the battery. With the fuse holder fixed my system is fine. Maybe you have enough ac. I haven't been able to determine the minimum ac required , maybe my HF meter cant read the stator volts accurately, I just don't know. I do know you need dc to the center post of the reg. Hope something helpful is in this.

 My finger is sore from typing. Good luck.
