dells68 7,498 #1 Posted January 12, 2020 I bought this beautiful 603 from @Shynon last summer. I’ve been thrilled with it. The carb got some gunk in it the last time I had it out, so I figured I’d bring it home to the garage while I have a chance to work on it. One of Tom’s stipulations was that I not paint the tractor. I agree that it would be a shame to mess with such beautiful patina, so I thought I’d try my hand at enhancing it. I’ve honestly felt like cr_p today, but thought it might perk me up to mess with it a little. I put the carb in the tank to soak, so I took a few minutes to sand 1/2 of the hood with 800 and 1000 grit and then oil to see how it looks. Man does it pop! Ear in mind I will buff it down and it will dry with more of a mat sheen, but retain the beautiful color. The only other thing I’m going to do to this tractor is clean and paint the wheels with a fresh coat of Rustoleum almond. I do have the original hood, but decided to keep this one on for now as I love the look. Hate to admit it, but I think I’m really on board with this patina thing! 10 9 3 Share this post Link to post Share on other sites
The Tuul Crib 7,337 #2 Posted January 12, 2020 Wow! That is a real nice finish. So you used boiled linseed oil during the sanding? 1 Share this post Link to post Share on other sites
dells68 7,498 #3 Posted January 12, 2020 (edited) 24 minutes ago, The Tool Crib said: Wow! That is a real nice finish. So you used boiled linseed oil during the sanding? I sanded with water first. Then, I coated with boiled linseed oil cut with just a little mineral spirits. After it’s wiped down the finish will be more soft and aged looking. It just brings out the beauty of mother nature’s work. Edited January 12, 2020 by dells68 3 2 3 Share this post Link to post Share on other sites
Shynon 7,459 #4 Posted January 12, 2020 Looke excellent @dells68. Can't wait to see it at the show this year. 1 Share this post Link to post Share on other sites
dells68 7,498 #5 Posted January 12, 2020 31 minutes ago, Shynon said: Looke excellent @dells68. Can't wait to see it at the show this year. Thanks Tom! I know we’ve probably met at previous shows, but it will be nice to put a face with someone who’s become a good friend I just haven’t met yet (or didn’t realize I’d met)! 1 Share this post Link to post Share on other sites
dells68 7,498 #6 Posted January 12, 2020 I just went down and wiped the oil down. I’ve been letting it sit overnight, but this will give you an idea of the sheen it leaves @The Tool Crib. It’ll dry down a bit more, but will still keep a luster. 4 6 1 Share this post Link to post Share on other sites
oliver2-44 9,787 #7 Posted January 12, 2020 Looks good Dells. I've seen several comments about people using oil for a finish and wondered what they used? I was using Tung Oil finish on my rocking horse today, I'll have to go wipe some on a piece of sheet metal and see how it does. However I've always thought of it for interior finishes, i wonder how it would do with moisture. @Dells after it's dried thoroughly, can I ask you to test a small inconspicuous spot of your Boiled Linsead Oil finish with some simulated rain water? 1 1 Share this post Link to post Share on other sites
The Tuul Crib 7,337 #8 Posted January 12, 2020 16 minutes ago, dells68 said: I just went down and wiped the oil down. I’ve been letting it sit overnight, but this will give you an idea of the sheen it leaves @The Tool Crib. It’ll dry down a bit more, but will still keep a luster. That is a really nice look Dells. Is that something that you could spray clear over or would you have to keep applying boiled linseed oil to the surface? 1 Share this post Link to post Share on other sites
rjg854 11,393 #9 Posted January 12, 2020 That's a nice finish, really like that. I just might try that on the next tractor. 1 Share this post Link to post Share on other sites
dells68 7,498 #10 Posted January 12, 2020 13 minutes ago, The Tool Crib said: That is a really nice look Dells. Is that something that you could spray clear over or would you have to keep applying boiled linseed oil to the surface? Thanks Crib. I would be hesitant to try to clear over it, even after it had sat for quite a while. I would think you’d have to remove all of it to keep the clear from fisheying. Most of the rat rod patina guys reflag every 45-60 days on their rides. I would love hunk stored indoors that this should last longer than that. What’s nice about it is that it gives all surfaces a nice deep color - even cast parts like axles or transmissions. It just doesn’t take away the originality that clear coat does. 2 Share this post Link to post Share on other sites
dells68 7,498 #11 Posted January 12, 2020 49 minutes ago, oliver2-44 said: I was using Tung Oil finish on my rocking horse today, I'll have to go wipe some on a piece of sheet metal and see how it does. I may be wrong, but I think ting oil would be very similar to regular linseed oil and dry tacky leaving a coating that would collect dust. From what I’ve read, that’s why it is important to use boiled linseed oil - to avoid a sticky surface when dried. Share this post Link to post Share on other sites
8ntruck 7,034 #12 Posted January 12, 2020 Remember - linseed and tung oil soaked rags can self ignite if left wadded up. It is best to hang the rags or lay them out until the oil cures before disposing of them. I was using linseed oil to finish some red wood a long time ago. I left the oil soaked rag wadded up in the sun for 10 or 20 minutes. When I came back and picked the rag up, the center of the rag was hot to the touch. 2 1 4 Share this post Link to post Share on other sites
12Horse Paladin 1,038 #13 Posted January 12, 2020 6 hours ago, 8ntruck said: Remember - linseed and tung oil soaked rags can self ignite if left wadded up. It is best to hang the rags or lay them out until the oil cures before disposing of them. I was using linseed oil to finish some red wood a long time ago. I left the oil soaked rag wadded up in the sun for 10 or 20 minutes. When I came back and picked the rag up, the center of the rag was hot to the touch. Yup.😉 1 Share this post Link to post Share on other sites
dells68 7,498 #14 Posted January 12, 2020 (edited) 10 hours ago, 8ntruck said: Remember - linseed and tung oil soaked rags can self ignite if left wadded up. Yup. That’s why there is a little black spot in the gravel outside of the garage. I usually burn all thinner or oil soak rags each night before I quit. Laquer thinner has been known to do the same thing! I don’t like to leave them lying around just for that reason. Edited January 12, 2020 by dells68 1 Share this post Link to post Share on other sites
peter lena 8,655 #15 Posted January 12, 2020 like your result, i regularly oil feed rust starved metal , just to salvage it , its the easiest thing you can do to retain metal . every time i see another horse that is covered with neglect , that oil feeding of the paint is my first thought, pete 1 Share this post Link to post Share on other sites
tunahead72 2,424 #16 Posted January 12, 2020 2 hours ago, dells68 said: … Lawyer thinner has been known to do the same thing! ... Interesting concept, but did you mean lacquer thinner? 3 Share this post Link to post Share on other sites
dells68 7,498 #17 Posted January 12, 2020 5 minutes ago, tunahead72 said: Interesting concept, but did you mean lacquer thinner? Yup, dang spell correct! Hate to admit it, but sometimes it’s good to have a lawyer friend. 1 1 Share this post Link to post Share on other sites
ohiofarmer 3,276 #18 Posted January 12, 2020 (edited) I havehamd rubbed walnut rifle stocks with boiled linseed. The final coats have powder abrasive added. Seems like that works for irregular surfaces. After the abrasive is used, clean it off and re- oil. Anybody can practice these methods. Just use the underside of the seat pan or hood until you discover what works. As good as the pictures look, the real thing looks even better Edited January 12, 2020 by ohiofarmer 2 Share this post Link to post Share on other sites
SylvanLakeWH 25,620 #19 Posted January 13, 2020 11 hours ago, dells68 said: … Lawyer thinner has been known to do the same thing ——————- “Lawyer Thinner”... Now that is a product I would like to get a large supply of...where do you buy it??? 2 1 Share this post Link to post Share on other sites
dells68 7,498 #20 Posted January 14, 2020 On 1/12/2020 at 7:40 PM, SylvanLakeWH said: 11 hours ago, dells68 said: … Lawyer thinner has been known to do the same thing ——————- “Lawyer Thinner”... Now that is a product I would like to get a large supply of...where do you buy it??? Can’t reveal my sources - might get a letter in the mail or a lawsuit! 2 Share this post Link to post Share on other sites

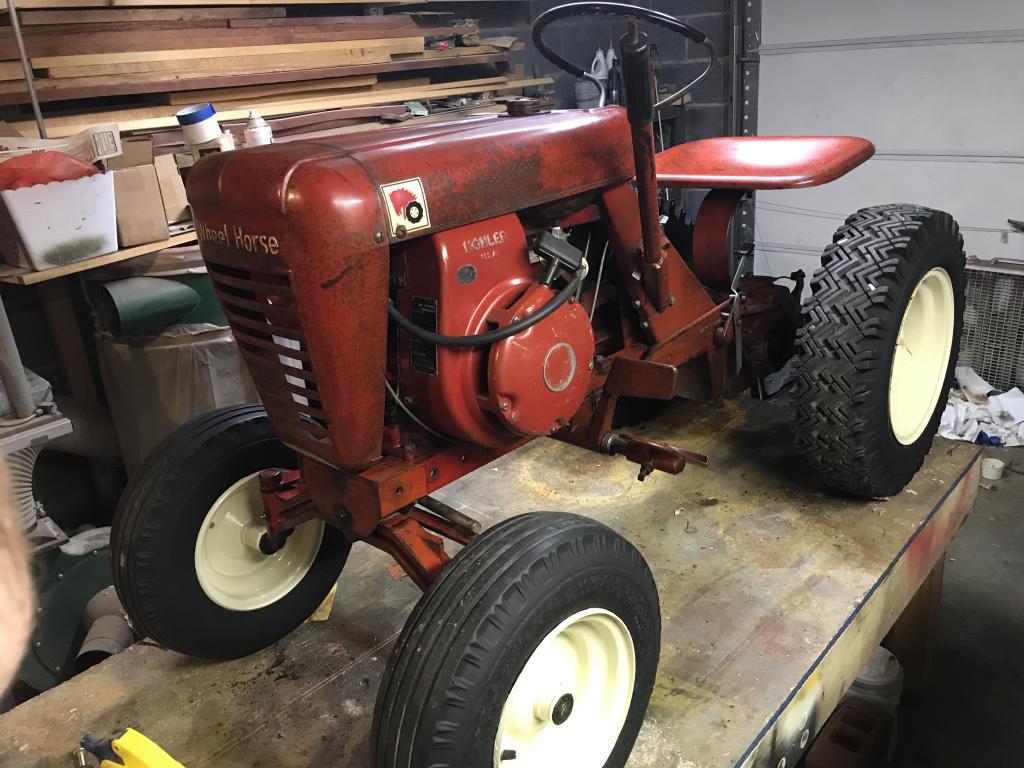

dells68 7,498 #21 Posted January 22, 2020 I finally had enough chances to mess around with the 603 to get almost finished. I still need to reinstall the knurled nuts on the hood, but otherwise it’s pretty much finished. I cleaned the entire tractor, sanded all tins with 800 and 1000 grit paper, followed by a generous application of linseed oil. I did make one mistake - I liked the hood and just meant to leave it overnight, but it was almost another 12 hours before I got back home from work. When I returned anywhere it was too heavy had gotten quite sticky - took a lot of work to get rid of that sticky residue. Moral - dry it down before you leave it for the night. All the red paint you see is what she left the factory with! I then removed the wheels and painted the rims with Rustoleum almond, followed by painting the tires with Miller’s tire paint. Looks great I think. I want to put rubber caps on the front hubs, but am not sure if I want red or black. I can’t wait to get it out in the sunlight and see it after this polar freeze passes! 1 6 2 4 Share this post Link to post Share on other sites
rjg854 11,393 #22 Posted January 22, 2020 I like it Dells Nice satin finish, any idea how long it might last before you need to do it again? 1 Share this post Link to post Share on other sites
Pullstart 62,951 #23 Posted January 22, 2020 Well did, Kid! That’s what I always tell my monsters, figured I’d share with a fellow teacher and dad! 1 1 Share this post Link to post Share on other sites
WHX?? 48,853 #24 Posted January 22, 2020 (edited) Some how missed this thread early Dells but that tractor looks great! I had taken Tom's advice on the linseed thing more than once and it does look nice but one thing I have found is it does attractor, pun intended, dust. It does protect the metal tho. This 'Burb was done like that. I'd say at least once a year rjg. @Shynonwill chime in. Matter of fact fellas this girl is in the shop right now trying to get the Clinton to run even half @ssed......and a refresh on the patina. OK I know how out you guys are hard on yer pics ... Pullstart told me to to tell you Dells stuff it ...not tryin to steal your thread.. as @JCM said it's all good! Edited January 22, 2020 by WHX24 8 Share this post Link to post Share on other sites
dells68 7,498 #25 Posted January 22, 2020 Thanks guys! @WHX24 I wondered if it would attract dust. Well, for the use most of my machines get, it should be fine. @rjg854 I’m not sure on longevity, I’d suspect Jim is dead on with at least once a year, maybe twice if you have to wash it up very often. Right now, I’m digging the look because I don’t feel like I’ve done anything to hurt the originality of the tractor. 1 Share this post Link to post Share on other sites
