Starter solenoid

[Pnptractr 35]

Is it unusual to have an electric start that does not use a starter solenoid?  This 1971 Workhorse has the Tecumseh HHM80 that has starter motor without solenoid...heavy wires run from battery to dash key switch and also heavy gage from switch to starter motor...seems odd...all diagrams I find show a solenoid ....thinking this may overload/burn the key switch but it does crank and runs like this ?



Any Advise would be most appreciated





[Howie 892]

Wheel horse wired some of them like this. If it has the correct  switch

the lugs where that heavier wire from the starter will be considerably

bigger. Switch is made to handle that load.

[Pnptractr 35]

Thanks....I was hoping that was the case....very good of you to respond....hope I can return the favor..

[WHX?? 49,176]

That would be correct, commonly known as a 70 amp switch. Still available let us know you need one we'll hook you up. Most of my sixties vintages have them but I did convert a couple to use a solenoid then use a standard five terminal switch.

BTW

[gwest_ca-(File Mod) 11,101]

If the switch still works and you want to extend it's life add a solenoid.

Your tractor is an 18W in the 1971 parts list. Click on the fuzzy pictures.

Garry

[953 nut 55,834]

The key switch without a solenoid was until the early '70s. In my opinion it is much safer to mount a solenoid on the engine and have a smaller wire that is protected by a fuse  go to the ignition switch. The idea of an unprotected high amperage capability wire running behind the gas tank is a bit strange to me.

[SylvanLakeWH 25,969]

[The Tuul Crib 7,337]

46 minutes ago, 953 nut said:

The key switch without a solenoid was until the early '70s. In my opinion it is much safer to mount a solenoid on the engine and have a smaller wire that is protected by a fuse  go to the ignition switch. The idea of an unprotected high amperage capability wire running behind the gas tank is a bit strange to me.

[The Tuul Crib 7,337]

to

[pfrederi 17,886]

1 hour ago, 953 nut said:

The key switch without a solenoid was until the early '70s. In my opinion it is much safer to mount a solenoid on the engine and have a smaller wire that is protected by a fuse  go to the ignition switch. The idea of an unprotected high amperage capability wire running behind the gas tank is a bit strange to me.





No guts no Glory.....

[Pnptractr 35]

1 minute ago, pfrederi said:





No guts no Glory.....

“All glory is fleeting”

[Pnptractr 35]

Just now, Pnptractr said:

“All glory is fleeting”

And thank you for the info...I agree with your cautionary thoughts on the proximity of fuel tank.  Probably need some form of fire suppression nearby just in case.  Engineers and Designers make a lot of decisions but the ones made by their attorneys these days seems to take top priority......ha ha....BTW...you guys have a great forum here...Will try to contribute.

[Pnptractr 35]

New to this...testing

[WHX?? 49,176]

2 hours ago, 953 nut said:

The key switch without a solenoid was until the early '70s. In my opinion it is much safer to mount a solenoid on the engine and have a smaller wire that is protected by a fuse  go to the ignition switch. The idea of an unprotected high amperage capability wire running behind the gas tank is a bit strange to me.



Now where is that 'moji for chicken?!?!?



Interesting tho Richard I thought they did away with them in the late '60's.



A pic of one of my solenoid conversions on a SG motor.

[SPINJIM 1,981]





Some of the metal gas tanks had a layer of rubber insulation glued to the back to insulate from the switch terminals, just in case.  Others just had a piece of clear plastic looped around the switch to prevent contact with the gas tank, but those pieces of plastic didn't hold up.   If you stay with the 70 amp switch, I'd recommend some kind of layer of insulation on the back of the gas tank.  A fire can ruin a nice day of seat time.

    Jim

Edited January 3, 2020 by SPINJIM

[305 380]

as already said , if you want the switch to last add a solenoid.  both my `68 Lawn Ranger and my `68 Commando i added solenoids. cheap and easy to do

[Pnptractr 35]

Fuel tank is plastic poly something non conducting but will consider converting.  Like the idea of fused lead to solenoid....



Thanks all for responses....and solenoid just sounds way cooler than “switch” ....

[Pnptractr 35]

7 hours ago, The Tool Crib said:

to

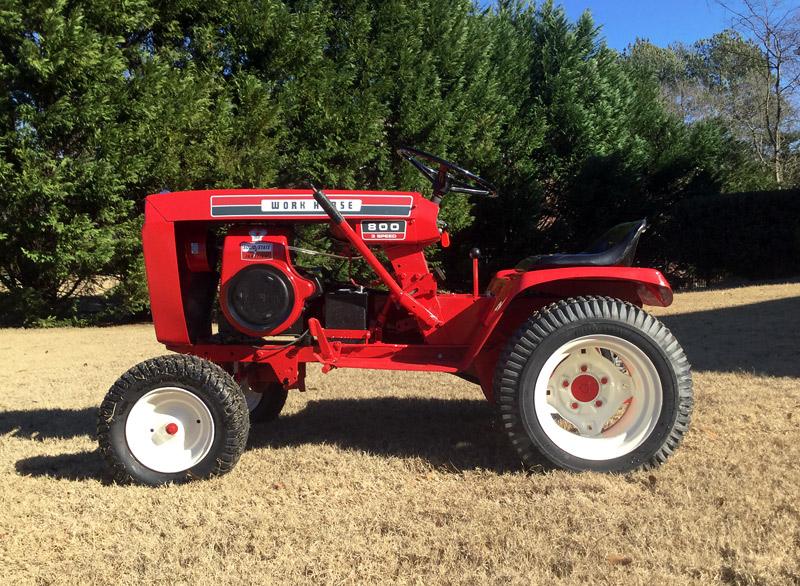

Here it is!
