1054 transaxle pulley????

[Chris G 3,296]

I'm trying to find the part number for the transaxle drive pulley on my 1054. The original one is gone and I want to replace the cheap aftermarket one. Any help is appreciated.

[The Tuul Crib 7,337]

What is the diameter of the pulley?

[Mikey the Monkey 697]

1611??? Or is that the year Columbus sailed the ocean blue?

[Chris G 3,296]

I honestly couldn't tell u they swapped it out with a two piece pulley and they changed the belt to fit. I discovered this by attempting to replace the belt and it is to loose now. I can't find a exact part number to refrence it to or anything. I will call a to z tomorrow as well but figured I'd try here as well just to see if it was known. I was recently told it may be 2707, but I can't confirm or deny that.

[adsm08 2,181]

According to the OM IPL the part number for that pulley in 2707. File #2, the 2.55 MB one, scroll  down to the trans, #66 in the call out.





Edited September 23, 2019 by adsm08

[953 nut 55,801]

9 hours ago, Chris G said:

The original one is gone and I want to replace the cheap aftermarket one.

If you don't use a cast iron or cast steel pulley the cheap ones won't hold up. I can get you the measurements and a photo this afternoon.

[gwest_ca-(File Mod) 11,096]

2707 pulley used on

953, 1054 and 1054A transmissions,

ST-376, 6-1211 and 6-9111 snowthrowers



Garry

[953 nut 55,801]

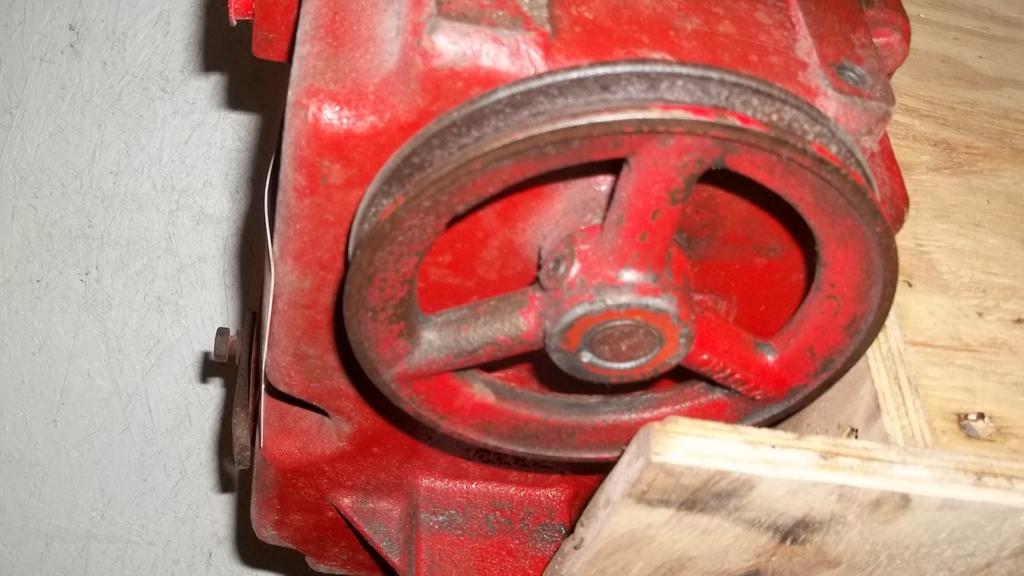

The pulley is 6" OD and has a 3/4" hole.

[Chris G 3,296]

Thanks to everyone for the help!

[squonk 41,345]

Lincoln at AZ probably has one.He had several 953 parts I needed.

[Chris G 3,296]

@squonk thanks I didn't try to call him this morning. I guess there moving locations, or parts to a different warehouse this week. So I'll try him next week if no one replies to the wanted add before then.

[953 nut 55,801]

Here are alternatives to consider,

https://www.surpluscenter.com/Power-Transmission/Pulleys/Finished-Bore-Pulleys/5-95-OD-3-4-Bore-1-Groove-Pulley-1-BK62-C.axd

https://www.surpluscenter.com/Power-Transmission/Pulleys/Finished-Bore-Pulleys/6-25-OD-3-4-Bore-1-Groove-Pulley-1-BK65-C.axd

[tractornut86 620]

Did you ever find one? I have an extra original pulley.
