4.00-8 Deestone D401 Tri-rib 3 Rib Tires & Tubes 4 ply

["Manic-Mechanic" 1,195]

I have been looking hard a set of these tri-rib tires. Thinking "I need to find a set of narrow rims?" Well, I hope to dispel this thought and maybe someone can help me here? Couldn't I get away with these mounted on the standard front wheel? Especially with tubes?



Oldman

Edited September 15, 2019 by oldman

[ebinmaine 68,267]

20 minutes ago, oldman said:

Especially with tubes?

That's the part that's going to help you put them on different types of rims.

Using tubes of course will expand the tire a little further than just trying to catch the bead being tubeless.



I'll check the width on Trina's Pony tractor in a little while.

Hers is a 657 so it would have the narrow rims but I don't know why you couldn't put those on 70's vintage rim with a tube.



[RandyLittrell 3,885]

If you save that pic and blow it up, you can see its not a picture of 4.80-8 tires. They 12 or 15's, I couldn't tell. 4.80-8's will fit what you want with tubes I'm pretty sure.







Randy

[ebinmaine 68,267]

I went out and measured the front wheels on Trina's Pony. The restored red tractor. She was going for a baby farm tractor kind of look on that one and she really wanted those 4.80 - 8 tri rib tires.

The tires themselves are just about even with the rim and I think those are what you would consider to be a 3.5 wide rim so the actual width is about 4" to the outside of the lip.



I have a 1974 or 5 C 100 here in the waiting to be restored section.

That one has 6.5 wide tires but they bulge a bit on both sides so the rim is probably 4.5 or 5 wide.

I see no reason why those tri ribs you want would not fit on a slightly wider rim such as what would use a 16 x 6.5 x 8.

They would likely bulge out a bit on the sides.

[Lee1977 6,774]

I put mine on 3" wide tub trailer rims, but I had to shorten the hubs as they were 4  1/4" wide and the later Wheel Horse front rims have 3 3/4" hubs. 3" or 4" wide  rims work best with destone 400 x 8 .



Greater Cleveland Tire has two 400 x 8 4 ply  tri ribs for $37. I got my last Dec. I believe the tries and shipping was around $54. That was with out tubes, I already had tubes.

Edited September 15, 2019 by Lee1977

["Manic-Mechanic" 1,195]

25 minutes ago, Lee1977 said:













I put mine on 3" wide tub trailer rims, but I had to shorten the hubs as they were 4  1/4" wide and the later Wheel Horse front rims have 3 3/4" hubs. 3" or 4" wide  rims work best with destone 400 x 8 .



Greater Cleveland Tire has two 400 x 8 4 ply  tri ribs for $37. I got my ast Dec. I believe the tries and shipping was around $54. That was with out tubes, I already had tubes.

 I see the trailer rims would be great! The front axle on the 1964-5 1045 are 4-1/2 long













Edited September 15, 2019 by oldman

["Manic-Mechanic" 1,195]

7 hours ago, RandyLittrell said:

If you save that pic and blow it up, you can see its not a picture of 4.80-8 tires. They 12 or 15's, I couldn't tell. 4.80-8's will fit what you want with tubes I'm pretty sure.







Randy

I grabbed the picture on the e bay ad without even looking closer, good eye! Here is a more appropriate representation:

[RandyLittrell 3,885]

1 minute ago, oldman said:

I grabbed the picture on the e bay ad without even looking closer, good eye! Here is a more appropriate representation:





I have bought quite a few pairs of them and thought they looked way too skinny. With tubes, I think you could spread them out on 6" wide rims. I think WH wide rims are narrower than 6"







Randy

[The Tuul Crib 7,337]

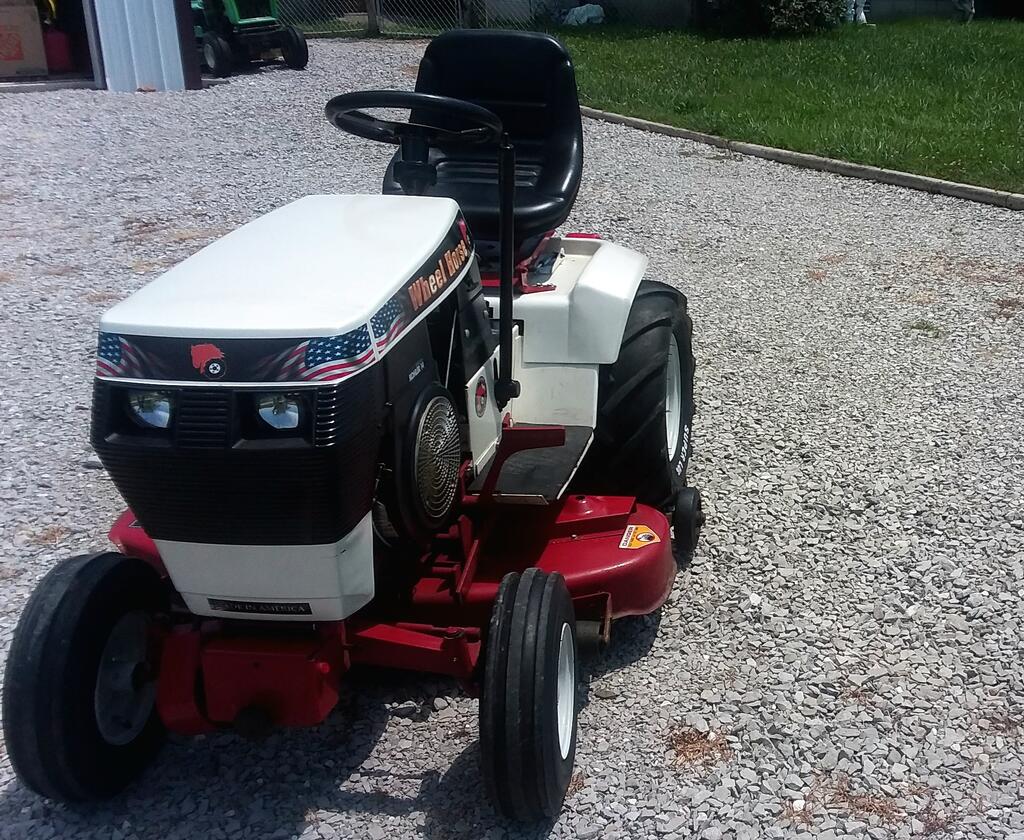

 Here's my set on the front of my 1067. There's a 4" x 8" rims with tubes. These don't have any bulge to them .

["Manic-Mechanic" 1,195]

2 hours ago, The Tool Crib said:

 Here's my set on the front of my 1067. There's a 4" x 8" rims with tubes. These don't have any bulge to them .



What is the width of your axle then on that Tractor?

[The Tuul Crib 7,337]

Just now, oldman said:



What is the width of your axle then on that Tractor?

Not sure of the length but it has a washer and a color pen on the end.

[Gordyhogg 150]

Heres my deestone tri ribs on my commando 8 i love em and they look great, perform great, and the price was unbeatable. They are also 4.00 x 8

Edited December 16, 2019 by Gordyhogg
