bds1984 1,429 #1826 Posted September 13, 2023 9 hours ago, ebinmaine said: That's a legitimate possibility. The duty cycle on a lot of mower gearboxes is not meant to be 100%. I may use pulleys to slow it down to 1800/2200 RPM internally. I have a few of those 90° gear boxes I've used over the years and they definitely have an RPM limit. 1800 RPM is it for the majority of them. Surpluscenter.com has a good selection of them and be sure to keep the vent clear or POP goes the seals! 1 Share this post Link to post Share on other sites

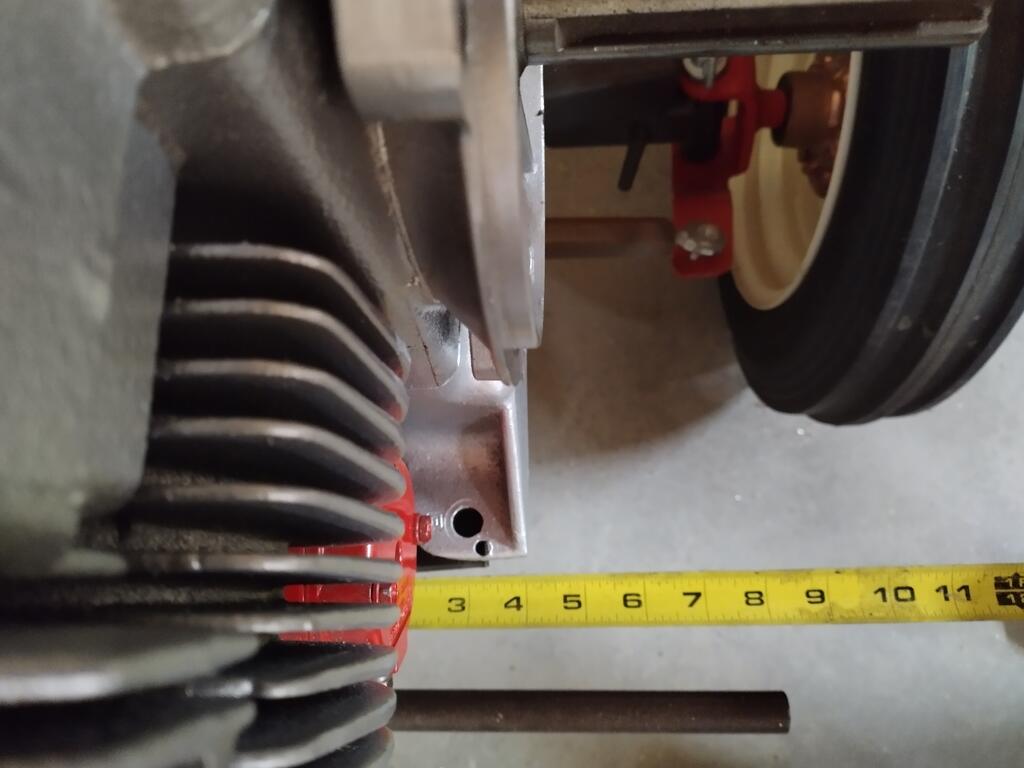

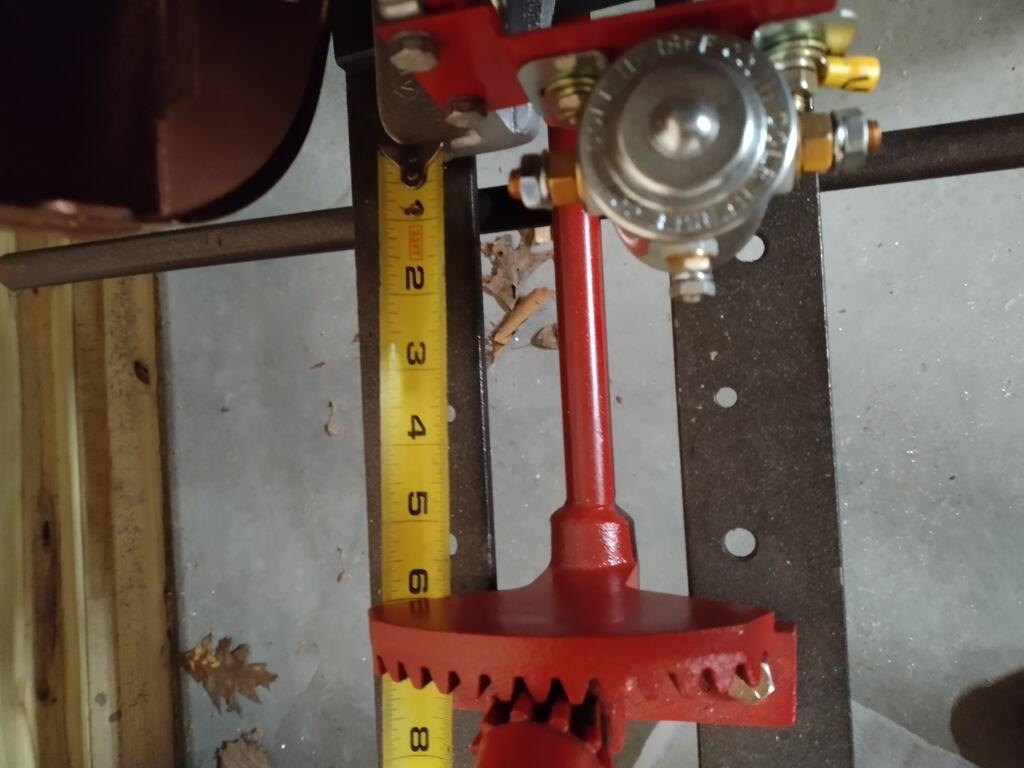

ebinmaine 67,439 #1827 Posted September 13, 2023 Here's a few pics for perspective. The engine is setting approximately at static weight center over the red steering shaft. Mounting the engine block in this position would be easy enough. Keeping in mind the above info from @8ntruckand @Handy Don I had Trina help me place the engine in it's appropriate location. After poking around the interwebs I've seen that pillow blocks should be on the outside of the pulleys. Mounting a pair of pillow blocks for a countershaft/jackshaft would be possible with the right pieces of thick enough steel. If I used a pair of steel strips to attach the pair of pillow blocks to the frame I would have to remove a strip to install the transmission drive belt but it should be doable. 1 Share this post Link to post Share on other sites
ebinmaine 67,439 #1828 Posted September 13, 2023 3 minutes ago, bds1984 said: I have a few of those 90° gear boxes I've used over the years and they definitely have an RPM limit. 1800 RPM is it for the majority of them. Thanks for confirming that. I've found a few that had no listed limits. Share this post Link to post Share on other sites
Handy Don 12,214 #1829 Posted September 13, 2023 5 minutes ago, ebinmaine said: pillow blocks should be on the outside of the pulleys Interesting and news to me. In thinking about all the cantilevered pulleys I’ve been close to, they had flange bearings and that’s what I used (mounted on a well-secured 3/16” plate) when changing the flail’s driveline. Maybe those are more vibration resistant? Depending on the final drive alignment, with the two pulleys on the shaft, probably at least one belt will be “between” the bearings and a nuisance to change 2 Share this post Link to post Share on other sites
bds1984 1,429 #1830 Posted September 13, 2023 13 minutes ago, ebinmaine said: Thanks for confirming that. I've found a few that had no listed limits. You're welcome, Eric. They're not cheap, and I'd hate to see someone waste their money. This is what I use here. 1800 RPM max but there are some that can handle 3600 RPM but are listed for 10HP max. 1 Share this post Link to post Share on other sites
Tonytoro416 1,034 #1831 Posted September 14, 2023 3 hours ago, Handy Don said: Interesting and news to me. In thinking about all the cantilevered pulleys I’ve been close to, they had flange bearings and that’s what I used (mounted on a well-secured 3/16” plate) when changing the flail’s driveline. Maybe those are more vibration resistant? Depending on the final drive alignment, with the two pulleys on the shaft, probably at least one belt will be “between” the bearings and a nuisance to change We use a lot of pillow block bearing in the fertilizer business for conveyors and things. I believe that are forgiving to what I’ll call OUT OF ROUND wear. This also makes them greasable. Fertilizer eats everything and I have seen this pillow block style bearing where the bearing rides in a rubber type bushing take some pretty unbalanced out of balance rollers and shafts and just keep running. Keep them greased and they just keep rolling. Generally when we replace them the shafts going through the bearings are so ate up from the fertilizer along with the bearing themselves we don’t even try to unbolt them anymore. We just cut them with a torch and replace bearings and shaft all together They work well 3 Share this post Link to post Share on other sites
8ntruck 6,998 #1832 Posted September 14, 2023 7 hours ago, Handy Don said: You’ll want to think about extending a solid brace off the frame to get that bearing closer to the pulley. Even a 1” shaft will have some deflection at 6” with 20+HP working on it via a pulley. And deflection will introduce vibration. And....bad. What he said. 1 Share this post Link to post Share on other sites
Tonytoro416 1,034 #1833 Posted September 14, 2023 3 minutes ago, 8ntruck said: What he said. That’s where the pillow ball bearing is the way to go. Of course brace if you can but it will not have to be near as true as a comparable bearing in another variant 1 Share this post Link to post Share on other sites
ebinmaine 67,439 #1834 Posted September 14, 2023 10 hours ago, Handy Don said: Depending on the final drive alignment, with the two pulleys on the shaft, probably at least one belt will be “between” the bearings and a nuisance to change Your logic is right on the nuisance but it won't be disassembled often. Even at that it would only be a few bolts more than a standard Horse and pulling the pillow out. Share this post Link to post Share on other sites
19richie66 17,500 #1835 Posted September 14, 2023 I do think you will need to run some kind of brace under the frame to keep it from wanting to twist. It is just angle. I think with the right design of an “under-brace” , you could move the engine back a little to the left a smidge to gain back some offset. The weight of the pulleys, bearings and steel hanging off out there would offset it a little. Hope this makes sense or scents 😁 1 Share this post Link to post Share on other sites
ranger 1,750 #1836 Posted September 14, 2023 21 hours ago, ebinmaine said: I'm thinking something like this could be a good bet to transfer the direction of rotation. If you do go this route, you could perhaps use a pulley fixed to the crankshaft, with a belt driving one of two coupled pulleys attached to a remote countershaft. A second belt on the c/shaft pulleys returns the drive to a pulley freewheeling on crankshaft, similar to the Wheelhorse p.t.o. setup. This will allow you to install the right angle gearbox, (inline with the crank axis), and use a flexible coupling attached to the pulley and box input shaft. Gearing arranged through pulley sizes. Or you could use chains and sprockets instead for a more compact installation? The freewheeling pulley could run on needle roller bearings, or, because this pulley would be larger diameter for gear reduction, straight roller, or ball races could be fitted. It looks as though the crankshaft would be long enough! Mounting the gearbox this way would remove any side loading from the ‘overhung’ input shaft. The output shaft appears better supported with a bearing either side of the internal gear, so more tolerant of side loading. Another source of 90’ boxes could be say, a small BMW differential, one with flange mounted driveshafts? No problem with rpm or torque limits! I think they may have alloy casings, so maybe not too heavy? 1 Share this post Link to post Share on other sites
ebinmaine 67,439 #1837 Posted September 14, 2023 2 hours ago, 19richie66 said: I do think you will need to run some kind of brace under the frame to keep it from wanting to twist. It is just angle. I think with the right design of an “under-brace Absolutely agreed. I'll be running a full subframe from somewhere around the mid hitch to the rear of the rear tires. Minimum 6 points of attachment. The trailer hitch will be included in that. 1 Share this post Link to post Share on other sites
ebinmaine 67,439 #1838 Posted September 14, 2023 2 hours ago, ranger said: Another source of 90’ boxes could be say, a small BMW differential, one with flange mounted driveshafts? No problem with rpm or torque limits! I looked at using a transmission or differential from other sources. I thought it might be interesting to have a choice of several more gears. My availability there is unfortunately limited without getting costly. Share this post Link to post Share on other sites
Oldskool 6,644 #1839 Posted September 16, 2023 Im trying to get caught up. If the engine is mounted in a position that makes it easiest to run the drive belt, approximately how much extra weight is hanging over that side then the other? 1 Share this post Link to post Share on other sites
ebinmaine 67,439 #1840 Posted September 16, 2023 2 minutes ago, Oldskool said: Im trying to get caught up. If the engine is mounted in a position that makes it easiest to run the drive belt, approximately how much extra weight is hanging over that side then the other? Literally. MORE than all of it. It won't work that way. Share this post Link to post Share on other sites
ebinmaine 67,439 #1841 Posted September 16, 2023 7 minutes ago, Oldskool said: Im trying to get caught up. If the engine is mounted in a position that makes it easiest to run the drive belt, approximately how much extra weight is hanging over that side then the other? See post # 1815. That 'splains it. 1 Share this post Link to post Share on other sites
Oldskool 6,644 #1842 Posted September 16, 2023 So if the weight is centered your drive pulley would be 4,5,or 6 inches past center of the trans driven pulley? 1 Share this post Link to post Share on other sites
ebinmaine 67,439 #1843 Posted September 16, 2023 1 minute ago, Oldskool said: So if the weight is centered your drive pulley would be 4,5,or 6 inches past center of the trans driven pulley? Yessir. Share this post Link to post Share on other sites
Oldskool 6,644 #1844 Posted September 16, 2023 5 minutes ago, ebinmaine said: Yessir. I think my vote would be a mash up of a mule drive and maybe tiller drive pulley bracket. I think it would be alot of extra weight with all the jackshafts and bearings. It would take up alot of extra space for those as well. 1 belt and 2 or 3 idler pulleys and I think you would have it. 1 Share this post Link to post Share on other sites
ebinmaine 67,439 #1845 Posted September 16, 2023 6 minutes ago, Oldskool said: I think my vote would be a mash up of a mule drive and maybe tiller drive pulley bracket. I think it would be alot of extra weight with all the jackshafts and bearings. It would take up alot of extra space for those as well. 1 belt and 2 or 3 idler pulleys and I think you would have it. Extra weight. Not an issue. Taking up space however, is. I'd like to do the "belt at 45⁰" method..... In fact that would be preferred over other methods. But how does all this come to play with the space and angles I've got to work with there? Share this post Link to post Share on other sites
Oldskool 6,644 #1846 Posted September 16, 2023 10 minutes ago, ebinmaine said: But how does all this come to play with the space and angles I've got to work with there? Something like this. 2 Share this post Link to post Share on other sites

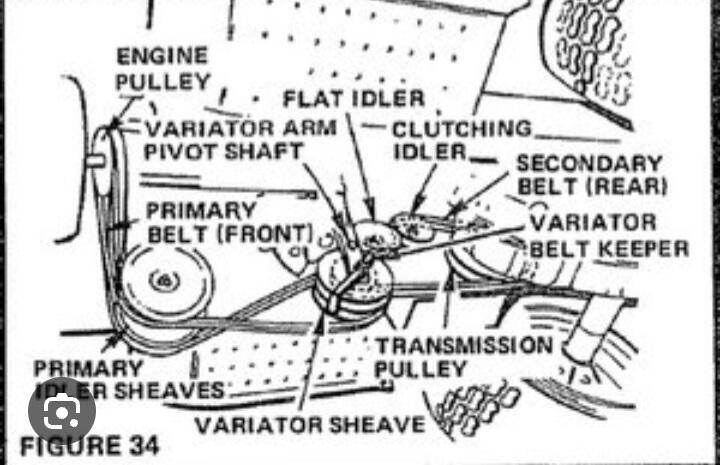

Oldskool 6,644 #1847 Posted September 16, 2023 Not exactly this because this has the variator sheave which you don't have/need but this should give you an idea. 1 Share this post Link to post Share on other sites
"Manic-Mechanic" 1,194 #1848 Posted September 16, 2023 I’m sure you’ll get it, good o’l “Yankee Ingenuity!” 1 Share this post Link to post Share on other sites

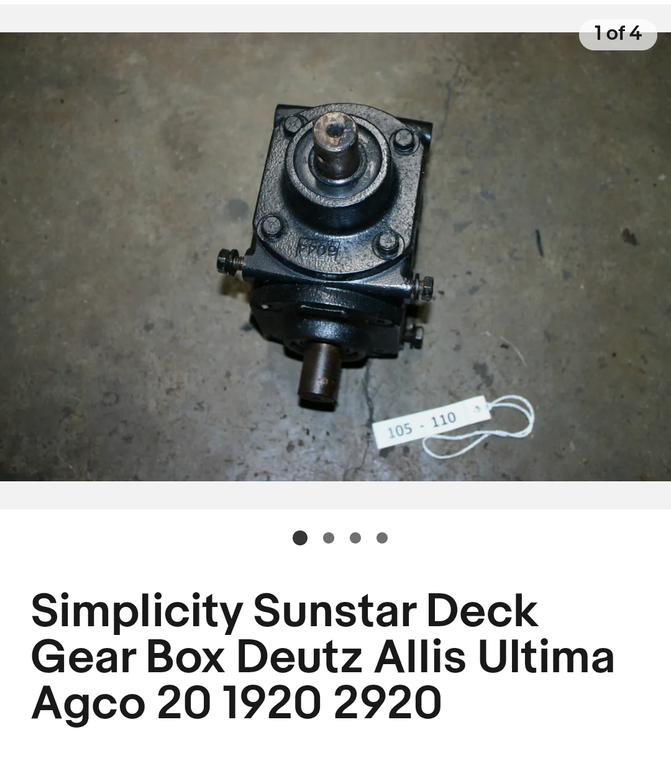

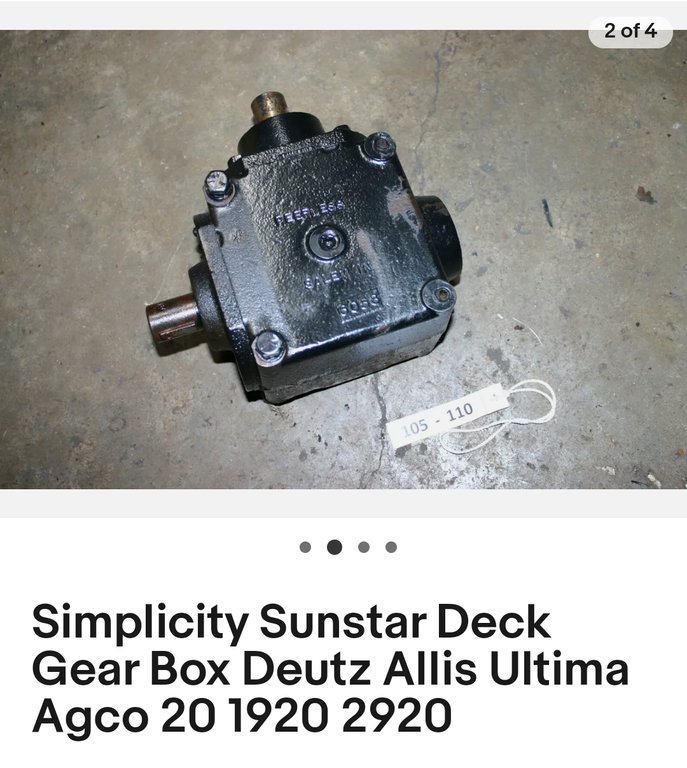

ebinmaine 67,439 #1849 Posted September 19, 2023 On 9/13/2023 at 9:00 AM, lynnmor said: Do some more research on that part, my guess is that it will get hotteranhell after extended use. On that Simplicity AGCO gearbox. I ordered it figuring if I didn't use here then I'd have other thoughts for a different project later. Turns out it's quite the rugged piece of equipment. Ratio is 2:3 or 3:2. 18 teeth one side, 27 the other. It's meant to operate BOTH directions. It's Peerless factory rated at 20 HP and similar size models have been used at 22 HP. No final decisions yet but this definitely has legitimate usage possibility. 1 Share this post Link to post Share on other sites
Pullstart 62,838 #1850 Posted September 19, 2023 So .666x or 1.5X speed? Is this at the 1800 rpm input speed you mentioned before? Share this post Link to post Share on other sites
