Dadof2 5 #1 Posted May 20, 2019 I just bought a 1971 Raider 10 and was wondering if anyone has a PDF of the operators manual or parts manual. I am trying to see which plow I can attach and the part numbers of the missing parts. Thanks. Share this post Link to post Share on other sites
pfrederi 17,800 #2 Posted May 20, 2019 Welcome to red square Check out teh manuals section here Parts 1 Share this post Link to post Share on other sites
rjg854 11,415 #3 Posted May 20, 2019 @Dadof2 this is a good place for any questions you might have about your Wheel Horse Share this post Link to post Share on other sites
Digger 66 3,485 #4 Posted May 20, 2019 4 hours ago, Dadof2 said: I just bought a 1971 Raider 10 and was wondering if anyone has a PDF of the operators manual or parts manual. I am trying to see which plow I can attach and the part numbers of the missing parts. Thanks. Welcome fellow Raider owner ! Have a '72 myself . 2 Share this post Link to post Share on other sites
The Tuul Crib 7,337 #5 Posted May 20, 2019 to and your about start a collection but you dont know it yet . But don’t worry your in good hands!! Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,083 #6 Posted May 20, 2019 Welcome to the forum. We do not have a 1971 operator manual but some useful info here - click on the fuzzy photo This 1970 operator manual may be close as both used the Tecumseh engine By plow are you describing a dozer blade or a turning plow to work a garden? Garry 1 Share this post Link to post Share on other sites
Dadof2 5 #7 Posted May 21, 2019 Thanks Everyone! Digger 66 - that is a beauty! Gary I am looking for a dozer blade and trying to see if I which 42" or 48" deck would fit. I will try to get pics up this weekend. 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,083 #8 Posted May 21, 2019 Here is a list of the dozers in the order they were produced. The only thing that may need to be tweaked is the angle adjustment lever. They eventually went to 48" width which is better when the blade is angled. Your tractor is a long frame model so the last blade in 2012 should fit. 1968 model 6-4111 - First to fit LONG & SHORT frame tractors and first to mount under the rear axle - replaced by 1969 model [6-4112 + 6-9621] 1970-73 model [6-4113 + 6-9622] 1973-74 model [6-4113 + 6-9623] 1974 model [6-4114 + 6-9624] 1974 model 6-2131 1975 model 6-2132 1976 model 6-2133 1976 model 66-42BC01 1977 model 76-42BC01 1978 model 86-42BC01 1979 model 96-42BC01 1980 model 06-42BC01 1981-1984 model 06-42BC02 (Up to here they are 42" wide) 1984-1989 model 06-48BC01 (They are now 48" wide) 1990 model 06-48BC02 1991-1993 model 06-48BC03 1993-2001 model 79350 2002 2004-2009 2012 model 79364 Garry Share this post Link to post Share on other sites
moe1965 743 #9 Posted May 21, 2019 Welcome . My first wheel horse was a raider 10 as well about 5 years ago and I found this forum. Lots and lots of good people here full of info and help. That was the start of my adiction. I have since bought 4 more wheel horse tractors. I restored the raider 10 but not any of the other ones yet. Before and after pictures of my raider 10. 1 1 Share this post Link to post Share on other sites
McGrew 460 #10 Posted May 21, 2019 (edited) Dadof2, I also have a 71 Raider 10. My Dad bought this tractor new, and I have the dozer blade he bought a few years after the tractor. I used it as a kid, and have had it on once since inheriting the tractor, so i know it fits. It is a little hard to see, but the model # is 69322-8. Danny Edited May 21, 2019 by McGrew More info Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,083 #11 Posted May 22, 2019 15 hours ago, McGrew said: Dadof2, I also have a 71 Raider 10. My Dad bought this tractor new, and I have the dozer blade he bought a few years after the tractor. I used it as a kid, and have had it on once since inheriting the tractor, so i know it fits. It is a little hard to see, but the model # is 69322-8. Danny Think the model number should be 6-9622-8. Click on the picture Garry Share this post Link to post Share on other sites
Pullstart 62,998 #12 Posted May 22, 2019 @Dadof2! I used to have a Charger 12, it became “Frank” with the help of a few other parts! Share this post Link to post Share on other sites

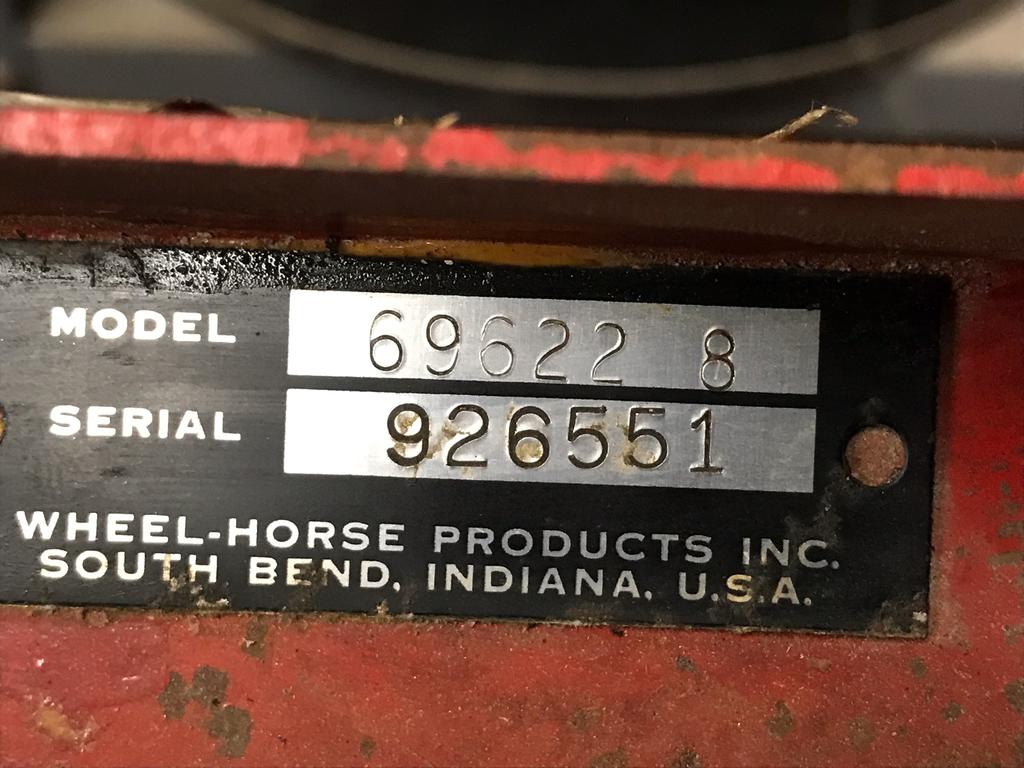

McGrew 460 #13 Posted May 22, 2019 Garry, you are absolutely correct on the part number. The pic wasn’t very good, and my eyes aren’t what they used to be... New pic attached. Danny Share this post Link to post Share on other sites
