Restoring my 520H

[SylvanLakeWH 25,600]

Just going through whole thread... and... wow!



Beautiful work!!!



[76c12091520h 3,623]

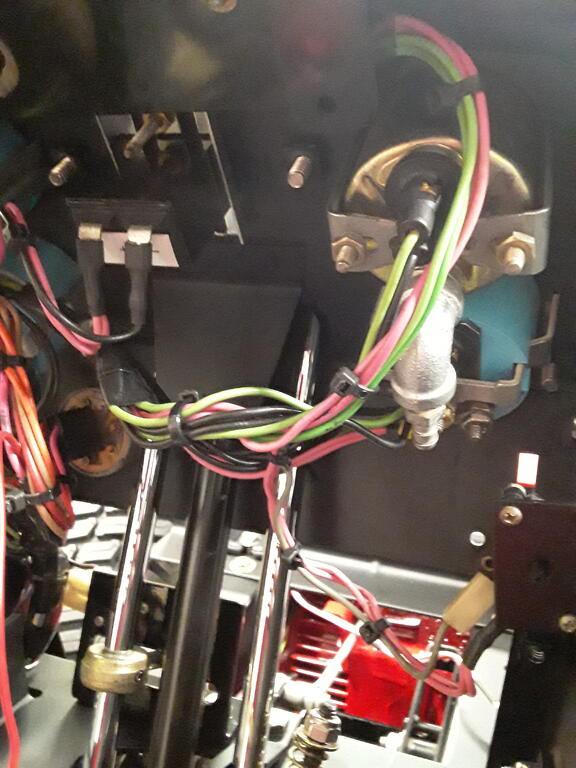

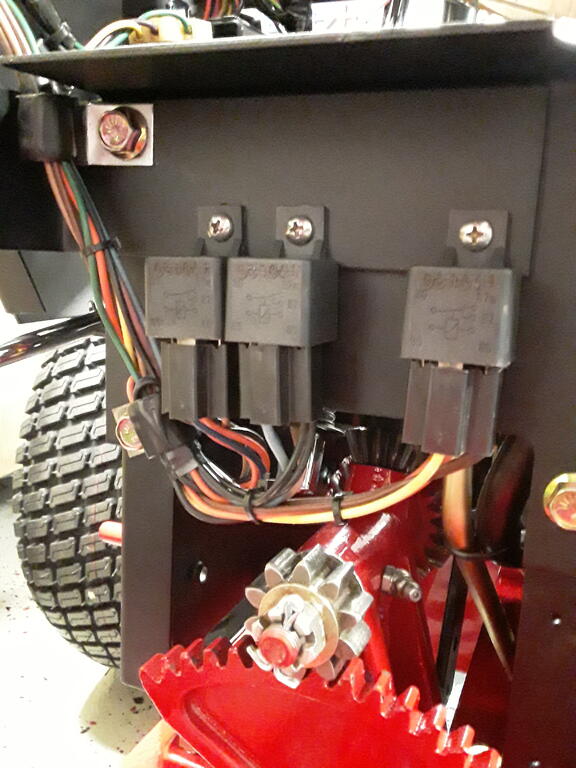

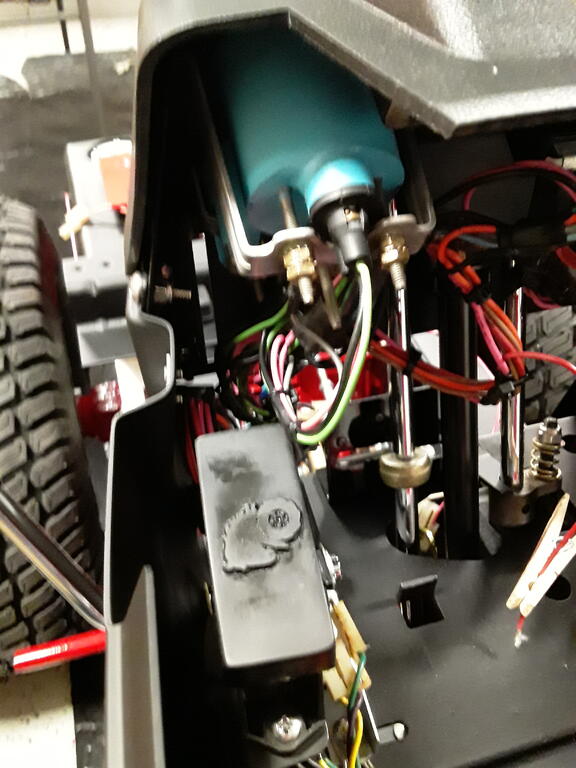

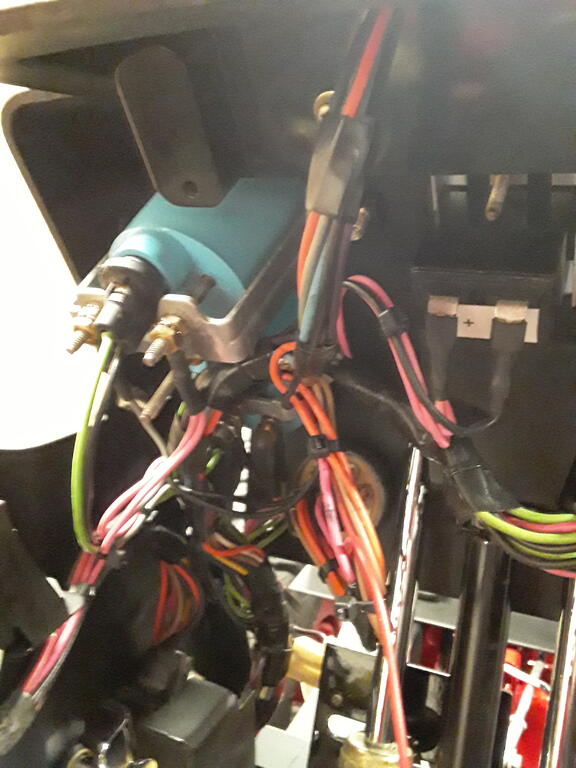

 Cleaned and inspected the entire wiring harness, re-taped everything with high temp 3M automotive electrical tape. Installed the harness and added extra hold downs and wire ties where possible, just trying to tidy up a mess of wires. Added one of  Glens' fuse holder covers. Absolute worst part about this whole build...... Also put on a piece of tin.

[Tgalo 118]

OMG this is just over the top beautiful! I wish I could see it in person, great work!

[AMC RULES 37,130]



All this accomplished in only 5 pages!

Outstanding work.



[JCM 9,177]

Super nice job Brian, Would love to see that in person at the BS in June 2021. That would give any 420-LSE a run for it's money IMO .

[76c12091520h 3,623]

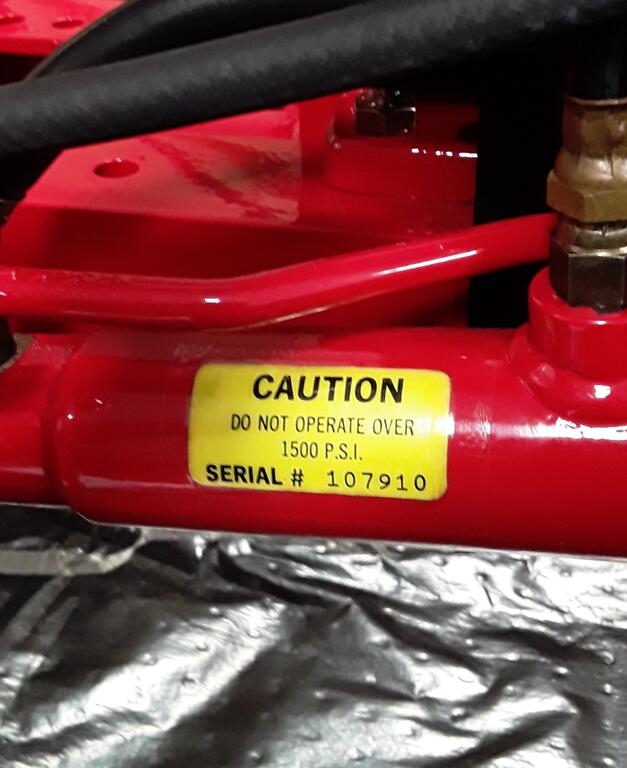

  Was able to save and re-install the decal that is usually found on the hydraulic cylinders. Actually remembered  it BEFORE I put the covers on .

[76c12091520h 3,623]

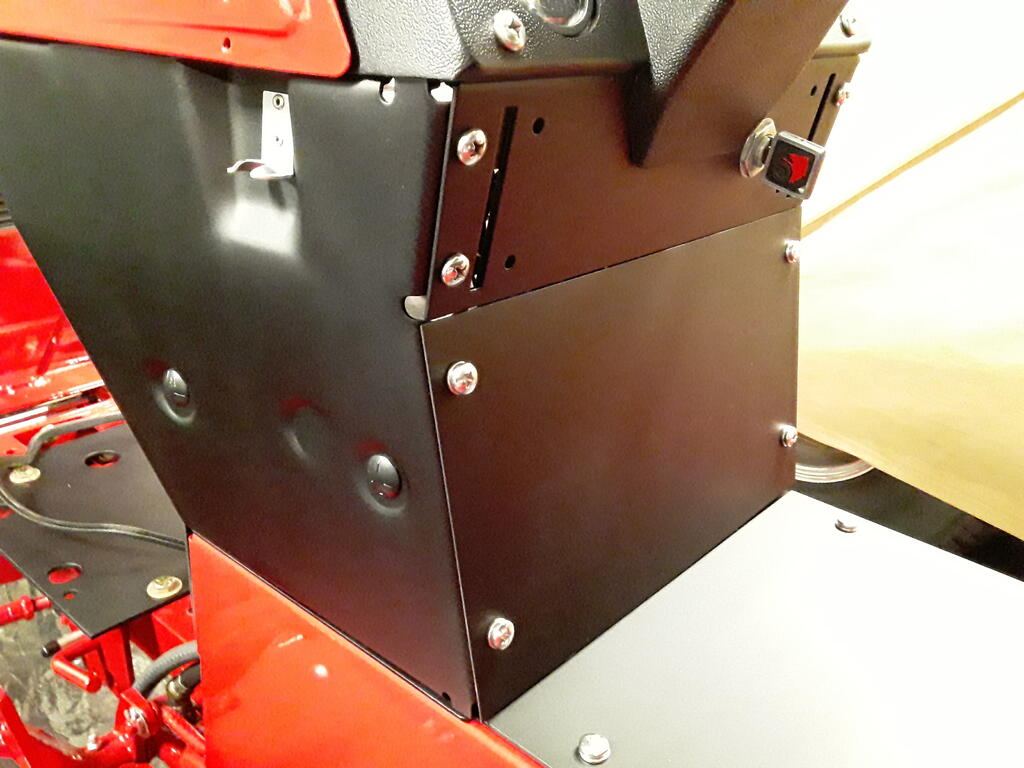

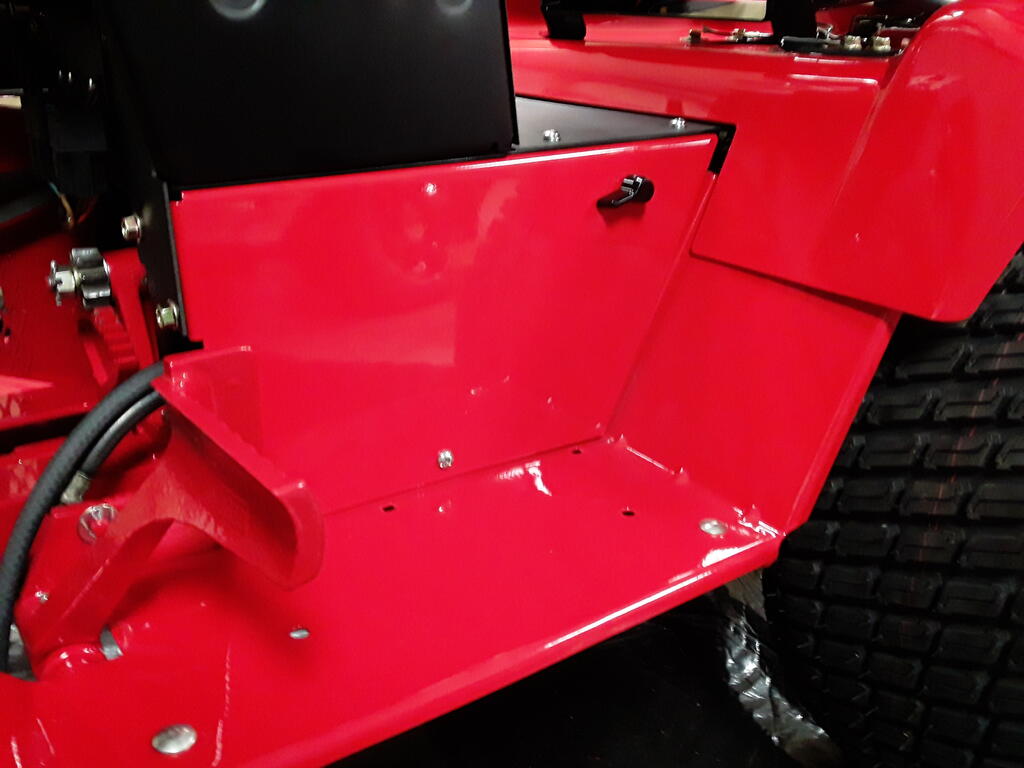

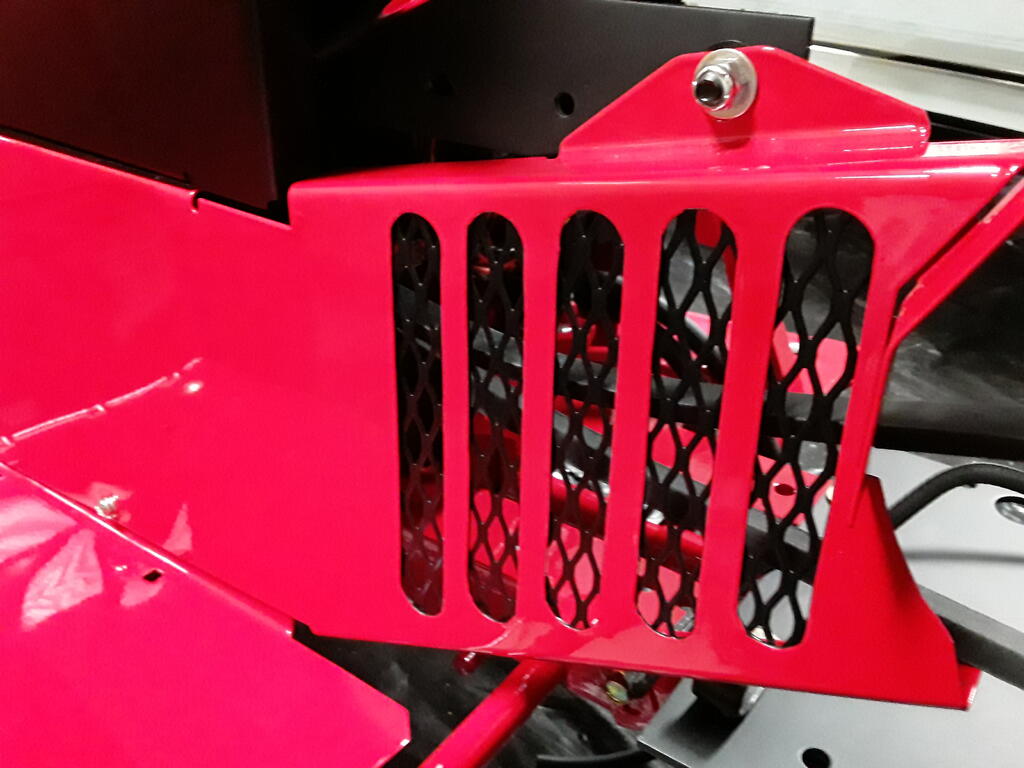

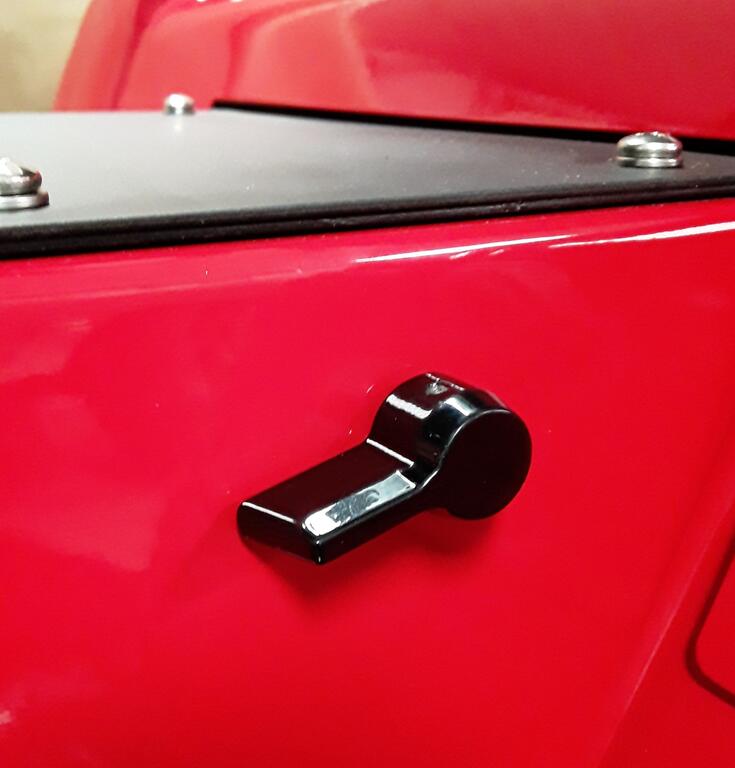

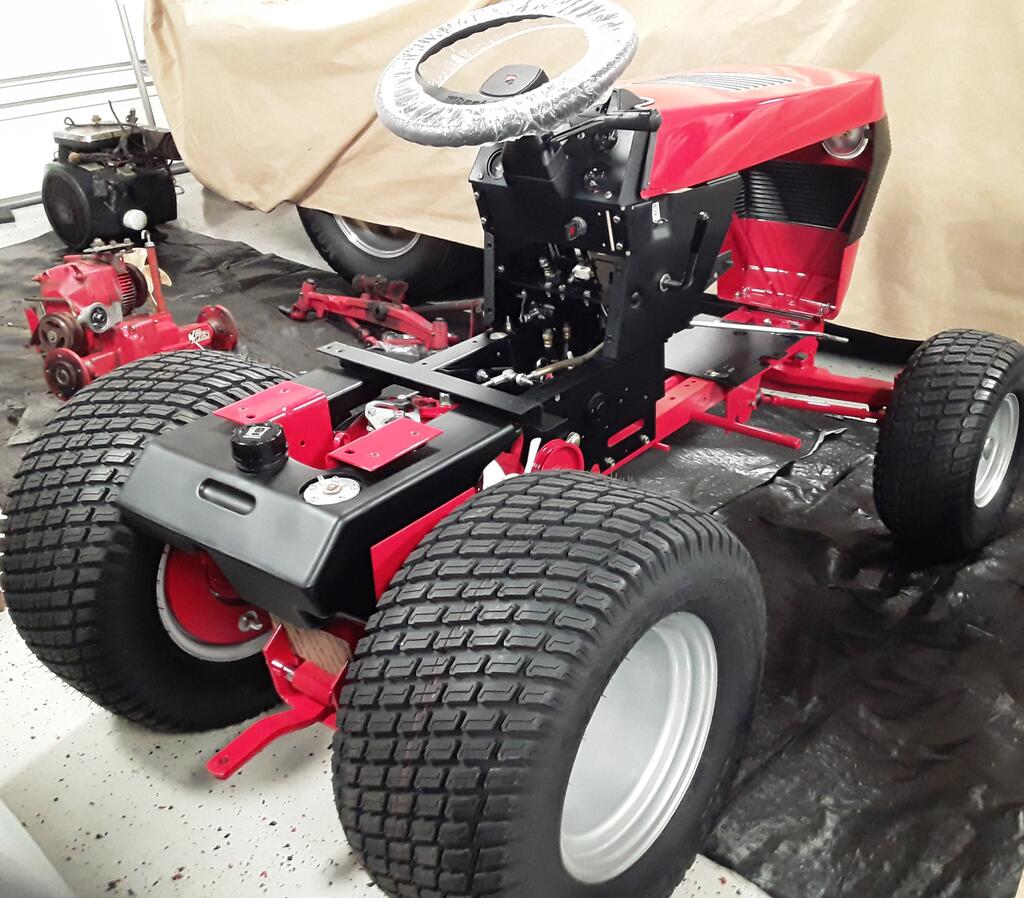

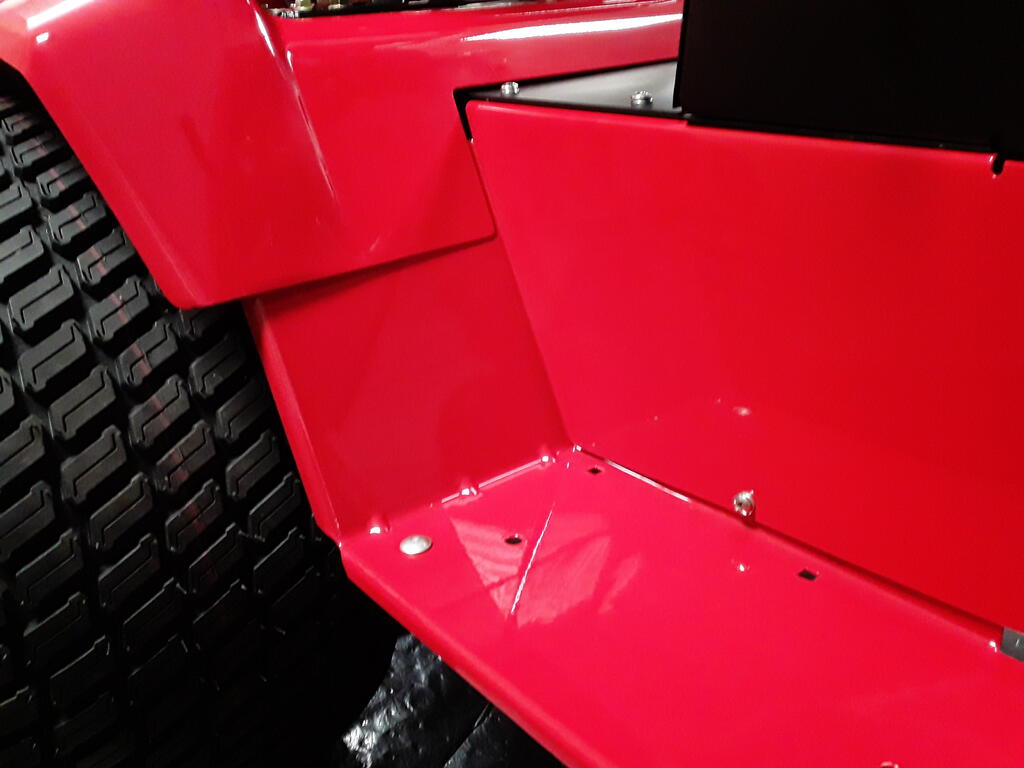

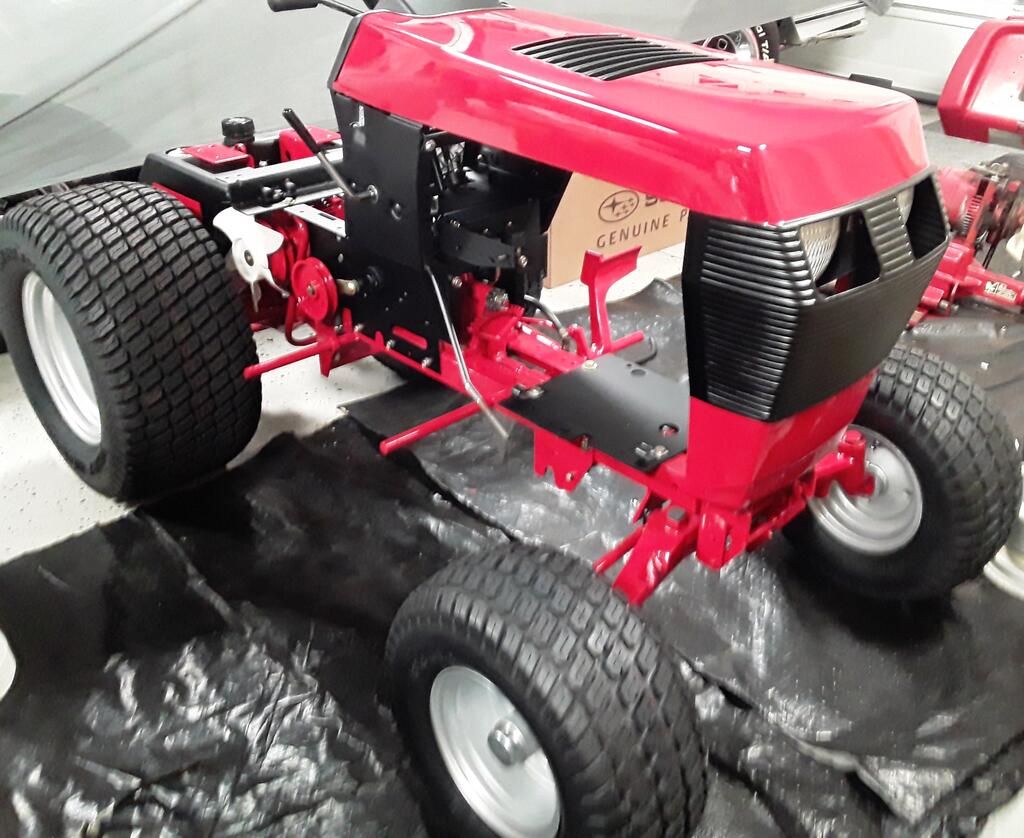

 Finished installing the last of the sheetmetal and my spiffy new LED tailights. Also installed a really sweet reproduction parking brake lever......

[WVHillbilly520H 10,373]

What brand on the LED taillights? Optronics?

[Fishgill 0]

Great work. It looks awesome.



[oneroadkingman 53]

OMG this is just over the top beautiful! I wish I could see it in person, great work!❤❤is that res powder coated? Roughly how much money do u have tied up in this project if u don't mind telling?

[76c12091520h 3,623]

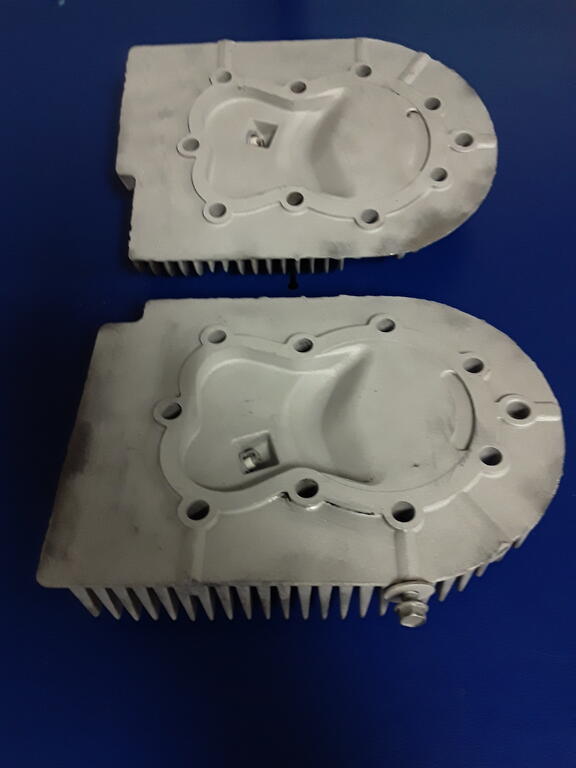

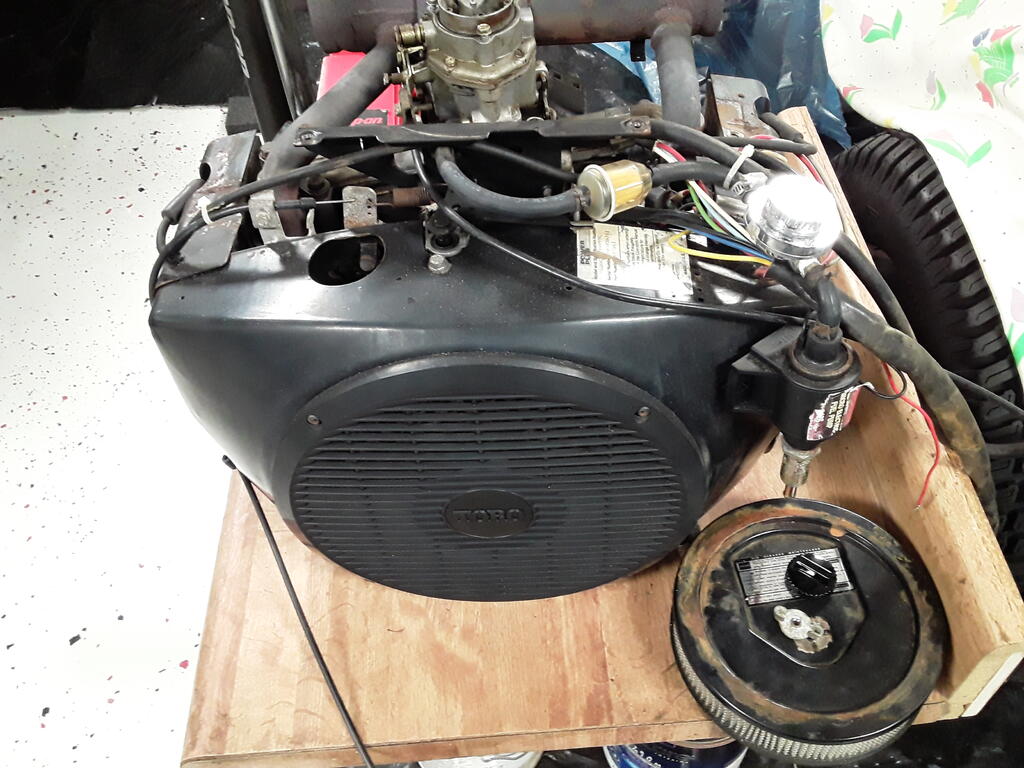

  Have the engine torn down ( as far as it's gonna get ) compression was great, cylinders still have the crosshatch in them , so it's just getting mostly a good cleaning, detailing, fresh gaskets, carb rebuild, etc. Tins are getting blasted and I did both heads while I was at it.

[Raposo 530]

Awesome work! Holy smokes! Are the rears 24x12x12?

[76c12091520h 3,623]

52 minutes ago, Raposo said:

Awesome work! Holy smokes! Are the rears 24x12x12?

Yep

[76c12091520h 3,623]

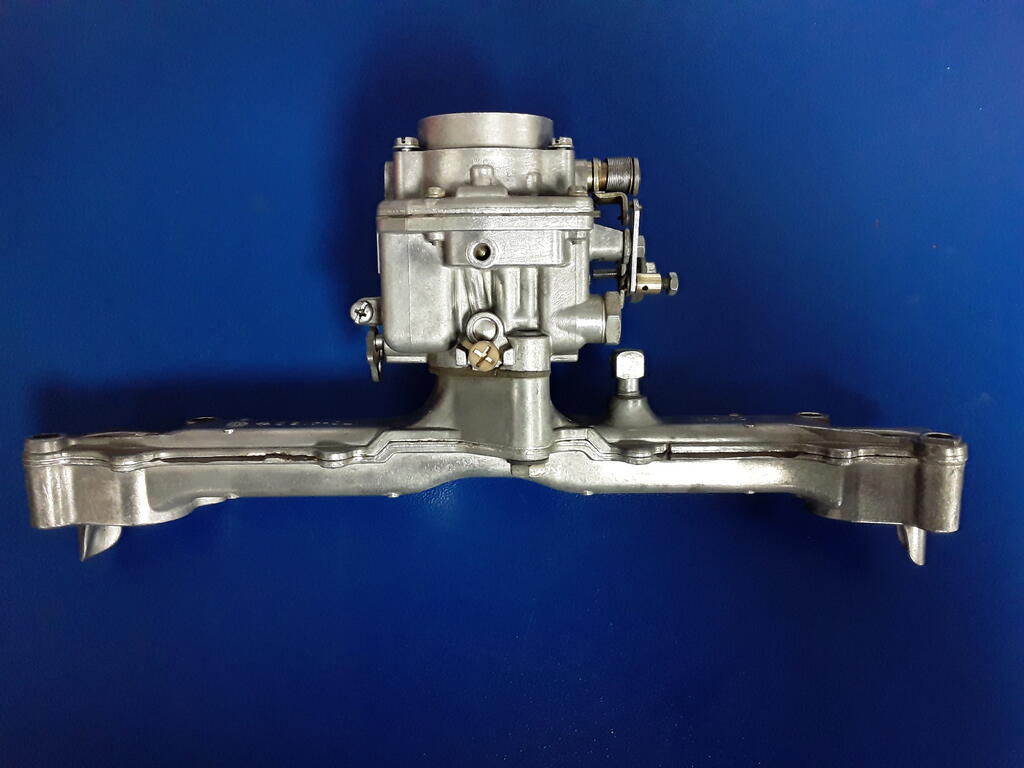

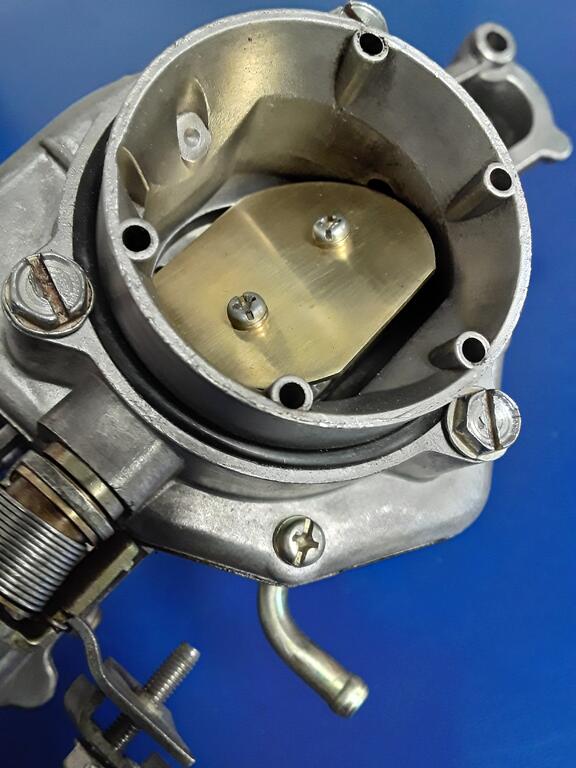

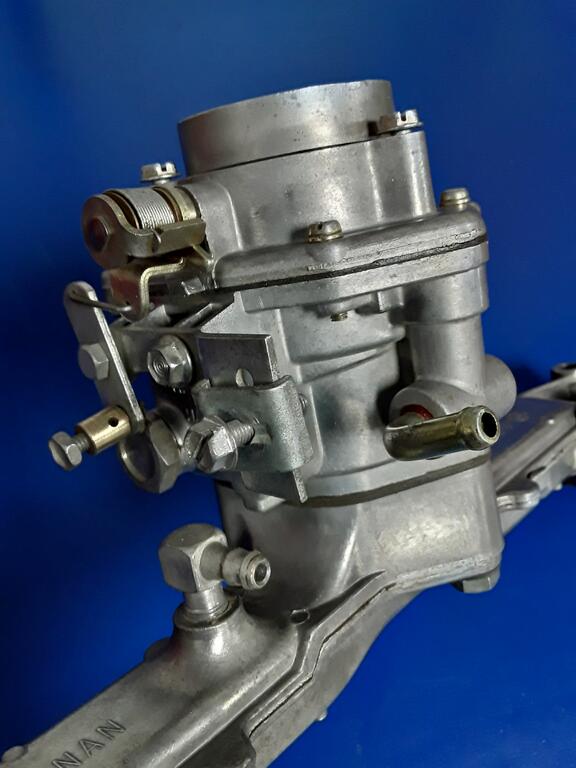

Went thru the carb and gave it and the intake manifold a little love.

[Reelhorsenut 4]

Looking darn good! Leaking intake manifolds are a known issue. Several threads here about resealing them. If you don't want to split the intake apart, at minimum it's a good idea to replace the rivets with nuts and bolts, one at a time. Loctite them. Then scrape off the visible rtv and go along the seam with new high temp rtv. Eliminates 99% of any future vacuum leaks. Splitting and resealing gets you to 100%.  Can't wait to see the final pics!!!

[Handy Don 12,235]

On 2/11/2021 at 11:12 PM, 76c12091520h said:

Went thru the carb and gave it and the intake manifold a little love.

Ultrasonic tank?  Looks almost new!

[lynnmor 7,308]

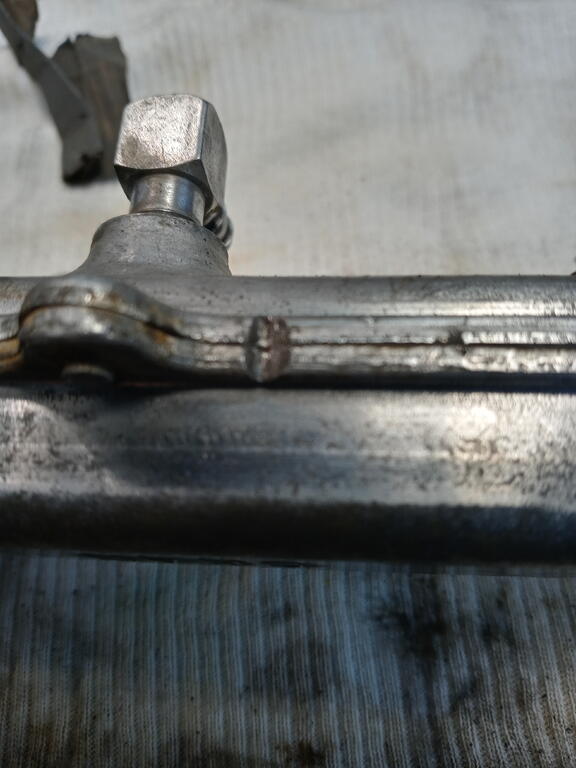

See that cut on the side of the intake just below the vacuum connection?  Grind away a bit of the heat shield that cuts it there.  Also look for cuts elsewhere.

[Horse Newbie 7,075]

4 hours ago, lynnmor said:

See that cut on the side of the intake just below the vacuum connection?  Grind away a bit of the heat shield that cuts it there.  Also look for cuts elsewhere.

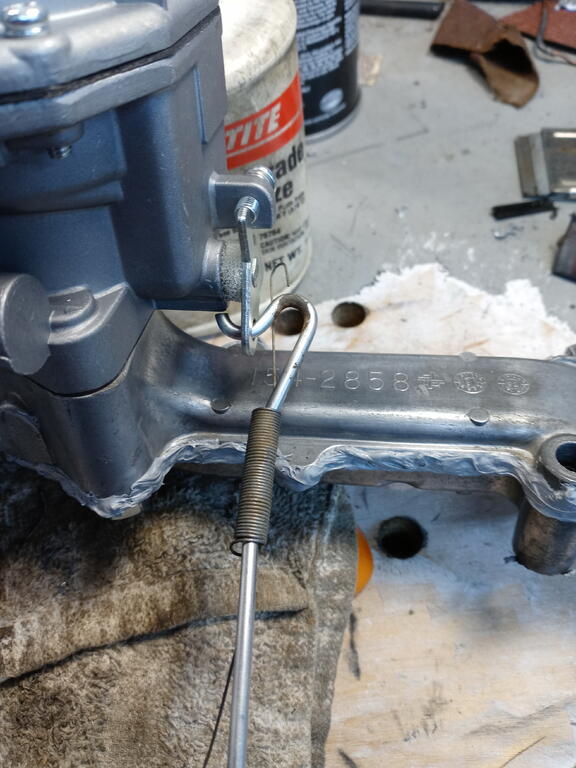

I had that same notch where my front exhaust heat shield was rubbing the intake manifold...never would have noticed it had it not been for you guys!

It's good now since I trimmed a little off the heat shield.

Edited February 16, 2021 by Horse Newbie

[Horse Newbie 7,075]

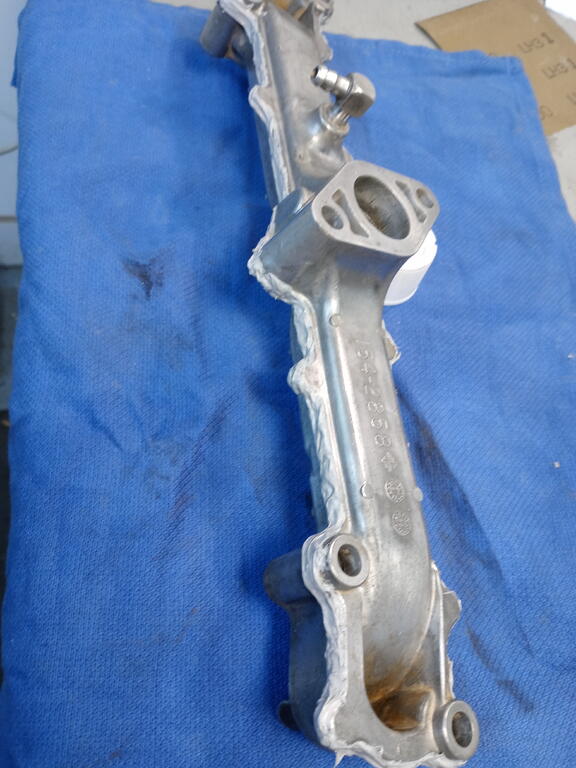

I opted to not split my intake into 2 halves...but I'm sure I got a good seal with the RTV that I used to seal the seam after a good cleaning...the RTV cured almost as hard as metal, and was I was not able to dig my fingernail into it.

Edited February 16, 2021 by Horse Newbie

[Greentored 3,214]

Beautiful work!!!!!

[Handy Don 12,235]

@Horse Newbie, is RTV a silicone caulk? Hope I am not raining on your parade, but are you sure that stuff is ok for exposure to gasoline and for high heat? Only a very few Permatex products are gasoline rated.

[Shed 248]

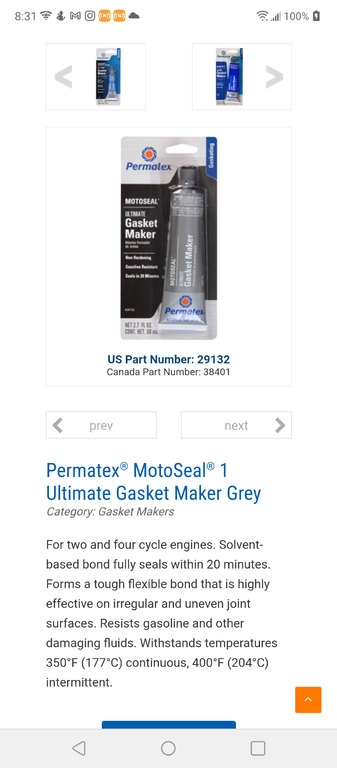

Motoseal is what I use for all intakes kinda runny one of the only gasket maker made for fuel exposure https://www.permatex.com/products/gasketing/gasket-makers/permatex-motoseal-1-ultimate-gasket-maker-grey/?locale=en_us

[Horse Newbie 7,075]

3 hours ago, Handy Don said:

@Horse Newbie, is RTV a silicone caulk? Hope I am not raining on your parade, but are you sure that stuff is ok for exposure to gasoline and for high heat? Only a very few Permatex products are gasoline rated.

Don't look at it at all like you are raining on my parade...you are just asking a question, trying to be helpful.

To be honest, I may have described what I used incorrectly. I'll have to try to find the package( if it hasn't been tossed) and see if it was/is suitable for the application in which I used it.

I do believe whatever I used, I read the package, and it was compatible with exposure to gasoline.

What does it look like to you if you can tell by the pic I shared ?

[Horse Newbie 7,075]

3 hours ago, Shed said:

Motoseal is what I use for all intakes kinda runny one of the only gasket maker made for fuel exposure https://www.permatex.com/products/gasketing/gasket-makers/permatex-motoseal-1-ultimate-gasket-maker-grey/?locale=en_us

@Handy Don , @Shed  That's it ! That's what I used !

Thanks...now since I kinda took this thread off topic...man that 520H restore is unbelievable !



Outstanding talent and attention to detail ! @76c12091520h

[Handy Don 12,235]

Glad to hear that it was "the good stuff". That job is not one to look forward to repeating. Keep up the good work on the 520--they are very impressive machines.
