Restoring my 520H

[Lee1977 6,659]

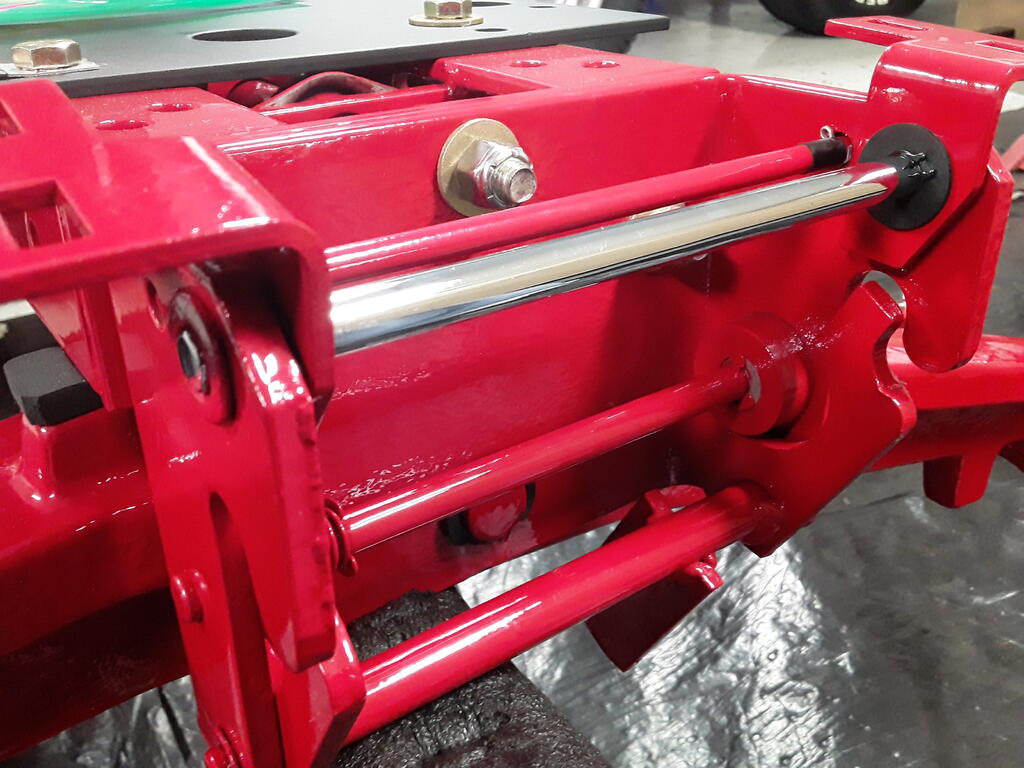

On 2/18/2020 at 7:57 AM, pullstart said:

Is that round bar an addition?  Seems it would really help to keep that hood from rocking around

It's not round it is about  1/2" x 1/8".  Was added to those models at some point. my 312-8 and 1989 520-H have them. Not sure what year they were added.

The early models didn't have them.

[76c12091520h 3,620]

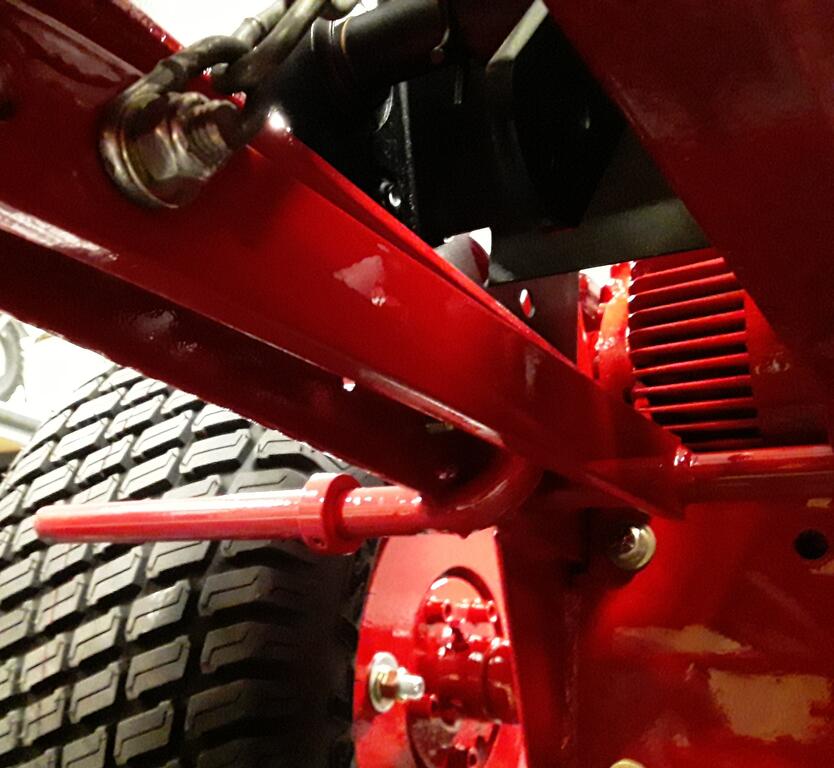

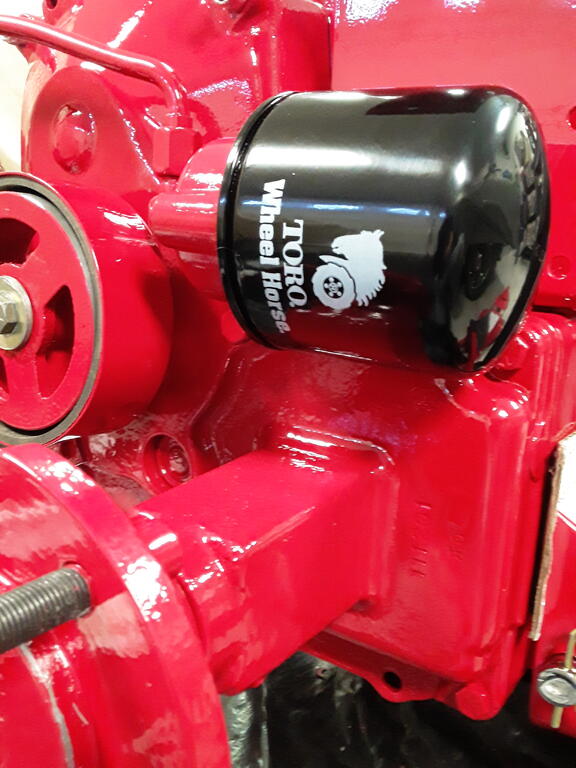

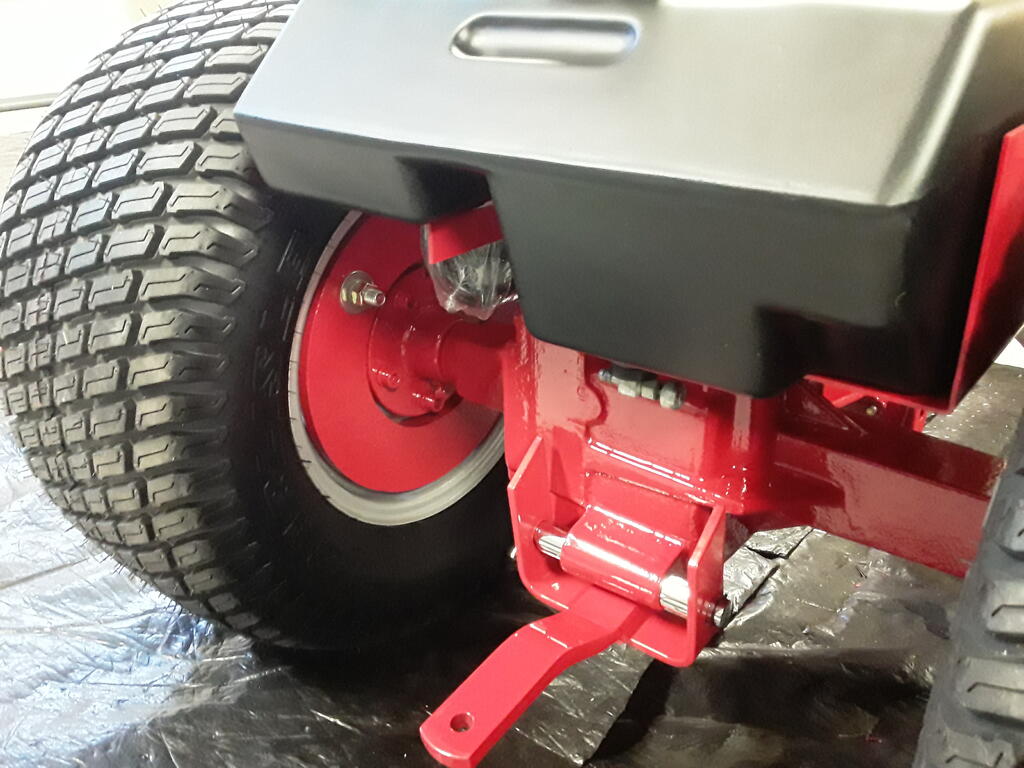

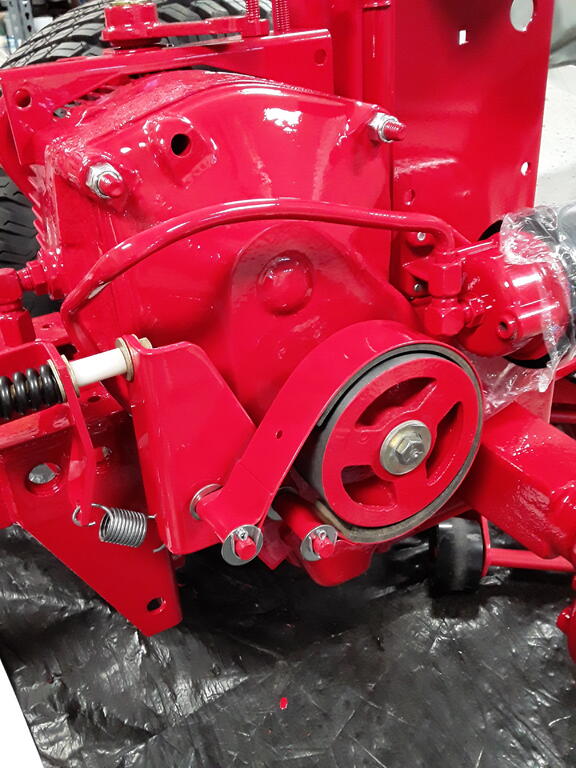

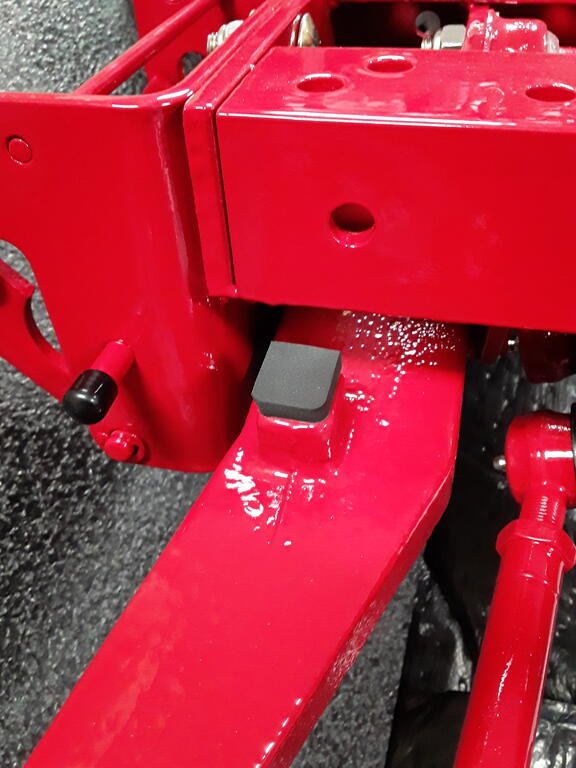

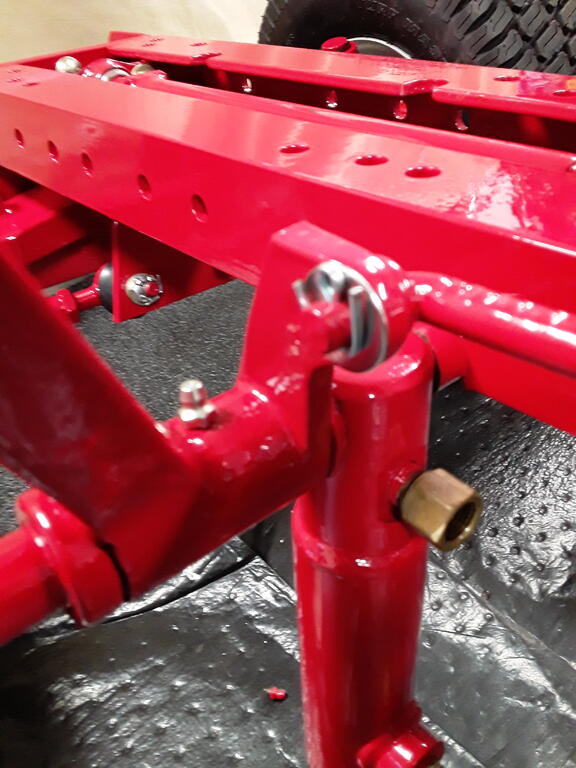

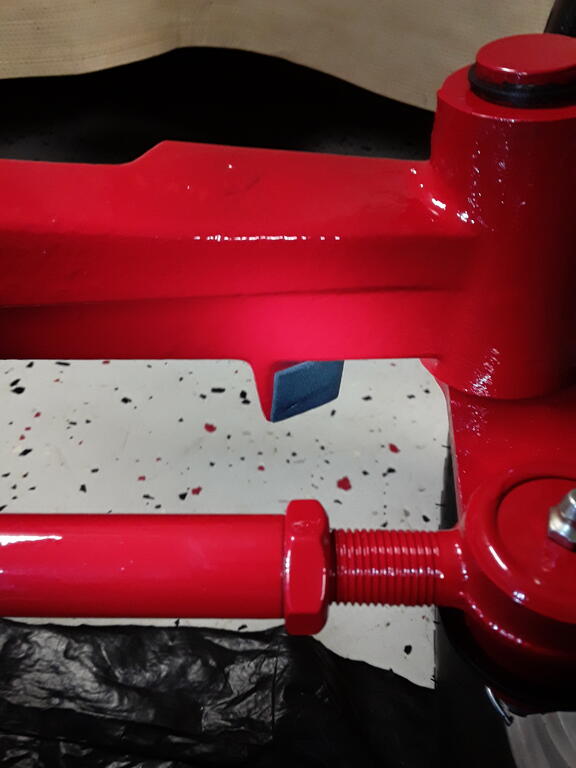

 Installed the brake band and linkages/hardware , new original Toro / Wheel Horse hydro filter , castle nuts , cotter pins , grease fittings ,  and boots on the tie rods. Also made up and installed some soft bump stops for the front axle; no more chipped paint.

[tom2p 2,394]

you're just showin off !



outstanding job !

[AMC RULES 37,130]

Oh man!

You're gonna be sooo bummed out when that chip suddenly appears out of no where.

[76c12091520h 3,620]

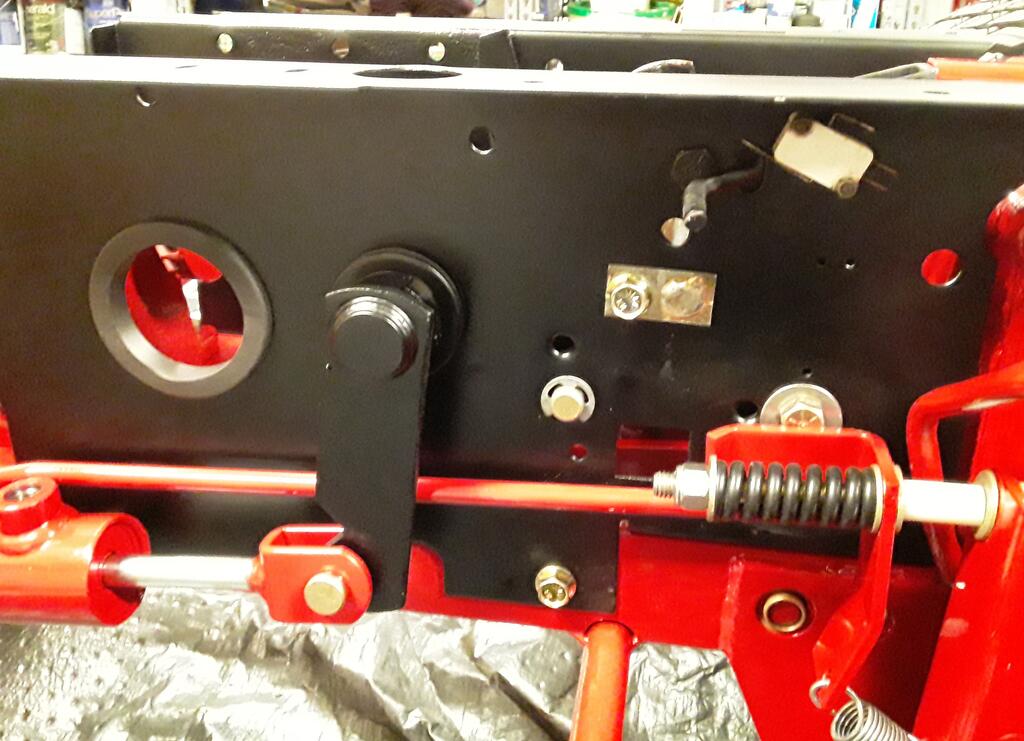

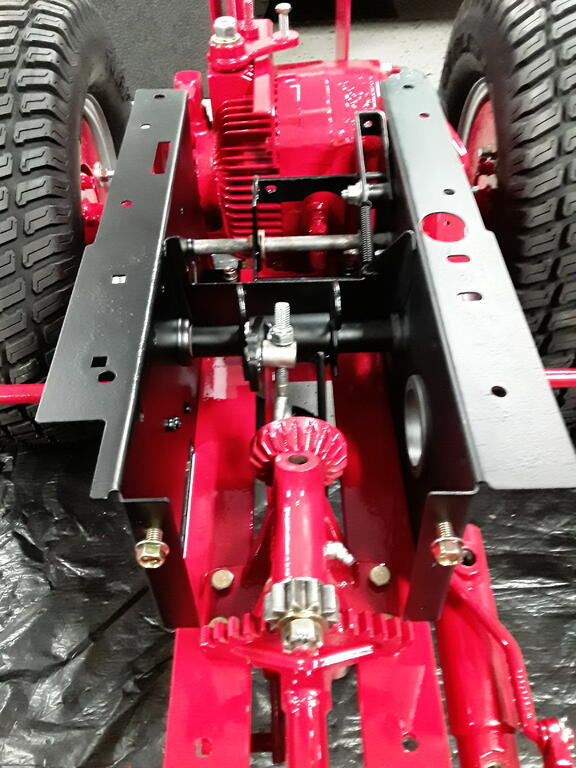

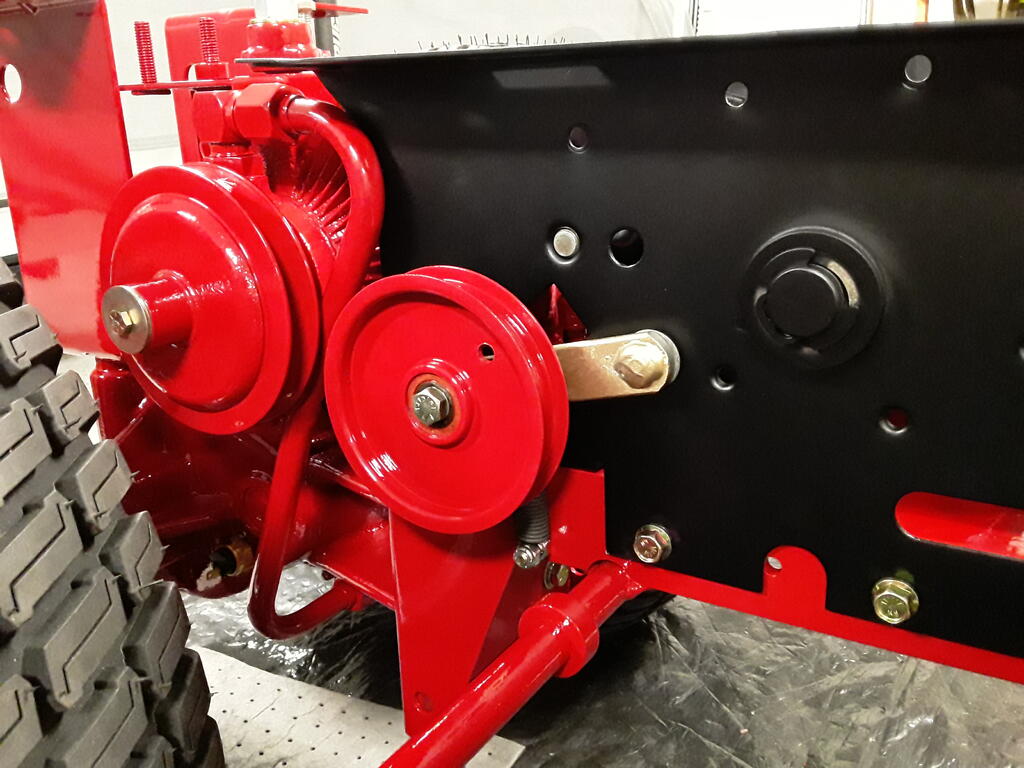

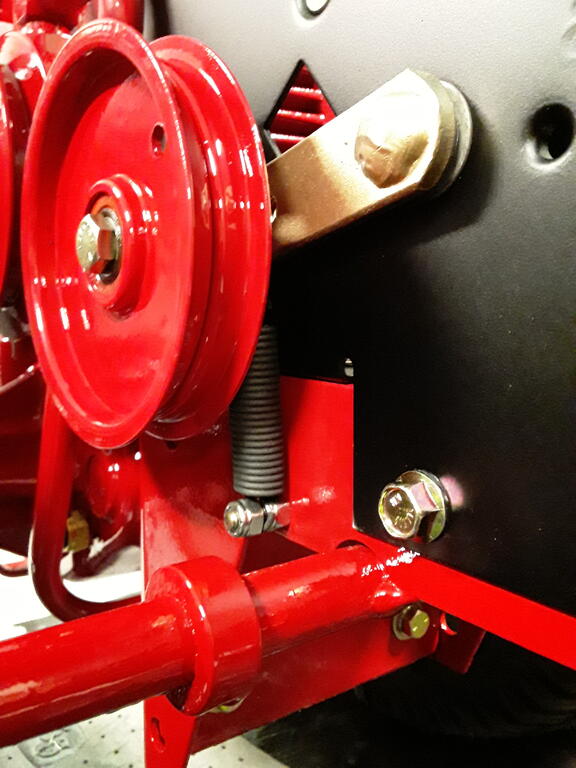

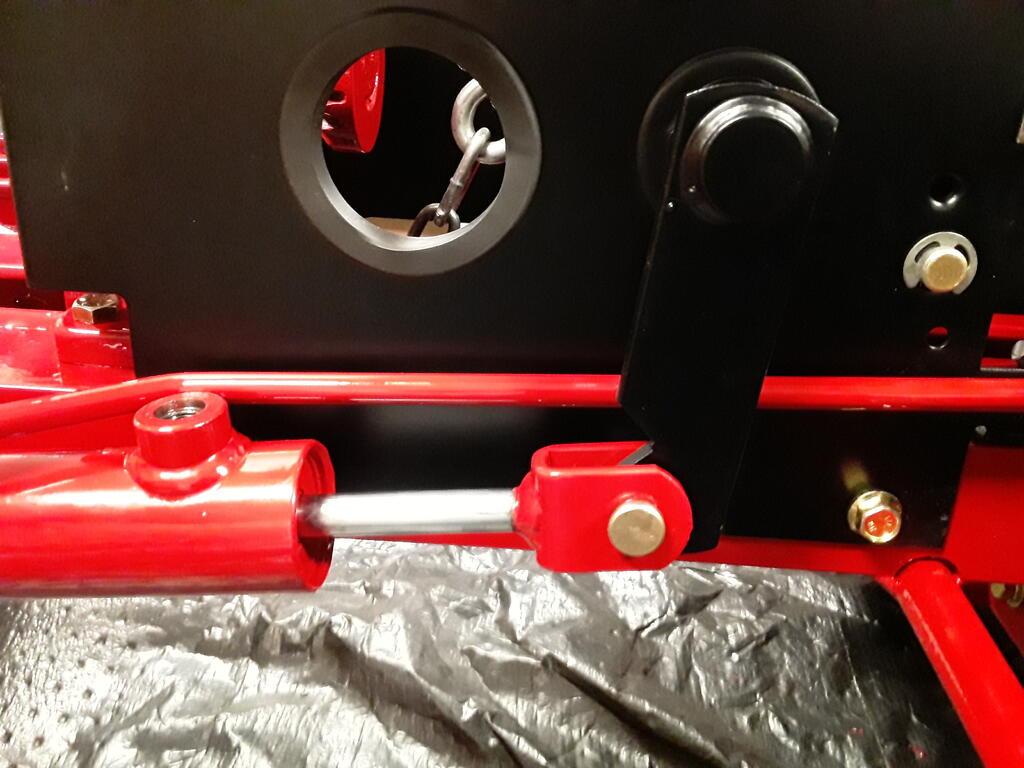

Installed the center "console" , the lift linkage, the drive belt idler, the hydro cylinder, and some new hardware.

[Pullstart 62,879]

Forgive me for my ignorance y’all, I noticed the combination of a hydro and a brake band?  Is this the only tractor equipped as such, or is every Eaton 1100 this way?

[pfrederi 17,739]

4 minutes ago, pullstart said:

Forgive me for my ignorance y’all, I noticed the combination of a hydro and a brake band?  Is this the only tractor equipped as such, or is every Eaton 1100 this way?

All 1100 Eatons have a physical brake,  Later model Sunstrand piston to piston also had a physical band brake.

[bds1984 1,429]

Every Eaton 1100 machine I have owned has the same (C175, C195, C145, 416H, 520H).

[Pullstart 62,879]

Huh.  I learned something!

[76c12091520h 3,620]

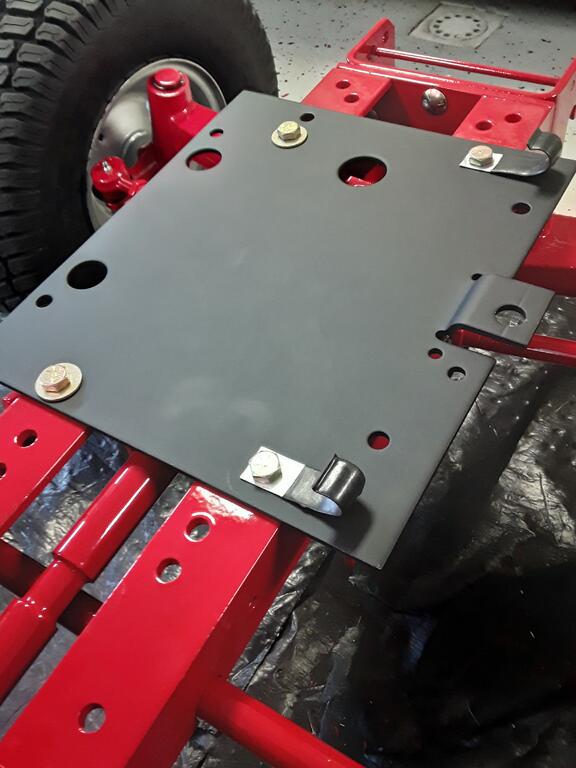

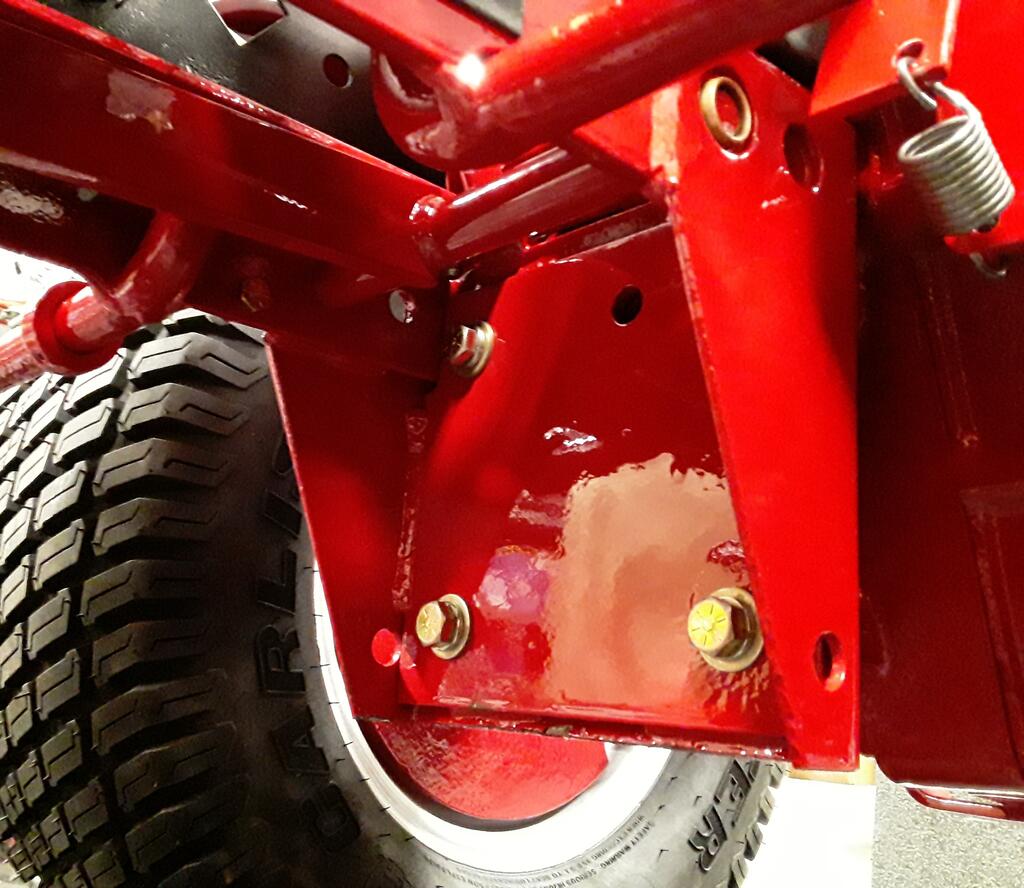

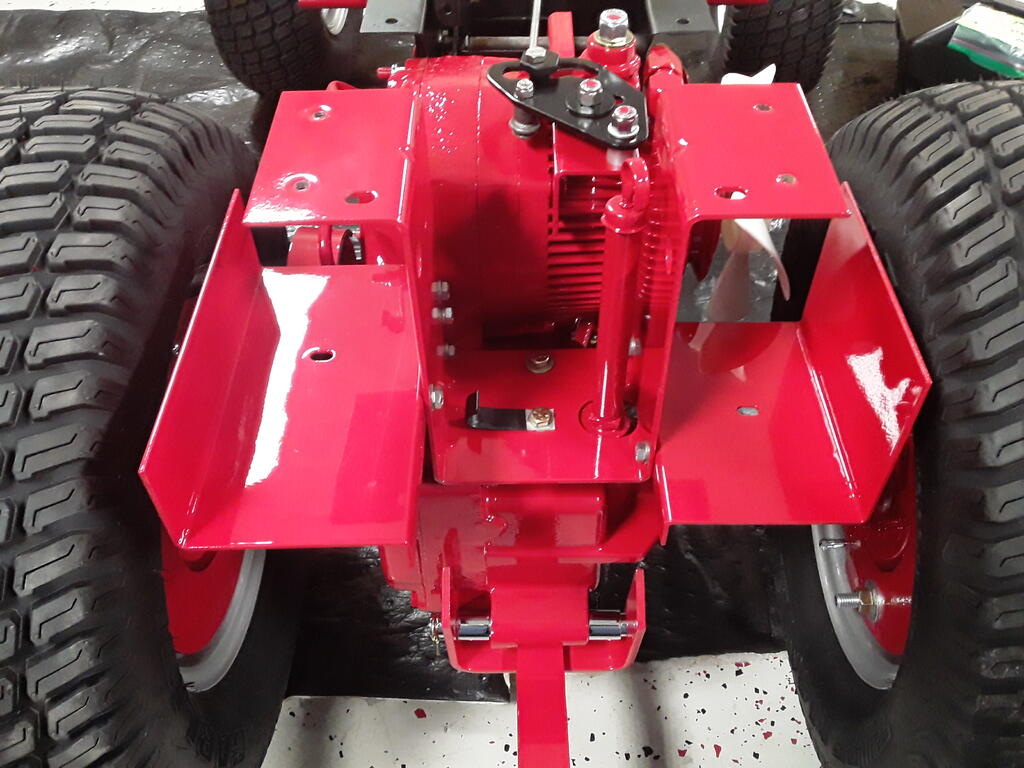

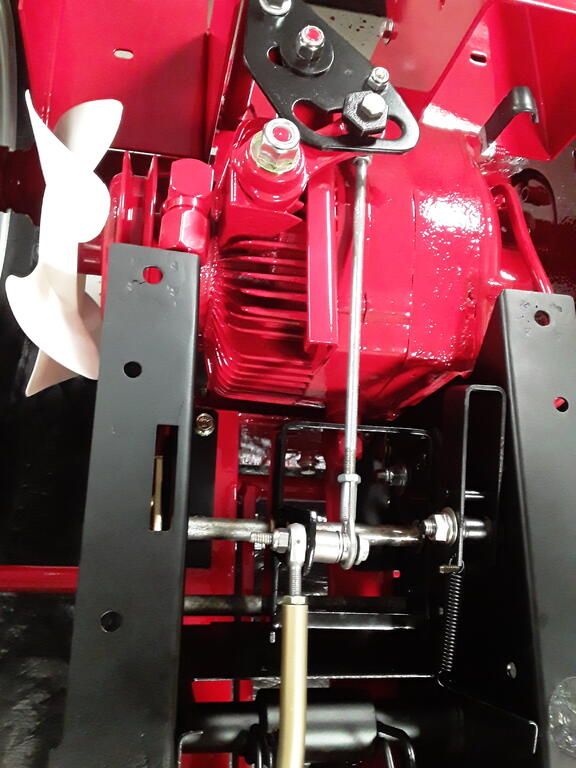

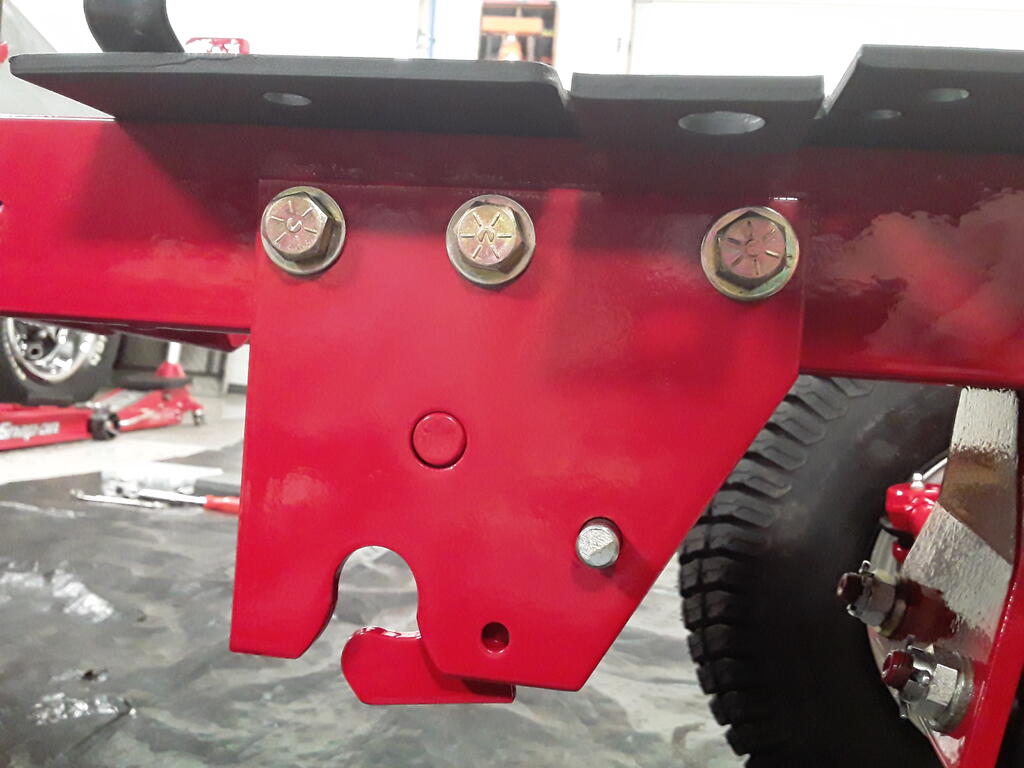

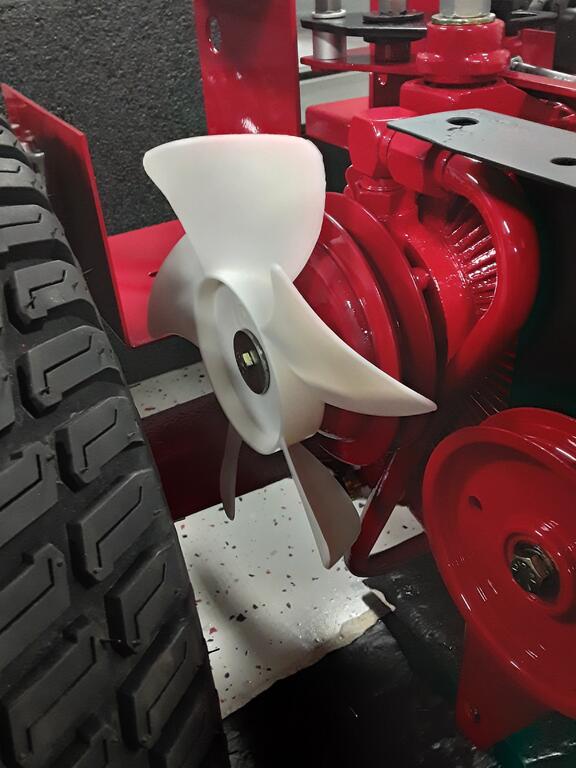

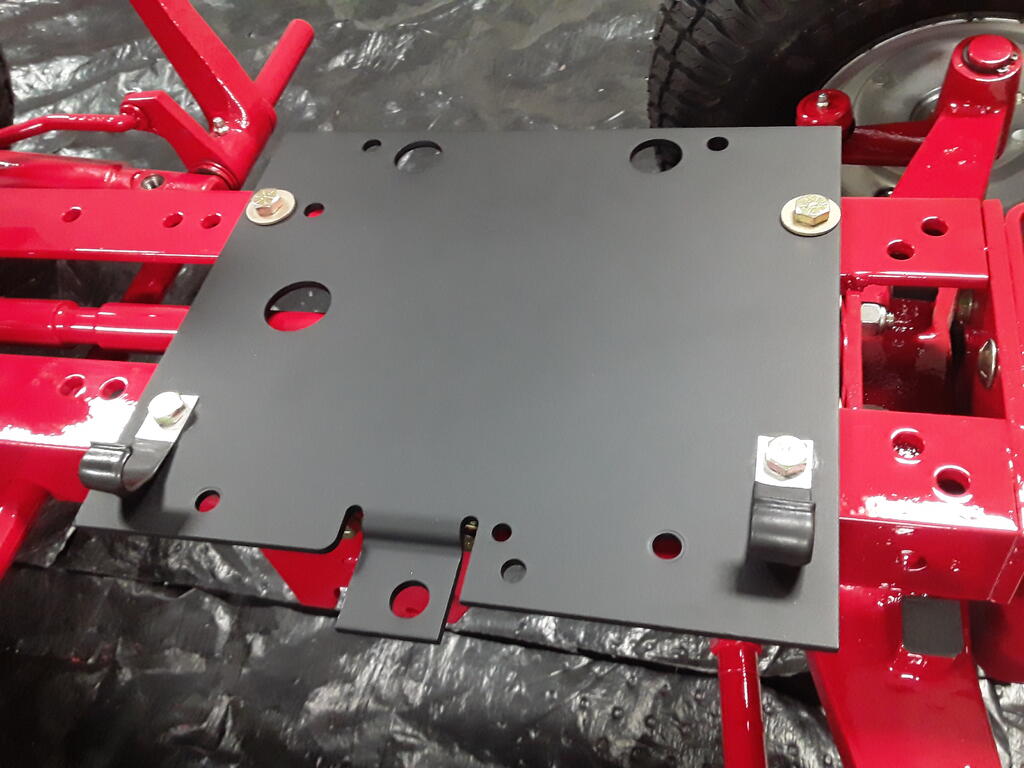

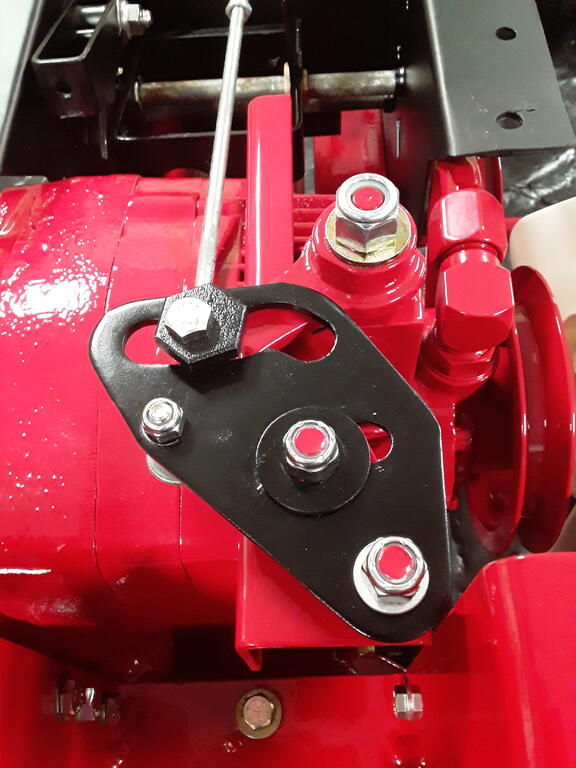

Installed the new cooling fan, some of the seat / gas tank brackets, more of the hydro linkage, the engine plate, and the Attach-a-matic brackets.

[cleat 5,977]

Your project is coming along beautifully.

Just one thing. Your engine plate is upside down.

Hate for you to get the engine bolted down to it then have to switch it.



[76c12091520h 3,620]

Up at 5 am + 12 hr day + still in garage at 10 pm = D'OH

[76c12091520h 3,620]

Fixed it ! Just knowing it was wrong would've kept me from functioning properly all day. I'd have caught it eventually but thanks cleat !

[76c12091520h 3,620]

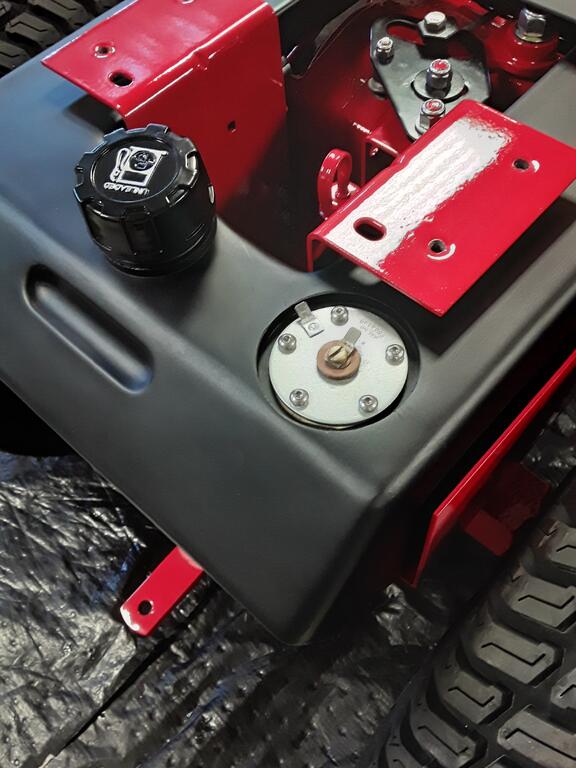

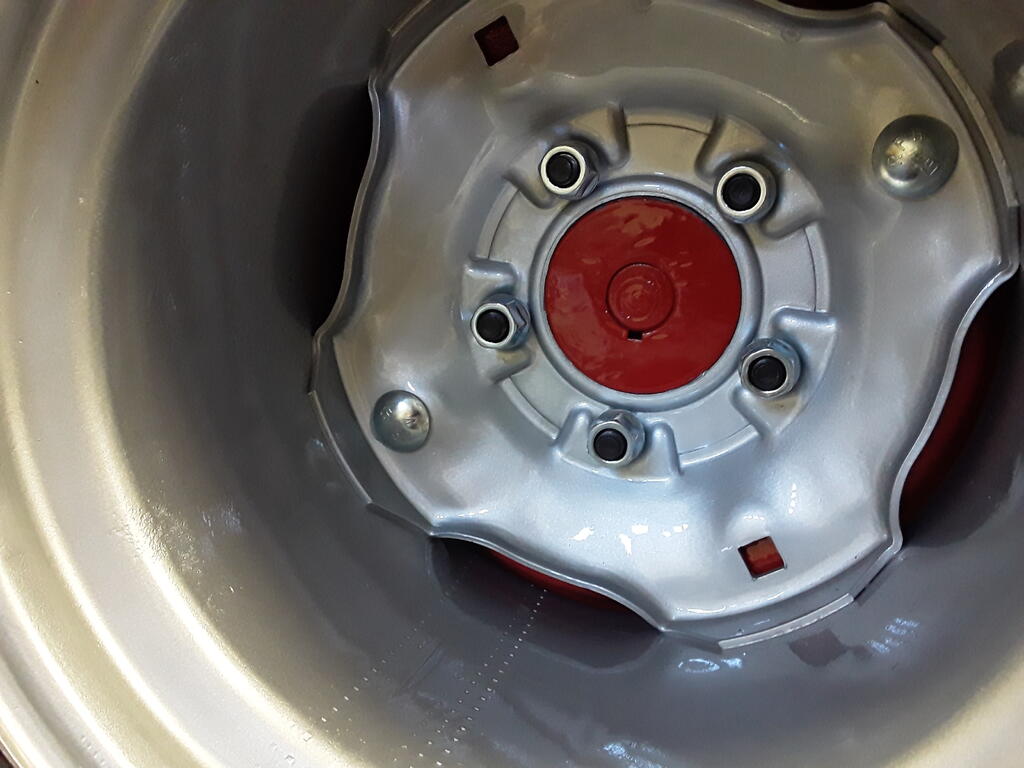

Installed the fuel tank, good original sending unit (have a NOS but why waste it) and a new gasket, and installed the rest of the lug nuts on those spiffy new wheel studs:

[76c12091520h 3,620]

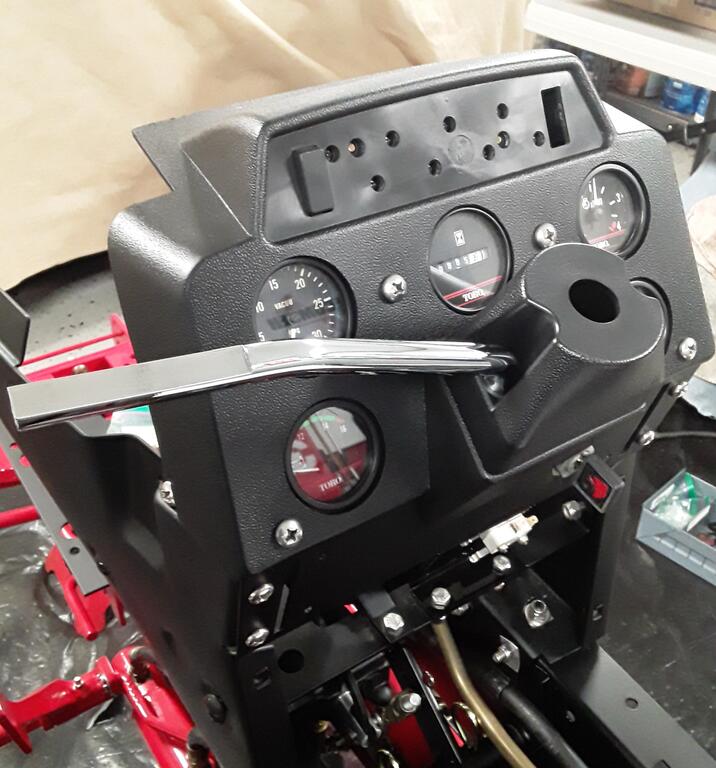

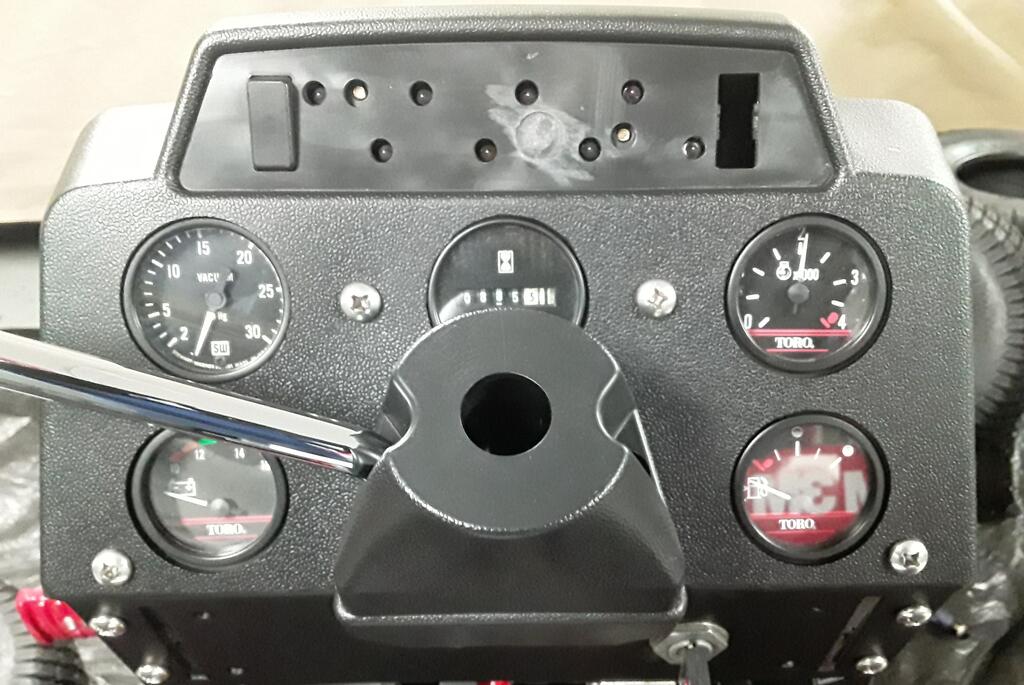

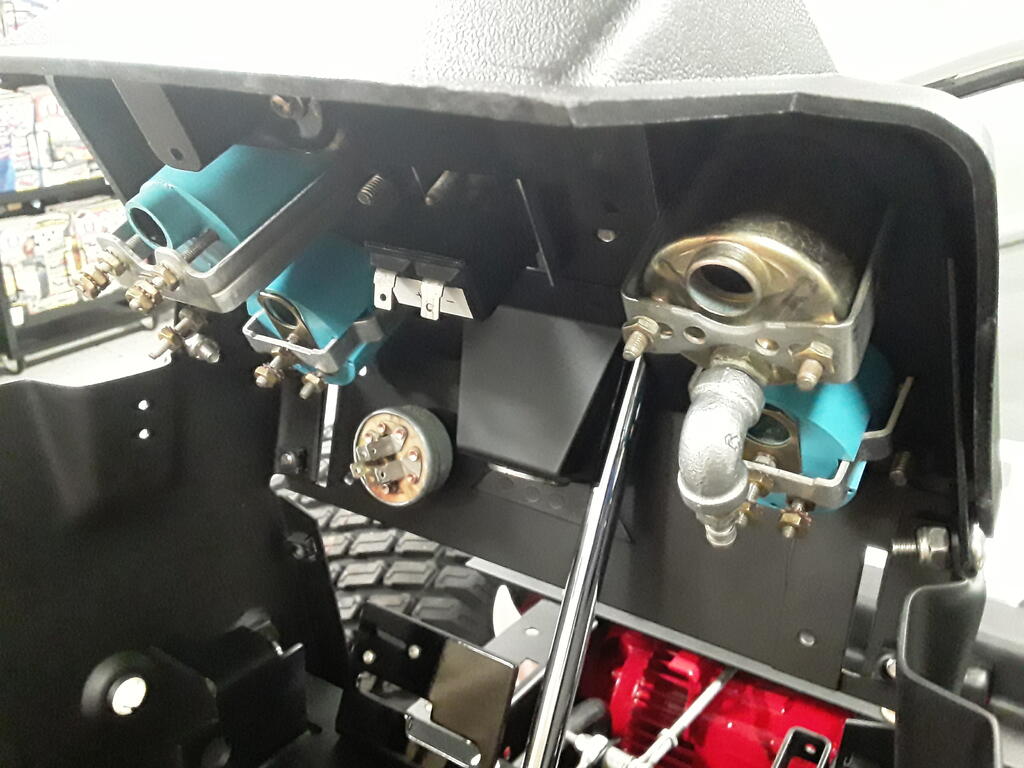

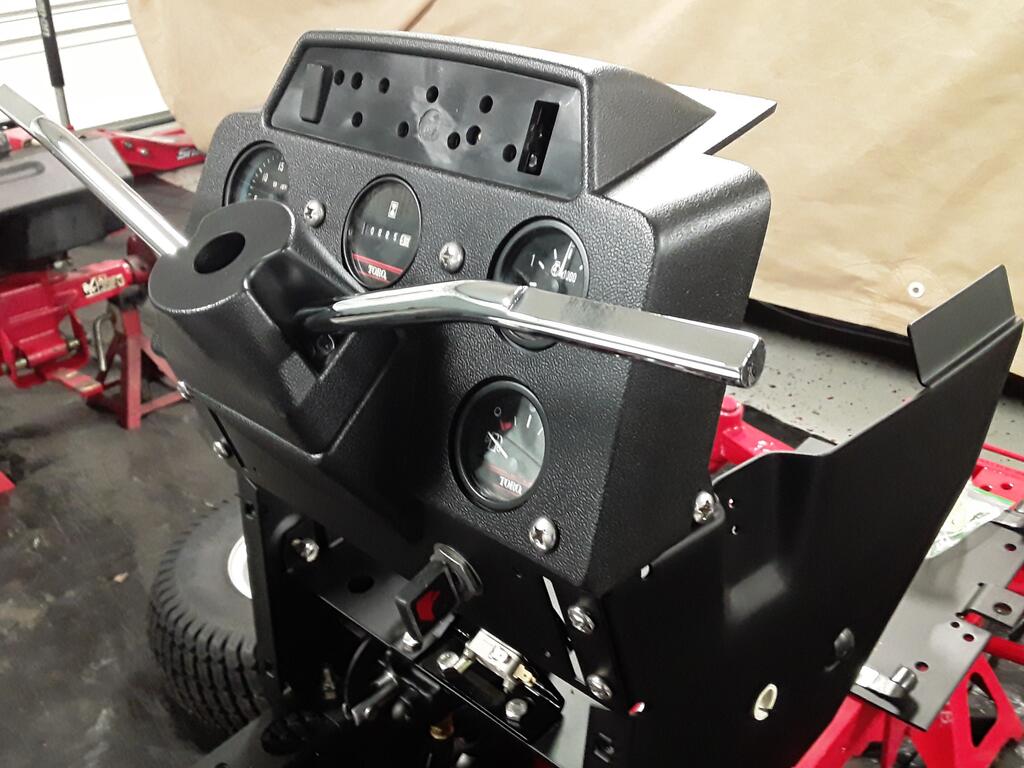

 Installed the gauges / instrument panel and the motion and height controls

[Pullstart 62,879]

So perfect!  Your work is so good, so many details!

[jeremi3210 717]

This is gonna be one fine looking 520! Can't wait to see the finished product!!! Great job!!!

[76c12091520h 3,620]

10 minutes ago, jeremi3210 said:

This is gonna be one fine looking 520! Can't wait to see the finished product!!! Great job!!!

Thanks

[76c12091520h 3,620]

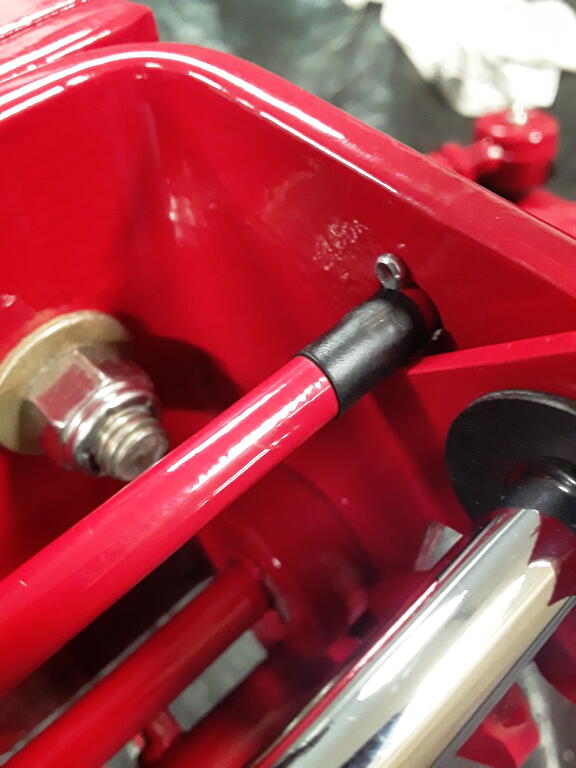

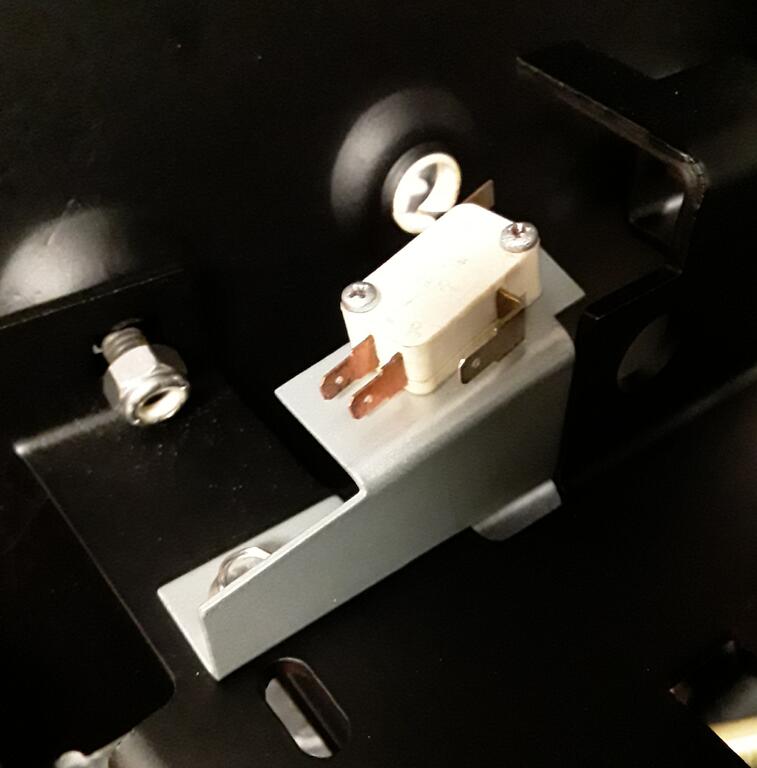

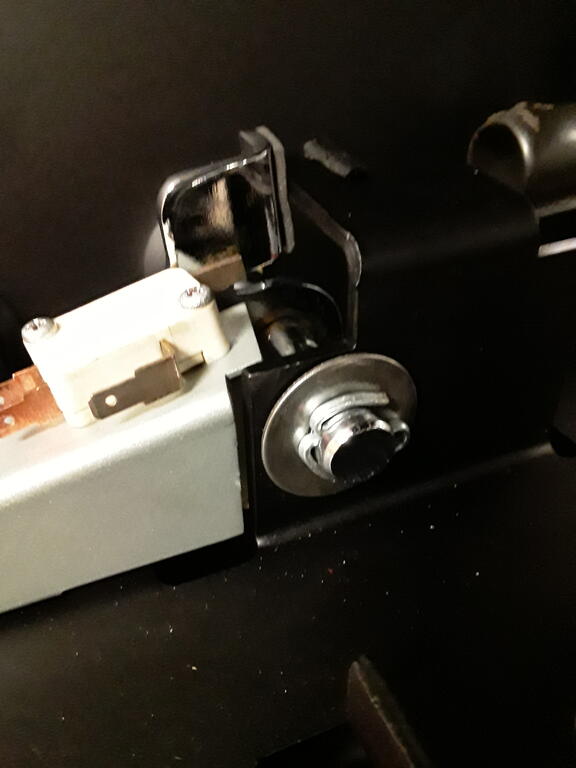

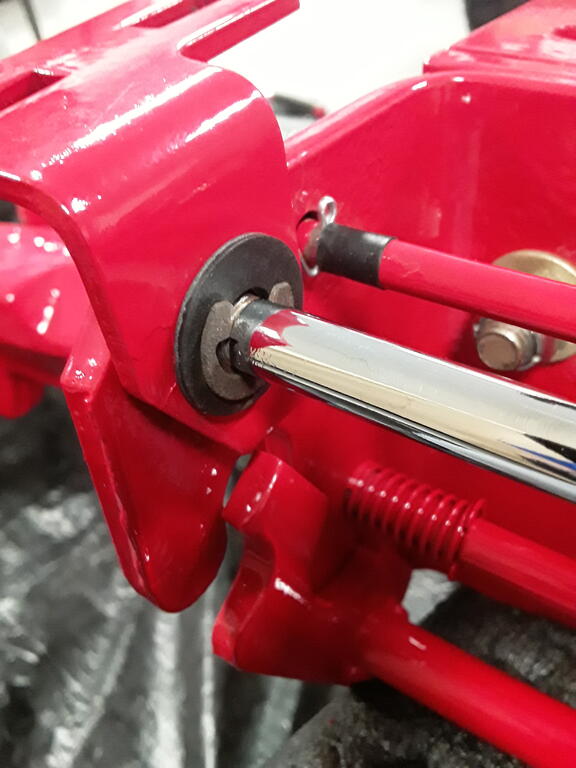

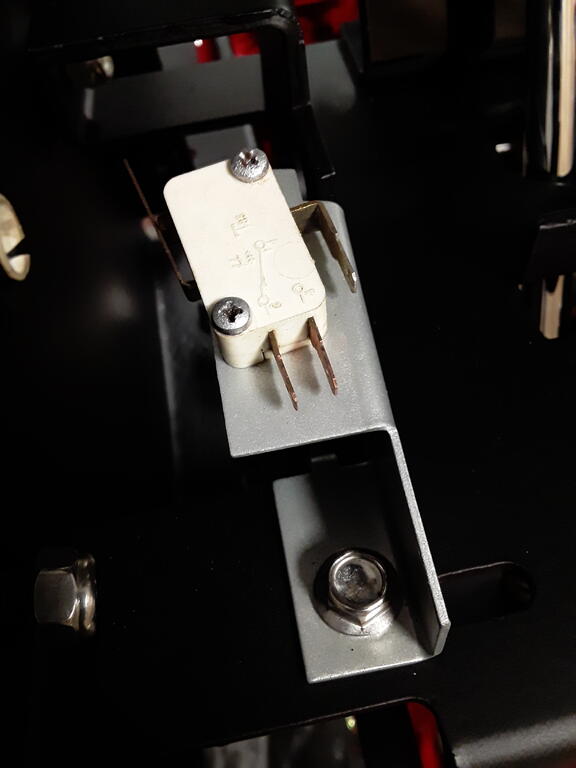

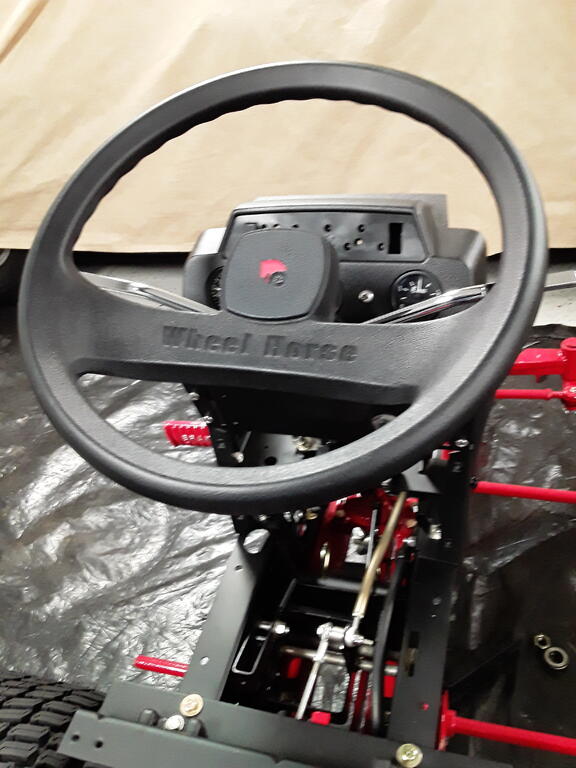

 Installed the steering shaft and wheel (didn't forget the ANTI-SEIZE ) and the pto safety switch and bracket(with a serrated stainless bolt). Shimmed the steering column as needed to remove play in the shaft, and also installed some hard fiber washers on the control levers to eliminate any slop.

[76c12091520h 3,620]

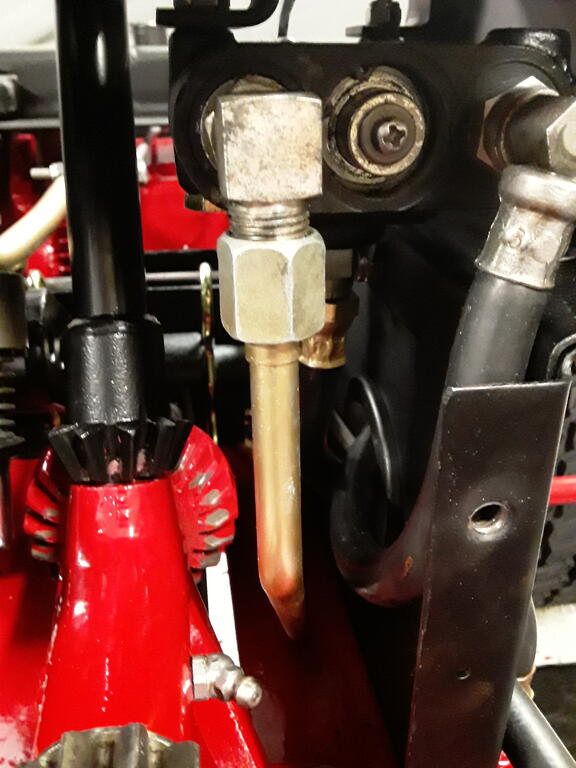

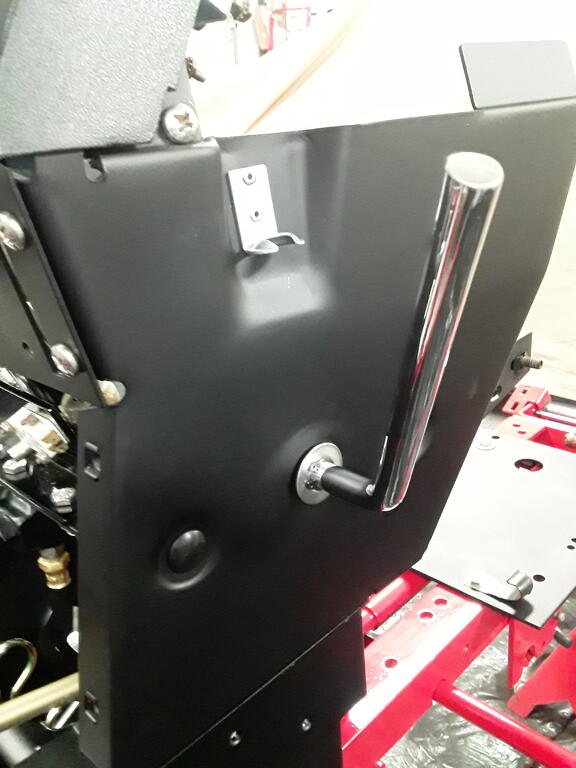

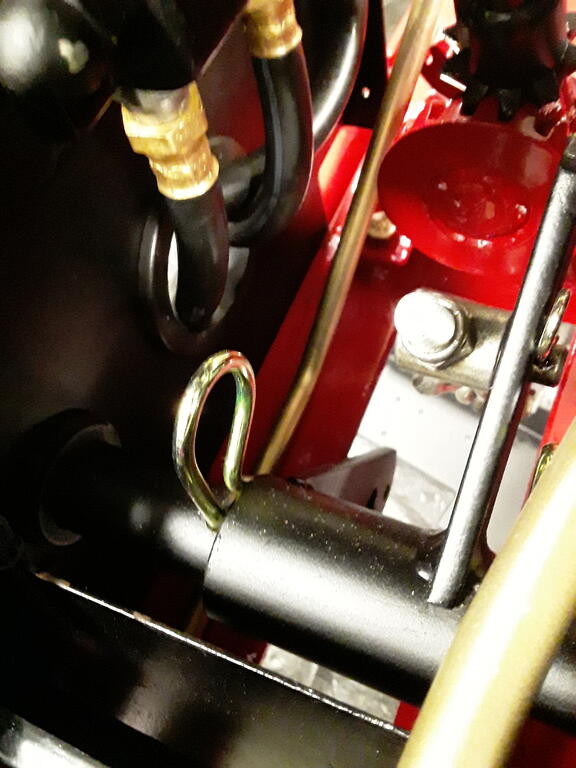

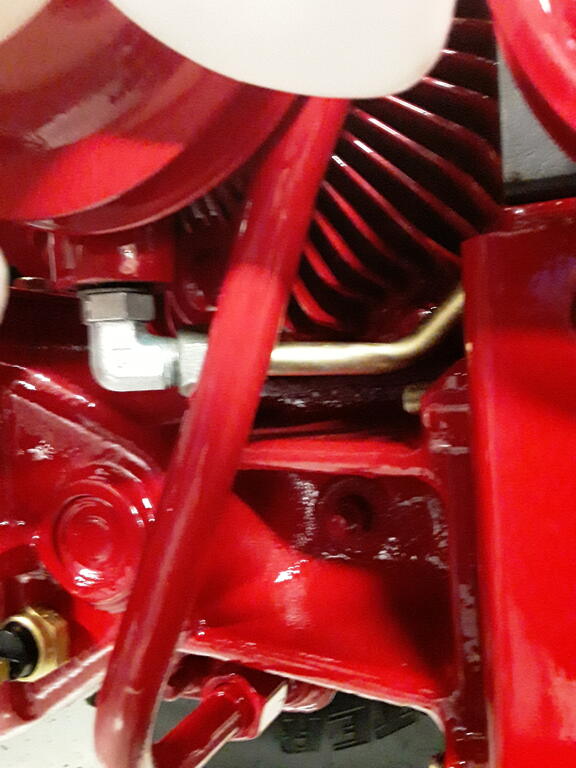

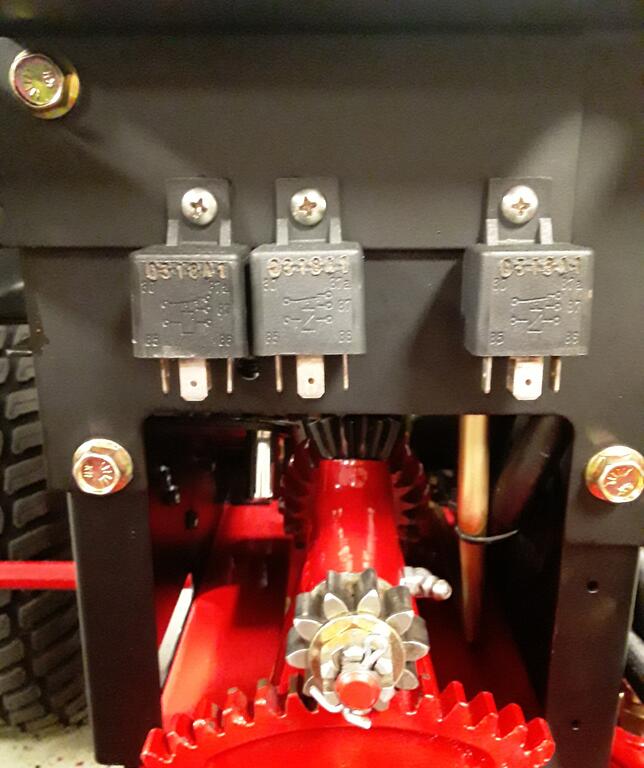

 Went back into the hydraulics and swapped out the long hose that runs to the bottom of the rear axle, switched it over to a newer style hard line instead of the rubber hose. It routes completely different (under the lift/hydraulic mechanisms instead of over the top, really cleans things up in the center console area. installed the hood hinges, put a small section of heat shrink on the stops for the hood hinges so there isn't any metal on metal contact, installed the pto lever and installed a foam pad where it contacts the stop, and installed the front closure panel with the relays on it.

[Pullstart 62,879]

Are those hard lines custom, or just a later design?  I wonder if any other tractors could be made into hard lines?

[dclarke 4,032]

Excellent work you're doing, love the attention to detail!  Keep the pics coming.

[Zeek 2,286]

Nice job! That is a very nice restoration! It's all about that details . . .

[76c12091520h 3,620]

6 hours ago, pullstart said:

Are those hard lines custom, or just a later design?  I wonder if any other tractors could be made into hard lines?

The hard lines are factory correct for newer 520's(mine's a 91). I would have liked to changed out the other long hose too, but the tins are different in the area around the lines and I wasn't cutting sheetmetal at this point.

[76c12091520h 3,620]

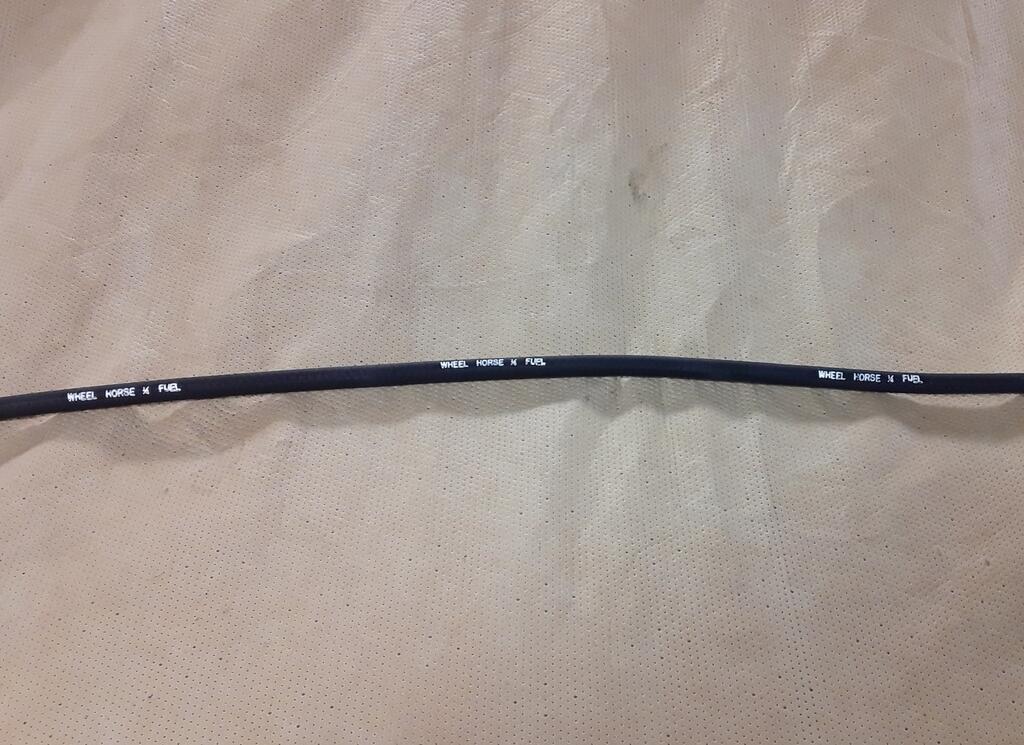

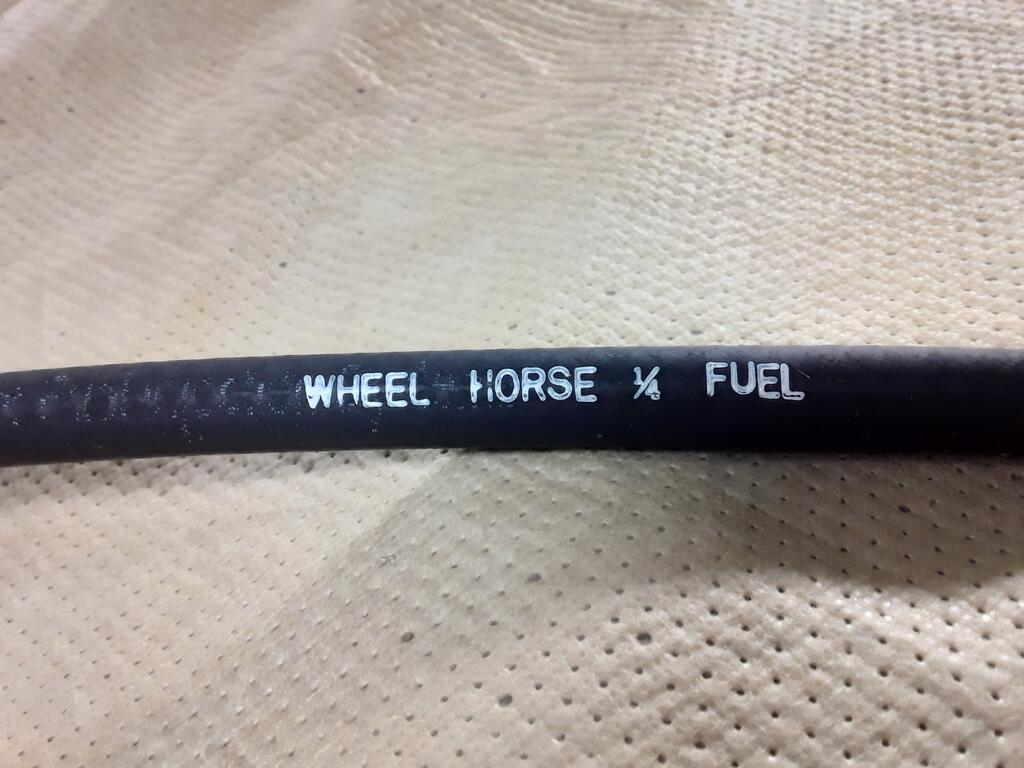

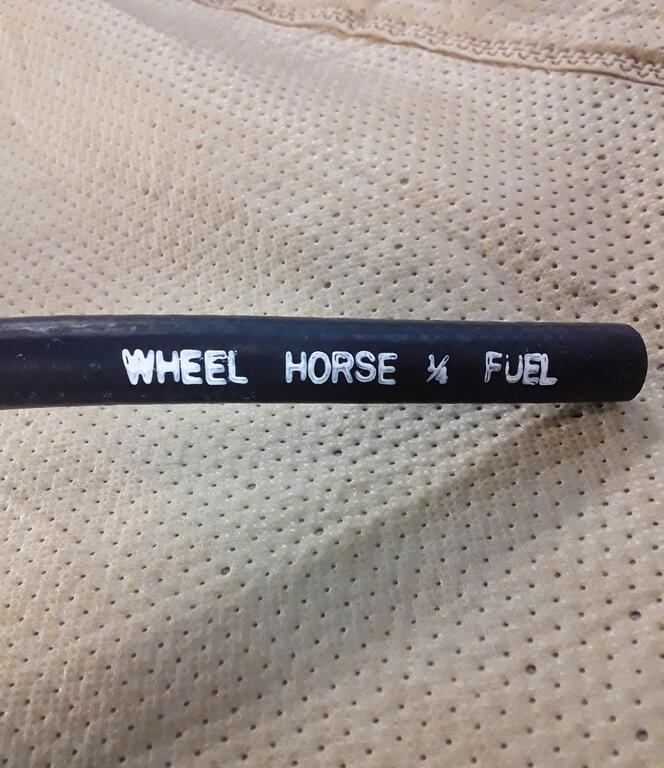

Got the fuel line cut and ready to install:
