Fuel pump. Rebuild or replace?

[rjg854 11,656]

@953 nut I'm sure will hook you up with a wiring diagram

[953 nut 56,515]

@BOB ELLISON made up a great color coded wiring diagram that will do the job for you.

[RetroMower 349]

7 minutes ago, 953 nut said:

@BOB ELLISON made up a great color coded wiring diagram that will do the job for you.

May good fortune follow you always my friend. Thank you so much. From what i have seen in many many posts here is that many many people have you to thank for being able to repiair their equipment.

Permit me to ask yet another question. The condenser on the "-" side of the coil, is there any difference between one for a JD for 19$ and one for a Massey Ferguson for $25 or a cheaper non brand specific one at tractor supply for 5$?

[BOB ELLISON 2,981]

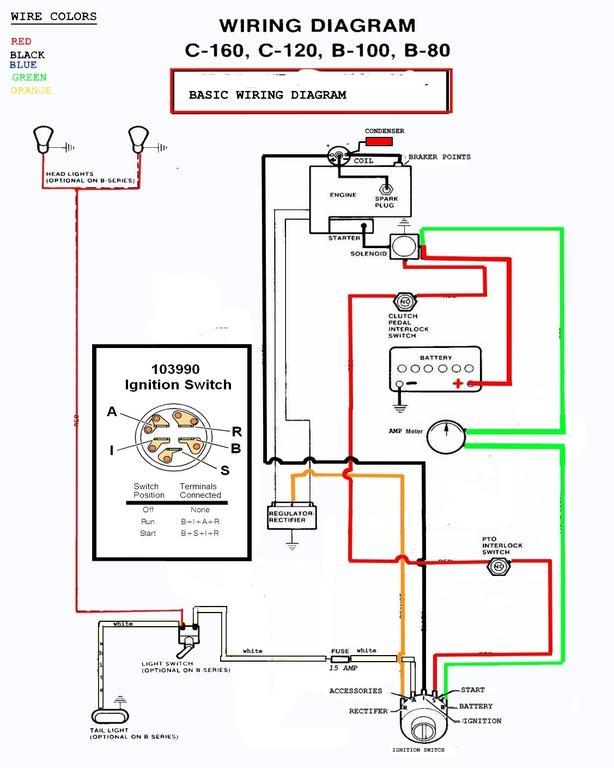

The diagram that @953 nut posted has a relay  and a volt meter in place of the amp gage that I used for my head lights. It's the blue wire. This diagram here is the original wiring , I don't want you to think it was part of the original wiring.

Edited March 31, 2019 by BOB ELLISON

[RetroMower 349]

4 minutes ago, BOB ELLISON said:

The diagram that 953nut posted has a relay that I used for mt head lights. It's the blue wire. This diagram here is the original wiring , I don't want you to think it was part of the original wiring.

Thank you for making this wiring diagram available sir

[ebinmaine 69,376]

43 minutes ago, RetroMower said:

Thank you for making this wiring diagram available sir



I've used it on two different tractors now and even made up my own diagrams for future diagnostic reasons.



You can get Kohler compatible condensers from many parts stores.

[953 nut 56,515]

8 hours ago, RetroMower said:

s there any difference between one for a JD for 19$ and one for a Massey Ferguson for $25 or a cheaper non brand specific one at tractor supply for 5$?

             With the Tractor Supply condenser you don't get the bragging rights of having over-paid for a "Genuine" part. Your engine will run just the same and you can buy yourself a present with the money you've saved.

[squonk 41,781]

Are these diagrams found anywhere on the forum for easy reference?

[ebinmaine 69,376]

13 minutes ago, squonk said:

Are these diagrams found anywhere on the forum for easy reference?

I keep a link in my email.

Maybe they should be pinned?







[squonk 41,781]

Where are Bob' diagrams? It would be nice when someone has  say a no spark issue, we could direct them to a diagram to maybe help explain things.

[ebinmaine 69,376]

12 minutes ago, squonk said:

Where are Bob' diagrams? It would be nice when someone has  say a no spark issue, we could direct them to a diagram to maybe help explain things.

@BOB ELLISONELLISON

Maybe you have more available?



Here's the one I used along with the above....







[rjg854 11,656]

17 minutes ago, squonk said:

Where are Bob' diagrams? It would be nice when someone has  say a no spark issue, we could direct them to a diagram to maybe help explain things.

You can find them in the instructionals and videos forum

[squonk 41,781]

3 minutes ago, rjg854 said:

You can find them in the instructionals and videos forum

Thanks Randy. I want to see if we can get Bob's diagrams into that thread. Color diagrams a much easier for someone who is not electrically inclined to understand and follow.

[squonk 41,781]

Got them in there. Thanks guys!

[rjg854 11,656]

I've got them saved to my phone for quick reference, and even have some manuals on file too.  It's amazing what we do with phones these days.   It certainly not like the party lines of old

[Sparky-(Admin) 21,672]

On 3/28/2019 at 10:41 PM, RetroMower said:

Are these pumps rebuildable or possibly replaceable? I was going to rob the one off the B100 but if these are diaphragm pumps then both are likely bad from sitting so long



  I recently dismantled a metal body fuel pump that wasn’t working, gave it a good cleaning and reassembled and she is pumping like a new one. Maybe just a cleaning is in order?
