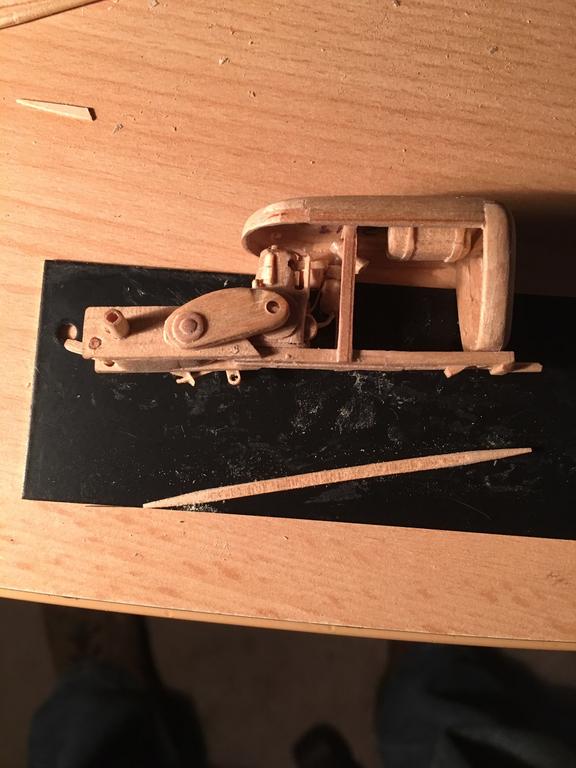

Here's the next installment. Belt guard

This one I kept track of time on and it took about 4 hours from start to finish. Kind of a long time for such a small part but at least it didn't get ruined half way through and a start over. Think it may get pinned on so it can be removed to show the details on the pulleys. The belt itself gave me some trouble so haven't figured out quite what to do about it, yet.

Screwed up and the engine shaft is short and doesn't stick out past the belt guard. But I think this one will slide since there's no plans for a mower deck, sickle bar or blower. Probably a dozer blade though.









[formariz 11,987]

Placed all the build photos in my photo program . 100 build photos up to today. It is really something to be able to see them side by side in the correct order. One starts to notice stuff missed before and realize even more how tedious the whole process is. I thought I always considered myself a patient person but now I know better.

[953 nut 55,230]

18 minutes ago, wallfish said:

Screwed up and the engine shaft is short and doesn't stick out past the belt guard.

OK John, we will let you get away with this one, but don't make a habit of it.            This is amazing!

[Ed Kennell 38,178]

2 hours ago, 953 nut said:



OK John, we will let you get away with this one.



Not me...I'm stayin on his arse.   I want him sharp as a toothpick for the surgery.

[wallfish 17,000]

1 minute ago, Ed Kennell said:

Not me...I'm stayin on his arse.   I want him sharp as a toothpick for the surgery.



[wallfish 17,000]

On 3/22/2019 at 6:18 PM, formariz said:

I thought I always considered myself a patient person but now I know better.

Believe it not, I have no patience at all. Think it's more about determination with the challenge and enjoyment of doing it.



  The idea on this one is to represent as many different parts as I can get on there which are actual parts of the RJ. That wasn't the initial plan but once the build thread got started, that's what it is now. So determination becomes the drive to try and do it. Trying to duplicate parts to represent the actual shape and size is difficult but obviously not impossible. Some things just can't be scaled because the wood can only get so thin to still maintain some strength. Which is why the front axle has gone on yet, the spindle tubes on the ends of the axle are looking to big because of trying to have the spindles steer. The small size allows for more little imperfections but it does make some of the small parts and details more difficult.

 It could've saved about 10-15 hours alone just by skipping all the drive pulley stuff and making a solid wood belt guard. That area would basically have the same appearance once it's all together, but under close up examination is where a real round hood Wheel Horse collector will have a greater appreciation for it. It'll take a while for someone to notice all of those little things but that's kind of stuff that's going to make this one stand out from any other toy model.

[Pullstart 62,884]

Jada this morning....  “can I see the toothpick tractor?”



Me...  “I’ll look for it.”



Jada....  “wooooaaaaahhhhh!  Did you even give it a thumbs up?!”



Me...   “yes I did, Honey”

[wallfish 17,000]

4 hours ago, pullstart said:

Jada this morning....  “can I see the toothpick tractor?”

That's great when the kids are interested!!!

How old is Jada?

[Pullstart 62,884]

3 minutes ago, wallfish said:

That's great when the kids are interested!!!

How old is Jada?



She’s 11, Rylee’s 9.  I kinda like ‘em!









[Pullstart 62,884]

My girls this morning asked me if there were updates to the toothpick tractor.  They don’t even ask if I’ve accomplished anything in the shop, they must be future wood workers!

[wallfish 17,000]

Tell Jada and Rylee here's the next update!

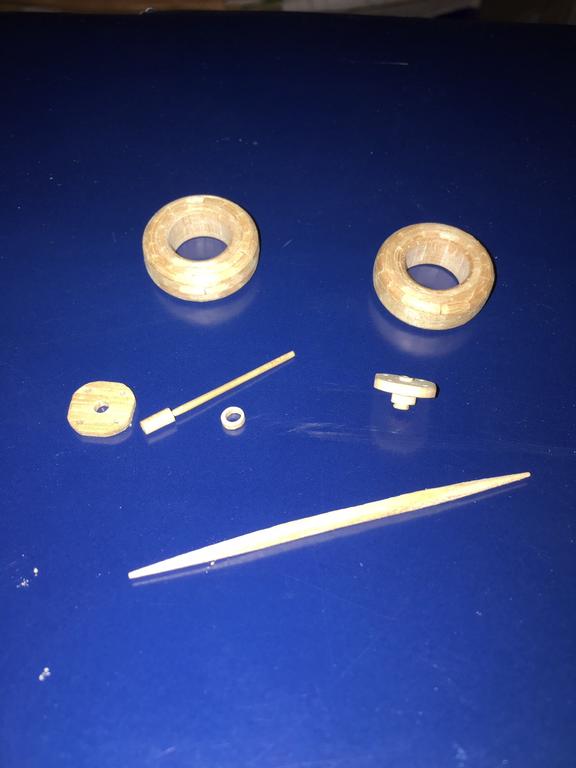

Been working on the rear tire and hub assemblies. These small parts with holes take multiple attempts so it takes a while. Quite a few get broken near the end when I think I got it, then BAM. It's gone. Dropped a couple too and couldn't find them.

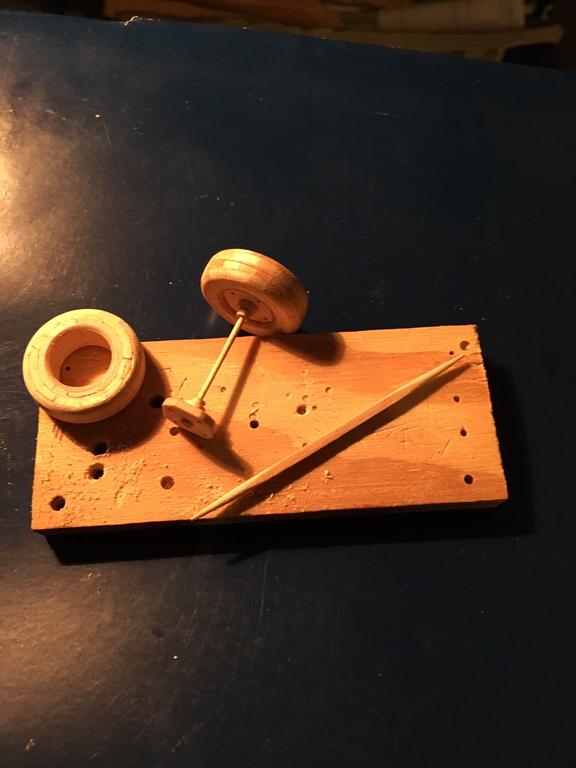

So I'm not completely thrilled how the inner rim parts look but after so many tries doing other things and trying to add too much detail, it just wouldn't work. But here's the assembly pieces.

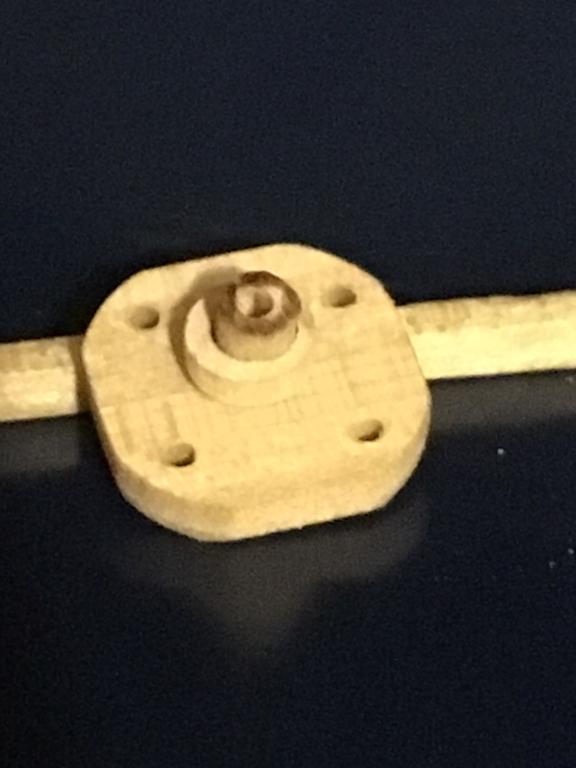

Close up of the hub and inner rim

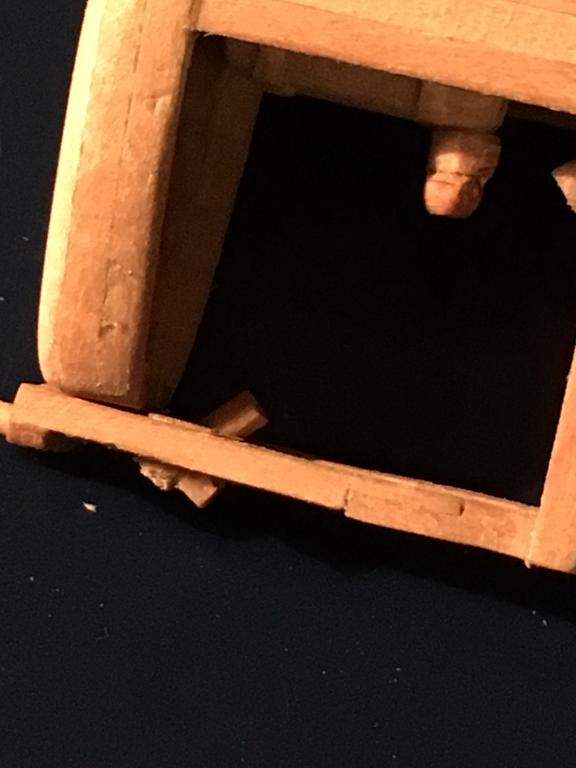

Added a small tube at the frame for the steering tube. It appears square in the pic frm the shadows but it's a tiny round tube. Oh, and you can see the sediment filter on the tank. Looks rough that close up.

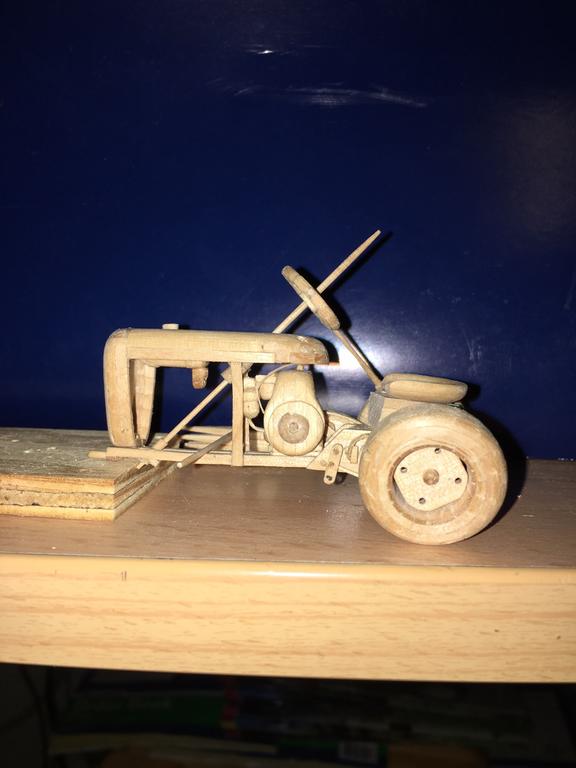

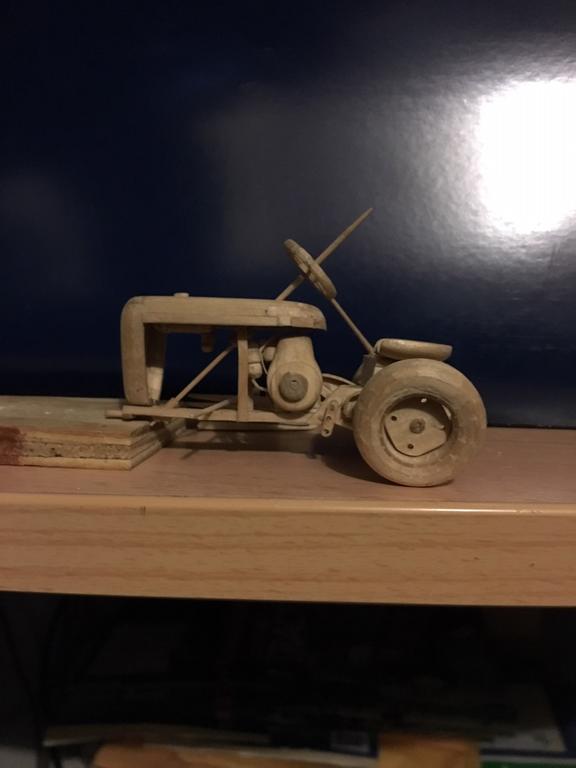

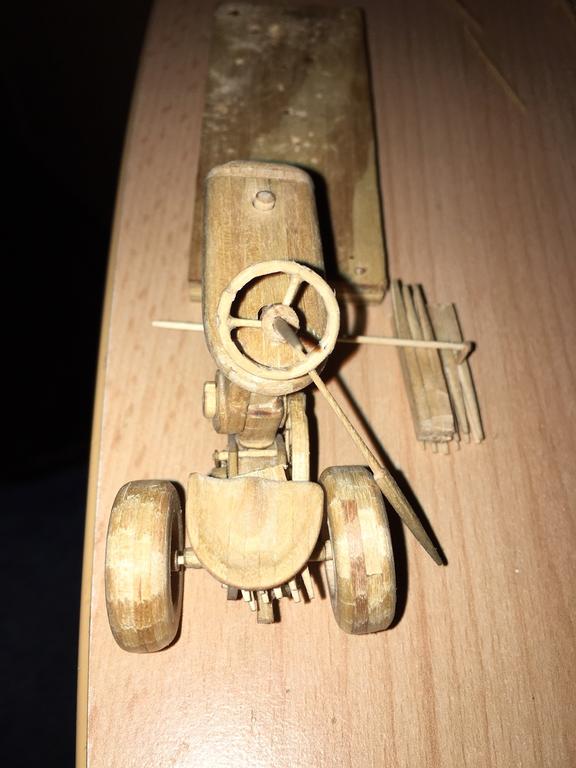

Here it is mocked up. None of those hub pieces are glued yet. I need to get the seat on so the tires can be positioned correctly. And I'm having a little trouble getting a tight bend for the seat spring to look right.









Edited March 31, 2019 by wallfish

[rjg854 11,362]

  B - U - T - FULL

[953 nut 55,230]

[SylvanLakeWH 25,560]

Again...

[Pullstart 62,884]

Thanks for doing all this, just for my girls John!    I’ll show them in the morning, they’re gearing up for tomorrow’s big haul!

[wallfish 17,000]

Got a little more done.

Think I procrastinated enough on the front tires so need to get those going next



rear hubs attached. Going to leave the wheels as separate parts and they just press on.





seat spring



exhaust

[19richie66 17,508]

Awesomeness 👍

[rjg854 11,362]

Unbelievable

[Pullstart 62,884]

My kids were so excited to find out they might be able to see this in person at the Big Show!
