regulator wheel horse c-175

[wheeliepower 141]

hi,



can anyone tell me where to find the regulator on a wheel horse C-175?

Thanks



manfred

[pfrederi 17,729]

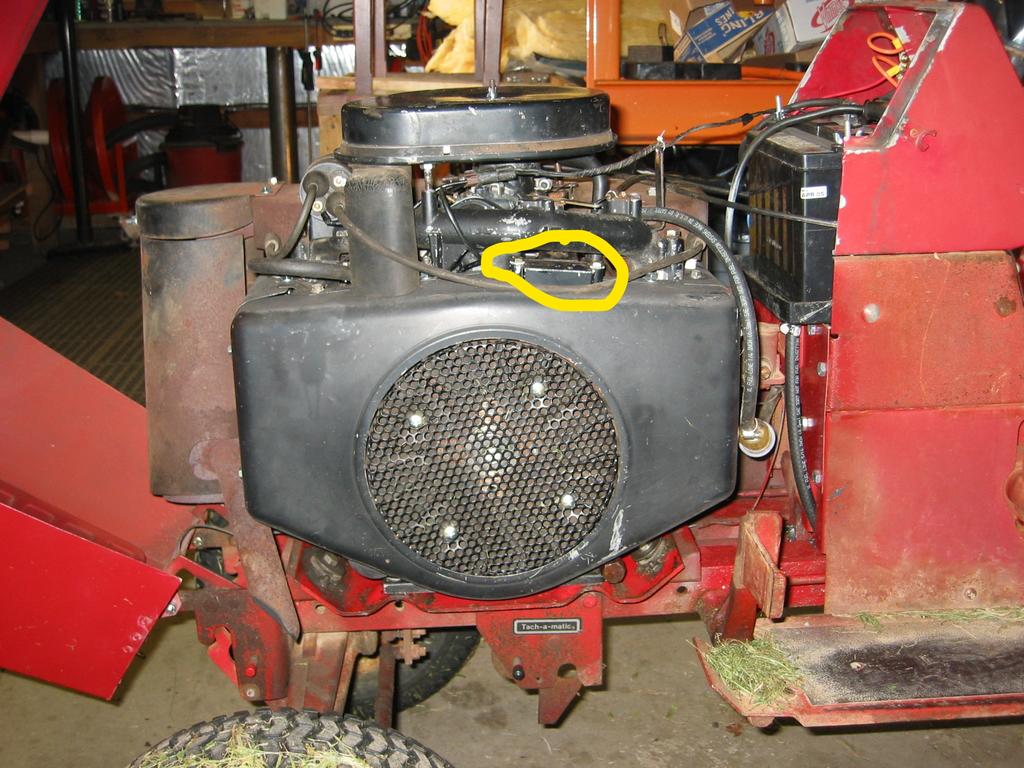

Top of the blower housing circled in yellow





[wheeliepower 141]

thanks for your response



german proverb what applies to me here => "Ich habe den Wald vor lauter Bäumen nicht gesehen" => "I haven't seen the forest because of all the trees"





determined after the measurement regulator defective, I already ordered the new one

Edited February 19, 2019 by wheeliepower

[pfrederi 17,729]

Good to here.  spent 5 years in your wonderful country...i do miss it and the beer and the wine

[wheeliepower 141]

that I believe you !!!!!!!!



But I come from an area with many apple juice and cider [ german => "viez" ] ) - I don't know if you know that.  Make a big head anyway !!!!!

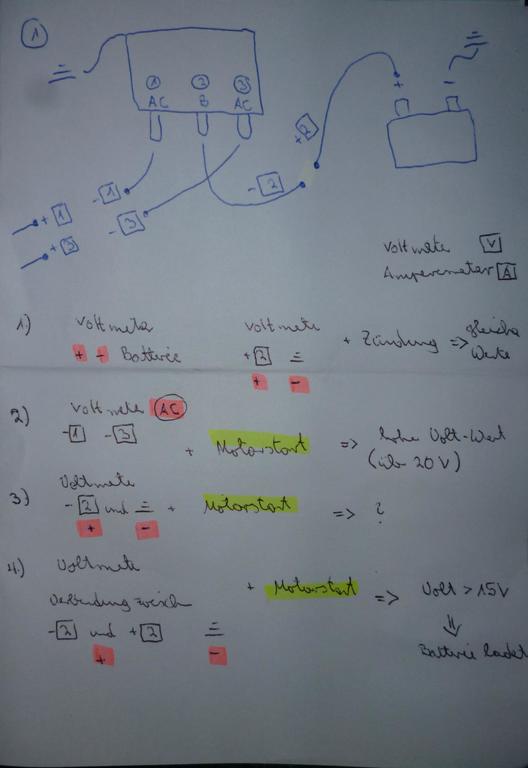

here still is my plan to measure the regulator and the stator =>









Edited February 19, 2019 by wheeliepower

[wheeliepower 141]

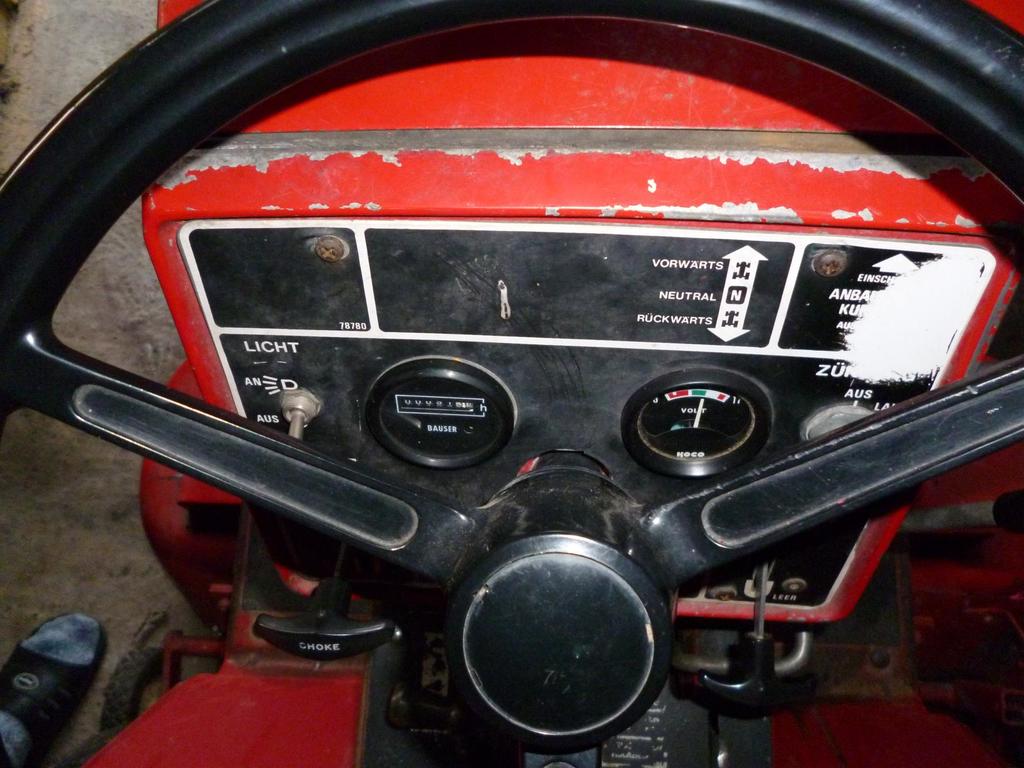

I'm worried about an ampere indicator (the built-in indicator was burned down at the previous owner)



That's why I decided to install a voltmeter.

When measuring the electrics ( plan listed above  ) I noticed that the regulator was defective too. Luckily I still had a part in reserve.
