Duramax7man7 506 #1 Posted December 4, 2018 Just wanting to get this hydro running for the winter and wanted to see if there would be issues in wiring swapping the M12 from my 312-8 chassis into my 314h chassis? Similar years. Share this post Link to post Share on other sites
pfrederi 17,515 #2 Posted December 4, 2018 Make sure the chassis has a Magneto Ignition switch 1 Share this post Link to post Share on other sites
Duramax7man7 506 #3 Posted December 4, 2018 Same engine type, so should be the same correct? Will I have to switch any of the wiring? Should just be plug and play, no? Share this post Link to post Share on other sites
pfrederi 17,515 #4 Posted December 4, 2018 Should be plug and play assuming your M12 has a voltage regulator and is not one of the 3 amp unregulated systems..WH went cheap on some models/years and opted for the unregulated system. Share this post Link to post Share on other sites
Duramax7man7 506 #5 Posted December 4, 2018 How do I diagnose that? smh Share this post Link to post Share on other sites

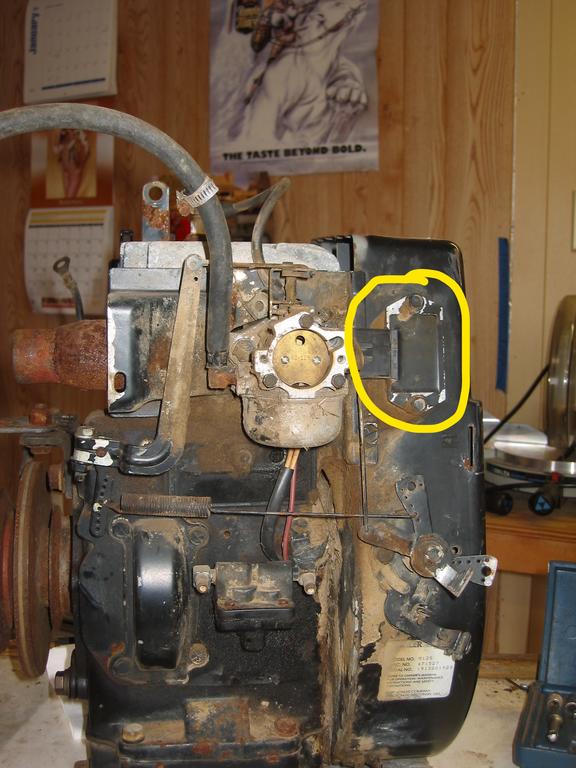

pfrederi 17,515 #6 Posted December 4, 2018 Small box with three contacts upper front of blower housing is regulator. (Circled) If there is just a plate covering the hole it is a 3 amp system Did headlights work with the engine not running on the donor tractor, if they did regulator system. if they didn't 3 amp unregulated 1 1 1 Share this post Link to post Share on other sites
Duramax7man7 506 #7 Posted December 4, 2018 OH that's all. lol They both have the regulator. 1 Share this post Link to post Share on other sites
AHenry014 127 #8 Posted December 4, 2018 Plug and play. I used an m10 in place of the m14 on the 314-H i sold at the end of last winter. So long as the charging system is the same and the black connector plugs right in, youre good to go. The 12 horse will be just fine on there. Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,921 #9 Posted December 5, 2018 Since the engines will be out may be a good time to service the low oil switches. Click on the fuzzy picture. Garry Share this post Link to post Share on other sites
