Mechanical Fuel Pump Reassembly Help Needed

Recommended Posts

oliver2-44

I disassembled the aluminum mechanical fuel pump on a 1078 C81 I'm getting running. First one I've been into.

I knew there were disc and springs inside, but it was so cruded up, that I'm 100% not sure I got the correct order of things as I gently scraped it apart.

Does anyone have a diagram or a picture that shows the correct placement of the 2 round disc and springs.  Thanks.

810019881_IMG_04541.JPG.ec1704147460fbbabed919a7b7d22cf6.JPG1710424225_IMG_04571.JPG.3aab090a90fea204a7e834876c7151ab.JPG

Part of the problem was the fuel inlet elbow was completely plugged with hard (concrete like) crud. I had to use a drill bit  to hand ream it out.


Share this post


Link to post
Share on other sites

WHX??

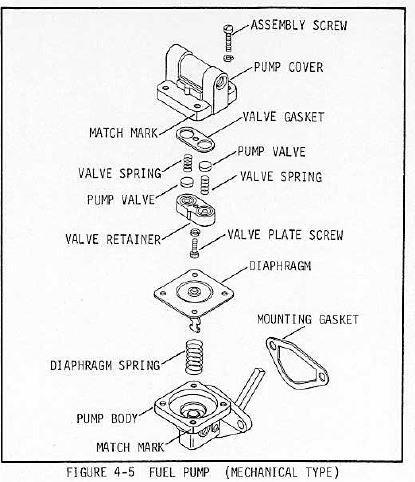

Somemore  info on it in the manual. May want to try and soak that in some Berrymans Oliie, that one looks bad.


Kohler 4-72 SM Section 04.1-5.4 Fuel Governor HR.pdf

Edited by WHX21
  • Excellent 3

Share this post


Link to post
Share on other sites

oliver2-44

Thanks @whx21 thats exactly what I needed.  Here I looked all over the Internet and it was in the manual right where I should have looked.  Yes I soaked it in Berrymans and polished things up with a Dremel. Headed to go reassemble it now.

  • Like 3
  • Excellent 1

Share this post


Link to post
Share on other sites

oliver2-44

Sucess, it pumps up a storm with all the Crud cleaned out of it.

Edited by oliver2-44
  • Like 1
  • Excellent 3
