I bought an old Original snow cab off Craigslist this Sunday. It's not the Wheel Horse version though. I got it cheap enough to take a chance of fitting it up. The seller said it was a Universal cab previously fitted to a Ford 100LGT. The brackets and frame come close to fitting but I an going to have to do some fabrication. It came with no instructions and so far I have had no luck finding instructions  for such an old cab.

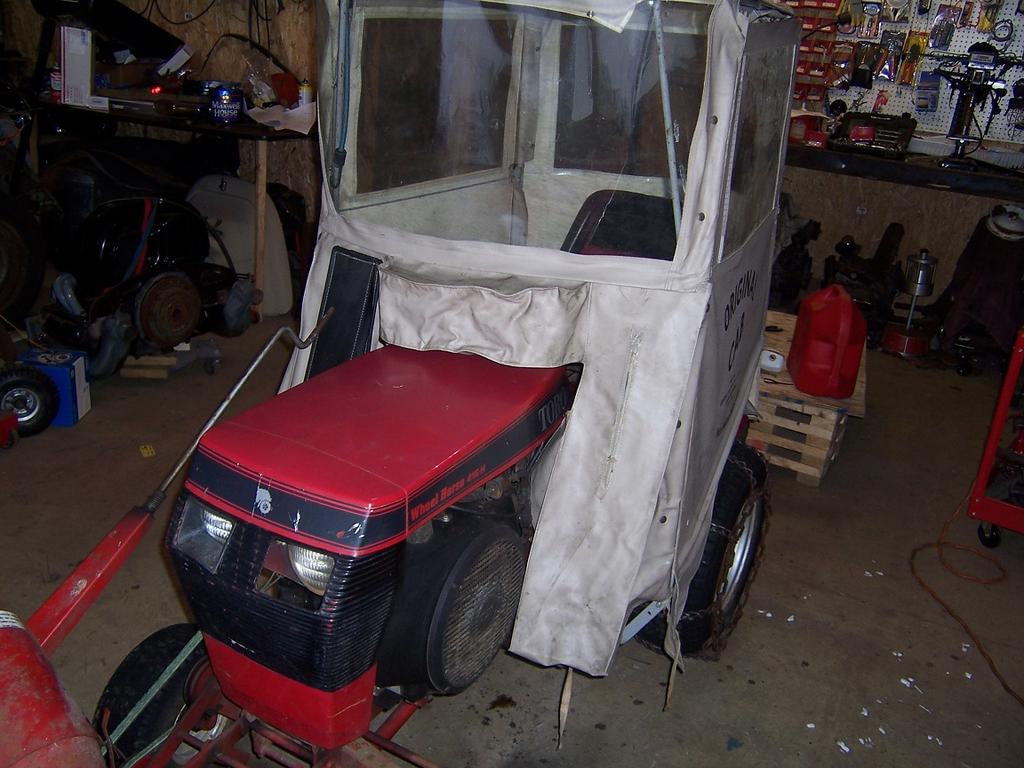

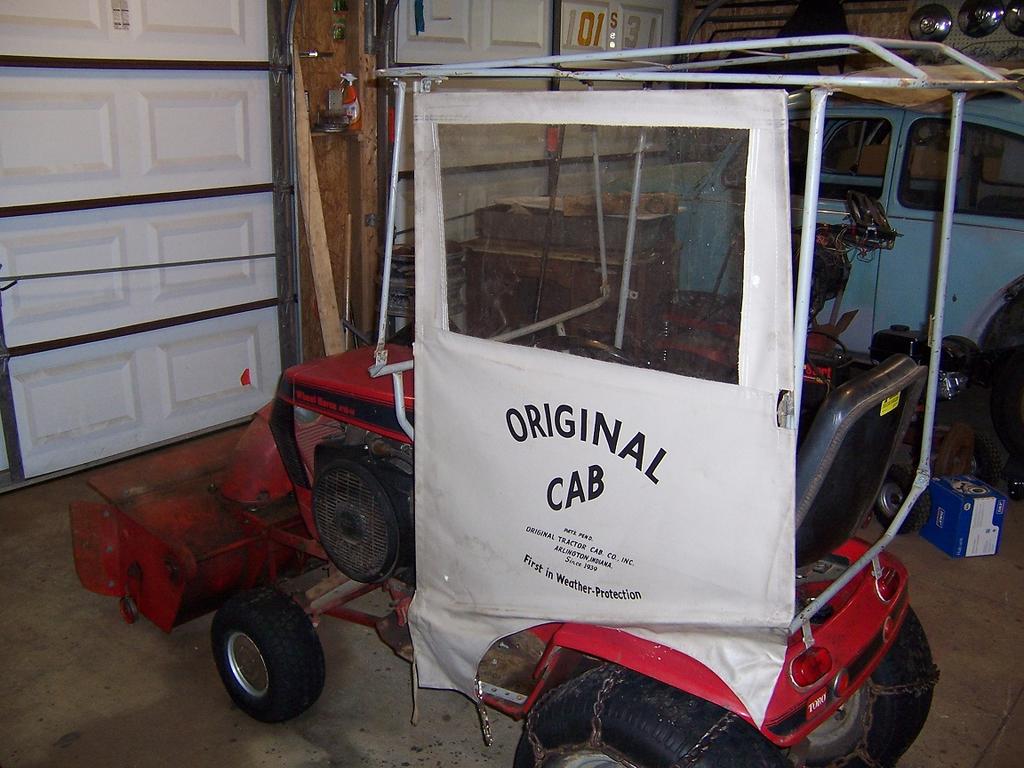

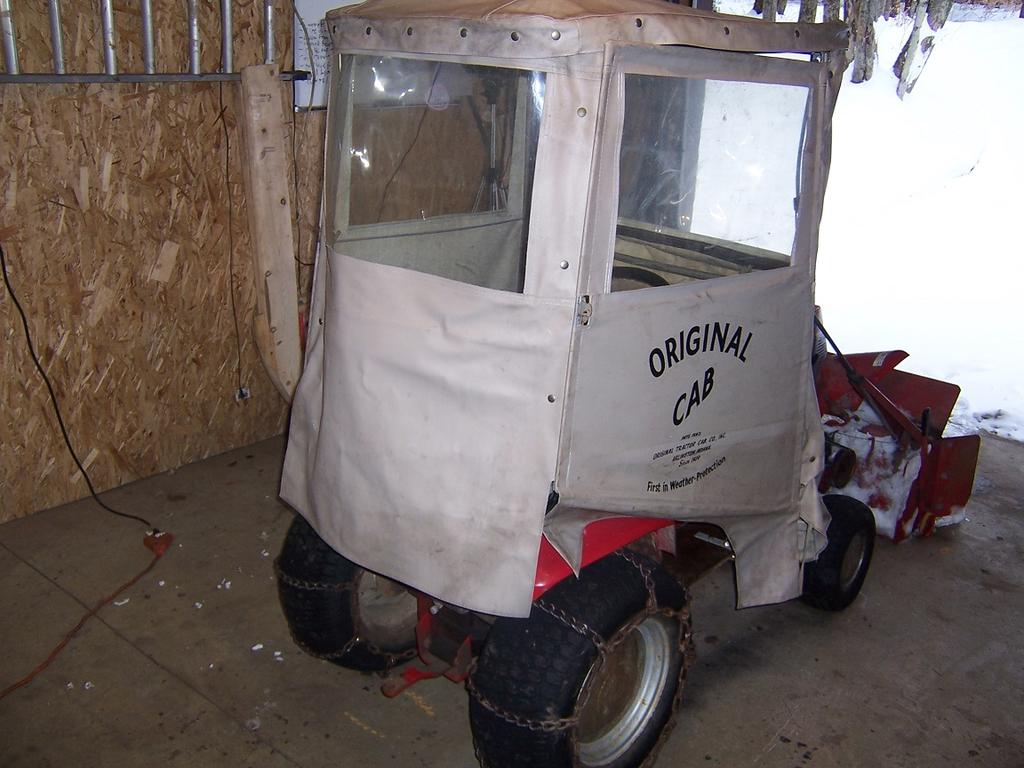

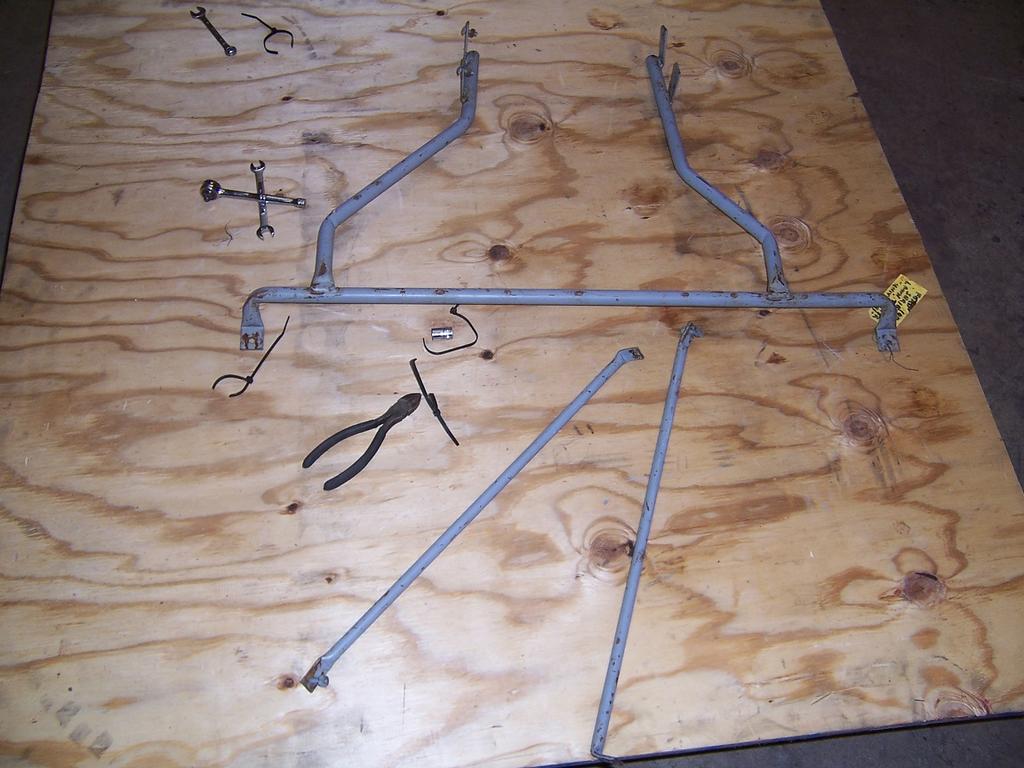

It's made from pretty heavy canvas, not vinyl, and in really good condition for the apparent age. it also doesn't have a hard top, it has a canvas top made from the same material as the rest of it. I mocked it up and tried to figure out where the frame pieces that I have fit. I did find an instruction sheet on the Original Cab website. Cab Kit No. 4058 to fit the GT-14 has frame parts that look real close to what I have. I think I can fabricate what I need from the pictures.

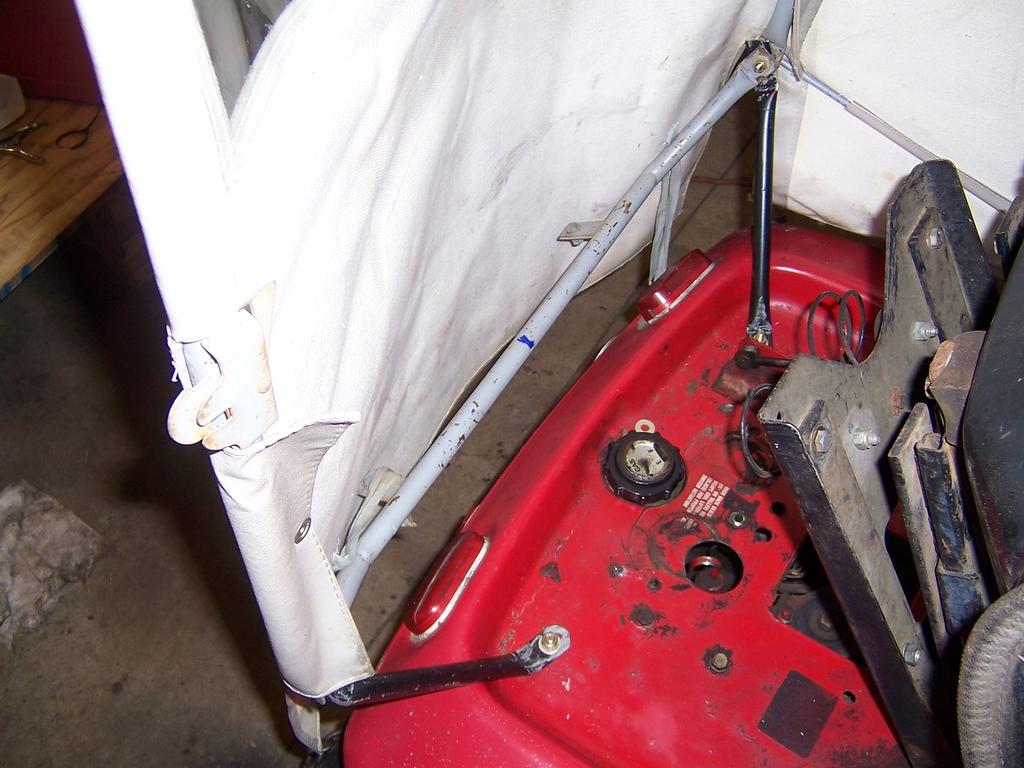

Here is a few pictures of what I have so far.



BIGMIKE

[WVHillbilly520H 10,373]

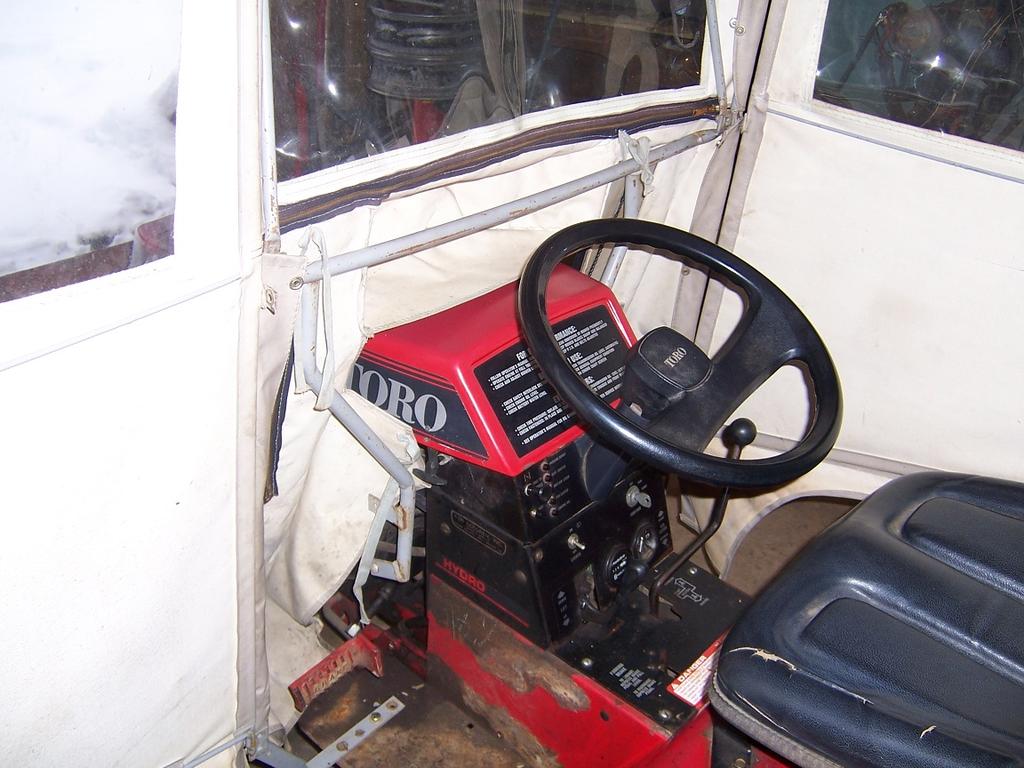

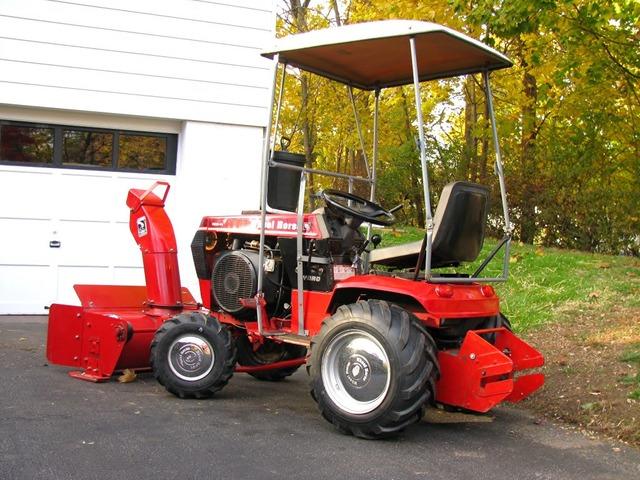

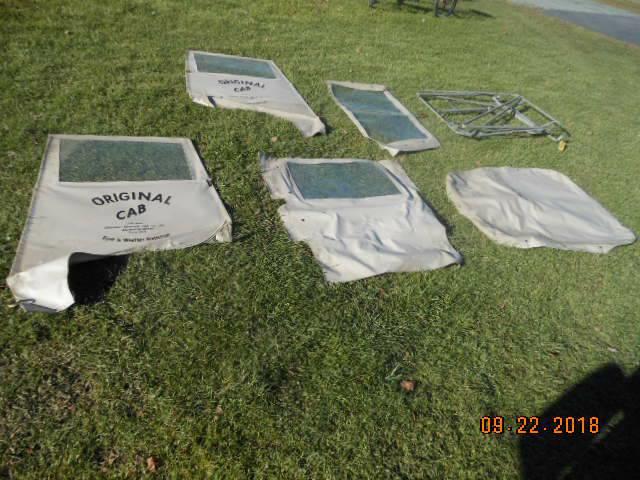

Maybe these few pics will help you figure it out, Jeff.

[953 nut 55,163]

            That looks like it is in great shape. I have one like it that came with a 953 project (1963) that I bought last spring.



[BIGMIKE 78]

Great pictures. They will help a lot.



BIGMIKE

[BIGMIKE 78]

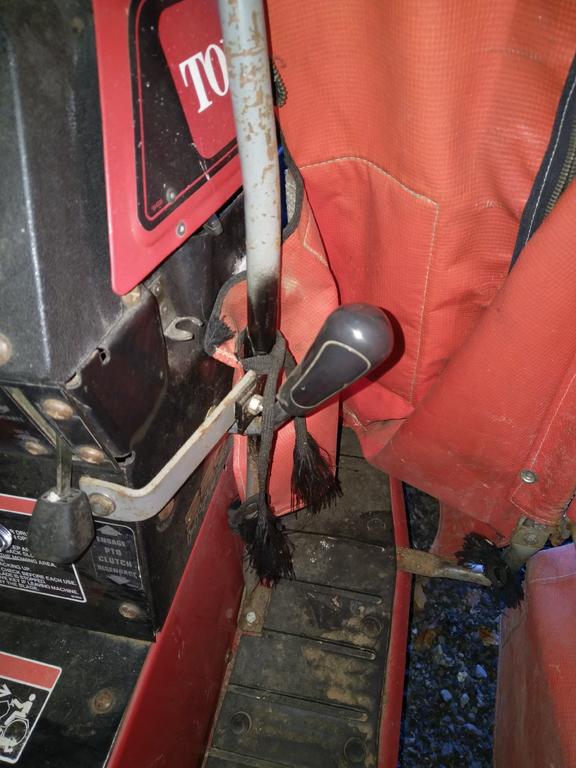

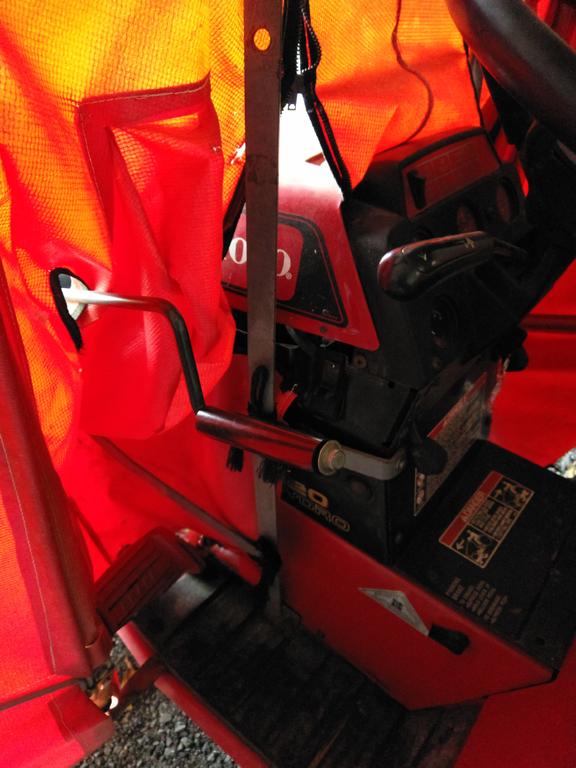

Made good progress tonight on mounting this cab to my tractor. Be carefully studying the pictures here and in the instruction manuals I found in the manuals section I was able to correct a few mistakes in my mockup and the parts started fitting better. I had to make 2 brackets for the rear as what came with it just was wrong. Hit the seat, gas cap, and was too low. The2 brackets I made fixed rthat. I would say I am 75% there. Just need to fabricate some brackets to extend the wishbone looking front panel frame to the footboards.

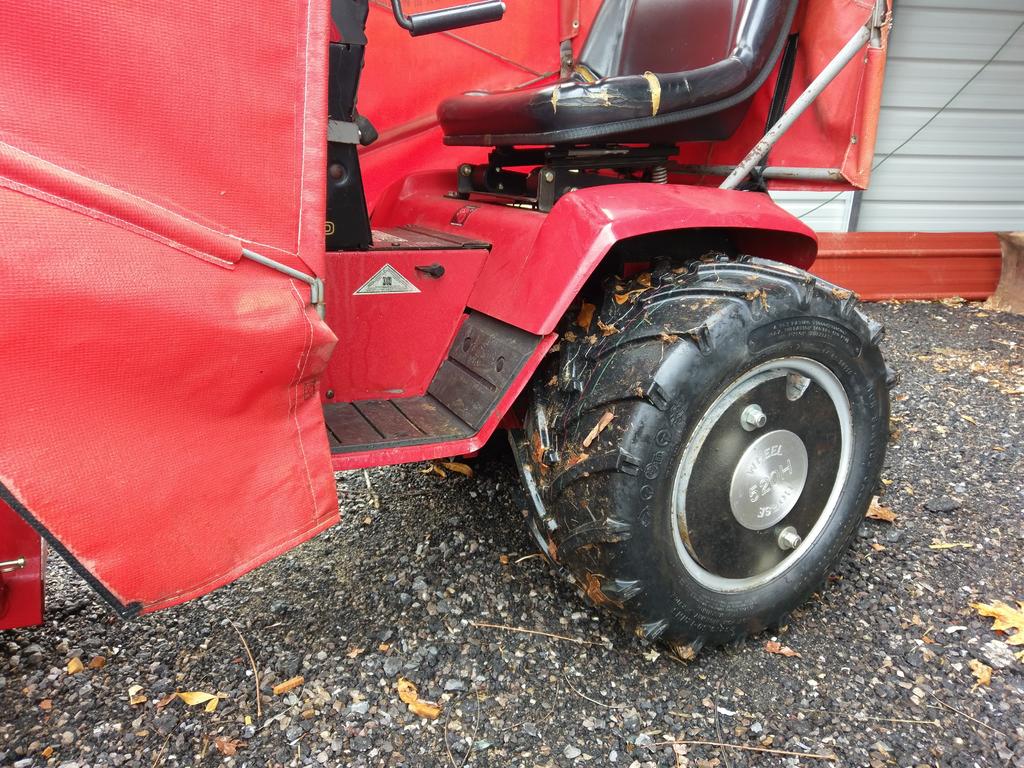

I was able to mount the doors and they fit well and open and close without binding so I guess I'm on the right track. I also did a test sit. Well it's a chore getting in and out. Clearly not designed for tall old fat guys. But I do fit and can't wait to get the skin on and give it a test drive.





[JERSEYHAWG / Glenn 4,497]

Looking forward to it Mike. Very nice condition.



Glenn

[BIGMIKE 78]

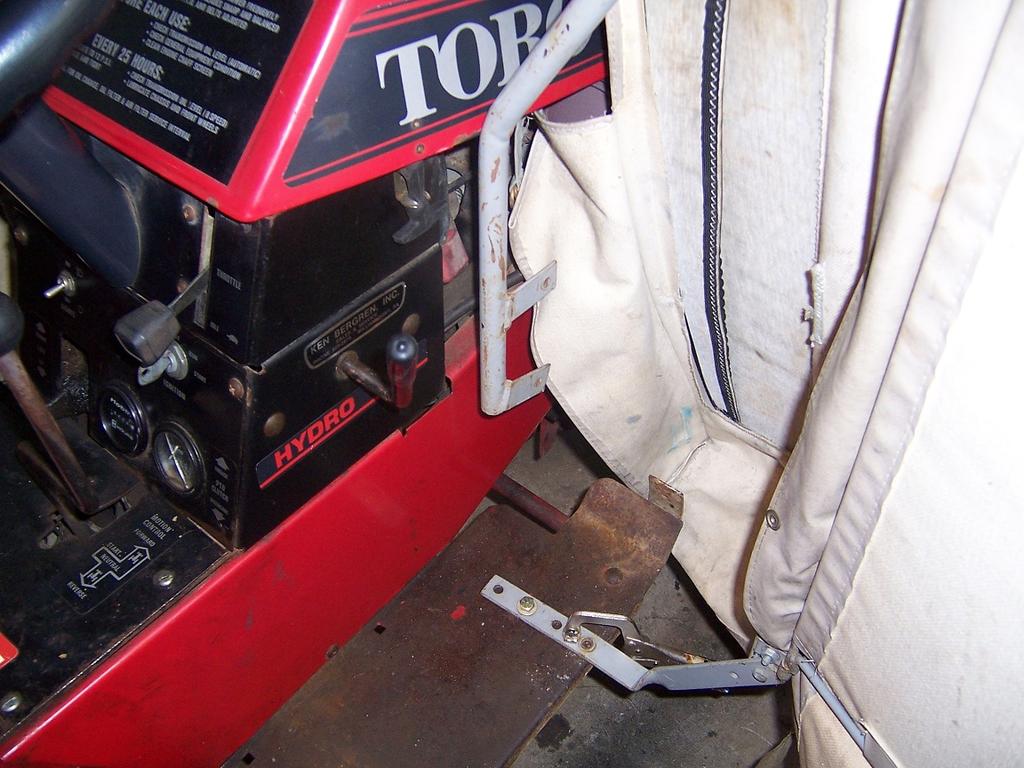

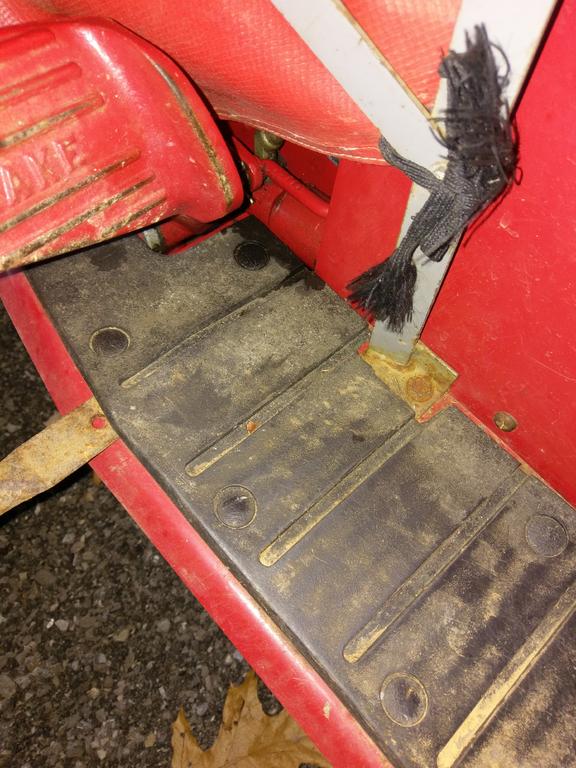

I am getting closer to a final solution to mounting this cab. I figured out how to use the framework that came with it without drilling any extra holes in the tractor or cutting/modifying the frame. After the first test drive I found that I need the whole thing raised up 2 or 3 inches. I sit tall in the saddle and the steel crossbars of the canvas top frame are painful on the scalp. Also I need to bring the bottoms of the front legs in as there is a huge gap at the foot boards. Lastly I need to attach the legs of the front panel frame to the foot boards.





Edited March 11, 2018 by BIGMIKE
