What have you done to your Wheel Horse today?

[Rob J. 1,942]

1 hour ago, ebinmaine said:

I puttered around here and there in the yard today. Messed with the wheels and brakes on Cinnamon Horse C160.







Took apart the top of a K341.







@gwest_ca can you please tell me what year and usage this might be?





Trina took her momma shopping and then commenced to her own puttering around here.





Did you get that brake pad glued in yet?

[Lagersolut 661]

Nice to have help hauling cornstalks

[ebinmaine 67,484]

1 hour ago, Rob J. said:

Did you get that brake pad glued in yet?

Yessir. It's glued in the pics.

[Pullstart 62,851]

@ohiofarmer your lift makes me wonder if a guy could make an engine hoist adapted to be a tractor lift…



Thanks to Kollin @The Freightliner Guy’s inquiry, Putt Putt (Kollin dubbed Pull Pull because if

t wouldn’t start) fired up tonight for the first time since about this time in 2020 when the @PeacemakerJack clan was here visiting!  It just needed a good spark plug.  I sure do miss that mohawk…





[Handy Don 12,217]

This afternoon I was able to button up the RM-366 deck for the third (charmed) time.

I'd already replaced the bent cross-shaft and re-re-balanced the blades, but found I had too much face-to-spur gear lash when the face gears were fully seated on the cross shaft. A bunch of fiddling and feeler-gauging showed I needed to move the face gears apart (i.e. toward the spurs) by about .06" to fully remove the gear lash. @ri702bill suggested leaving about .01" or so for grease and thermal expansion. (Note: the cross shaft not being locked in place, the .06" could be added to one end of the shaft.)

I was about to buy a ⅝" ID shim washer set from McMaster but thought "heck, give the Ace Hardware Hillman drawers a try", right?

Bingo. 50¢ and only needed a notch filed to clear the woodruff key. It's now between the back of one face gear and the step on the shaft that seats the gear.

Vastly reduced noise and vibration.

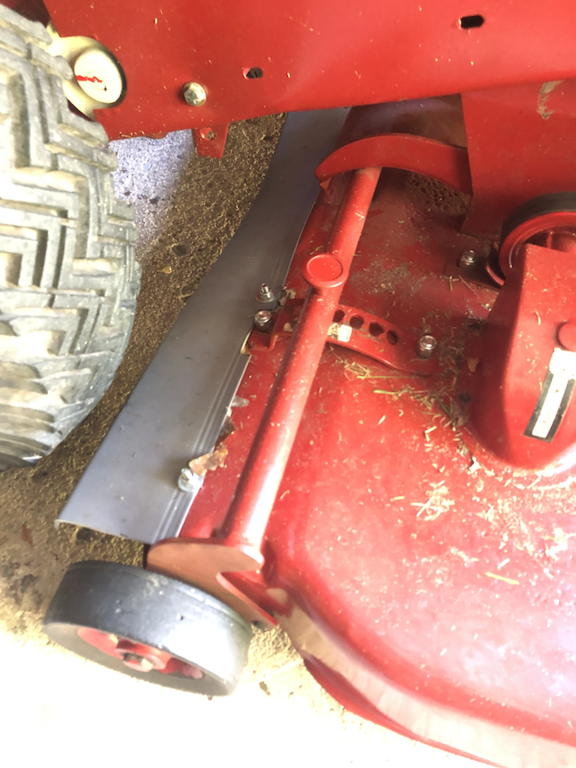

Also added a 4" cove base flap to the rear discharge using the four pre-existing holes on the rear skirt of the deck.

Get ready, grass, we're coming for you!

Edited September 28, 2022 by Handy Don

[TJ5208 1,824]

19 minutes ago, Pullstart said:

@ohiofarmer your lift makes me wonder if a guy could make an engine hoist adapted to be a tractor lift…



Thanks to Kollin @The Freightliner Guy’s inquiry, Putt Putt (Kollin dubbed Pull Pull because if

t wouldn’t start) fired up tonight for the first time since about this time in 2020 when the @PeacemakerJack clan was here visiting!  It just needed a good spark plug.  I sure do miss that mohawk…





Is that Leroy?

[Heatingman 971]

Think Im finally done painting the parts.





[Pullstart 62,851]

7 hours ago, TJ Salyers said:

Is that Leroy?

was

[Handy Don 12,217]

Hood is on and finally was able to mow the whole lawn for the first time with the 854 and RM-366.

It does a good job and with the plastic flap on the back of the deck, the rear of the tractor is staying pretty clean. Some cuttings fly out the front on the sparser sections.



Last week I realized the throttle pull wasn't holding at full operating revs. The black plastic handle was spinning on the shaft preventing the twist lock from full engaging. Drilled two small holes through the stem of the knob and the shaft and then super-glued cut-off finishing nails in the holes. Problem solved.

Edited September 28, 2022 by Handy Don

[Handy Don 12,217]

(double post deleted)

Edited September 28, 2022 by Handy Don

[Horse Newbie 7,069]

I received my Clevis hitch from @19richie66 today…

Over the winter I will restore/ paint my plow so I’ll be ready for spring planting season.

Thanks Richie !

[OldWorkHorse 3,045]

Welded up a caution light / rear LED light tower for my 314-8. Just need to paint it and finish connecting the wires tomorrow and be good to go. Should definitely help snowblowing / plowing.

[Horse Newbie 7,069]

4 minutes ago, OldWorkHorse said:

Welded up a caution light / rear LED light tower for my 314-8. Just need to paint it and finish connecting the wires tomorrow and be good to go. Should definitely help snowblowing / plowing.

Good gracious man !… are you planning to plow through a blizzard ?

[OldWorkHorse 3,045]

23 minutes ago, Horse Newbie said:

Good gracious man !… are you planning to plow through a blizzard ?

I mean in maine we get 1 snow storm and before can finish moving that snow another one is already dumping more on us. So yes pretty good odds I'll be in a blizzard and just want to be found and not lost

[Horse Newbie 7,069]

I’m just   @OldWorkHorse.

I know you fellows need all you can get up nawth…

Down these parts we are lucky to get 1-2 inches every couple of years.

I have a dozer blade and a mid mount scraper blade. They may never touch snow…

[OldWorkHorse 3,045]

6 minutes ago, Horse Newbie said:

I’m just   @OldWorkHorse.

Down these parts we are lucky to get 1-2 inches every couple of years.

I have a dozer blade and a mid mount scraper blade. They may never touch snow…

Lucky, 1 to 2 inches up here people are still out riding their motorcycles haha . Seriously tho there is a guy in my town who rides his year round snow storm or downpour .

[KrazeyOlDave 860]

Any vendors here that sell quality fuel pumps? Not interested in the China stuff,lol.

[rjg854 11,361]

Not a vendor here, but try I save tractors

[Handy Don 12,217]

2 minutes ago, KrazeyOlDave said:

Any vendors here that sell quality fuel pumps? Not interested in the China stuff,lol.

Consider calling A-to-Z for a solid used one along with the kit to rebuild it.

[ebinmaine 67,484]

22 minutes ago, KrazeyOlDave said:

Any vendors here that sell quality fuel pumps? Not interested in the China stuff,lol.



20 minutes ago, Handy Don said:

Consider calling A-to-Z for a solid used one along with the kit to rebuild it.

Seconded.



If your tractor is of the rear tank variety it would be worth a thought to change over to electric.

[KrazeyOlDave 860]

1 minute ago, ebinmaine said:



Seconded.



If your tractor is of the rear tank variety it would be worth a thought to change over to electric.

If I can’t get genuine Kohler, that’s exactly what I’ll do. I just wanted to support the vendors on here first.

[KrazeyOlDave 860]

25 minutes ago, Handy Don said:

Consider calling A-to-Z for a solid used one along with the kit to rebuild it.

I didn’t call them but I browsed their site, no luck

[ebinmaine 67,484]

1 minute ago, KrazeyOlDave said:

I didn’t call them but I browsed their site, no luck

I don't buy much from Lincoln because I have most of the parts I need already... But...

I don't ever use his website.



I use the old fashioned phone with voice method.

It's a bit odd, I know...



Lincoln is a good fella and VERY busy. Been times I've gotten things from him that weren't catalogued online yet.



[OldWorkHorse 3,045]

4 minutes ago, KrazeyOlDave said:

I didn’t call them but I browsed their site, no luck

I used A to Z a few times called them and they had what I needed for a good price shipped that day.

[Handy Don 12,217]

7 minutes ago, KrazeyOlDave said:

I didn’t call them but I browsed their site, no luck

Lincoln is so busy during spring/summer/fall that he cannot keep the website current--inventory goes in and out quickly.

I second the suggestion of calling, that's what I've done. It speeds things knowing exactly what you want, and following up with an email. For example, on the fuel pump: engine size? lever or vacuum? fuel inlet on flywheel side or PTO side? Any fittings needed?
