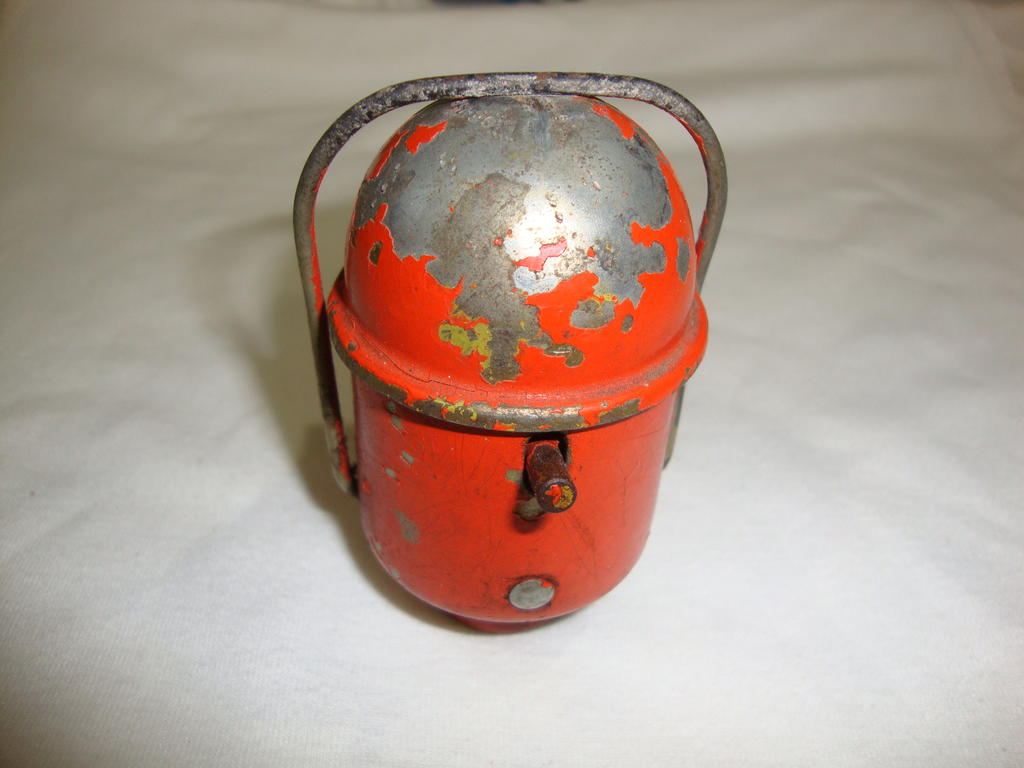

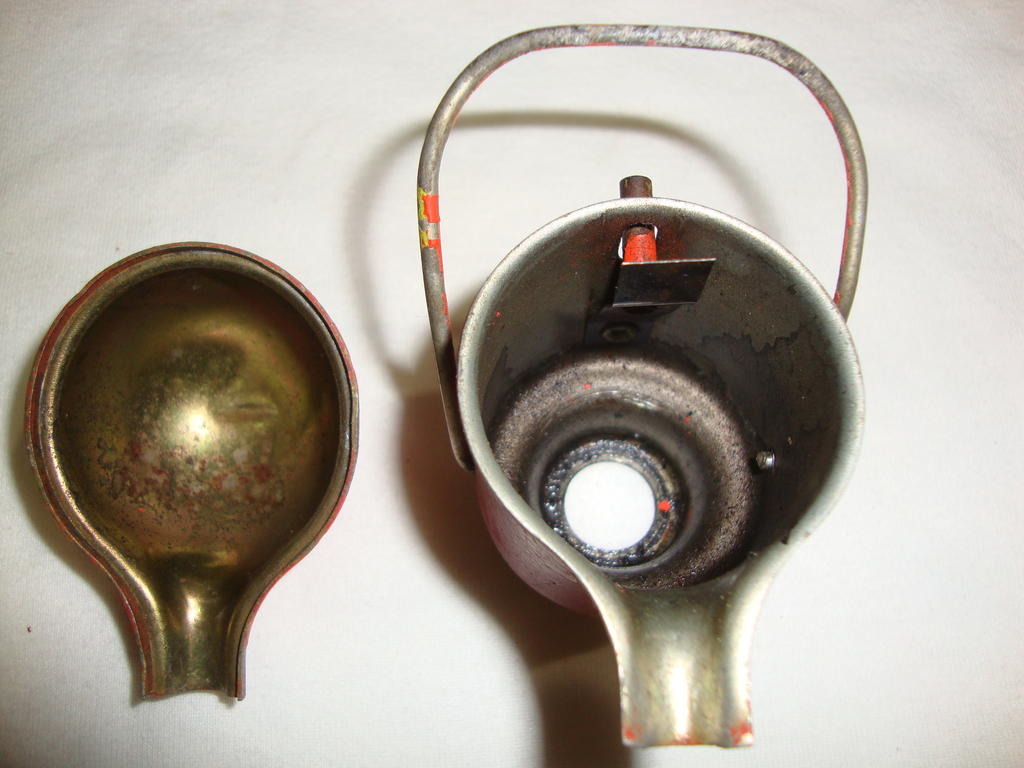

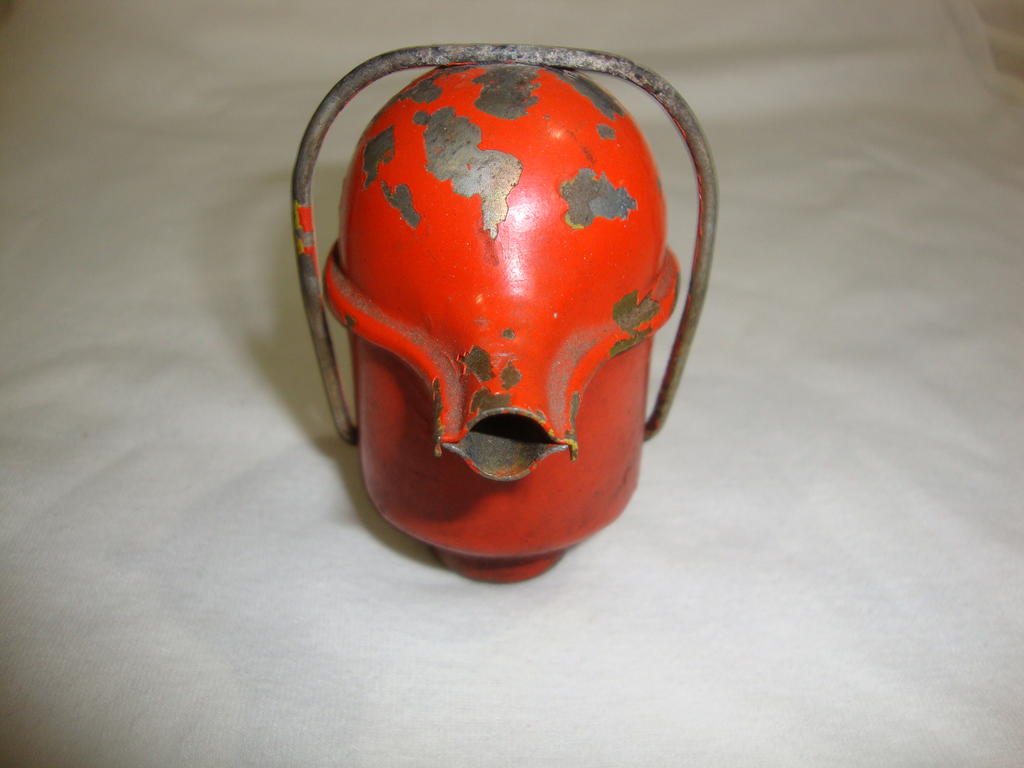

dclarke 4,046 #1 Posted December 10, 2017 (edited) A buddy was junking an old portable generator a while back and asked me if I wanted the motor/generator off of the engine. When I went to take it off I noticed this cover/kill switch over the spark plug, I've never seen one like this before so I took it off and put it in stock. Probably one more thing my kids will sell at the garage sale they're bound to have after I'm gone. lol...... Anybody see these back in the day? Edited December 10, 2017 by dclarke 6 Share this post Link to post Share on other sites
WHX?? 49,517 #2 Posted December 10, 2017 Never Denny...possibly some sort of (early) RFI device or perhaps a kill device???? Yah some day they are gonna say what is this for and why was the crazy old fool keeping it! 2 1 Share this post Link to post Share on other sites
953 nut 56,235 #3 Posted December 10, 2017 Looks like it would protect the plug during inclement weather. 2 Share this post Link to post Share on other sites
dclarke 4,046 #4 Posted December 10, 2017 1 minute ago, 953 nut said: Looks like it would protect the plug during inclement weather. That's what I thought, Richard. Pretty good idea they had. 1 Share this post Link to post Share on other sites
1995 520H+96+97 937 #5 Posted December 10, 2017 Looks like Case flambeau red paint. Share this post Link to post Share on other sites
diesel cowboy 263 #6 Posted December 10, 2017 Never seen one of those in person before only in the old Briggs microfiche at work. Its listed in the model 19 fiche as a shield assembly, spark plug part number 89742. Probably the same for most of the 8hp and up engines from that vintage 4 Share this post Link to post Share on other sites
AMC RULES 37,141 #7 Posted December 10, 2017 I was going to ask who manufactured the engine it came off of. Share this post Link to post Share on other sites
dclarke 4,046 #8 Posted December 10, 2017 6 hours ago, diesel cowboy said: Never seen one of those in person before only in the old Briggs microfiche at work. Its listed in the model 19 fiche as a shield assembly, spark plug part number 89742. Probably the same for most of the 8hp and up engines from that vintage 1 hour ago, AMC RULES said: I was going to ask who manufactured the engine it came off of. I's been a while but I think it was a Briggs engine. Thanks for the info, Stewart. 1 Share this post Link to post Share on other sites
Sarge 3,464 #9 Posted December 10, 2017 Yep - certain old Briggs engines used those - I have only ever seen one at an engine show in one piece , great find . To think they would go to the trouble to make that from stamped tin in that detail shows the workmanship of that era - so lost on today's world of plastic and disposable junk . Sarge 3 Share this post Link to post Share on other sites
tunahead72 2,457 #10 Posted December 11, 2017 On 12/9/2017 at 8:38 PM, dclarke said: My eyes may be playing tricks on me, but is there something written/stamped into the top of that cover piece? 1 Share this post Link to post Share on other sites

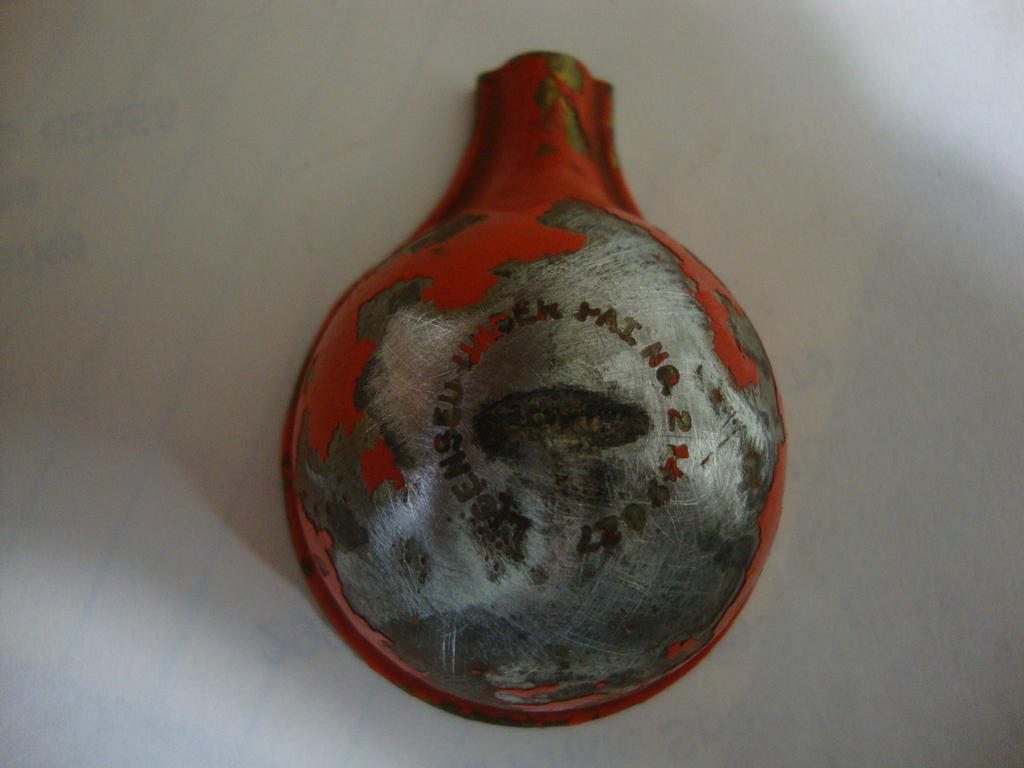

dclarke 4,046 #11 Posted December 12, 2017 7 hours ago, tunahead72 said: My eyes may be playing tricks on me, but is there something written/stamped into the top of that cover piece? Ed, you've got better eyes than I do, I sure didn't see any writing until I went and looked again. It's hard to read but I think it says "Licensed under Pat. No. 2149027" 1 Share this post Link to post Share on other sites
tunahead72 2,457 #12 Posted December 12, 2017 BINGO! http://pdfpiw.uspto.gov/.piw?Docid=02149027&homeurl=http%3A%2F%2Fpatft.uspto.gov%2Fnetacgi%2Fnph-Parser%3FSect1%3DPTO1%26Sect2%3DHITOFF%26d%3DPALL%26p%3D1%26u%3D%252Fnetahtml%252FPTO%252Fsrchnum.htm%26r%3D1%26f%3DG%26l%3D50%26s1%3D2149027.PN.%26OS%3DPN%2F2149027%26RS%3DPN%2F2149027&PageNum=&Rtype=&SectionNum=&idkey=NONE&Input=View+first+page And here (there's a reference in this document to another patent filed in 1972 by Briggs & Stratton): https://www.google.com/patents/US2149027?dq=2149027&hl=en&sa=X&ved=0ahUKEwjFqNia24TYAhVHQyYKHfRnC3QQ6AEIJzAA 2 1 Share this post Link to post Share on other sites
