Slot hitch.

[Stormin 9,981]

  Slot hitches are a bit hard to come by this side of the pond. I have one, but a couple of others would be handy. So Chris Sutton and I thought it would be a good idea to make two each, while I was staying with him on my annual trip down south. Last year we knocked up a couple of belly graders/

  I decided to make a jig for when welding parts up. At the back of the bench, a piece of cast iron machined channel had been residing for years. Just the right size to fit inside the original slot hitch. A piece of plate and some bits of pipe and I had this. Apologies for the fuzzy photo.







     The crap welding is due to trying out a gasless mig welder for the first time.



    I told Chris I would get the steel and take it down with me. This was when I started to get carried away a bit. I decided to make a prototype.

   First I made some bosses for the hitch pin to fit through. Several pieces of cardboard cut outs were made to get the shape and angle of the sides, then I cut out some plate for the sides. Next thing was to get the bend on the side plates. I don't have a hydraulic press but I do have a pipe bender. With a 3/4" former mounted vertically instead of horizontal, with scribe lines on the centre and a line scribed on the plates where I wanted them bent, they turned out grand. I didn't take photo's of this, but I will while making the next ones.

  Plates cut for top and bottom of the slot, with a scrap slitting disc each side of the jig to give clearance inside the slot, things were tack welded. The assembly was removed from the jig, welded up and the result is below.







  I test fitted it to one of my horses and was pleased with the result. I then got carried away again and prime painted it. The eagle eyed of you will notice there is no lift arm.



  So flush with success I proceeded to set to on the other bits for the next three.

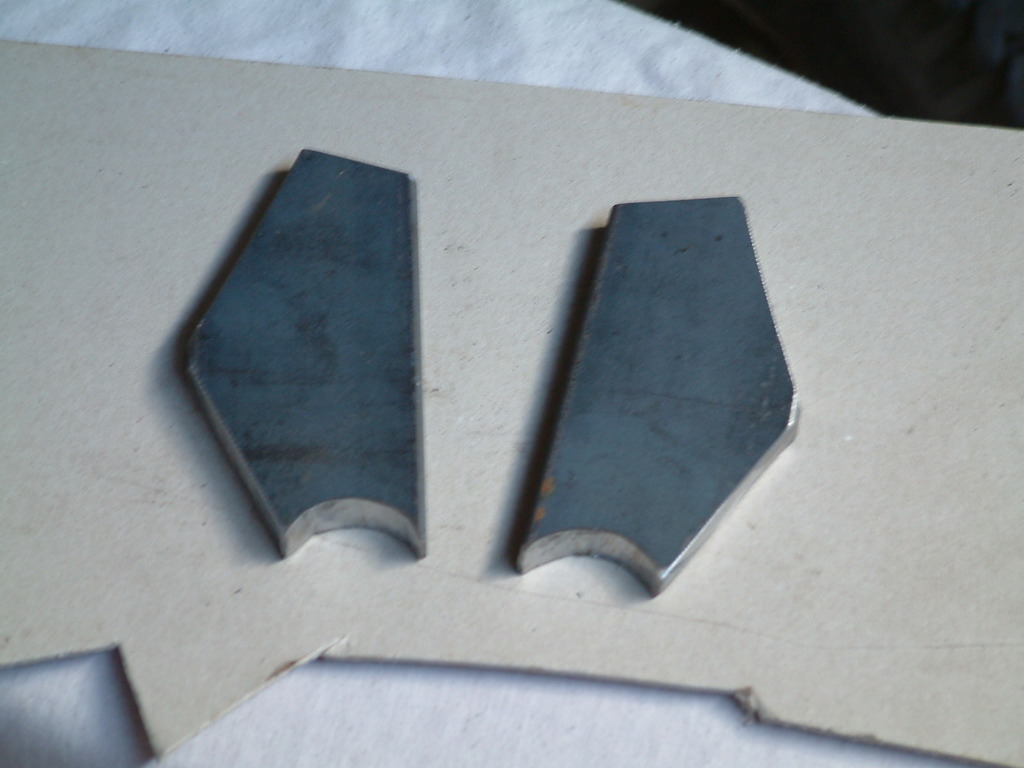

 Photo of two of side plates and two top and bottom of slot plates.



Plates roughed out to fit bosses.



40mm black bar machined down and drilled out ready to make two bosses each.



 Plates finished off.
