Guess What ?? Wheel Horse Parts You Don't See Very Often!

[Lane Ranger 11,052]

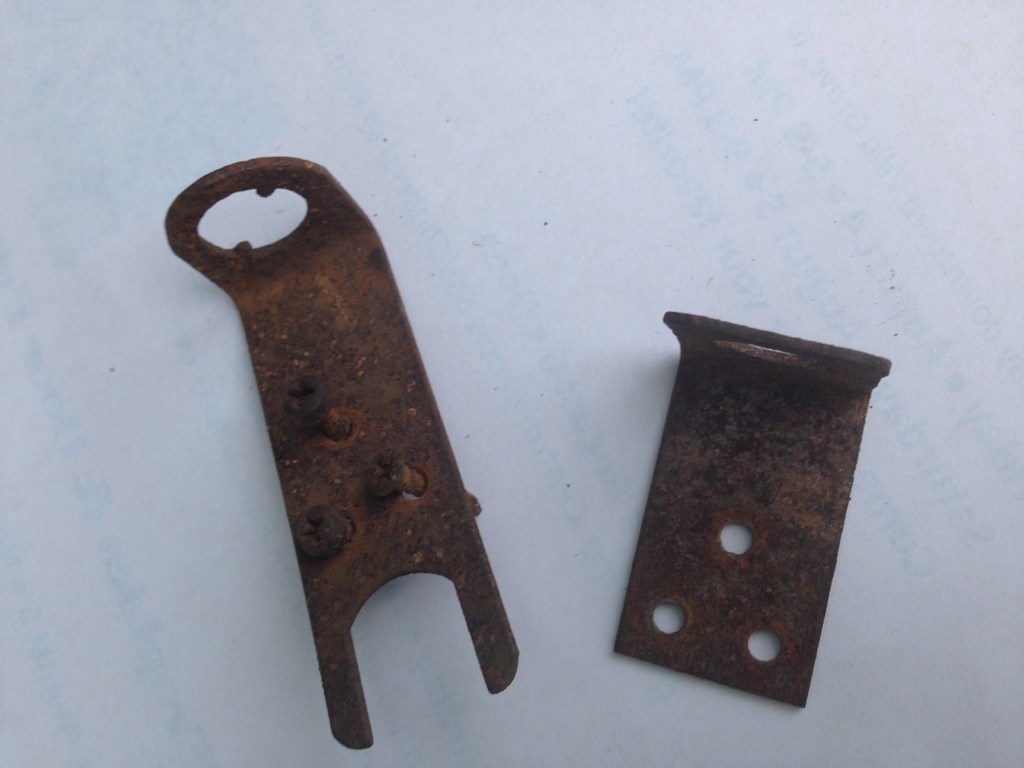

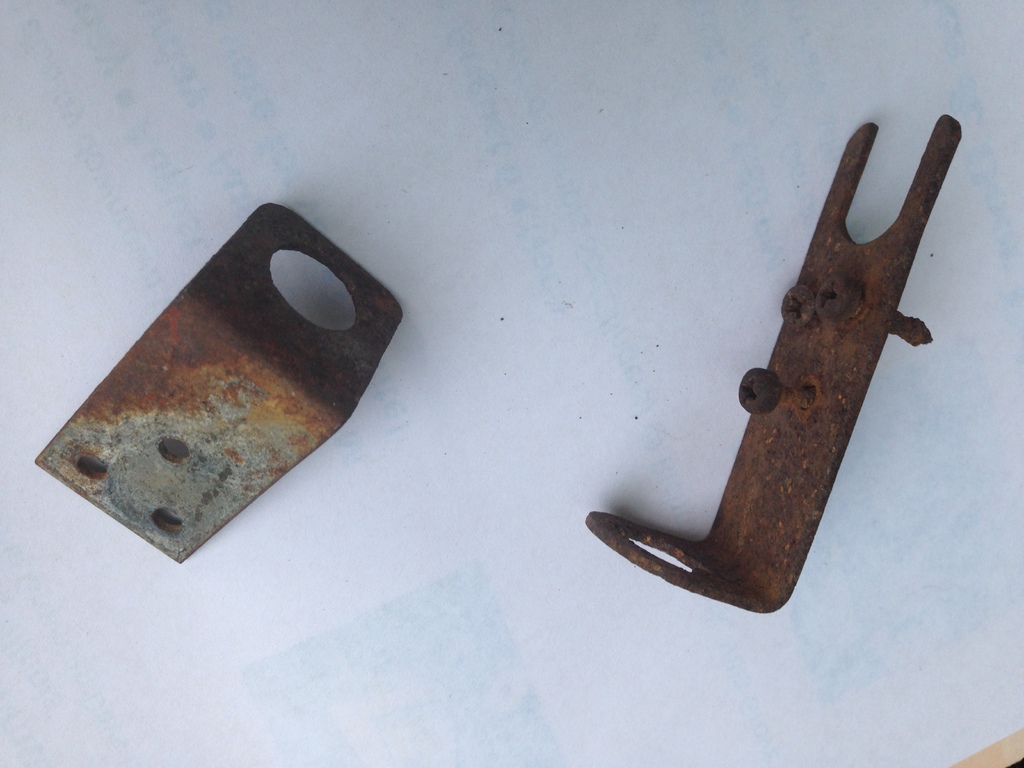

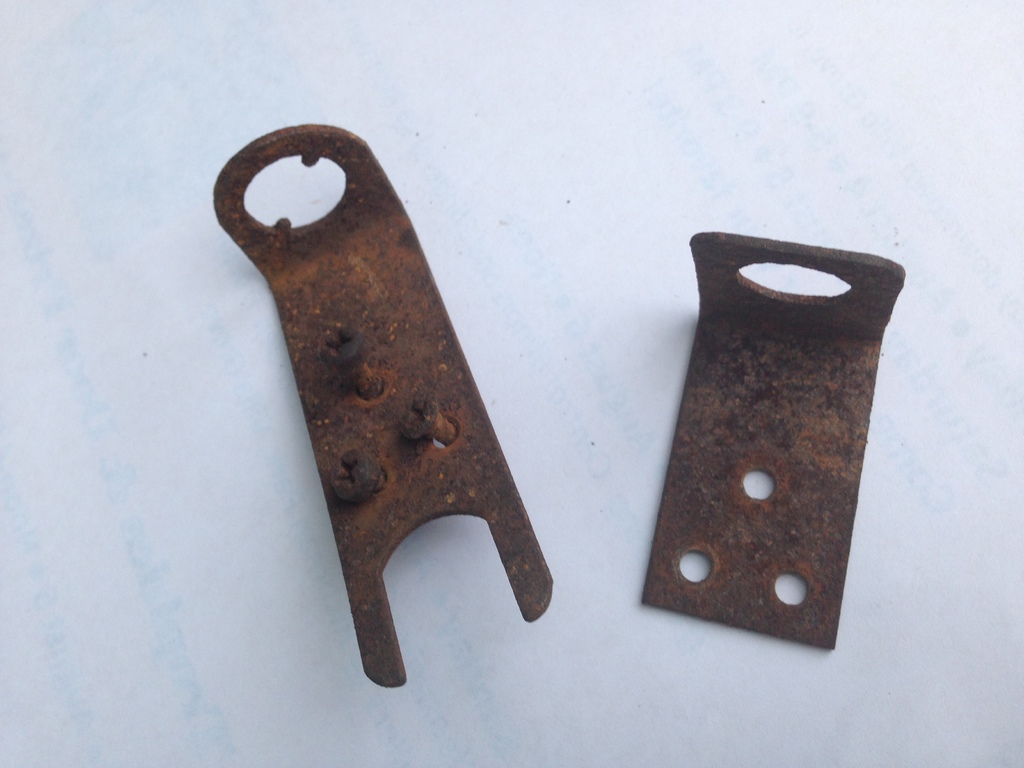

Here are some pictures of two parts for a Wheel Horse you do not see very often !



These were on a pre- 1965 Wheel Horse.



I will post the pictures and let members  review and see if they know what these were used by Wheel Horse for on one of their tractors.





[Chris G 3,296]

Maybe some sort of Mount for a cigarette lighter?

[TDF5G 2,069]

I don't know much about the older models but I'm gonna guess it's a mount for a switch maybe, to add electric start?

[Ed Kennell 39,410]



[ebinmaine 69,203]

[JimmyJam 542]

Odd mounting piece! Cigar lighters didn't come until later and they were on the dash. I have seen old headlight "step-on" switches or starter switches mounted, but this is different!

Looks like one mounting bracket is mounted to the other. the 1 bracket has tabs as to accept some sort of twist and turn, like a light socket? Reverse light? What is that diameter? What is odd is the other end of the bracket: a half-round yoke????

[Lane Ranger 11,052]

Getting close Jimmy Jam !



[JPWH 6,151]

Maybe some sort of idler ? shaft bracket.

[AMC RULES 37,143]

  Not quite like one I've ever seen before, but...

my best guess is gonna be the bracket that mounts the switch...

for the Suburban's accessory, HL-5 light kit.

[SylvanLakeWH 26,273]

[WHX?? 49,581]

I'm stumped Lane....but always up for some schooling Nice patina tho!

Edited July 13, 2017 by WHX11

[ACman 7,628]

Umbrella mount   ?

[JERSEYHAWG / Glenn 4,498]

To hold a choke ?





Glenn

[MalMac 1,332]

Headlight switch bracket?

[TDF5G 2,069]

14 hours ago, AMC RULES said:

  Not quite like one I've ever seen before, but...

my best guess is gonna be the bracket that mounts the switch...

for the Suburban's accessory, HL-5 light kit.

This would be my next guess.

2 hours ago, MalMac said:

Headlight switch bracket?

Edited July 13, 2017 by TDF5G

[Lane Ranger 11,052]

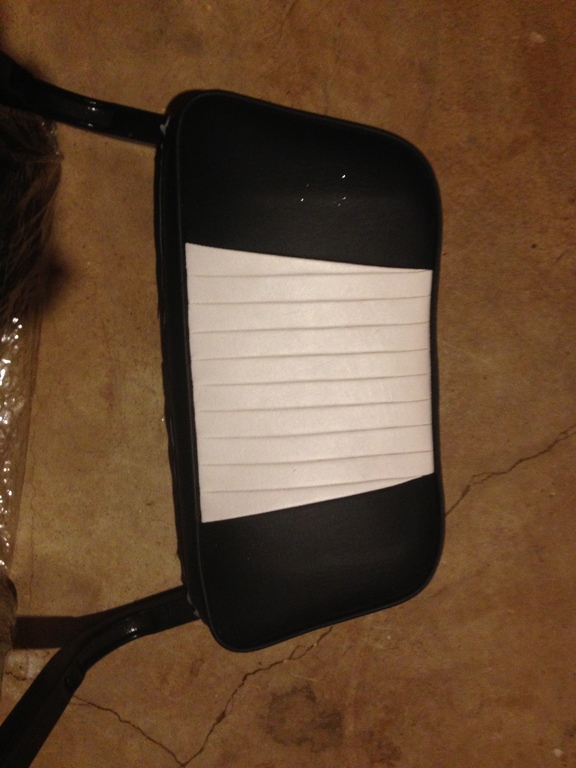

Big Hint:

[ACman 7,628]

Arm rest brackets ?

Edited July 13, 2017 by ACman

[Chris G 3,296]

OK second guess. Maybe a seat switch or safety switch of sorts for a 953/1054? Or possibly a original rear light bracket for 953/1054?

Edited July 13, 2017 by Chris G

["D"- Man 827]

26 minutes ago, Chris G said:

Or possibly a original rear light bracket for 953/1054?

It doesn't look like an original taillight bracket that came on the 953-1054's which were welded on.

[WHX?? 49,581]

Ok here's a long shot ...flag holders that attached to the seat back....

[19richie66 17,537]

[maxed500 10]

antenna bracket

[Lane Ranger 11,052]

HERE IS THE ANSWER FOLKS:





These two brackets were used on the 953 bottom seat and were positioned to hold the seat bottom in place.  I never saw one on a 1054 so maybe they learned the bottom seat did not move very much.   Three wood screws on each bracket went into the plywood  seat bottom material.



I do not have a picture with them on the original seat bottom I bought several years ago as it was all deteriorated.



Edited July 13, 2017 by Lane Ranger

[AMC RULES 37,143]

 The anticipation was killing me.

[JimmyJam 542]

2 hours ago, AMC RULES said:

 The anticipation was killing me.

Me too!!!!
